UltraScale+ MPSoC based 8-channel 1 MSPS 20-bit electrometer series

8-channel 1 MSPS 20-bit floating bipolar electrometer with XCZU11EG-L2FFVC1760E Zynq UltraScale+ MPSoC


  • Overview
  • Features
  • Technical specifications
  • Ordering options
  • Documentation
  • Software/Firmware

Overview


AMC-PICO-8-US+

Embedded Web-Server with Oscilloscope

The AMC-PICO-8-US+ is a 8-channel 1 MSPS 20-bit electrometer that combines the functionality of the DAMC-FMC2ZUP carrier board with the performance of the FMC-PICO-1M4 picaommeter boards on a state-of-the-art platform.

The device runs an embedded Web-Server with an Oscilloscope GUI that presents all typical oscilloscope functions as tracing, triggering modes, mathematical operations, spectra analysis (FFT) and data saving.

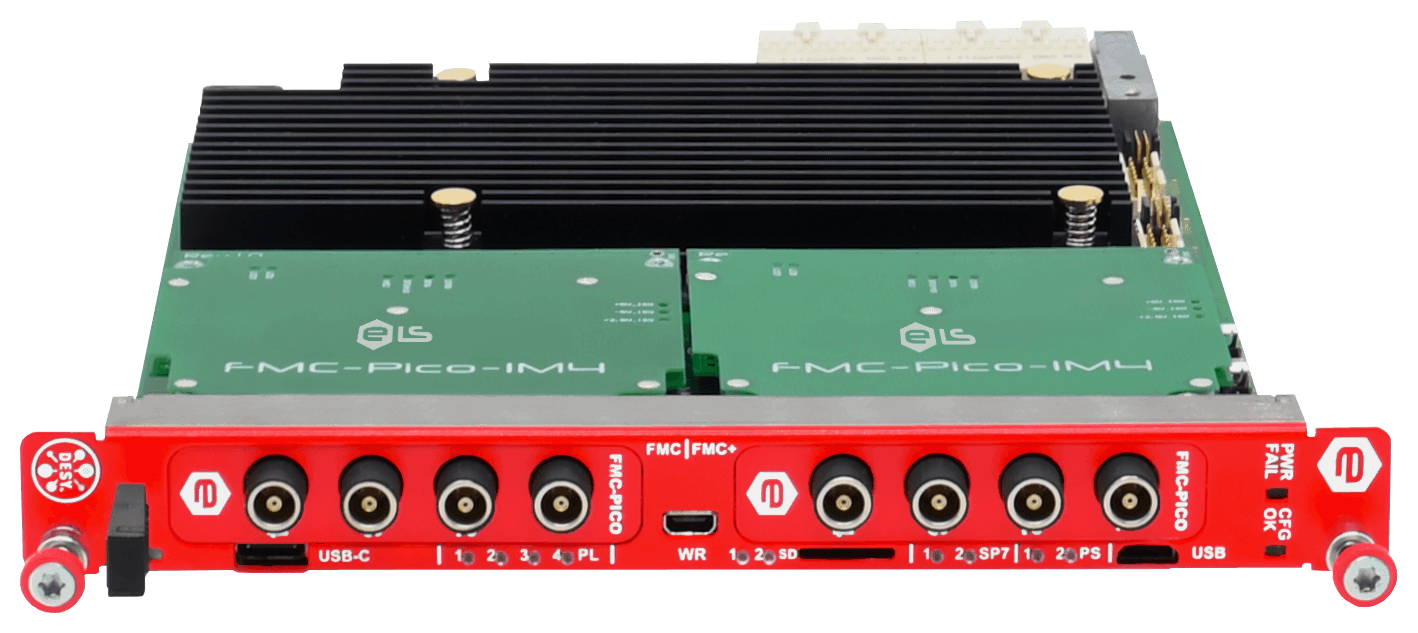

AMC-PICO-8-US+
8-channel bipolar picoammeter AMC board in MTCA.4 format based on Zynq UltraScale+ platform!

The AMC-PICO-8-US+ plus is composed by a DAMC-FMC2ZUP board housing two FMC-PICO-1M4 mezzanine cards.

The analog front-end is made of a specially designed transimpedance input stage for current sensing combined with analog signal conditioning and filtering stages making use of state-of-the-art electronics.

The sampling of the four channels is performed simultaneously at a maximum rate of 1 MSPS with a 20-bit resolution.

The Analog to Digital Converters (ADCs) are based on a SAR (Successive Approximation Register) architecture that guarantees low delay for fast and feedback applications.

Each channel has two full-scale measuring ranges and the current source can be floating up to ±300 V respect to the chassis ground. The floating capability of the inputs is perfectly suitable for applications where the detector or current source needs to be biased.

AMC-PICO-8-US+

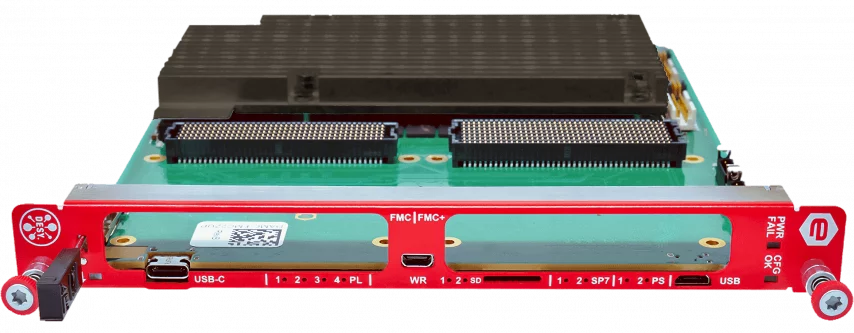

Based on the DAMC-FMC2ZUP carrier board.

The AMC-PICO-8-US+ is the evolution of the successful AMC-PICO-8 board by CAEN ELS and it is based on the DAMC-FMC2ZUP carrier.

The DAMC-FMC2ZUP board is equipped with a Zynq UltraScale+ XCZU11EG-L2FFVC1760E by Xilinx and allows having improved performance in terms of computational power and functionality.

AMC-PICO-8-US+
All oscilloscope functionality on-board with the Web-Server GUI!

All oscilloscope functions are running on-board and are directly accessible using the Embedded Web-Server with the oscilloscope GUI as:

  • channel traces;
  • auto-scaling;
  • triggering schemes;
  • statistics;
  • spectrum analysis (FFT).

A specific tab for Beam Position Monitoring is also provided in order to make the interfacing the quadrature monitoring systems straightforward.

Features

  • 8 current-input channels
  • 1 MSPS @ 20-bit per channel
  • Dual Indipendent Bipolar Floating Ranges
  • Different versions for different input scale ranges and bandwidths
  • Double-width AMC board
  • Based on the XCZU11EG-L2FFVC1760E Zynq UltraScale+ MPSoC
  • Embedded Web-Server
  • Embedded Oscilloscope with mathematical functions, statistics, auto-scaling and multiple triggering schemes
  • USB C-Type connector at the front panel that provides DisplayPort signals and USB 3.0 interface
  • SD-Card slot accessible via front panel
  • Flexible clocking

Technical specifications

  • AMCPICOUSC1X
  • AMCPICOUSC3X
  • AMCPICOUSC4X
  • AMCPICOUSC5X
  • AMCPICOUSC6X

Model

AMCPICOUSC1X

AMCPICOUSC3X

AMCPICOUSC4X

AMCPICOUSC5X

AMCPICOUSC6X

Input channels

8

8

8

8

8

Current Input Full-Scale Ranges [RNG0, RNG1]

±110 uA, ±3 uA

Current Input Full-Scale Ranges [RNG0, RNG1]

±110 uA, ±3 uA

±10 mA, ±500 uA

±1 mA, ±20 uA

±10 mA, ±2.5 uA

±1 mA, ±1 uA

Bandwidth -3 dB [RNG0, RNG1]

35 kHz, 35 kHz

Bandwidth -3 dB [RNG0, RNG1]

35 kHz, 35 kHz

300 kHz, 300 kHz

200 kHz, 170 kHz

300 kHz, 20 kHz

25 kHz, 25 kHz

Maximum Sampling Frequency

1 MSPS (per channel)

1 MSPS (per channel)

1 MSPS (per channel)

1 MSPS (per channel)

1 MSPS (per channel)

Front End Isolation

± 300 V

± 300 V

± 300 V

± 300 V

± 300 V

Board Size

Double-Width - Mid-Size

Double-Width - Mid-Size

Double-Width - Mid-Size

Double-Width - Mid-Size

Double-Width - Mid-Size

On-Board FPGA

XCZU11EG-L2FFVC1760E Zynq UltraScale+ MPSoC

XCZU11EG-L2FFVC1760E Zynq UltraScale+ MPSoC

XCZU11EG-L2FFVC1760E Zynq UltraScale+ MPSoC

XCZU11EG-L2FFVC1760E Zynq UltraScale+ MPSoC

XCZU11EG-L2FFVC1760E Zynq UltraScale+ MPSoC

Input Connectors

Triaxial - LEMO 00.650 Series (EPL.00.650)

Triaxial - LEMO 00.650 Series (EPL.00.650)

Triaxial - LEMO 00.650 Series (EPL.00.650)

Triaxial - LEMO 00.650 Series (EPL.00.650)

Triaxial - LEMO 00.650 Series (EPL.00.650)

Additional Features

USB C-Type connector at the front panel that provides DisplayPort signals and USB 3.0 interface
Zone3 Class D1.1 compliance with full interlock support
SD-Card slot

USB C-Type connector at the front panel that provides DisplayPort signals and USB 3.0 interface
Zone3 Class D1.1 compliance with full interlock support
SD-Card slot

USB C-Type connector at the front panel that provides DisplayPort signals and USB 3.0 interface
Zone3 Class D1.1 compliance with full interlock support
SD-Card slot

USB C-Type connector at the front panel that provides DisplayPort signals and USB 3.0 interface
Zone3 Class D1.1 compliance with full interlock support
SD-Card slot

USB C-Type connector at the front panel that provides DisplayPort signals and USB 3.0 interface
Zone3 Class D1.1 compliance with full interlock support
SD-Card slot

Input channels

8

8

8

8

8

Current Input Full-Scale Ranges [RNG0, RNG1]

±10 mA, ±500 uA

Current Input Full-Scale Ranges [RNG0, RNG1]

±110 uA, ±3 uA

±10 mA, ±500 uA

±1 mA, ±20 uA

±10 mA, ±2.5 uA

±1 mA, ±1 uA

Bandwidth -3 dB [RNG0, RNG1]

300 kHz, 300 kHz

Bandwidth -3 dB [RNG0, RNG1]

35 kHz, 35 kHz

300 kHz, 300 kHz

200 kHz, 170 kHz

300 kHz, 20 kHz

25 kHz, 25 kHz

Maximum Sampling Frequency

1 MSPS (per channel)

1 MSPS (per channel)

1 MSPS (per channel)

1 MSPS (per channel)

1 MSPS (per channel)

Front End Isolation

± 300 V

± 300 V

± 300 V

± 300 V

± 300 V

Board Size

Double-Width - Mid-Size

Double-Width - Mid-Size

Double-Width - Mid-Size

Double-Width - Mid-Size

Double-Width - Mid-Size

On-Board FPGA

XCZU11EG-L2FFVC1760E Zynq UltraScale+ MPSoC

XCZU11EG-L2FFVC1760E Zynq UltraScale+ MPSoC

XCZU11EG-L2FFVC1760E Zynq UltraScale+ MPSoC

XCZU11EG-L2FFVC1760E Zynq UltraScale+ MPSoC

XCZU11EG-L2FFVC1760E Zynq UltraScale+ MPSoC

Input Connectors

Triaxial - LEMO 00.650 Series (EPL.00.650)

Triaxial - LEMO 00.650 Series (EPL.00.650)

Triaxial - LEMO 00.650 Series (EPL.00.650)

Triaxial - LEMO 00.650 Series (EPL.00.650)

Triaxial - LEMO 00.650 Series (EPL.00.650)

Additional Features

USB C-Type connector at the front panel that provides DisplayPort signals and USB 3.0 interface
Zone3 Class D1.1 compliance with full interlock support
SD-Card slot

USB C-Type connector at the front panel that provides DisplayPort signals and USB 3.0 interface
Zone3 Class D1.1 compliance with full interlock support
SD-Card slot

USB C-Type connector at the front panel that provides DisplayPort signals and USB 3.0 interface
Zone3 Class D1.1 compliance with full interlock support
SD-Card slot

USB C-Type connector at the front panel that provides DisplayPort signals and USB 3.0 interface
Zone3 Class D1.1 compliance with full interlock support
SD-Card slot

USB C-Type connector at the front panel that provides DisplayPort signals and USB 3.0 interface
Zone3 Class D1.1 compliance with full interlock support
SD-Card slot

Input channels

8

8

8

8

8

Current Input Full-Scale Ranges [RNG0, RNG1]

±1 mA, ±20 uA

Current Input Full-Scale Ranges [RNG0, RNG1]

±110 uA, ±3 uA

±10 mA, ±500 uA

±1 mA, ±20 uA

±10 mA, ±2.5 uA

±1 mA, ±1 uA

Bandwidth -3 dB [RNG0, RNG1]

200 kHz, 170 kHz

Bandwidth -3 dB [RNG0, RNG1]

35 kHz, 35 kHz

300 kHz, 300 kHz

200 kHz, 170 kHz

300 kHz, 20 kHz

25 kHz, 25 kHz

Maximum Sampling Frequency

1 MSPS (per channel)

1 MSPS (per channel)

1 MSPS (per channel)

1 MSPS (per channel)

1 MSPS (per channel)

Front End Isolation

± 300 V

± 300 V

± 300 V

± 300 V

± 300 V

Board Size

Double-Width - Mid-Size

Double-Width - Mid-Size

Double-Width - Mid-Size

Double-Width - Mid-Size

Double-Width - Mid-Size

On-Board FPGA

XCZU11EG-L2FFVC1760E Zynq UltraScale+ MPSoC

XCZU11EG-L2FFVC1760E Zynq UltraScale+ MPSoC

XCZU11EG-L2FFVC1760E Zynq UltraScale+ MPSoC

XCZU11EG-L2FFVC1760E Zynq UltraScale+ MPSoC

XCZU11EG-L2FFVC1760E Zynq UltraScale+ MPSoC

Input Connectors

Triaxial - LEMO 00.650 Series (EPL.00.650)

Triaxial - LEMO 00.650 Series (EPL.00.650)

Triaxial - LEMO 00.650 Series (EPL.00.650)

Triaxial - LEMO 00.650 Series (EPL.00.650)

Triaxial - LEMO 00.650 Series (EPL.00.650)

Additional Features

USB C-Type connector at the front panel that provides DisplayPort signals and USB 3.0 interface
Zone3 Class D1.1 compliance with full interlock support
SD-Card slot

USB C-Type connector at the front panel that provides DisplayPort signals and USB 3.0 interface
Zone3 Class D1.1 compliance with full interlock support
SD-Card slot

USB C-Type connector at the front panel that provides DisplayPort signals and USB 3.0 interface
Zone3 Class D1.1 compliance with full interlock support
SD-Card slot

USB C-Type connector at the front panel that provides DisplayPort signals and USB 3.0 interface
Zone3 Class D1.1 compliance with full interlock support
SD-Card slot

USB C-Type connector at the front panel that provides DisplayPort signals and USB 3.0 interface
Zone3 Class D1.1 compliance with full interlock support
SD-Card slot

Input channels

8

8

8

8

8

Current Input Full-Scale Ranges [RNG0, RNG1]

±10 mA, ±2.5 uA

Current Input Full-Scale Ranges [RNG0, RNG1]

±110 uA, ±3 uA

±10 mA, ±500 uA

±1 mA, ±20 uA

±10 mA, ±2.5 uA

±1 mA, ±1 uA

Bandwidth -3 dB [RNG0, RNG1]

300 kHz, 20 kHz

Bandwidth -3 dB [RNG0, RNG1]

35 kHz, 35 kHz

300 kHz, 300 kHz

200 kHz, 170 kHz

300 kHz, 20 kHz

25 kHz, 25 kHz

Maximum Sampling Frequency

1 MSPS (per channel)

1 MSPS (per channel)

1 MSPS (per channel)

1 MSPS (per channel)

1 MSPS (per channel)

Front End Isolation

± 300 V

± 300 V

± 300 V

± 300 V

± 300 V

Board Size

Double-Width - Mid-Size

Double-Width - Mid-Size

Double-Width - Mid-Size

Double-Width - Mid-Size

Double-Width - Mid-Size

On-Board FPGA

XCZU11EG-L2FFVC1760E Zynq UltraScale+ MPSoC

XCZU11EG-L2FFVC1760E Zynq UltraScale+ MPSoC

XCZU11EG-L2FFVC1760E Zynq UltraScale+ MPSoC

XCZU11EG-L2FFVC1760E Zynq UltraScale+ MPSoC

XCZU11EG-L2FFVC1760E Zynq UltraScale+ MPSoC

Input Connectors

Triaxial - LEMO 00.650 Series (EPL.00.650)

Triaxial - LEMO 00.650 Series (EPL.00.650)

Triaxial - LEMO 00.650 Series (EPL.00.650)

Triaxial - LEMO 00.650 Series (EPL.00.650)

Triaxial - LEMO 00.650 Series (EPL.00.650)

Additional Features

USB C-Type connector at the front panel that provides DisplayPort signals and USB 3.0 interface
Zone3 Class D1.1 compliance with full interlock support
SD-Card slot

USB C-Type connector at the front panel that provides DisplayPort signals and USB 3.0 interface
Zone3 Class D1.1 compliance with full interlock support
SD-Card slot

USB C-Type connector at the front panel that provides DisplayPort signals and USB 3.0 interface
Zone3 Class D1.1 compliance with full interlock support
SD-Card slot

USB C-Type connector at the front panel that provides DisplayPort signals and USB 3.0 interface
Zone3 Class D1.1 compliance with full interlock support
SD-Card slot

USB C-Type connector at the front panel that provides DisplayPort signals and USB 3.0 interface
Zone3 Class D1.1 compliance with full interlock support
SD-Card slot

Input channels

8

8

8

8

8

Current Input Full-Scale Ranges [RNG0, RNG1]

±1 mA, ±1 uA

Current Input Full-Scale Ranges [RNG0, RNG1]

±110 uA, ±3 uA

±10 mA, ±500 uA

±1 mA, ±20 uA

±10 mA, ±2.5 uA

±1 mA, ±1 uA

Bandwidth -3 dB [RNG0, RNG1]

25 kHz, 25 kHz

Bandwidth -3 dB [RNG0, RNG1]

35 kHz, 35 kHz

300 kHz, 300 kHz

200 kHz, 170 kHz

300 kHz, 20 kHz

25 kHz, 25 kHz

Maximum Sampling Frequency

1 MSPS (per channel)

1 MSPS (per channel)

1 MSPS (per channel)

1 MSPS (per channel)

1 MSPS (per channel)

Front End Isolation

± 300 V

± 300 V

± 300 V

± 300 V

± 300 V

Board Size

Double-Width - Mid-Size

Double-Width - Mid-Size

Double-Width - Mid-Size

Double-Width - Mid-Size

Double-Width - Mid-Size

On-Board FPGA

XCZU11EG-L2FFVC1760E Zynq UltraScale+ MPSoC

XCZU11EG-L2FFVC1760E Zynq UltraScale+ MPSoC

XCZU11EG-L2FFVC1760E Zynq UltraScale+ MPSoC

XCZU11EG-L2FFVC1760E Zynq UltraScale+ MPSoC

XCZU11EG-L2FFVC1760E Zynq UltraScale+ MPSoC

Input Connectors

Triaxial - LEMO 00.650 Series (EPL.00.650)

Triaxial - LEMO 00.650 Series (EPL.00.650)

Triaxial - LEMO 00.650 Series (EPL.00.650)

Triaxial - LEMO 00.650 Series (EPL.00.650)

Triaxial - LEMO 00.650 Series (EPL.00.650)

Additional Features

USB C-Type connector at the front panel that provides DisplayPort signals and USB 3.0 interface
Zone3 Class D1.1 compliance with full interlock support
SD-Card slot

USB C-Type connector at the front panel that provides DisplayPort signals and USB 3.0 interface
Zone3 Class D1.1 compliance with full interlock support
SD-Card slot

USB C-Type connector at the front panel that provides DisplayPort signals and USB 3.0 interface
Zone3 Class D1.1 compliance with full interlock support
SD-Card slot

USB C-Type connector at the front panel that provides DisplayPort signals and USB 3.0 interface
Zone3 Class D1.1 compliance with full interlock support
SD-Card slot

USB C-Type connector at the front panel that provides DisplayPort signals and USB 3.0 interface
Zone3 Class D1.1 compliance with full interlock support
SD-Card slot

Ordering options

Ordering code

Description

Action

AMCPICOUSC1X

AMC-PICO-8-US+C1 – UltraScale+ based 8-ch. 1 MSPS 20-bit electrometer (±110 uA, ±3 uA, BW=35 kHz)

AMCPICOUSC3X

AMC-PICO-8-US+C3 – UltraScale+ based 8-ch. 1 MSPS 20-bit electrometer (±10 mA, ±500 uA, BW=300 kHz)

AMCPICOUSC4X

AMC-PICO-8-US+C4 – UltraScale+ based 8-ch. 1 MSPS 20-bit electrometer (±1 mA, ±20 uA, BW>160 kHz)

AMCPICOUSC5X

AMC-PICO-8-US+C5 – UltraScale+ based 8-ch. 1 MSPS 20-bit elec. (±10 mA BW=300kHz, ±2.5 uA BW=20kHz)

AMCPICOUSC6X

AMC-PICO-8-US+C6 – UltraScale+ based 8-ch. 1 MSPS 20-bit electrometer (±1 mA, ±1 uA, BW=25 kHz)

Documentation

Last reviewed: 2024-08-29 ⓘ More infoRevision: 2

Software/Firmware

Updated: 2024-06-24 - 44.16 MB ⓘ More info Version: 2.2.3
OS: Linux

Updated: 2024-06-24 - 42.44 MB ⓘ More info Version: 2.2.3
OS: Windows

Related products

Copyright CAEN ELS s.r.l.
