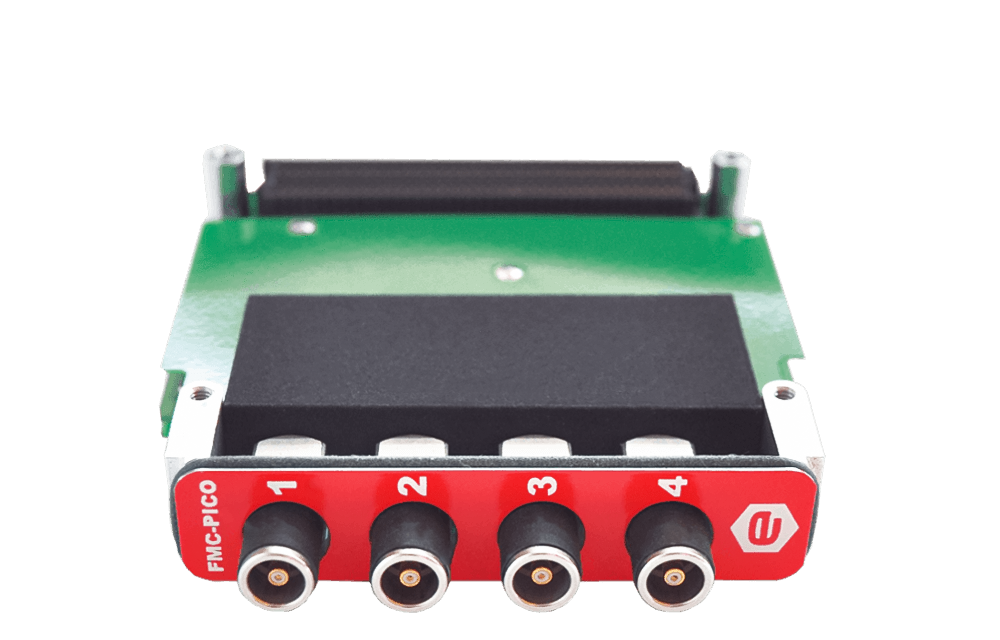

Series of FPGA Mezzanine Cards (FMC – VITA 57.1) Low Pin Count (LPC) that allow monitoring bipolar currents with high sampling rate, high resolution and low latency
The board resolution is 20 bit, obtained from independent, simultaneous sampling and low-delay Analog to Digital Converters (ADCs) running at up to 1 MSPS.
Each channel has two full-scale measuring ranges, up to ±1 mA and ±1 µA (10 kHz bandwidth) for the FMC-PICO-1M4 version, up to ±110 µA and ±3 µA (35 kHz bandwidth) for the FMC-PICO-1M4-C1 version, up to ±10 mA and ±500 µA (300 kHz bandwidth) for the FMC-PICO-1M4-C3 version, up to ±1 mA and ±20 µA (200 kHz and 160 kHz bandwidth respectively) for the FMC-PICO-1M4-C4 version, up to ±10 mA and ±2.5 µA (300 kHz and 20 kHz bandwidth respectively) for the FMC-PICO-1M4-C5 version, up to ±1 mA and ±1 µA (25 kHz bandwidth respectively) for the FMC-PICO-1M4-C6 version, and the current source can be floating up to ±300 V respect to the FMC ground.
The floating capability of the inputs is perfectly suitable for applications where the detector or current source needs to be biased.
The analog front-end is designed in order to achieve low noise, low temperature dependence and very small unbalance between channels. The analog characteristics can be further improved by requesting a factory calibration of the channels – calibration data are stored in the on-board EEPROM memory that can be read via an I2C bus on the FMC connector.
A trigger signal can be fed on the FMC connector in order to start the conversion of data samples: this feature allows to synchronize the board acquisition to an external event – e.g. machine revolution frequency in storage rings.
Data readout can be performed via separate SPI links – i.e. one for each channel, sharing the same clock signal.
Model
FMCPICO1M4C1
FMCPICO1M4C3
FMCPICO1M4C4
FMCPICO1M4C5
FMCPICO1M4C6
FMCPICO1M4XA
Number of Channels
4
4
4
4
4
4
Resolution
20 bit
20 bit
20 bit
20 bit
20 bit
20 bit
Current Polarity
Bipolar
Bipolar
Bipolar
Bipolar
Bipolar
Bipolar
Sampling Rate
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
Input Channel Potential
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
Full-Scale Current Ranges (RNG0, RNG1)
±110 µA, ±3 µA
Full-Scale Current Ranges (RNG0, RNG1)
±110 µA, ±3 µA
±10 mA, ±500 µA
±1 mA, ±20 µA
±10 mA, ±2.5 µA
±1 mA, ±1 µA
±1 mA, ±1 µA
Bandwidth (-3dB @ RNG0, RNG1)
35 kHz, 35 kHz
Bandwidth (-3dB @ RNG0, RNG1)
35 kHz, 35 kHz
300 kHz, 300 kHz
200 kHz, 160 kHz
300 kHz, 20 kHz
25 kHz, 25 kHz
10 kHz, 10 kHz
Equivalent Input Noise (RNG0, RNG1 @ 1 MSPS)
1.8 nA, 150 pA
Equivalent Input Noise (RNG0, RNG1 @ 1 MSPS)
1.8 nA, 150 pA
230 nA, 15 nA
25 nA, 1.5 nA
250 nA, 500 pA
25 nA, 35 pA
8 nA, 30 pA
Resolution (RNG0, RNG1)
220 pA, 6 pA
Resolution (RNG0, RNG1)
220 pA, 6 pA
20 nA, 1 nA
22 nA, 40 pA
20 nA, 5 pA
2 nA, 2.5 pA
2 nA, 2 pA
Absolute Temperature Coefficient - TC (RNG0, RNG1)
10 ppm/K, 10 ppm/K
Absolute Temperature Coefficient - TC (RNG0, RNG1)
10 ppm/K, 10 ppm/K
10 ppm/K, 10 ppm/K
10 ppm/K, 10 ppm/K
10 ppm/K, 10 ppm/K
10 ppm/K, 25 ppm/K
10 ppm/K, 20 ppm/K
Conversion Time
650 ns
650 ns
650 ns
650 ns
650 ns
650 ns
Input Connectors
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Other Features
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
FMC Connector Type
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
Board Type
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
Number of Channels
4
4
4
4
4
4
Resolution
20 bit
20 bit
20 bit
20 bit
20 bit
20 bit
Current Polarity
Bipolar
Bipolar
Bipolar
Bipolar
Bipolar
Bipolar
Sampling Rate
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
Input Channel Potential
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
Full-Scale Current Ranges (RNG0, RNG1)
±10 mA, ±500 µA
Full-Scale Current Ranges (RNG0, RNG1)
±110 µA, ±3 µA
±10 mA, ±500 µA
±1 mA, ±20 µA
±10 mA, ±2.5 µA
±1 mA, ±1 µA
±1 mA, ±1 µA
Bandwidth (-3dB @ RNG0, RNG1)
300 kHz, 300 kHz
Bandwidth (-3dB @ RNG0, RNG1)
35 kHz, 35 kHz
300 kHz, 300 kHz
200 kHz, 160 kHz
300 kHz, 20 kHz
25 kHz, 25 kHz
10 kHz, 10 kHz
Equivalent Input Noise (RNG0, RNG1 @ 1 MSPS)
230 nA, 15 nA
Equivalent Input Noise (RNG0, RNG1 @ 1 MSPS)
1.8 nA, 150 pA
230 nA, 15 nA
25 nA, 1.5 nA
250 nA, 500 pA
25 nA, 35 pA
8 nA, 30 pA
Resolution (RNG0, RNG1)
20 nA, 1 nA
Resolution (RNG0, RNG1)
220 pA, 6 pA
20 nA, 1 nA
22 nA, 40 pA
20 nA, 5 pA
2 nA, 2.5 pA
2 nA, 2 pA
Absolute Temperature Coefficient - TC (RNG0, RNG1)
10 ppm/K, 10 ppm/K
Absolute Temperature Coefficient - TC (RNG0, RNG1)
10 ppm/K, 10 ppm/K
10 ppm/K, 10 ppm/K
10 ppm/K, 10 ppm/K
10 ppm/K, 10 ppm/K
10 ppm/K, 25 ppm/K
10 ppm/K, 20 ppm/K
Conversion Time
650 ns
650 ns
650 ns
650 ns
650 ns
650 ns
Input Connectors
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Other Features
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
FMC Connector Type
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
Board Type
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
Number of Channels
4
4
4
4
4
4
Resolution
20 bit
20 bit
20 bit
20 bit
20 bit
20 bit
Current Polarity
Bipolar
Bipolar
Bipolar
Bipolar
Bipolar
Bipolar
Sampling Rate
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
Input Channel Potential
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
Full-Scale Current Ranges (RNG0, RNG1)
±1 mA, ±20 µA
Full-Scale Current Ranges (RNG0, RNG1)
±110 µA, ±3 µA
±10 mA, ±500 µA
±1 mA, ±20 µA
±10 mA, ±2.5 µA
±1 mA, ±1 µA
±1 mA, ±1 µA
Bandwidth (-3dB @ RNG0, RNG1)
200 kHz, 160 kHz
Bandwidth (-3dB @ RNG0, RNG1)
35 kHz, 35 kHz
300 kHz, 300 kHz
200 kHz, 160 kHz
300 kHz, 20 kHz
25 kHz, 25 kHz
10 kHz, 10 kHz
Equivalent Input Noise (RNG0, RNG1 @ 1 MSPS)
25 nA, 1.5 nA
Equivalent Input Noise (RNG0, RNG1 @ 1 MSPS)
1.8 nA, 150 pA
230 nA, 15 nA
25 nA, 1.5 nA
250 nA, 500 pA
25 nA, 35 pA
8 nA, 30 pA
Resolution (RNG0, RNG1)
22 nA, 40 pA
Resolution (RNG0, RNG1)
220 pA, 6 pA
20 nA, 1 nA
22 nA, 40 pA
20 nA, 5 pA
2 nA, 2.5 pA
2 nA, 2 pA
Absolute Temperature Coefficient - TC (RNG0, RNG1)
10 ppm/K, 10 ppm/K
Absolute Temperature Coefficient - TC (RNG0, RNG1)
10 ppm/K, 10 ppm/K
10 ppm/K, 10 ppm/K
10 ppm/K, 10 ppm/K
10 ppm/K, 10 ppm/K
10 ppm/K, 25 ppm/K
10 ppm/K, 20 ppm/K
Conversion Time
650 ns
650 ns
650 ns
650 ns
650 ns
650 ns
Input Connectors
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Other Features
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
FMC Connector Type
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
Board Type
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
Number of Channels
4
4
4
4
4
4
Resolution
20 bit
20 bit
20 bit
20 bit
20 bit
20 bit
Current Polarity
Bipolar
Bipolar
Bipolar
Bipolar
Bipolar
Bipolar
Sampling Rate
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
Input Channel Potential
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
Full-Scale Current Ranges (RNG0, RNG1)
±10 mA, ±2.5 µA
Full-Scale Current Ranges (RNG0, RNG1)
±110 µA, ±3 µA
±10 mA, ±500 µA
±1 mA, ±20 µA
±10 mA, ±2.5 µA
±1 mA, ±1 µA
±1 mA, ±1 µA
Bandwidth (-3dB @ RNG0, RNG1)
300 kHz, 20 kHz
Bandwidth (-3dB @ RNG0, RNG1)
35 kHz, 35 kHz
300 kHz, 300 kHz
200 kHz, 160 kHz
300 kHz, 20 kHz
25 kHz, 25 kHz
10 kHz, 10 kHz
Equivalent Input Noise (RNG0, RNG1 @ 1 MSPS)
250 nA, 500 pA
Equivalent Input Noise (RNG0, RNG1 @ 1 MSPS)
1.8 nA, 150 pA
230 nA, 15 nA
25 nA, 1.5 nA
250 nA, 500 pA
25 nA, 35 pA
8 nA, 30 pA
Resolution (RNG0, RNG1)
20 nA, 5 pA
Resolution (RNG0, RNG1)
220 pA, 6 pA
20 nA, 1 nA
22 nA, 40 pA
20 nA, 5 pA
2 nA, 2.5 pA
2 nA, 2 pA
Absolute Temperature Coefficient - TC (RNG0, RNG1)
10 ppm/K, 10 ppm/K
Absolute Temperature Coefficient - TC (RNG0, RNG1)
10 ppm/K, 10 ppm/K
10 ppm/K, 10 ppm/K
10 ppm/K, 10 ppm/K
10 ppm/K, 10 ppm/K
10 ppm/K, 25 ppm/K
10 ppm/K, 20 ppm/K
Conversion Time
650 ns
650 ns
650 ns
650 ns
650 ns
650 ns
Input Connectors
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Other Features
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
FMC Connector Type
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
Board Type
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
Number of Channels
4
4
4
4
4
4
Resolution
20 bit
20 bit
20 bit
20 bit
20 bit
20 bit
Current Polarity
Bipolar
Bipolar
Bipolar
Bipolar
Bipolar
Bipolar
Sampling Rate
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
Input Channel Potential
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
Full-Scale Current Ranges (RNG0, RNG1)
±1 mA, ±1 µA
Full-Scale Current Ranges (RNG0, RNG1)
±110 µA, ±3 µA
±10 mA, ±500 µA
±1 mA, ±20 µA
±10 mA, ±2.5 µA
±1 mA, ±1 µA
±1 mA, ±1 µA
Bandwidth (-3dB @ RNG0, RNG1)
25 kHz, 25 kHz
Bandwidth (-3dB @ RNG0, RNG1)
35 kHz, 35 kHz
300 kHz, 300 kHz
200 kHz, 160 kHz
300 kHz, 20 kHz
25 kHz, 25 kHz
10 kHz, 10 kHz
Equivalent Input Noise (RNG0, RNG1 @ 1 MSPS)
25 nA, 35 pA
Equivalent Input Noise (RNG0, RNG1 @ 1 MSPS)
1.8 nA, 150 pA
230 nA, 15 nA
25 nA, 1.5 nA
250 nA, 500 pA
25 nA, 35 pA
8 nA, 30 pA
Resolution (RNG0, RNG1)
2 nA, 2.5 pA
Resolution (RNG0, RNG1)
220 pA, 6 pA
20 nA, 1 nA
22 nA, 40 pA
20 nA, 5 pA
2 nA, 2.5 pA
2 nA, 2 pA
Absolute Temperature Coefficient - TC (RNG0, RNG1)
10 ppm/K, 25 ppm/K
Absolute Temperature Coefficient - TC (RNG0, RNG1)
10 ppm/K, 10 ppm/K
10 ppm/K, 10 ppm/K
10 ppm/K, 10 ppm/K
10 ppm/K, 10 ppm/K
10 ppm/K, 25 ppm/K
10 ppm/K, 20 ppm/K
Conversion Time
650 ns
650 ns
650 ns
650 ns
650 ns
650 ns
Input Connectors
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Other Features
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
FMC Connector Type
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
Board Type
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
Number of Channels
4
4
4
4
4
4
Resolution
20 bit
20 bit
20 bit
20 bit
20 bit
20 bit
Current Polarity
Bipolar
Bipolar
Bipolar
Bipolar
Bipolar
Bipolar
Sampling Rate
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
Input Channel Potential
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
Full-Scale Current Ranges (RNG0, RNG1)
±1 mA, ±1 µA
Full-Scale Current Ranges (RNG0, RNG1)
±110 µA, ±3 µA
±10 mA, ±500 µA
±1 mA, ±20 µA
±10 mA, ±2.5 µA
±1 mA, ±1 µA
±1 mA, ±1 µA
Bandwidth (-3dB @ RNG0, RNG1)
10 kHz, 10 kHz
Bandwidth (-3dB @ RNG0, RNG1)
35 kHz, 35 kHz
300 kHz, 300 kHz
200 kHz, 160 kHz
300 kHz, 20 kHz
25 kHz, 25 kHz
10 kHz, 10 kHz
Equivalent Input Noise (RNG0, RNG1 @ 1 MSPS)
8 nA, 30 pA
Equivalent Input Noise (RNG0, RNG1 @ 1 MSPS)
1.8 nA, 150 pA
230 nA, 15 nA
25 nA, 1.5 nA
250 nA, 500 pA
25 nA, 35 pA
8 nA, 30 pA
Resolution (RNG0, RNG1)
2 nA, 2 pA
Resolution (RNG0, RNG1)
220 pA, 6 pA
20 nA, 1 nA
22 nA, 40 pA
20 nA, 5 pA
2 nA, 2.5 pA
2 nA, 2 pA
Absolute Temperature Coefficient - TC (RNG0, RNG1)
10 ppm/K, 20 ppm/K
Absolute Temperature Coefficient - TC (RNG0, RNG1)
10 ppm/K, 10 ppm/K
10 ppm/K, 10 ppm/K
10 ppm/K, 10 ppm/K
10 ppm/K, 10 ppm/K
10 ppm/K, 25 ppm/K
10 ppm/K, 20 ppm/K
Conversion Time
650 ns
650 ns
650 ns
650 ns
650 ns
650 ns
Input Connectors
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Other Features
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
FMC Connector Type
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
Board Type
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
Ordering code
Description
Action
FMCPICO1M4C1
FMC-PICO-1M4-C1 – 4-ch. 20-bit 1-MSPS FMC Floating Picoammeter (±110 uA, ±3 uA, BW=35 kHz)
FMCPICO1M4C3
FMC-PICO-1M4-C3 – 4-ch. 20-bit 1-MSPS FMC Floating Picoammeter (±10 mA, ±500 uA, BW=300 kHz)
FMCPICO1M4C4
FMC-PICO-1M4-C4 – 4-ch. 20-bit 1-MSPS FMC Floating Picoammeter (±1 mA BW=200kHz, ±20 uA BW=170kHz)
FMCPICO1M4C5
FMC-PICO-1M4-C5 – 4-ch. 20-bit 1-MSPS FMC Floating Picoammeter (±10 mA BW=300kHz, ±2.5 uA BW=20kHz)
FMCPICO1M4C6
FMC-PICO-1M4-C6 – 4-ch. 20-bit 1-MSPS FMC Floating Picoammeter (±1 mA, ±1 uA, BW=25 kHz)
FMCPICO1M4XA
OBSOLETO- FMC-Pico-1M4 – 4-ch. 20-bit 1-MSPS FMC Floating Picoammeter (±1 mA, ±1 uA, BW=10 kHz)
Last reviewed: 2022-12-09 ⓘ More infoRevision: 1.7
Last reviewed: 2023-02-03 ⓘ More infoRevision: 2.0
No firmware or software available.
