FAST-PS

FAST-PS

Fast Current- and Voltage-Controlled Bipolar Digital Power Supply Series - up to 600 W

High-performance bipolar power supply with digital control loop, embedded Web-Server, Arbitrary Waveform Generation (AWG) and 4-channel 100-kHz Oscilloscope



See accessories


  • Overview
  • Features
  • Technical specifications
  • Ordering options
  • Documentation
  • Software/Firmware

Overview


Discover the outstanding features of the embedded Web-Server of the FAST-PS

The embedded Linux OS allows controlling the FAST-PS unit in a platform-independent way. The several functions provided include the user-friendly GUI with a 100-kHz AWG, a 4-channel high-precision oscilloscope (including all advanced functionalities as triggering, etc.) performed via a DMA on the on board SoC (System-On-Chip), embedded EPICS IOC, command-line communication, digital control configuration, NTP (Network Time Protocol) and much more!

FAST-PS
High-Precision Current and Voltage control for the most demanding applications - ALL IN ONE!

The FAST-PS units can be used both as a current or voltage generator, giving precision and flexibility for different applications.

Current and voltage threshold limits can be set in C.V. and in C.C. mode respectively, and they make the power supply unit working as a C.C. source when the threshold is exceeded in C.V. mode and viceversa.

Modules rated from 100 W up to 600 W can be configured with extra features if needed, as for the Analog Control Input (on a BNC) that allows using the power unit as an amplifier and a Trigger Input.

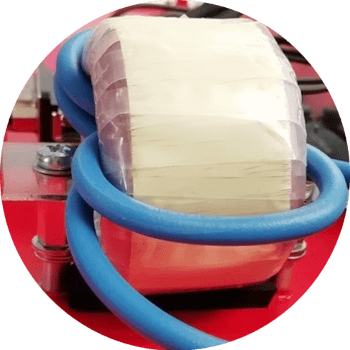

An even higher stability option is available for very demanding and specific applications: the unit is equipped internally with a precision current transducer of the 0-FLUCS DCCT series.

FAST-PS

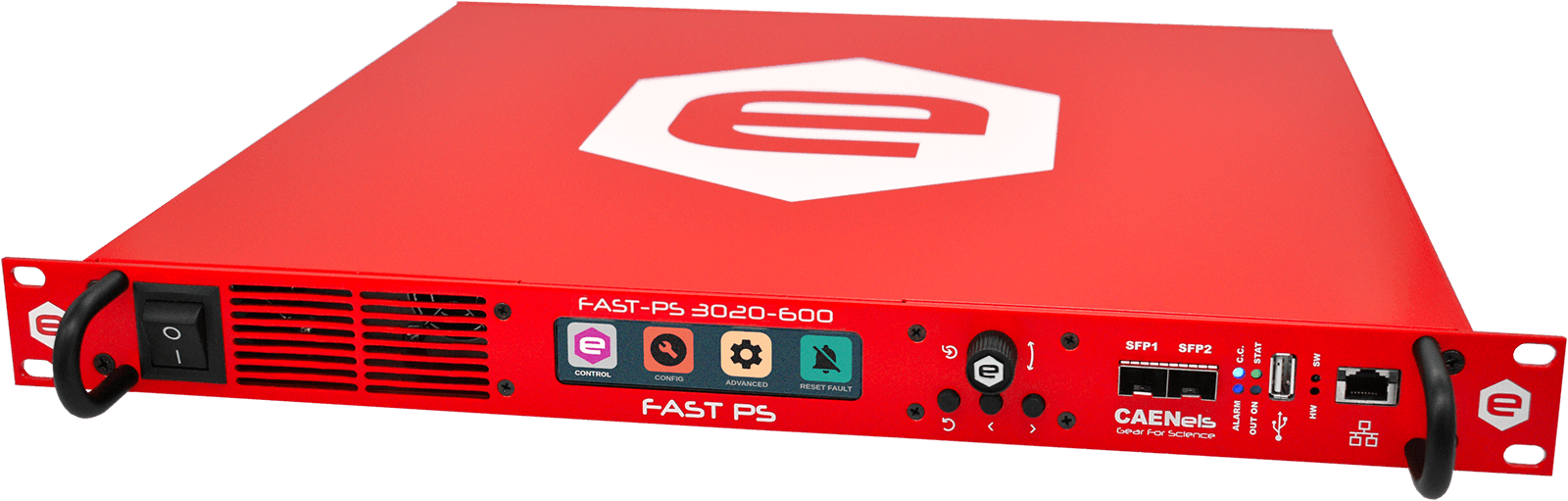

The FAST-PS series is the new generation of bipolar power supplies by CAEN ELS and it was designed in order to have state-of-the-art performances both in current- and voltage-control modes.

The FAST-PS series is the new generation of bipolar power supplies by CAEN ELS and it was designed in order to have state-of-the-art performances both in current- and voltage-control modes.

The 10/100/1000 Mbit Ethernet connection and the two SFP slots (which can be used as electrical or optical communication channels) allow to control the power converter in two different modes: the “slow” interface over the Ethernet (up to 1 kHz) is intended in cases where the power supply has to be controlled at lower rates and/or to set and monitor general parameters of the unit. The “fast” interface over the SFP allows to run feedback loops and fast corrections by reaching a maximum update rate of 10 kHz.

The control loop, as for most of CAEN ELS power supplies, is digital in order to obtain the maximum flexibility and easiness of configuration to any connected load.

Compatibilty and integration with CAEN ELS software tools is also guaranteed for these power units: both the VISUAL PS and the CAEN ELS Device Manager software applications can be used to quickly configure, monitor, upgrade all the connected FAST-PS on the network!

FAST-PS

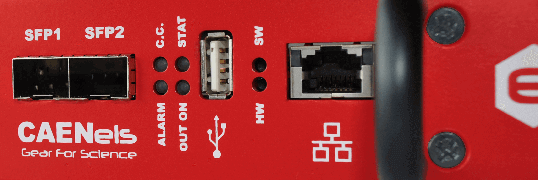

Fast communication interfaces - e.g. 10/100/1000 Mbit Ethernet and dual SFP/SFP+.

The FAST-PS can be controlled either in current- or voltage-control modes and both control loops can be remotely configured.

Internal protections – e.g. over-voltage, over-current and over-temperature – are implemented as well as external interlocks are present.

The units can be also locally controlled via a display and a local interface in order to set or monitor the main parameters and status of the power supply.

Different output current, voltage and power ratings are commercially available.

The standard models of the FAST-PS are the following:

– FAST-PS 0520-100 at ±5 A and ±20 V
– FAST-PS 0540-200 at ±5 A and ±40 V
– FAST-PS 1020-200 at ±10 A and ±20 V
– FAST-PS 0580-400 at ±5 A and ±80 V
– FAST-PS 1040-400 at ±10 A and ±40 V
– FAST-PS 2020-400 at ±20 A and ±20 V
– FAST-PS 2040-600 at ±20 A and ±40 V
– FAST-PS 3020-600 at ±30 A and ±20 V

Optional analog control input on BNC connector (Input = ±10 V, Bandwidth = 1 kHz) can be added at the time of the order and will give backward compatibility to older systems used as amplifiers.

Features

  • Digital feedback current control loop
  • 19'' - 1U stand-alone unit
  • Up to ±30 A and ±80 V
  • Current or Voltage regulation
  • True bipolar zero-crossing operation
  • 10/100/1000 Mbit TCP-IP or UDP Ethernet connectivity
  • Embedded Web-Server
  • Embedded Oscilloscope and Waveform Generator
  • 2x Fast SFP interface (10 kHz update)
  • High bandwidth
  • Analog Control Input and Trigger Input - optional
  • Internal protections and auxiliary readbacks
  • Extended Input Range (90-260 VAC)
  • Local Display and Control
  • Linux OS embedded

Technical specifications

  • FASTPS052001
  • FASTPS054002
  • FASTPS058004
  • FASTPS102002
  • FASTPS104004
  • FASTPS202004
  • FASTPS204006
  • FASTPS302006

Model

FASTPS052001

FASTPS054002

FASTPS058004

FASTPS102002

FASTPS104004

FASTPS202004

FASTPS204006

FASTPS302006

Output Current Range

±5 A

Output Current Range

±5 A

±5 A

±5 A

±10 A

±10 A

±20 A

±20 A

±30 A

Output Voltage Range

±20 V

Output Voltage Range

±20 V

±40 V

±80 V

±20 V

±40 V

±20 V

±40 V

±20 V

Maximum Output Power

100 W

Maximum Output Power

100 W

200 W

400 W

200 W

400 W

400 W

600 W

600 W

Regulation Type

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current Setting Resolution

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

Voltage Setting Resolution

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

Output Current Readback

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

Output Voltage Readback

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

Long-Term Output Current Stability (8 h)

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

Long-Term Output Voltage Stability (8 h)

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

Switching Frequency

100 kHz

100 kHz

100 kHz

100 kHz

100 kHz

100 kHz

100 kHz

100 kHz

Maximum Current/Voltage Update Rate

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

Output Accuracy

0.05 %

0.05 %

0.05 %

0.05 %

0.05 %

0.05 %

0.05 %

0.05 %

Maximum Absorbed Power

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

External Interlocks/States

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

Internal Protections

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

Hardware Protections

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Auxiliary ADC Readbacks

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

Cooling

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

Connectivity

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

Extra Features

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Mechanical Dimensions (W x H x D)

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

Input Voltage Range

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

Efficiency

up to 84 %

up to 84 %

up to 84 %

up to 84 %

up to 84 %

up to 84 %

up to 84 %

up to 84 %

Weight

< 8 kg

< 8 kg

< 8 kg

< 8 kg

< 8 kg

< 8 kg

< 8 kg

< 8 kg

Local Control/Monitor

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Output Current Range

±5 A

Output Current Range

±5 A

±5 A

±5 A

±10 A

±10 A

±20 A

±20 A

±30 A

Output Voltage Range

±40 V

Output Voltage Range

±20 V

±40 V

±80 V

±20 V

±40 V

±20 V

±40 V

±20 V

Maximum Output Power

200 W

Maximum Output Power

100 W

200 W

400 W

200 W

400 W

400 W

600 W

600 W

Regulation Type

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current Setting Resolution

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

Voltage Setting Resolution

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

Output Current Readback

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

Output Voltage Readback

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

Long-Term Output Current Stability (8 h)

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

Long-Term Output Voltage Stability (8 h)

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

Switching Frequency

100 kHz

100 kHz

100 kHz

100 kHz

100 kHz

100 kHz

100 kHz

100 kHz

Maximum Current/Voltage Update Rate

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

Output Accuracy

0.05 %

0.05 %

0.05 %

0.05 %

0.05 %

0.05 %

0.05 %

0.05 %

Maximum Absorbed Power

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

External Interlocks/States

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

Internal Protections

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

Hardware Protections

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Auxiliary ADC Readbacks

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

Cooling

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

Connectivity

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

Extra Features

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Mechanical Dimensions (W x H x D)

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

Input Voltage Range

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

Efficiency

up to 84 %

up to 84 %

up to 84 %

up to 84 %

up to 84 %

up to 84 %

up to 84 %

up to 84 %

Weight

< 8 kg

< 8 kg

< 8 kg

< 8 kg

< 8 kg

< 8 kg

< 8 kg

< 8 kg

Local Control/Monitor

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Output Current Range

±5 A

Output Current Range

±5 A

±5 A

±5 A

±10 A

±10 A

±20 A

±20 A

±30 A

Output Voltage Range

±80 V

Output Voltage Range

±20 V

±40 V

±80 V

±20 V

±40 V

±20 V

±40 V

±20 V

Maximum Output Power

400 W

Maximum Output Power

100 W

200 W

400 W

200 W

400 W

400 W

600 W

600 W

Regulation Type

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current Setting Resolution

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

Voltage Setting Resolution

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

Output Current Readback

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

Output Voltage Readback

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

Long-Term Output Current Stability (8 h)

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

Long-Term Output Voltage Stability (8 h)

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

Switching Frequency

100 kHz

100 kHz

100 kHz

100 kHz

100 kHz

100 kHz

100 kHz

100 kHz

Maximum Current/Voltage Update Rate

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

Output Accuracy

0.05 %

0.05 %

0.05 %

0.05 %

0.05 %

0.05 %

0.05 %

0.05 %

Maximum Absorbed Power

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

External Interlocks/States

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

Internal Protections

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

Hardware Protections

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Auxiliary ADC Readbacks

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

Cooling

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

Connectivity

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

Extra Features

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Mechanical Dimensions (W x H x D)

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

Input Voltage Range

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

Efficiency

up to 84 %

up to 84 %

up to 84 %

up to 84 %

up to 84 %

up to 84 %

up to 84 %

up to 84 %

Weight

< 8 kg

< 8 kg

< 8 kg

< 8 kg

< 8 kg

< 8 kg

< 8 kg

< 8 kg

Local Control/Monitor

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Output Current Range

±10 A

Output Current Range

±5 A

±5 A

±5 A

±10 A

±10 A

±20 A

±20 A

±30 A

Output Voltage Range

±20 V

Output Voltage Range

±20 V

±40 V

±80 V

±20 V

±40 V

±20 V

±40 V

±20 V

Maximum Output Power

200 W

Maximum Output Power

100 W

200 W

400 W

200 W

400 W

400 W

600 W

600 W

Regulation Type

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current Setting Resolution

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

Voltage Setting Resolution

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

Output Current Readback

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

Output Voltage Readback

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

Long-Term Output Current Stability (8 h)

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

Long-Term Output Voltage Stability (8 h)

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

Switching Frequency

100 kHz

100 kHz

100 kHz

100 kHz

100 kHz

100 kHz

100 kHz

100 kHz

Maximum Current/Voltage Update Rate

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

Output Accuracy

0.05 %

0.05 %

0.05 %

0.05 %

0.05 %

0.05 %

0.05 %

0.05 %

Maximum Absorbed Power

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

External Interlocks/States

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

Internal Protections

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

Hardware Protections

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Auxiliary ADC Readbacks

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

Cooling

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

Connectivity

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

Extra Features

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Mechanical Dimensions (W x H x D)

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

Input Voltage Range

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

Efficiency

up to 84 %

up to 84 %

up to 84 %

up to 84 %

up to 84 %

up to 84 %

up to 84 %

up to 84 %

Weight

< 8 kg

< 8 kg

< 8 kg

< 8 kg

< 8 kg

< 8 kg

< 8 kg

< 8 kg

Local Control/Monitor

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Output Current Range

±10 A

Output Current Range

±5 A

±5 A

±5 A

±10 A

±10 A

±20 A

±20 A

±30 A

Output Voltage Range

±40 V

Output Voltage Range

±20 V

±40 V

±80 V

±20 V

±40 V

±20 V

±40 V

±20 V

Maximum Output Power

400 W

Maximum Output Power

100 W

200 W

400 W

200 W

400 W

400 W

600 W

600 W

Regulation Type

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current Setting Resolution

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

Voltage Setting Resolution

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

Output Current Readback

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

Output Voltage Readback

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

Long-Term Output Current Stability (8 h)

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

Long-Term Output Voltage Stability (8 h)

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

Switching Frequency

100 kHz

100 kHz

100 kHz

100 kHz

100 kHz

100 kHz

100 kHz

100 kHz

Maximum Current/Voltage Update Rate

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

Output Accuracy

0.05 %

0.05 %

0.05 %

0.05 %

0.05 %

0.05 %

0.05 %

0.05 %

Maximum Absorbed Power

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

External Interlocks/States

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

Internal Protections

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

Hardware Protections

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Auxiliary ADC Readbacks

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

Cooling

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

Connectivity

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

Extra Features

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Mechanical Dimensions (W x H x D)

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

Input Voltage Range

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

Efficiency

up to 84 %

up to 84 %

up to 84 %

up to 84 %

up to 84 %

up to 84 %

up to 84 %

up to 84 %

Weight

< 8 kg

< 8 kg

< 8 kg

< 8 kg

< 8 kg

< 8 kg

< 8 kg

< 8 kg

Local Control/Monitor

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Output Current Range

±20 A

Output Current Range

±5 A

±5 A

±5 A

±10 A

±10 A

±20 A

±20 A

±30 A

Output Voltage Range

±20 V

Output Voltage Range

±20 V

±40 V

±80 V

±20 V

±40 V

±20 V

±40 V

±20 V

Maximum Output Power

400 W

Maximum Output Power

100 W

200 W

400 W

200 W

400 W

400 W

600 W

600 W

Regulation Type

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current Setting Resolution

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

Voltage Setting Resolution

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

Output Current Readback

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

Output Voltage Readback

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

Long-Term Output Current Stability (8 h)

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

Long-Term Output Voltage Stability (8 h)

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

Switching Frequency

100 kHz

100 kHz

100 kHz

100 kHz

100 kHz

100 kHz

100 kHz

100 kHz

Maximum Current/Voltage Update Rate

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

Output Accuracy

0.05 %

0.05 %

0.05 %

0.05 %

0.05 %

0.05 %

0.05 %

0.05 %

Maximum Absorbed Power

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

External Interlocks/States

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

Internal Protections

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

Hardware Protections

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Auxiliary ADC Readbacks

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

Cooling

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

Connectivity

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

Extra Features

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Mechanical Dimensions (W x H x D)

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

Input Voltage Range

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

Efficiency

up to 84 %

up to 84 %

up to 84 %

up to 84 %

up to 84 %

up to 84 %

up to 84 %

up to 84 %

Weight

< 8 kg

< 8 kg

< 8 kg

< 8 kg

< 8 kg

< 8 kg

< 8 kg

< 8 kg

Local Control/Monitor

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Output Current Range

±20 A

Output Current Range

±5 A

±5 A

±5 A

±10 A

±10 A

±20 A

±20 A

±30 A

Output Voltage Range

±40 V

Output Voltage Range

±20 V

±40 V

±80 V

±20 V

±40 V

±20 V

±40 V

±20 V

Maximum Output Power

600 W

Maximum Output Power

100 W

200 W

400 W

200 W

400 W

400 W

600 W

600 W

Regulation Type

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current Setting Resolution

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

Voltage Setting Resolution

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

Output Current Readback

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

Output Voltage Readback

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

Long-Term Output Current Stability (8 h)

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

Long-Term Output Voltage Stability (8 h)

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

Switching Frequency

100 kHz

100 kHz

100 kHz

100 kHz

100 kHz

100 kHz

100 kHz

100 kHz

Maximum Current/Voltage Update Rate

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

Output Accuracy

0.05 %

0.05 %

0.05 %

0.05 %

0.05 %

0.05 %

0.05 %

0.05 %

Maximum Absorbed Power

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

External Interlocks/States

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

Internal Protections

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

Hardware Protections

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Auxiliary ADC Readbacks

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

Cooling

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

Connectivity

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

Extra Features

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Mechanical Dimensions (W x H x D)

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

Input Voltage Range

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

Efficiency

up to 84 %

up to 84 %

up to 84 %

up to 84 %

up to 84 %

up to 84 %

up to 84 %

up to 84 %

Weight

< 8 kg

< 8 kg

< 8 kg

< 8 kg

< 8 kg

< 8 kg

< 8 kg

< 8 kg

Local Control/Monitor

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Output Current Range

±30 A

Output Current Range

±5 A

±5 A

±5 A

±10 A

±10 A

±20 A

±20 A

±30 A

Output Voltage Range

±20 V

Output Voltage Range

±20 V

±40 V

±80 V

±20 V

±40 V

±20 V

±40 V

±20 V

Maximum Output Power

600 W

Maximum Output Power

100 W

200 W

400 W

200 W

400 W

400 W

600 W

600 W

Regulation Type

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current- or Voltage- Control

Current Setting Resolution

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

Voltage Setting Resolution

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

18 bit

Output Current Readback

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

Output Voltage Readback

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

Long-Term Output Current Stability (8 h)

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

Long-Term Output Voltage Stability (8 h)

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

50 ppm/FS

Switching Frequency

100 kHz

100 kHz

100 kHz

100 kHz

100 kHz

100 kHz

100 kHz

100 kHz

Maximum Current/Voltage Update Rate

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

5 kHz over Ethernet
100 kHz over SFP/SFP+

Output Accuracy

0.05 %

0.05 %

0.05 %

0.05 %

0.05 %

0.05 %

0.05 %

0.05 %

Maximum Absorbed Power

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

< 5 W (continuous)
>= 5 W & < 10 W (for 20 s)
>= 10 W (for 1 s)

External Interlocks/States

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)

Internal Protections

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple

Hardware Protections

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Input Fuses
Earth Fuse
Over-Voltage

Auxiliary ADC Readbacks

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature

Cooling

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

On-Module Self-Regulated Fans

Connectivity

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

1 x Ethernet 10/100/1000 Mbit
2 x SFP/SFP+ ports

Extra Features

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (±10 V, BW = 1 kHz) - optional
Trigger Input - optional

Mechanical Dimensions (W x H x D)

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

19" x 1U x 400 mm

Input Voltage Range

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

100-240 VAC
47-63 Hz

Efficiency

up to 84 %

up to 84 %

up to 84 %

up to 84 %

up to 84 %

up to 84 %

up to 84 %

up to 84 %

Weight

< 8 kg

< 8 kg

< 8 kg

< 8 kg

< 8 kg

< 8 kg

< 8 kg

< 8 kg

Local Control/Monitor

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Graphic Display and Navigation Pad
6 LEDs

Ordering options

Ordering code

Description

Action

FASTPS052001

FAST-PS 0520-100 – Fast Current & Voltage Digital Power Supply ±5 A @ ±20 V (100 W max)

FASTPS054002

FAST-PS 0540-200 – Fast Current & Voltage Digital Power Supply ±5 A @ ±40 V (200 W max)

FASTPS058004

FAST-PS 0580-400 – Fast Current & Voltage Digital Power Supply ±5 A @ ±80 V (400 W max)

FASTPS102002

FAST-PS 1020-200 – Fast Current & Voltage Digital Power Supply ±10 A @ ±20 V (200 W max)

FASTPS104004

FAST-PS 1040-400 – Fast Current & Voltage Digital Power Supply ±10 A @ ±40 V (400 W max)

FASTPS202004

FAST-PS 2020-400 – Fast Current & Voltage Digital Power Supply ±20 A @ ±20 V (400 W max)

FASTPS204006

FAST-PS 2040-600 – Fast Current & Voltage Digital Power Supply ±20 A @ ±40 V (600 W max)

FASTPS302006

FAST-PS 3020-600 – Fast Current & Voltage Digital Power Supply ±30 A @ ±20 V (600 W max)

Documentation

Last reviewed: 2022-12-09 ⓘ More infoRevision: 1.11

Last reviewed: 2022-12-09 ⓘ More infoRevision: 1.12

Last reviewed: 2023-02-02 ⓘ More infoRevision: 2.0

Last reviewed: 2024-02-05 ⓘ More infoRevision: 1.2

Software/Firmware

Updated: 2024-03-11 - 61.43 MB ⓘ More info Version: 2.1.4

Updated: 2024-02-28 - 44.16 MB ⓘ More info Version: 2.2.1
OS: Linux

Updated: 2024-02-28 - 42.43 MB ⓘ More info Version: 2.2.1
OS: Windows

Accessories

FASTPSTRINXA - Trigger Input

FASTPSTRINXA - Trigger Input

Trigger Input on BNC connector - optional

FASTPSACINXA - Analog Control Input

FASTPSACINXA - Analog Control Input

Analog Control Input (±10V) on BNC connector – optional

FASTPSHSXAAA - High-Stability

FASTPSHSXAAA - High-Stability

High-Stability Option with embedded 0-FLUCS DCCT

AUTOTUNEFW01 - Automatic Tuning Capability

AUTOTUNEFW01 - Automatic Tuning Capability

Auto-Tuning License for Digital Power Supply Series

Related products

Copyright CAEN ELS s.r.l.
