High-performance power supply with digital control loop, embedded Web-Server, Arbitrary Waveform Generation (AWG) and 4-channel 100-kHz Oscilloscope

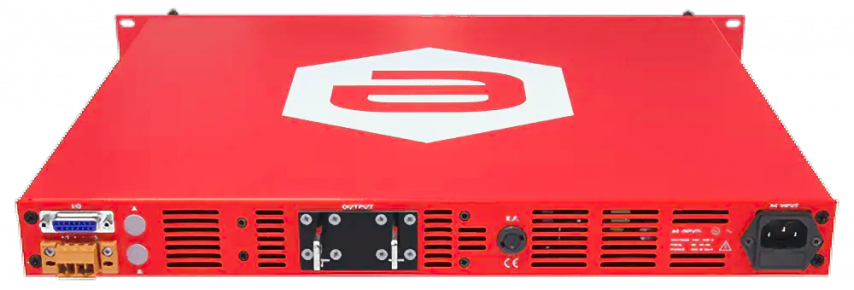

The FAST-PS-M series is the new generation of monopolar power supplies by CAEN ELS and it was designed in order to have state-of-the-art performances both in current- and voltage-control modes.
The 10/100/1000 Mbit Ethernet connection and the two SFP slots (which can be used as electrical or optical communication channels) allow to control the power converter in two different modes: the standard interface over the Ethernet (up to 5 kHz) is intended in cases where the power supply has to be controlled at lower rates and/or to set and monitor general parameters of the unit. The fast interface over the SFP allows to run feedback loops and fast corrections by reaching a maximum update rate of 100 kHz. The control loop, as for most of CAEN ELS power supplies, is digital in order to obtain the maximum flexibility and easiness of configuration to any connected load.
The FAST-PS-M can be controlled either in current- or voltage-control modes and both control loops can be remotely configured.
Low noise and high bandwidth are just two of the main features of these power converters.
Internal protections – e.g. over-voltage, over-current – are implemented as well as external interlocks are present.

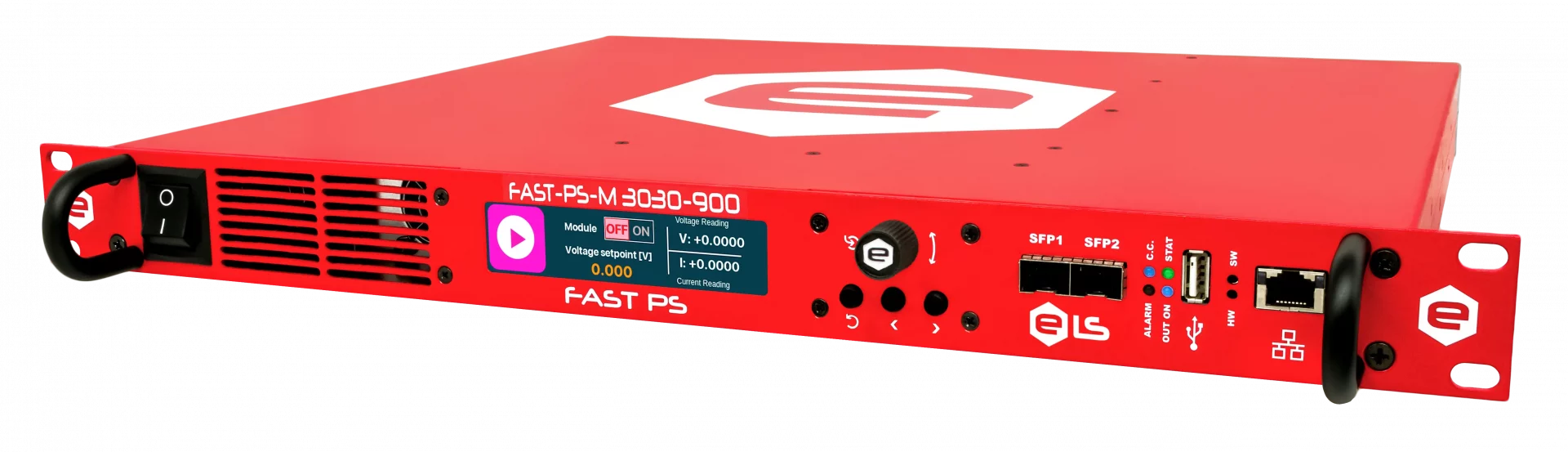

The units can be also locally controlled via a colour display and a local interface in order to set or monitor the main parameters and status of the power supply.
The FAST-PS-M units runs a real-time Arbitrary Waveform Generator (AWG) and an hardware-based 4-channel oscilloscope, running at 24-bit 100 ksps.
No need for an external generator and/or an external oscilloscope anymore!
Different output current, voltage and power ratings are commercially available.
FAST-PS-M 3030 – 30 A@30 V (900 W max)
FAST-PS-M 6010 – 60 A@10 V (600 W max)
FAST-PS-M 7508 – 75 A@8 V (600 W max)
FAST-PS-M 10006 – 100 A@6 V (600 W max)
Optional analog control input on BNC connector (Input = 0-10 V, Bandwidth = 1 kHz) can be added at the time of the order and will give backward compatibility to older systems used as amplifiers.
Bipolar versions of the FAST-PS-M modules are rated up to ±30 A and ±80 V and can be found on the FAST-PS product page.
The use of the 0-FLUCS current transducer technology (CT-100 model) guarantee the best-in-class performances for these power supplies.
Excellent long-term stability and low temperature coefficient (TC) allow to use the FAST-PS-M power units to be the best choice when needing a stable and clean current generator.
Model
FASTPSM10006
FASTPSM3030A
FASTPSM6010A
FASTPSM7508A
Regulation Type
Current- or Voltage- Control
Current- or Voltage- Control
Current- or Voltage- Control
Current- or Voltage- Control
Output Current Range
100 A
Output Current Range
100 A
30 A
60 A
75 A
Output Voltage Range
6 V
Output Voltage Range
6 V
30 V
10 V
8 V
Maximum Output Power
600 W
Maximum Output Power
600 W
900 W
600 W
600 W
Current Setting Resolution
18 bit
18 bit
18 bit
18 bit
Voltage Setting Resolution
18 bit
18 bit
18 bit
18 bit
Output Current Readback
24 bit
24 bit
24 bit
24 bit
Output Voltage Readback
24 bit
24 bit
24 bit
24 bit
Output Current Stability
50 ppm/FS
50 ppm/FS
50 ppm/FS
50 ppm/FS
Output Voltage Stability
50 ppm/FS
50 ppm/FS
50 ppm/FS
50 ppm/FS
Switching Frequency (Equivalent)
300 kHz
300 kHz
300 kHz
300 kHz
Closed Loop Bandwidth
5 kHz
5 kHz
5 kHz
5 kHz
External Interlocks/States
2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)
2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)
2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)
2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)
Internal Protections
DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple
DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple
DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple
DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple
Hardware Protections
Input Fuses
Earth Fuse
Over-Voltage
Input Fuses
Earth Fuse
Over-Voltage
Input Fuses
Earth Fuse
Over-Voltage
Input Fuses
Earth Fuse
Over-Voltage
Auxiliary ADC Readbacks
DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature
DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature
DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature
DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature
Cooling
On-Module Self-Regulated Fans
On-Module Self-Regulated Fans
On-Module Self-Regulated Fans
On-Module Self-Regulated Fans
Connectivity
1 x Ethernet 10/100/1000 Mbit TCP-IP and UDP
2 x SFP ports
1 x Ethernet 10/100/1000 Mbit TCP-IP and UDP
2 x SFP ports
1 x Ethernet 10/100/1000 Mbit TCP-IP and UDP
2 x SFP ports
1 x Ethernet 10/100/1000 Mbit TCP-IP and UDP
2 x SFP ports
Extra Features
Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (0-10V, BW = 1 kHz) - optional
Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (0-10V, BW = 1 kHz) - optional
Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (0-10V, BW = 1 kHz) - optional
Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (0-10V, BW = 1 kHz) - optional
Mechanical Dimensions (including connectors)
19" (W) - 1U (H) - 425 mm (D)
Mechanical Dimensions (including connectors)
19" (W) - 1U (H) - 425 mm (D)
19" (W) - 1U (H) - 467 mm (D)
19" (W) - 1U (H) - 425 mm (D)
19" (W) - 1U (H) - 425 mm (D)
Input Voltage
90-260 VAC / 47-63 Hz
90-260 VAC / 47-63 Hz
90-260 VAC / 47-63 Hz
90-260 VAC / 47-63 Hz
Local Control/Monitor
Graphic Display and Navigation Pad
6 LEDs
Graphic Display and Navigation Pad
6 LEDs
Graphic Display and Navigation Pad
6 LEDs
Graphic Display and Navigation Pad
6 LEDs
Regulation Type
Current- or Voltage- Control
Current- or Voltage- Control
Current- or Voltage- Control
Current- or Voltage- Control
Output Current Range
30 A
Output Current Range
100 A
30 A
60 A
75 A
Output Voltage Range
30 V
Output Voltage Range
6 V
30 V
10 V
8 V
Maximum Output Power
900 W
Maximum Output Power
600 W
900 W
600 W
600 W
Current Setting Resolution
18 bit
18 bit
18 bit
18 bit
Voltage Setting Resolution
18 bit
18 bit
18 bit
18 bit
Output Current Readback
24 bit
24 bit
24 bit
24 bit
Output Voltage Readback
24 bit
24 bit
24 bit
24 bit
Output Current Stability
50 ppm/FS
50 ppm/FS
50 ppm/FS
50 ppm/FS
Output Voltage Stability
50 ppm/FS
50 ppm/FS
50 ppm/FS
50 ppm/FS
Switching Frequency (Equivalent)
300 kHz
300 kHz
300 kHz
300 kHz
Closed Loop Bandwidth
5 kHz
5 kHz
5 kHz
5 kHz
External Interlocks/States
2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)
2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)
2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)
2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)
Internal Protections
DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple
DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple
DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple
DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple
Hardware Protections
Input Fuses
Earth Fuse
Over-Voltage
Input Fuses
Earth Fuse
Over-Voltage
Input Fuses
Earth Fuse
Over-Voltage
Input Fuses
Earth Fuse
Over-Voltage
Auxiliary ADC Readbacks
DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature
DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature
DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature
DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature
Cooling
On-Module Self-Regulated Fans
On-Module Self-Regulated Fans
On-Module Self-Regulated Fans
On-Module Self-Regulated Fans
Connectivity
1 x Ethernet 10/100/1000 Mbit TCP-IP and UDP
2 x SFP ports
1 x Ethernet 10/100/1000 Mbit TCP-IP and UDP
2 x SFP ports
1 x Ethernet 10/100/1000 Mbit TCP-IP and UDP
2 x SFP ports
1 x Ethernet 10/100/1000 Mbit TCP-IP and UDP
2 x SFP ports
Extra Features
Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (0-10V, BW = 1 kHz) - optional
Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (0-10V, BW = 1 kHz) - optional
Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (0-10V, BW = 1 kHz) - optional
Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (0-10V, BW = 1 kHz) - optional
Mechanical Dimensions (including connectors)
19" (W) - 1U (H) - 467 mm (D)
Mechanical Dimensions (including connectors)
19" (W) - 1U (H) - 425 mm (D)
19" (W) - 1U (H) - 467 mm (D)
19" (W) - 1U (H) - 425 mm (D)
19" (W) - 1U (H) - 425 mm (D)
Input Voltage
90-260 VAC / 47-63 Hz
90-260 VAC / 47-63 Hz
90-260 VAC / 47-63 Hz
90-260 VAC / 47-63 Hz
Local Control/Monitor
Graphic Display and Navigation Pad
6 LEDs
Graphic Display and Navigation Pad
6 LEDs
Graphic Display and Navigation Pad
6 LEDs
Graphic Display and Navigation Pad
6 LEDs
Regulation Type
Current- or Voltage- Control
Current- or Voltage- Control
Current- or Voltage- Control
Current- or Voltage- Control
Output Current Range
60 A
Output Current Range
100 A
30 A
60 A
75 A
Output Voltage Range
10 V
Output Voltage Range
6 V
30 V
10 V
8 V
Maximum Output Power
600 W
Maximum Output Power
600 W
900 W
600 W
600 W
Current Setting Resolution
18 bit
18 bit
18 bit
18 bit
Voltage Setting Resolution
18 bit
18 bit
18 bit
18 bit
Output Current Readback
24 bit
24 bit
24 bit
24 bit
Output Voltage Readback
24 bit
24 bit
24 bit
24 bit
Output Current Stability
50 ppm/FS
50 ppm/FS
50 ppm/FS
50 ppm/FS
Output Voltage Stability
50 ppm/FS
50 ppm/FS
50 ppm/FS
50 ppm/FS
Switching Frequency (Equivalent)
300 kHz
300 kHz
300 kHz
300 kHz
Closed Loop Bandwidth
5 kHz
5 kHz
5 kHz
5 kHz
External Interlocks/States
2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)
2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)
2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)
2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)
Internal Protections
DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple
DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple
DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple
DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple
Hardware Protections
Input Fuses
Earth Fuse
Over-Voltage
Input Fuses
Earth Fuse
Over-Voltage
Input Fuses
Earth Fuse
Over-Voltage
Input Fuses
Earth Fuse
Over-Voltage
Auxiliary ADC Readbacks
DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature
DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature
DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature
DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature
Cooling
On-Module Self-Regulated Fans
On-Module Self-Regulated Fans
On-Module Self-Regulated Fans
On-Module Self-Regulated Fans
Connectivity
1 x Ethernet 10/100/1000 Mbit TCP-IP and UDP
2 x SFP ports
1 x Ethernet 10/100/1000 Mbit TCP-IP and UDP
2 x SFP ports
1 x Ethernet 10/100/1000 Mbit TCP-IP and UDP
2 x SFP ports
1 x Ethernet 10/100/1000 Mbit TCP-IP and UDP
2 x SFP ports
Extra Features
Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (0-10V, BW = 1 kHz) - optional
Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (0-10V, BW = 1 kHz) - optional
Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (0-10V, BW = 1 kHz) - optional
Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (0-10V, BW = 1 kHz) - optional
Mechanical Dimensions (including connectors)
19" (W) - 1U (H) - 425 mm (D)
Mechanical Dimensions (including connectors)
19" (W) - 1U (H) - 425 mm (D)
19" (W) - 1U (H) - 467 mm (D)
19" (W) - 1U (H) - 425 mm (D)
19" (W) - 1U (H) - 425 mm (D)
Input Voltage
90-260 VAC / 47-63 Hz
90-260 VAC / 47-63 Hz
90-260 VAC / 47-63 Hz
90-260 VAC / 47-63 Hz
Local Control/Monitor
Graphic Display and Navigation Pad
6 LEDs
Graphic Display and Navigation Pad
6 LEDs
Graphic Display and Navigation Pad
6 LEDs
Graphic Display and Navigation Pad
6 LEDs
Regulation Type
Current- or Voltage- Control
Current- or Voltage- Control
Current- or Voltage- Control
Current- or Voltage- Control
Output Current Range
75 A
Output Current Range
100 A
30 A
60 A
75 A
Output Voltage Range
8 V
Output Voltage Range
6 V
30 V
10 V
8 V
Maximum Output Power
600 W
Maximum Output Power
600 W
900 W
600 W
600 W
Current Setting Resolution
18 bit
18 bit
18 bit
18 bit
Voltage Setting Resolution
18 bit
18 bit
18 bit
18 bit
Output Current Readback
24 bit
24 bit
24 bit
24 bit
Output Voltage Readback
24 bit
24 bit
24 bit
24 bit
Output Current Stability
50 ppm/FS
50 ppm/FS
50 ppm/FS
50 ppm/FS
Output Voltage Stability
50 ppm/FS
50 ppm/FS
50 ppm/FS
50 ppm/FS
Switching Frequency (Equivalent)
300 kHz
300 kHz
300 kHz
300 kHz
Closed Loop Bandwidth
5 kHz
5 kHz
5 kHz
5 kHz
External Interlocks/States
2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)
2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)
2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)
2 Inputs: user configurable "dry" contacts
1 Output: relay-type (2 magnetic contacts)
Internal Protections
DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple
DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple
DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple
DC Link Under-Voltage
MOSFETs Over-Temperature
Over-Current
Over-Voltage
Earth Fault Current
Regulation Fault
Excessive Current Ripple
Hardware Protections
Input Fuses
Earth Fuse
Over-Voltage
Input Fuses
Earth Fuse
Over-Voltage
Input Fuses
Earth Fuse
Over-Voltage
Input Fuses
Earth Fuse
Over-Voltage
Auxiliary ADC Readbacks
DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature
DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature
DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature
DC Link Voltage
Ground Leakage Current
MOSFETs Temperature
Shunt Temperature
Cooling
On-Module Self-Regulated Fans
On-Module Self-Regulated Fans
On-Module Self-Regulated Fans
On-Module Self-Regulated Fans
Connectivity
1 x Ethernet 10/100/1000 Mbit TCP-IP and UDP
2 x SFP ports
1 x Ethernet 10/100/1000 Mbit TCP-IP and UDP
2 x SFP ports
1 x Ethernet 10/100/1000 Mbit TCP-IP and UDP
2 x SFP ports
1 x Ethernet 10/100/1000 Mbit TCP-IP and UDP
2 x SFP ports
Extra Features
Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (0-10V, BW = 1 kHz) - optional
Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (0-10V, BW = 1 kHz) - optional
Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (0-10V, BW = 1 kHz) - optional
Point-by-point Current Waveform Loading
User-definable interlock thresholds, active levels and timings
Firmware Remote Update
Analog Control Input (0-10V, BW = 1 kHz) - optional
Mechanical Dimensions (including connectors)
19" (W) - 1U (H) - 425 mm (D)
Mechanical Dimensions (including connectors)
19" (W) - 1U (H) - 425 mm (D)
19" (W) - 1U (H) - 467 mm (D)
19" (W) - 1U (H) - 425 mm (D)
19" (W) - 1U (H) - 425 mm (D)
Input Voltage
90-260 VAC / 47-63 Hz
90-260 VAC / 47-63 Hz
90-260 VAC / 47-63 Hz
90-260 VAC / 47-63 Hz
Local Control/Monitor
Graphic Display and Navigation Pad
6 LEDs
Graphic Display and Navigation Pad
6 LEDs
Graphic Display and Navigation Pad
6 LEDs
Graphic Display and Navigation Pad
6 LEDs
Ordering code
Description
Action
FASTPSM10006
FAST-PS-M 10006-600 – Current & Voltage Digital Power Supply 100 A @ 6 V (600 W max)
FASTPSM3030A
FAST-PS-M 3030-900 – Current & Voltage Digital Power Supply 30 A @ 30 V (900 W max)
FASTPSM6010A
FAST-PS-M 6010-600 – Current & Voltage Digital Power Supply 60 A @ 10 V (600 W max)
FASTPSM7508A
FAST-PS-M 7508-600 – Current & Voltage Digital Power Supply 75 A @ 8 V (600 W max)
Last reviewed: 2025-01-17 ⓘ More infoRevision: 3
Last reviewed: 2024-09-02 ⓘ More infoRevision: 2
Last reviewed: 2024-11-05 ⓘ More infoRevision: 1.1
Last reviewed: 2024-08-29 ⓘ More infoRevision: 2
Last reviewed: 2024-11-11 ⓘ More infoRevision: 1.1
Updated: 2024-09-12 - 61.43 MB ⓘ More info Version: 2.1.5
Updated: 2025-02-26 - 44.38 MB ⓘ More info
Version: 2.2.5
OS: Linux
Updated: 2025-02-26 - 42.67 MB ⓘ More info
Version: 2.2.5
OS: Windows
Trigger Input on BNC connector - optional
Analog Control Input (10V) on BNC connector – optional
Auto-Tuning License for Digital Power Supply Series
