Overview

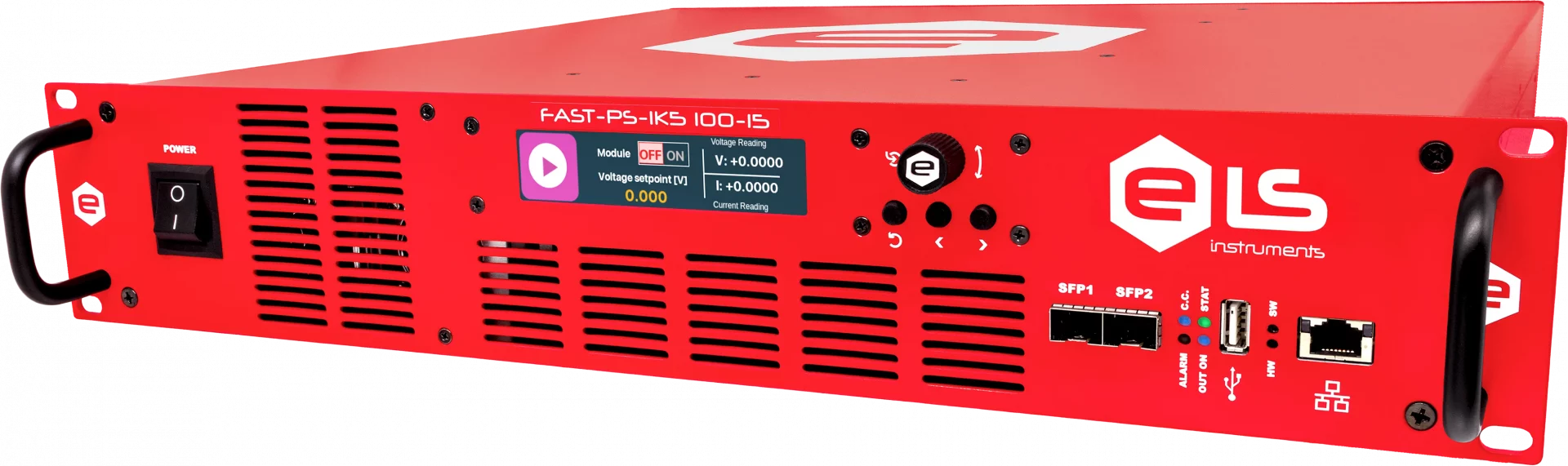

FAST-PS-1K5

Battery Testing and Superconducting Magnets with Source/Sink Capabilities

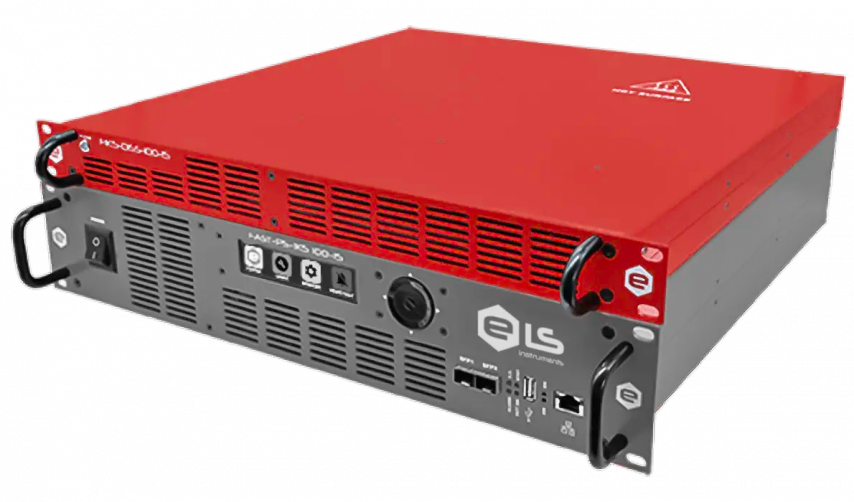

A NEW optional 19″-1U crate was designed to enable the 4-Quadrant operation at the 1.5-kW full-power. This unit is available for the 100 A – 15 V model and the 50 A – 30 V power supplies. This unit is connected to the power supply by a dedicated power cable that allows the system to operate both as power source and power sink. The specifications, in terms of stability, noise, temperature coefficient, etc. are maintained respect to the stand-alone FAST-PS-1K5 unit. Battery testing – e.g. charge/discharge – as well as superconducting magnet ramp-down procedures have never been easier!

FAST-PS-1K5
High-Precision Current and Voltage control for the most demanding applications at higher power - ALL IN ONE!

The FAST-PS-1K5 series is the new generation of bipolar power supplies by CAEN ELS and it is designed in order to have state-of-the-art performances both in current- and voltage-control modes. Models up to 100 A and up to 100 V are available in order to satisfy any need.

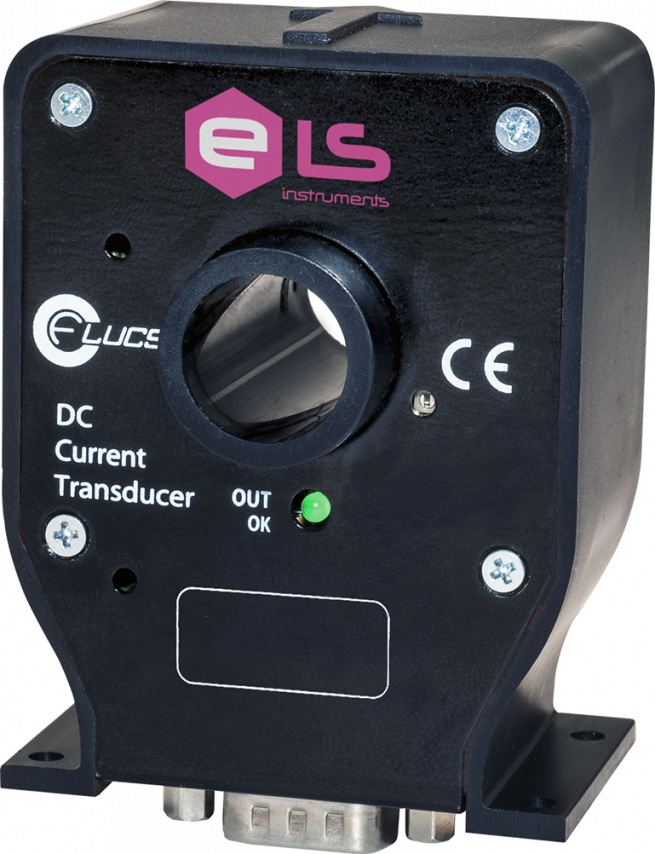

The use of the proprietary 0-FLUCS DCCT as the sensing element, combined with thermal stabilized electronic sections, make this power supply have the lowest temperature dependence on the market at less than 1 ppm/K.

FAST-PS-1K5
Low-noise and the lowest temperature dependence on the market at 1 ppm/K

The 10/100/1000 Mbit Ethernet connection and the two SFP slots allow controlling the power converter in different modes.

The control loop, as for most of CAEN ELS power supplies, is digital in order to obtain the maximum flexibility and easiness of configuration to any connected load – e.g. resistive, capacitive or inductive.

FAST-PS-1K5
Quench protection for SuperConducting (SC) magnet applications

The FAST-PS-1K5 can be controlled either in current- or voltage-control modes and both control loops can be remotely configured.

Internal protections – e.g. over-voltage, over-current – are implemented as well as external interlocks are present. A quench protection feature is embedded in order to use these power units with superconducting magnets. A persistent switch heater supply is also available on the rear panel of each unit.

Features like waveformstriggers, etc. are also present in these state-of-the-art units that also embed a Linux OS to give the maximum flexibility.

An embedded Web-Server also includes an oscilloscope feature with the possibility to monitor 4 channels – e.g. output current and voltage – at 100 ksps.

The units can be also locally controlled via a display and a local interface in order to set or monitor the main parameters and status of the power supply.

Features

  • 19” – 2U stand-alone unit
  • Models up to ±100 A and up to ±100 V
  • Configurable digital control loop
  • 10/100/1000 Mbit TCP-IP and UDP Ethernet interface
  • 4-Quadrant operation with optional 19” – 1U crate
  • PARALLEL operation (up to 4 modules)
  • Current or Voltage regulation
  • Fast SFP interface (10 kHz update)
  • Embedded Linux OS
  • Embedded Web-Server with AWG and Oscilloscope
  • Low noise and Ripple - 0-FLUCS DCCT
  • 1 ppm/K (typ.) temperature dependence
  • Excellent long-term stability
  • Persistent switch heater command
  • Quench protection for superconducting magnets
  • External relay (user-controlled) for specific applications
  • External Analog Control, Trigger and configurable auxiliary ADC Inputs

Technical specifications

  • FAST4R050030
  • FAST4R100015
  • FASTPS015100
  • FASTPS030050

Model

FAST4R050030

FAST4R100015

FASTPS015100

FASTPS030050

Output Current

±50 A

Output Current

±50 A

±100 A

±15 A

±30 A

Output Voltage

±30 V

Output Voltage

±30 V

±15 V

±100 V

±50 V

Maximum Output Power

1.500 W

1.500 W

1.500 W

1.500 W

Topology

Bipolar
4-Quadrant Operation with Optional Unit

Bipolar
4-Quadrant Operation with Optional Unit

Bipolar
4-Quadrant Operation with Optional Unit

Bipolar
4-Quadrant Operation with Optional Unit

Control Mode

Current (CC) and Voltage (CV) Control

Current (CC) and Voltage (CV) Control

Current (CC) and Voltage (CV) Control

Current (CC) and Voltage (CV) Control

Floating Output

Yes - up to 200 V

Yes - up to 200 V

Yes - up to 200 V

Yes - up to 200 V

Remote Sensing

up to 0.5 V

up to 0.5 V

up to 0.5 V

up to 0.5 V

Current Sensing

0-FLUCS - High-Precision Current Transducers

0-FLUCS - High-Precision Current Transducers

0-FLUCS - High-Precision Current Transducers

0-FLUCS - High-Precision Current Transducers

Analog Control Input

Yes (±10 V, BW = 1 kHz)

Yes (±10 V, BW = 1 kHz)

Yes (±10 V, BW = 1 kHz)

Yes (±10 V, BW = 1 kHz)

Current Setting Resolution

400 uA

Current Setting Resolution

400 uA

800 uA

150 uA

250 uA

Voltage Setting Resolution

300 uV

Voltage Setting Resolution

300 uV

150 uV

1 mV

500 uV

Output Readback Resolution

24-bit

24-bit

24-bit

24-bit

Noise + Ripple (rms)

< 0.01 % on resistive load
< 0.005 % on 1 mH load

< 0.01 % on resistive load
< 0.005 % on 1 mH load

< 0.01 % on resistive load
< 0.005 % on 1 mH load

< 0.01 % on resistive load
< 0.005 % on 1 mH load

Temperature Coefficient - TC

< 0.0002 % / K (CC mode)
< 0.005 % / K (CV mode)

< 0.0002 % / K (CC mode)
< 0.005 % / K (CV mode)

< 0.0002 % / K (CC mode)
< 0.005 % / K (CV mode)

< 0.0002 % / K (CC mode)
< 0.005 % / K (CV mode)

Long Term Stability (8 h)

< 0.001 % (CC mode)
< 0.005 % (CV mode)

< 0.001 % (CC mode)
< 0.005 % (CV mode)

< 0.001 % (CC mode)
< 0.005 % (CV mode)

< 0.001 % (CC mode)
< 0.005 % (CV mode)

Analog Bandwidth (-3 dB)

> 2 kHz

> 2 kHz

> 2 kHz

> 2 kHz

Maximum Excess Output Power >= 50 A models

< 50 W continuous
>= 50 W & < 100 W 20 s
>= 100 W 1s

< 50 W continuous
>= 50 W & < 100 W 20 s
>= 100 W 1s

< 50 W continuous
>= 50 W & < 100 W 20 s
>= 100 W 1s

< 50 W continuous
>= 50 W & < 100 W 20 s
>= 100 W 1s

Maximum Excess Output Power < 50 A models

< 25W continuous
>= 25W & < 50W 20 s
>= 50W 1s

< 25W continuous
>= 25W & < 50W 20 s
>= 50W 1s

< 25W continuous
>= 25W & < 50W 20 s
>= 50W 1s

< 25W continuous
>= 25W & < 50W 20 s
>= 50W 1s

Rise Time (@full-load resistive)

130 us

130 us

130 us

130 us

Control/Communication Interface

10/100/1000 Mbit Ethernet TCP-IP and UDP
SFP/SFP+

10/100/1000 Mbit Ethernet TCP-IP and UDP
SFP/SFP+

10/100/1000 Mbit Ethernet TCP-IP and UDP
SFP/SFP+

10/100/1000 Mbit Ethernet TCP-IP and UDP
SFP/SFP+

Local Control

Colour display with multi-function navigation switch

Colour display with multi-function navigation switch

Colour display with multi-function navigation switch

Colour display with multi-function navigation switch

External Signals

4 External Interlocks
2 Status signals – 1 magnetic relay and 1 solid-state
Trigger Input
Analog Control Input
Additional Configurable ADC Input

4 External Interlocks
2 Status signals – 1 magnetic relay and 1 solid-state
Trigger Input
Analog Control Input
Additional Configurable ADC Input

4 External Interlocks
2 Status signals – 1 magnetic relay and 1 solid-state
Trigger Input
Analog Control Input
Additional Configurable ADC Input

4 External Interlocks
2 Status signals – 1 magnetic relay and 1 solid-state
Trigger Input
Analog Control Input
Additional Configurable ADC Input

Extra Features

Waveform execution
Quench Protection
Remote Firmware Update
Linux OS on-board
Embedded EPICS IOC
Embedded Web-Server

Waveform execution
Quench Protection
Remote Firmware Update
Linux OS on-board
Embedded EPICS IOC
Embedded Web-Server

Waveform execution
Quench Protection
Remote Firmware Update
Linux OS on-board
Embedded EPICS IOC
Embedded Web-Server

Waveform execution
Quench Protection
Remote Firmware Update
Linux OS on-board
Embedded EPICS IOC
Embedded Web-Server

Mechanical Dimensions (L × W × H)

19” x 2U x 550 cm

19” x 2U x 550 cm

19” x 2U x 550 cm

19” x 2U x 550 cm

Weight

< 15 kg

< 15 kg

< 15 kg

< 15 kg

Operating Temperature

0 ... 45 °C

0 ... 45 °C

0 ... 45 °C

0 ... 45 °C

Efficiency

up to 85 %

up to 85 %

up to 85 %

up to 85 %

Input Ratings

90 - 240 VAC / 47 - 63 Hz

90 - 240 VAC / 47 - 63 Hz

90 - 240 VAC / 47 - 63 Hz

90 - 240 VAC / 47 - 63 Hz

Output Current

±100 A

Output Current

±50 A

±100 A

±15 A

±30 A

Output Voltage

±15 V

Output Voltage

±30 V

±15 V

±100 V

±50 V

Maximum Output Power

1.500 W

1.500 W

1.500 W

1.500 W

Topology

Bipolar
4-Quadrant Operation with Optional Unit

Bipolar
4-Quadrant Operation with Optional Unit

Bipolar
4-Quadrant Operation with Optional Unit

Bipolar
4-Quadrant Operation with Optional Unit

Control Mode

Current (CC) and Voltage (CV) Control

Current (CC) and Voltage (CV) Control

Current (CC) and Voltage (CV) Control

Current (CC) and Voltage (CV) Control

Floating Output

Yes - up to 200 V

Yes - up to 200 V

Yes - up to 200 V

Yes - up to 200 V

Remote Sensing

up to 0.5 V

up to 0.5 V

up to 0.5 V

up to 0.5 V

Current Sensing

0-FLUCS - High-Precision Current Transducers

0-FLUCS - High-Precision Current Transducers

0-FLUCS - High-Precision Current Transducers

0-FLUCS - High-Precision Current Transducers

Analog Control Input

Yes (±10 V, BW = 1 kHz)

Yes (±10 V, BW = 1 kHz)

Yes (±10 V, BW = 1 kHz)

Yes (±10 V, BW = 1 kHz)

Current Setting Resolution

800 uA

Current Setting Resolution

400 uA

800 uA

150 uA

250 uA

Voltage Setting Resolution

150 uV

Voltage Setting Resolution

300 uV

150 uV

1 mV

500 uV

Output Readback Resolution

24-bit

24-bit

24-bit

24-bit

Noise + Ripple (rms)

< 0.01 % on resistive load
< 0.005 % on 1 mH load

< 0.01 % on resistive load
< 0.005 % on 1 mH load

< 0.01 % on resistive load
< 0.005 % on 1 mH load

< 0.01 % on resistive load
< 0.005 % on 1 mH load

Temperature Coefficient - TC

< 0.0002 % / K (CC mode)
< 0.005 % / K (CV mode)

< 0.0002 % / K (CC mode)
< 0.005 % / K (CV mode)

< 0.0002 % / K (CC mode)
< 0.005 % / K (CV mode)

< 0.0002 % / K (CC mode)
< 0.005 % / K (CV mode)

Long Term Stability (8 h)

< 0.001 % (CC mode)
< 0.005 % (CV mode)

< 0.001 % (CC mode)
< 0.005 % (CV mode)

< 0.001 % (CC mode)
< 0.005 % (CV mode)

< 0.001 % (CC mode)
< 0.005 % (CV mode)

Analog Bandwidth (-3 dB)

> 2 kHz

> 2 kHz

> 2 kHz

> 2 kHz

Maximum Excess Output Power >= 50 A models

< 50 W continuous
>= 50 W & < 100 W 20 s
>= 100 W 1s

< 50 W continuous
>= 50 W & < 100 W 20 s
>= 100 W 1s

< 50 W continuous
>= 50 W & < 100 W 20 s
>= 100 W 1s

< 50 W continuous
>= 50 W & < 100 W 20 s
>= 100 W 1s

Maximum Excess Output Power < 50 A models

< 25W continuous
>= 25W & < 50W 20 s
>= 50W 1s

< 25W continuous
>= 25W & < 50W 20 s
>= 50W 1s

< 25W continuous
>= 25W & < 50W 20 s
>= 50W 1s

< 25W continuous
>= 25W & < 50W 20 s
>= 50W 1s

Rise Time (@full-load resistive)

130 us

130 us

130 us

130 us

Control/Communication Interface

10/100/1000 Mbit Ethernet TCP-IP and UDP
SFP/SFP+

10/100/1000 Mbit Ethernet TCP-IP and UDP
SFP/SFP+

10/100/1000 Mbit Ethernet TCP-IP and UDP
SFP/SFP+

10/100/1000 Mbit Ethernet TCP-IP and UDP
SFP/SFP+

Local Control

Colour display with multi-function navigation switch

Colour display with multi-function navigation switch

Colour display with multi-function navigation switch

Colour display with multi-function navigation switch

External Signals

4 External Interlocks
2 Status signals – 1 magnetic relay and 1 solid-state
Trigger Input
Analog Control Input
Additional Configurable ADC Input

4 External Interlocks
2 Status signals – 1 magnetic relay and 1 solid-state
Trigger Input
Analog Control Input
Additional Configurable ADC Input

4 External Interlocks
2 Status signals – 1 magnetic relay and 1 solid-state
Trigger Input
Analog Control Input
Additional Configurable ADC Input

4 External Interlocks
2 Status signals – 1 magnetic relay and 1 solid-state
Trigger Input
Analog Control Input
Additional Configurable ADC Input

Extra Features

Waveform execution
Quench Protection
Remote Firmware Update
Linux OS on-board
Embedded EPICS IOC
Embedded Web-Server

Waveform execution
Quench Protection
Remote Firmware Update
Linux OS on-board
Embedded EPICS IOC
Embedded Web-Server

Waveform execution
Quench Protection
Remote Firmware Update
Linux OS on-board
Embedded EPICS IOC
Embedded Web-Server

Waveform execution
Quench Protection
Remote Firmware Update
Linux OS on-board
Embedded EPICS IOC
Embedded Web-Server

Mechanical Dimensions (L × W × H)

19” x 2U x 550 cm

19” x 2U x 550 cm

19” x 2U x 550 cm

19” x 2U x 550 cm

Weight

< 15 kg

< 15 kg

< 15 kg

< 15 kg

Operating Temperature

0 ... 45 °C

0 ... 45 °C

0 ... 45 °C

0 ... 45 °C

Efficiency

up to 85 %

up to 85 %

up to 85 %

up to 85 %

Input Ratings

90 - 240 VAC / 47 - 63 Hz

90 - 240 VAC / 47 - 63 Hz

90 - 240 VAC / 47 - 63 Hz

90 - 240 VAC / 47 - 63 Hz

Output Current

±15 A

Output Current

±50 A

±100 A

±15 A

±30 A

Output Voltage

±100 V

Output Voltage

±30 V

±15 V

±100 V

±50 V

Maximum Output Power

1.500 W

1.500 W

1.500 W

1.500 W

Topology

Bipolar
4-Quadrant Operation with Optional Unit

Bipolar
4-Quadrant Operation with Optional Unit

Bipolar
4-Quadrant Operation with Optional Unit

Bipolar
4-Quadrant Operation with Optional Unit

Control Mode

Current (CC) and Voltage (CV) Control

Current (CC) and Voltage (CV) Control

Current (CC) and Voltage (CV) Control

Current (CC) and Voltage (CV) Control

Floating Output

Yes - up to 200 V

Yes - up to 200 V

Yes - up to 200 V

Yes - up to 200 V

Remote Sensing

up to 0.5 V

up to 0.5 V

up to 0.5 V

up to 0.5 V

Current Sensing

0-FLUCS - High-Precision Current Transducers

0-FLUCS - High-Precision Current Transducers

0-FLUCS - High-Precision Current Transducers

0-FLUCS - High-Precision Current Transducers

Analog Control Input

Yes (±10 V, BW = 1 kHz)

Yes (±10 V, BW = 1 kHz)

Yes (±10 V, BW = 1 kHz)

Yes (±10 V, BW = 1 kHz)

Current Setting Resolution

150 uA

Current Setting Resolution

400 uA

800 uA

150 uA

250 uA

Voltage Setting Resolution

1 mV

Voltage Setting Resolution

300 uV

150 uV

1 mV

500 uV

Output Readback Resolution

24-bit

24-bit

24-bit

24-bit

Noise + Ripple (rms)

< 0.01 % on resistive load
< 0.005 % on 1 mH load

< 0.01 % on resistive load
< 0.005 % on 1 mH load

< 0.01 % on resistive load
< 0.005 % on 1 mH load

< 0.01 % on resistive load
< 0.005 % on 1 mH load

Temperature Coefficient - TC

< 0.0002 % / K (CC mode)
< 0.005 % / K (CV mode)

< 0.0002 % / K (CC mode)
< 0.005 % / K (CV mode)

< 0.0002 % / K (CC mode)
< 0.005 % / K (CV mode)

< 0.0002 % / K (CC mode)
< 0.005 % / K (CV mode)

Long Term Stability (8 h)

< 0.001 % (CC mode)
< 0.005 % (CV mode)

< 0.001 % (CC mode)
< 0.005 % (CV mode)

< 0.001 % (CC mode)
< 0.005 % (CV mode)

< 0.001 % (CC mode)
< 0.005 % (CV mode)

Analog Bandwidth (-3 dB)

> 2 kHz

> 2 kHz

> 2 kHz

> 2 kHz

Maximum Excess Output Power >= 50 A models

< 50 W continuous
>= 50 W & < 100 W 20 s
>= 100 W 1s

< 50 W continuous
>= 50 W & < 100 W 20 s
>= 100 W 1s

< 50 W continuous
>= 50 W & < 100 W 20 s
>= 100 W 1s

< 50 W continuous
>= 50 W & < 100 W 20 s
>= 100 W 1s

Maximum Excess Output Power < 50 A models

< 25W continuous
>= 25W & < 50W 20 s
>= 50W 1s

< 25W continuous
>= 25W & < 50W 20 s
>= 50W 1s

< 25W continuous
>= 25W & < 50W 20 s
>= 50W 1s

< 25W continuous
>= 25W & < 50W 20 s
>= 50W 1s

Rise Time (@full-load resistive)

130 us

130 us

130 us

130 us

Control/Communication Interface

10/100/1000 Mbit Ethernet TCP-IP and UDP
SFP/SFP+

10/100/1000 Mbit Ethernet TCP-IP and UDP
SFP/SFP+

10/100/1000 Mbit Ethernet TCP-IP and UDP
SFP/SFP+

10/100/1000 Mbit Ethernet TCP-IP and UDP
SFP/SFP+

Local Control

Colour display with multi-function navigation switch

Colour display with multi-function navigation switch

Colour display with multi-function navigation switch

Colour display with multi-function navigation switch

External Signals

4 External Interlocks
2 Status signals – 1 magnetic relay and 1 solid-state
Trigger Input
Analog Control Input
Additional Configurable ADC Input

4 External Interlocks
2 Status signals – 1 magnetic relay and 1 solid-state
Trigger Input
Analog Control Input
Additional Configurable ADC Input

4 External Interlocks
2 Status signals – 1 magnetic relay and 1 solid-state
Trigger Input
Analog Control Input
Additional Configurable ADC Input

4 External Interlocks
2 Status signals – 1 magnetic relay and 1 solid-state
Trigger Input
Analog Control Input
Additional Configurable ADC Input

Extra Features

Waveform execution
Quench Protection
Remote Firmware Update
Linux OS on-board
Embedded EPICS IOC
Embedded Web-Server

Waveform execution
Quench Protection
Remote Firmware Update
Linux OS on-board
Embedded EPICS IOC
Embedded Web-Server

Waveform execution
Quench Protection
Remote Firmware Update
Linux OS on-board
Embedded EPICS IOC
Embedded Web-Server

Waveform execution
Quench Protection
Remote Firmware Update
Linux OS on-board
Embedded EPICS IOC
Embedded Web-Server

Mechanical Dimensions (L × W × H)

19” x 2U x 550 cm

19” x 2U x 550 cm

19” x 2U x 550 cm

19” x 2U x 550 cm

Weight

< 15 kg

< 15 kg

< 15 kg

< 15 kg

Operating Temperature

0 ... 45 °C

0 ... 45 °C

0 ... 45 °C

0 ... 45 °C

Efficiency

up to 85 %

up to 85 %

up to 85 %

up to 85 %

Input Ratings

90 - 240 VAC / 47 - 63 Hz

90 - 240 VAC / 47 - 63 Hz

90 - 240 VAC / 47 - 63 Hz

90 - 240 VAC / 47 - 63 Hz

Output Current

±30 A

Output Current

±50 A

±100 A

±15 A

±30 A

Output Voltage

±50 V

Output Voltage

±30 V

±15 V

±100 V

±50 V

Maximum Output Power

1.500 W

1.500 W

1.500 W

1.500 W

Topology

Bipolar
4-Quadrant Operation with Optional Unit

Bipolar
4-Quadrant Operation with Optional Unit

Bipolar
4-Quadrant Operation with Optional Unit

Bipolar
4-Quadrant Operation with Optional Unit

Control Mode

Current (CC) and Voltage (CV) Control

Current (CC) and Voltage (CV) Control

Current (CC) and Voltage (CV) Control

Current (CC) and Voltage (CV) Control

Floating Output

Yes - up to 200 V

Yes - up to 200 V

Yes - up to 200 V

Yes - up to 200 V

Remote Sensing

up to 0.5 V

up to 0.5 V

up to 0.5 V

up to 0.5 V

Current Sensing

0-FLUCS - High-Precision Current Transducers

0-FLUCS - High-Precision Current Transducers

0-FLUCS - High-Precision Current Transducers

0-FLUCS - High-Precision Current Transducers

Analog Control Input

Yes (±10 V, BW = 1 kHz)

Yes (±10 V, BW = 1 kHz)

Yes (±10 V, BW = 1 kHz)

Yes (±10 V, BW = 1 kHz)

Current Setting Resolution

250 uA

Current Setting Resolution

400 uA

800 uA

150 uA

250 uA

Voltage Setting Resolution

500 uV

Voltage Setting Resolution

300 uV

150 uV

1 mV

500 uV

Output Readback Resolution

24-bit

24-bit

24-bit

24-bit

Noise + Ripple (rms)

< 0.01 % on resistive load
< 0.005 % on 1 mH load

< 0.01 % on resistive load
< 0.005 % on 1 mH load

< 0.01 % on resistive load
< 0.005 % on 1 mH load

< 0.01 % on resistive load
< 0.005 % on 1 mH load

Temperature Coefficient - TC

< 0.0002 % / K (CC mode)
< 0.005 % / K (CV mode)

< 0.0002 % / K (CC mode)
< 0.005 % / K (CV mode)

< 0.0002 % / K (CC mode)
< 0.005 % / K (CV mode)

< 0.0002 % / K (CC mode)
< 0.005 % / K (CV mode)

Long Term Stability (8 h)

< 0.001 % (CC mode)
< 0.005 % (CV mode)

< 0.001 % (CC mode)
< 0.005 % (CV mode)

< 0.001 % (CC mode)
< 0.005 % (CV mode)

< 0.001 % (CC mode)
< 0.005 % (CV mode)

Analog Bandwidth (-3 dB)

> 2 kHz

> 2 kHz

> 2 kHz

> 2 kHz

Maximum Excess Output Power >= 50 A models

< 50 W continuous
>= 50 W & < 100 W 20 s
>= 100 W 1s

< 50 W continuous
>= 50 W & < 100 W 20 s
>= 100 W 1s

< 50 W continuous
>= 50 W & < 100 W 20 s
>= 100 W 1s

< 50 W continuous
>= 50 W & < 100 W 20 s
>= 100 W 1s

Maximum Excess Output Power < 50 A models

< 25W continuous
>= 25W & < 50W 20 s
>= 50W 1s

< 25W continuous
>= 25W & < 50W 20 s
>= 50W 1s

< 25W continuous
>= 25W & < 50W 20 s
>= 50W 1s

< 25W continuous
>= 25W & < 50W 20 s
>= 50W 1s

Rise Time (@full-load resistive)

130 us

130 us

130 us

130 us

Control/Communication Interface

10/100/1000 Mbit Ethernet TCP-IP and UDP
SFP/SFP+

10/100/1000 Mbit Ethernet TCP-IP and UDP
SFP/SFP+

10/100/1000 Mbit Ethernet TCP-IP and UDP
SFP/SFP+

10/100/1000 Mbit Ethernet TCP-IP and UDP
SFP/SFP+

Local Control

Colour display with multi-function navigation switch

Colour display with multi-function navigation switch

Colour display with multi-function navigation switch

Colour display with multi-function navigation switch

External Signals

4 External Interlocks
2 Status signals – 1 magnetic relay and 1 solid-state
Trigger Input
Analog Control Input
Additional Configurable ADC Input

4 External Interlocks
2 Status signals – 1 magnetic relay and 1 solid-state
Trigger Input
Analog Control Input
Additional Configurable ADC Input

4 External Interlocks
2 Status signals – 1 magnetic relay and 1 solid-state
Trigger Input
Analog Control Input
Additional Configurable ADC Input

4 External Interlocks
2 Status signals – 1 magnetic relay and 1 solid-state
Trigger Input
Analog Control Input
Additional Configurable ADC Input

Extra Features

Waveform execution
Quench Protection
Remote Firmware Update
Linux OS on-board
Embedded EPICS IOC
Embedded Web-Server

Waveform execution
Quench Protection
Remote Firmware Update
Linux OS on-board
Embedded EPICS IOC
Embedded Web-Server

Waveform execution
Quench Protection
Remote Firmware Update
Linux OS on-board
Embedded EPICS IOC
Embedded Web-Server

Waveform execution
Quench Protection
Remote Firmware Update
Linux OS on-board
Embedded EPICS IOC
Embedded Web-Server

Mechanical Dimensions (L × W × H)

19” x 2U x 550 cm

19” x 2U x 550 cm

19” x 2U x 550 cm

19” x 2U x 550 cm

Weight

< 15 kg

< 15 kg

< 15 kg

< 15 kg

Operating Temperature

0 ... 45 °C

0 ... 45 °C

0 ... 45 °C

0 ... 45 °C

Efficiency

up to 85 %

up to 85 %

up to 85 %

up to 85 %

Input Ratings

90 - 240 VAC / 47 - 63 Hz

90 - 240 VAC / 47 - 63 Hz

90 - 240 VAC / 47 - 63 Hz

90 - 240 VAC / 47 - 63 Hz

Ordering options

Ordering code

Description

Action

FAST4R050030

FAST-PS-1K5 50-30 – 1.5-kW Fast High-Stability Curr. & Volt. Digital PS ±50 A @ ±30 V – 4Q Ready

FAST4R100015

FAST-PS-1K5 100-15 – 1.5-kW Fast High-Stability Curr. & Volt. Digital PS ±100 A @ ±15 V – 4Q Ready

FASTPS015100

FAST-PS-1K5 15-100 – 1.5-kW Fast High-Stability Curr. & Volt. Digital PS ±15 A @ ±100 V

FASTPS030050

FAST-PS-1K5 30-50 – 1.5-kW Fast High-Stability Curr. & Volt. Digital PS ±30 A @ ±50 V

Documentation

Last reviewed: 2024-09-02 ⓘ More infoRevision: 2

Last reviewed: 2024-09-20 ⓘ More infoRevision: 3

Last reviewed: 2024-08-29 ⓘ More infoRevision: 2

Last reviewed: 2024-11-05 ⓘ More infoRevision: 2.2

Last reviewed: 2024-08-29 ⓘ More infoRevision: 2

Last reviewed: 2024-11-11 ⓘ More infoRevision: 1.1

Software/Firmware

Updated: 2024-09-12 - 61.43 MB ⓘ More info Version: 2.1.5

Updated: 2024-06-24 - 44.16 MB ⓘ More info Version: 2.2.3
OS: Linux

Updated: 2024-06-24 - 42.44 MB ⓘ More info Version: 2.2.3
OS: Windows

Accessories

F1K5D4050030 - 4-Quadrant Operation Crate

F1K5D4050030 - 4-Quadrant Operation Crate

F1K5-DISS-50-30 - 4-Quadrant Operation Crate for FAST-PS-1K5 ±50 A @ ±30 V

F1K5D4100015 - 4-Quadrant Operation Crate

F1K5D4100015 - 4-Quadrant Operation Crate

F1K5-DISS-50-30 - 4-Quadrant Operation Crate for FAST-PS-1K5 ±100 A @ ±15 V

AUTOTUNEFW01 - Automatic Tuning Capability

AUTOTUNEFW01 - Automatic Tuning Capability

Auto-Tuning License for Digital Power Supply Series

Copyright CAEN ELS s.r.l.
