FMC-4SFP+

FMC-4SFP+

Dual- and Quad-channel SFP/SFP+ FMC Adapter

FPGA Mezzanine Card (FMC – VITA 57.1) High Pin Count board that allows for dual of quad channel fast SFP/SFP+ communication


  • Overview
  • Features
  • Technical specifications
  • Ordering options
  • Documentation
  • Software/Firmware

Overview

FMC-4SFP+
FMC HPC board that allows for dual of quad channel fast SFP/SFP+ communication

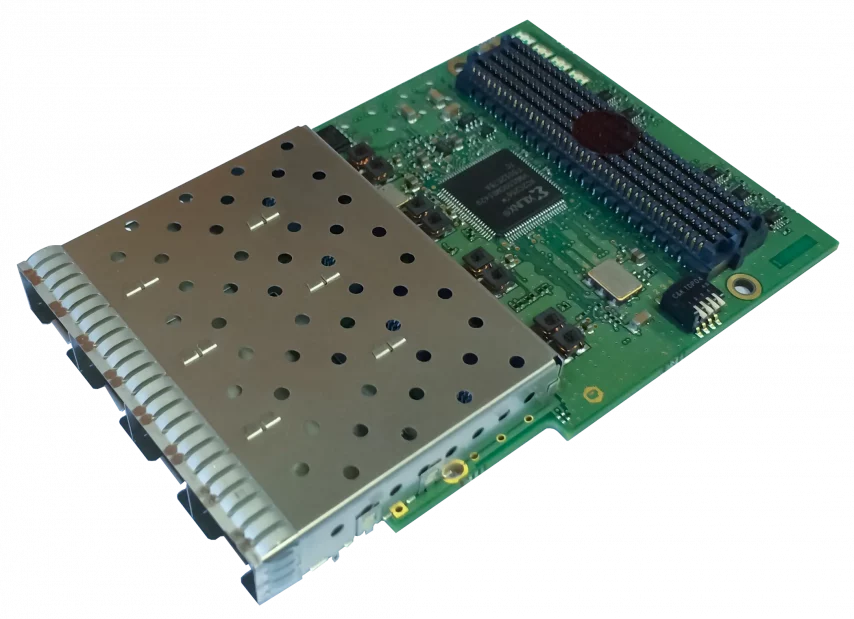

The FMC-4SFP+ is a FPGA Mezzanine Card (FMC – VITA 57.1) High Pin Count board that allows for dual of quad channel fast SFP/SFP+ communication.

It offers up to four SFP/SFP+ module slots. All module pins are translated to the FMC carrier voltage VADJ that can be in the range 1.5 V to 3.3 V. With its low operation voltage it can be used on almost all carriers. The module is designed as a HPC.

The components are placed to be compatible also with carriers that have components under the FMC module. The SFP+ cage is placed to fit all carriers without front panel modifications.

FMC-4SFP+
FMC HPC board that allows for dual of quad channel fast SFP/SFP+ communication

The module feature and I2C-controlled LVDS (Low Voltage Differential Signaling) oscillator chip (adjustable via a DIP switch or I2C interface) that operates in a wide range of frequency: 10 to 280 MHz. Automatic configuration of clock oscillator and modules for stand-alone operation is also provided.

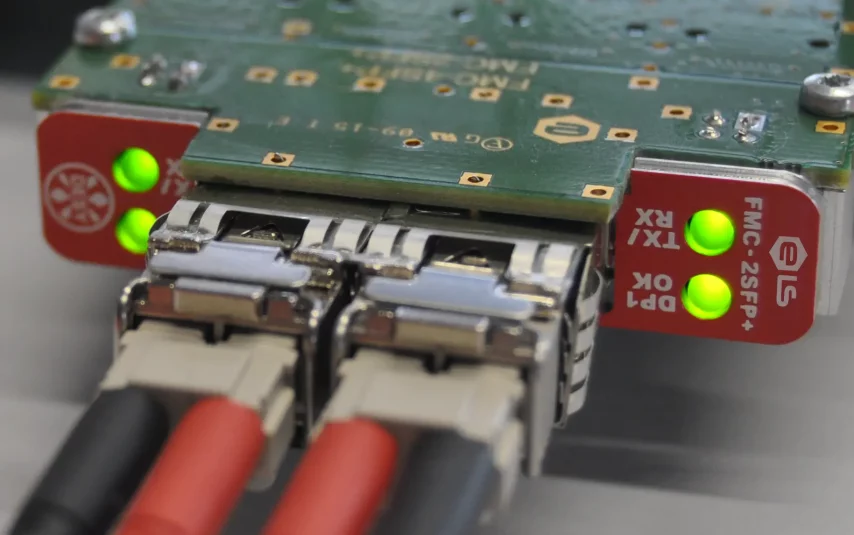

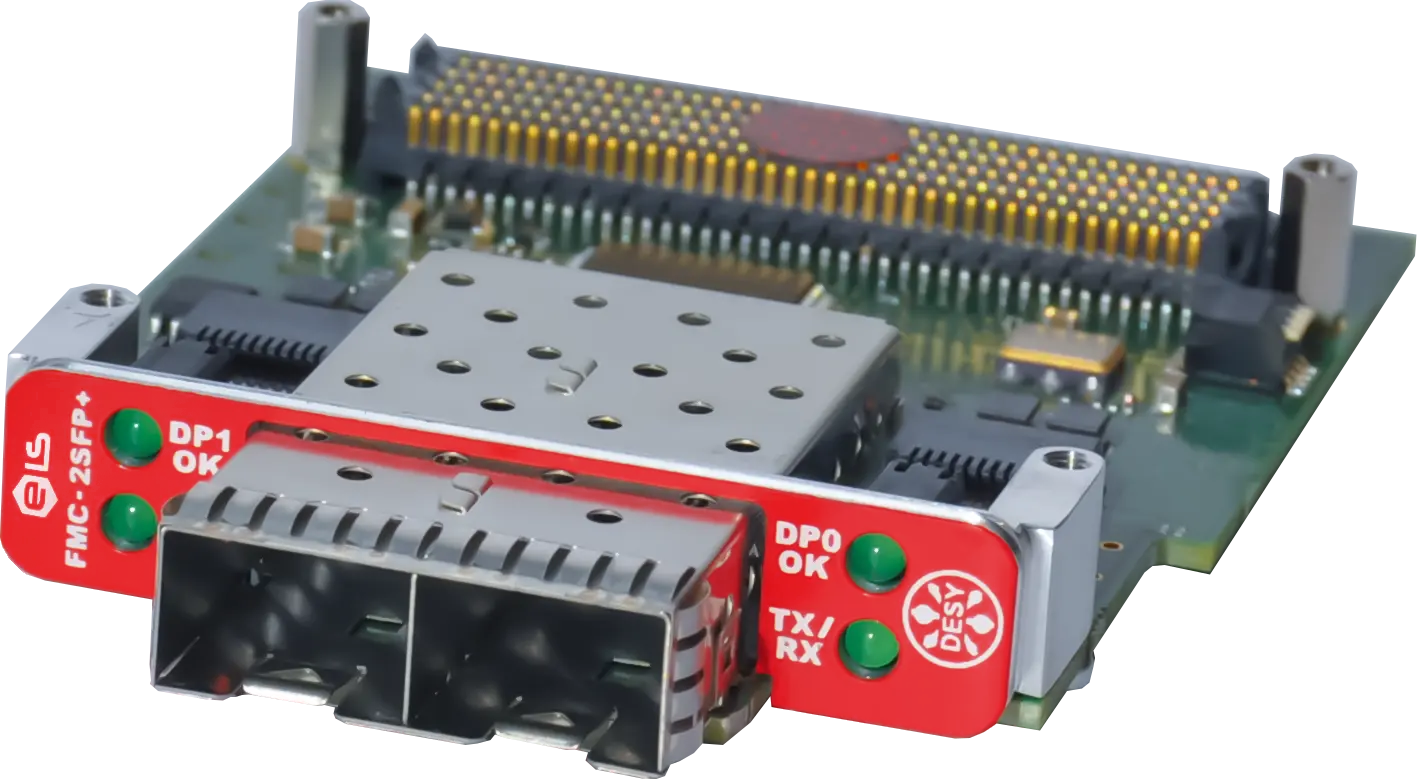

A dual-channel version – i.e. FMC-2SFP+ – with standard FMC bezel and a quad-channel version – i.e. FMC-4SFP+ – without front bezel are commercially available.

Features

  • FPGA Mezzanine Card
  • HPC FMC Module
  • Wide I/O operating voltage range: VADJ can vary from 1.5 V to 3.3 V
  • Autonomous Mode: Clock speed setting and transmitter activation via DIP switches
  • True level conversion of all pins including I2C bus lines
  • Link Status indication via front panel or bottom-emitting LEDs
  • I2C-Controlled oscillator (10-280MHz)
  • Available as 4-channel or 2-channel version
  • Fits on any FMC carrier without front panel modification
  • Individual module status via LEDs
  • Compatibility with the DAMC-FMC25 Board

Technical specifications

  • FMC4SFP2XAAA
  • FMC4SFP4XAAA

Model

FMC4SFP2XAAA

FMC4SFP4XAAA

Board Type

FPGA Mezzanine Card - FMC VITA 57.1

FPGA Mezzanine Card - FMC VITA 57.1

FMC Connector Type

LPC (HPC compliant)

LPC (HPC compliant)

Number of SFP+ channels

2

Number of SFP+ channels

2

4

VADJ Range

1.5 V – 3.3 V

1.5 V – 3.3 V

On-board Oscillator Range

10 MHz – 280 MHz

10 MHz – 280 MHz

On-board Oscillator Configuration Protocol

I2C

I2C

Other Features

8 signalling LEDs

8 signalling LEDs

Board Type

FPGA Mezzanine Card - FMC VITA 57.1

FPGA Mezzanine Card - FMC VITA 57.1

FMC Connector Type

LPC (HPC compliant)

LPC (HPC compliant)

Number of SFP+ channels

4

Number of SFP+ channels

2

4

VADJ Range

1.5 V – 3.3 V

1.5 V – 3.3 V

On-board Oscillator Range

10 MHz – 280 MHz

10 MHz – 280 MHz

On-board Oscillator Configuration Protocol

I2C

I2C

Other Features

8 signalling LEDs

8 signalling LEDs

Ordering options

Ordering code

Description

Action

FMC4SFP2XAAA

Dual-channel SFP/SFP+ Adapter FMC

FMC4SFP4XAAA

Quad-channel SFP/SFP+ Adapter FMC

Documentation

Last reviewed: 2022-12-09 ⓘ More infoRevision: 1.5

Last reviewed: 2023-02-03 ⓘ More infoRevision: 2.0

Software/Firmware

No firmware or software available.
