Technical Specifications

Board Type FPGA Mezzanine Card - FMC VITA 57.1
FMC Connector Type LPC (HPC compliant)
Number of SFP+ channels 2 on FMC-2SFP+
4 on FMC-4SFP+
VADJ Range 1.2 V – 3.3 V
On-board Oscillator Range 10 MHz – 280 MHz
On-board Oscillator Configuration Protocol I2C
Other Features 8 signalling LEDs

Ordering Options

Product code Description Ordering Code
FMC-2SFP+ Dual-channel SFP/SFP+ Adapter FMC FMC4SFP2XAAA
FMC-4SFP+ Quad-channel SFP/SFP+ Adapter FMC FMC4SFP4XAAA

Overview
Overview
Immagine del prodotto

The FMC-4SFP+ is a FPGA Mezzanine Card (FMC - VITA 57.1) Low Pin Count board that allows for dual of quad channel fast SFP/SFP+ communication.

It offers up to four SFP/SFP+ module slots. All module pins are translated to the FMC carrier voltage VADJ that can be in the range 1.5V to 3.3V. With its low operation voltage it can be used on almost all carriers. The module is designed as an LPC but it is also compatible with HPC carriers.

The components are placed to be compatible also with carriers that have components under the FMC module. The SFP+ cage is placed to fit all carriers without front panel modifications.

The module feature and I2C-controlled LVDS (Low Voltage Differential Signaling) oscillator chip (adjustable via a DIP switch or I2C interface) that operates in a wide range of frequency: 10 to 280 MHz. Automatic configuration of clock oscillator and modules for stand-alone operation is also provided.

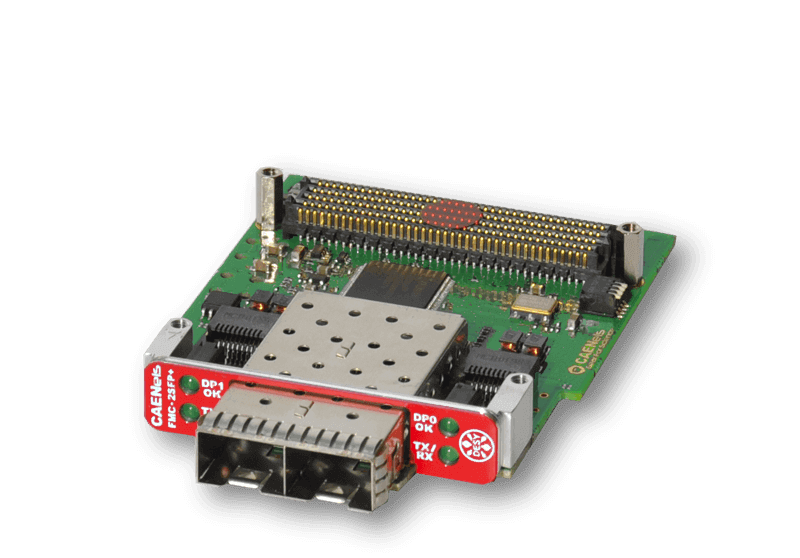

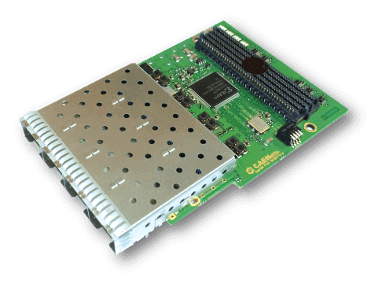

A dual-channel version - i.e. FMC-2SFP+ - with standard FMC bezel and a quad-channel version - i.e. FMC-4SFP+ - without front bezell are commercially available.


Features
  • FPGA Mezzanine Card
  • LPC FMC Module (HPC compliant)
  • Wide I/O operating voltage range: VADJ can vary from 1.5V to 3.3V
  • Autonomous Mode: Clock speed setting and transmitter activation via DIP switches
  • True level conversion of all pins including I2C bus lines

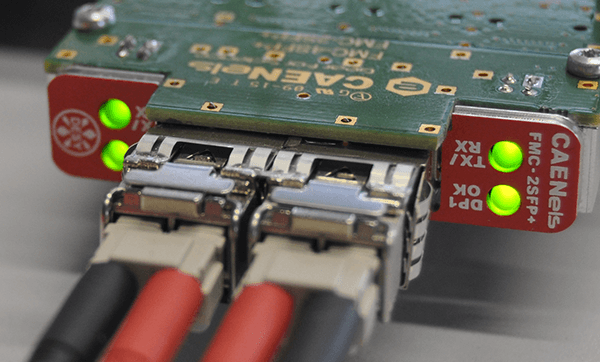

  • Link Status indication via front panel or bottom-emitting LEDs
  • I2C-Controlled oscillator (10-280MHz)
  • Available as 4-channel or 2-channel version
  • Fits on any FMC carrier without front panel modification
  • Individual module status via LEDs
  • Compatibility with the DAMC-FMC25 Board

Applications
  • Fast Communication Interface
Documentation Software/Firmware
FMC-SFP2+/SFP4+ - Flyer v1.2 Last update: 2016-04-11 12:21:19

FMC-SFP2+/SFP4+ - User's manual v1.1 Last update: 2016-04-11 12:21:03

Software/firmware not available.
