Overview

4-channel simultaneous sampling at 24-bit, 100 kHz for best-in-class noise performance

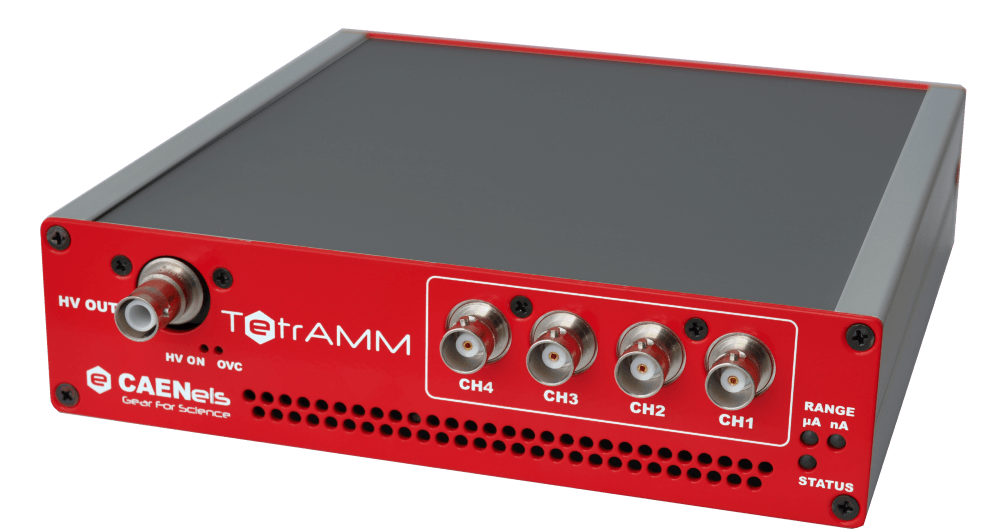

The TetrAMM – e.g. “Tetra AMMeter” – is a 4-channel picoammeter device dedicated to accurate and fast low current measurements.

The presence of a fast Gigabit Ethernet Interface and an SFP (Small Form-factor Pluggable) link allow for very high-throughput data acquisition. Each channel is sampled independently and simultaneously at a maximum frequency of 100 kHz with a 24-bit resolution.

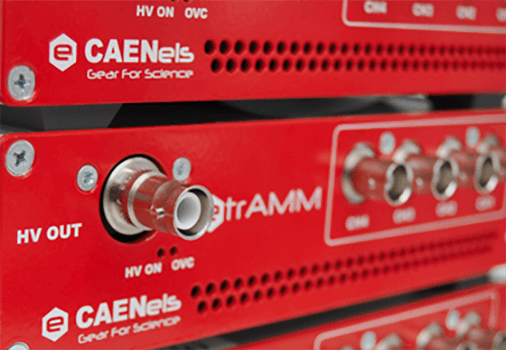

The integrated Bias Voltage source, ranging from a full-bipolar ±30 V version to factory-configurable high-voltage output rating and polarity, can be used to bias the connected detecting system. Bias Voltage output ratings, beside the bipolar ±30 V model, are 500V or -500V, 2 kV or – 2 kV and 4 kV or -4 kV (polarity is factory-configurable only).

Integrated low-noise bias voltage source and trigger output functionality

The Bias Voltage integrated module is equipped with output voltage and current readbacks, as well as with protection features against over-current, thus protecting the detecting system from excessive power drawing.

CAEN High-Voltage technology is integrated into this device for the High-Voltage models.

On-board processing of data allows to obtain measurements on a user-defined sampling period, with minimum time steps of 10 µs.

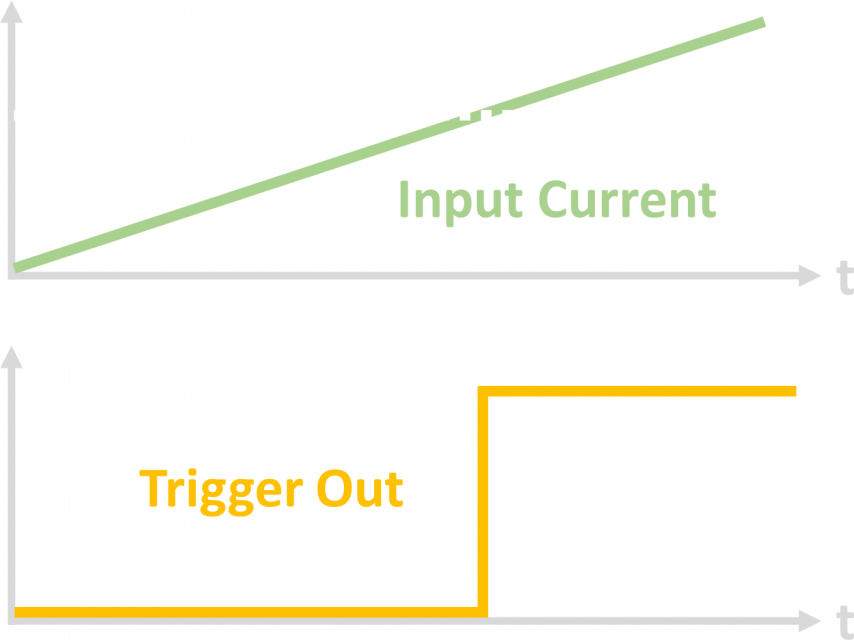

The trigger output capability allows the user to detect a signal crossing a specific threshold. The trigger out functionality is very useful for beam loss monitor and machine protection system applications, but it can also be used as the trigger function of common laboratory oscilloscopes. In fact, there are two mode of operations: SINGLE (the trigger has to be re-armed by the user) and CONTINUOUS (the trigger is automatically re-armed). The user can also select the POLARITY of the signal crossing (RISE or FALL) and the speed (FAST or SLOW). When the speed is set as FAST only one sample crossing the threshold will generate the trigger signal, while in SLOW speed the signal is averaged before being compared with the threshold (with a number of samples that can be configured by the user), resulting in a soft trigger.

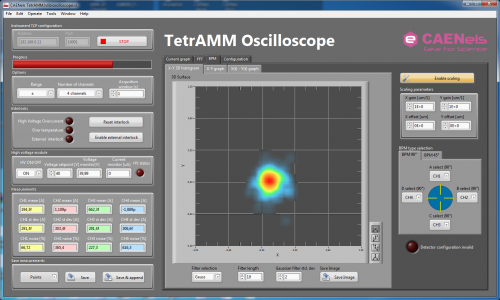

Oscilloscope software included for a plug-and-play solution

The TetrAMM Oscilloscope software series allows customers to obtain instant and accurate results after connecting the TetrAMM device directly to the detector.
Different configurations for detector geometry, measuring range, sampling rate and other parameters can be configured directly via this free software.

Features

4-channel simultaneous sampling
Up to 100 kHz sampling frequency (per channel)
24-bit A/D conversion
Different bipolar current ranges
10/100/1000 Mbit Ethernet TCP-IP or UDP Interface
SFP Interface
Low-noise integrated Bias Voltage Source (±30 V bipolar or High-Voltage monopolar)
External Trigger/Gate and Interlock signals
Firmware Remote Update
Configurable sampling frequency
Auto-Ranging functionality
Real-time FPGA and soft-processor computations
Compact mechanical dimensions
Low-Noise AC/DC power supply included
TetrAMM Oscilloscope for quadrature phBPM applications

Technical specifications

WTETRAMM05NX
WTETRAMM05PX
WTETRAMM20NX
WTETRAMM20PX
WTETRAMM40NX
WTETRAMM40PX
WTETRAMMC001
WTETRAMMC002
WTETRAMMC003
WTETRAMMC004
WTETRAMMC005
WTETRAMMC006
WTETRAMMC007
WTETRAMMC008
WTETRAMMC009
WTETRAMMC010
WTETRAMMC011
WTETRAMMC012
WTETRAMMC013
WTETRAMMC014
WTETRAMMC015
WTETRAMMC016
WTETRAMMC017
WTETRAMMC018
WTETRAMMC019
WTETRAMMC020
WTETRAMMCAPS
WTETRAMMNOHV

Model

WTETRAMM05NX

WTETRAMM05PX

WTETRAMM20NX

WTETRAMM20PX

WTETRAMM40NX

WTETRAMM40PX

WTETRAMMC001

WTETRAMMC002

WTETRAMMC003

WTETRAMMC004

WTETRAMMC005

WTETRAMMC006

WTETRAMMC007

WTETRAMMC008

WTETRAMMC009

WTETRAMMC010

WTETRAMMC011

WTETRAMMC012

WTETRAMMC013

WTETRAMMC014

WTETRAMMC015

WTETRAMMC016

WTETRAMMC017

WTETRAMMC018

WTETRAMMC019

WTETRAMMC020

WTETRAMMCAPS

WTETRAMMNOHV

Number of Channels

Current Polarity

Bipolar

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

±1.2 uA, ±1.2 nA

±1.2 mA, ±1.2 uA

±25 uA, ±250 nA

±120 uA, ±120 nA

±10 uA, ±125 nA

±10 uA, ±2 uA

±25 uA, ±250 nA

±6 mA, ±20 uA

±20 uA, ±2 uA

±120 uA, ±120 nA

±1.2 mA, ±1.2 uA

±60 uA, ±15 uA

±1.2 mA, ±1.2 uA

±2 mA, ±50 uA

±1.2 uA, ±1.2 nA

±12 mA, ±12 uA

±1.2 uA, ±1.2 nA

±120 uA, ±120 nA

±1.6 uA, ±120 nA

±60 uA, ±15 uA

±120 uA, ±120 nA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

150 fA, 15 aA

150 pA, 150 fA

3.5 pA, 35 fA

15 pA, 15 fA

1.5 pA, 20 fA

1.5 pA, 250 fA

3.5 pA, 35 fA

750 pA, 2.5 pA

2.5 pA, 250 fA

15 pA, 15 fA

150 pA, 150 fA

7.5 pA, 2 pA

150 pA, 150 fA

250 pA, 7 pA

150 fA, 15 aA

1.5 nA, 1.5 pA

150 fA, 15 aA

15 pA, 15 fA

200 fA, 15 fA

7.5 pA, 2 pA

15 pA, 15 fA

Sampling Frequency - FS

up to 100 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

4 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

4 kHz

100 Hz

5 kHz

20 kHz, 5 kHz

5 kHz

2 kHz, 1 kHz

1 kHz

20 kHz, 5 kHz

20 kHz

1 kHz

5 kHz

100 Hz

20 kHz

100 Hz

1 kHz

4 kHz

Bias Voltage Source

-500 V

Bias Voltage Source

-500 V

+500 V

-2 kV

+2 kV

-4 kV

+4 kV

-500 V

+500 V

Not present

+500 V

-500 V

Not present

-4 kV

+500 V

±30 V (bipolar)

-500 V

±30 V (bipolar)

Not Present

+500 V

Not Present

±30 V (bipolar)

±5 V (bipolar)

Not present

Communication Interface

10/100/1000 Mbit Ethernet TCP-IP

External Signals

Configurable Trigger/Gate
Trigger Output
External Interlock

Input Connectors

BNC

Bias Voltage Connector

SHV

Bias Voltage Connector

SHV

BNC

SHV

BNC

SHV

BNC

Extra Communication Interface

SFP - Small Form-Factor Pluggable

Additional Features

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Input Voltage Supply

+12 V

Weight

800 g

Mechanical Dimensions

175 × 175 × 44 mm

Number of Channels

Current Polarity

Bipolar

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

±1.2 uA, ±1.2 nA

±1.2 mA, ±1.2 uA

±25 uA, ±250 nA

±120 uA, ±120 nA

±10 uA, ±125 nA

±10 uA, ±2 uA

±25 uA, ±250 nA

±6 mA, ±20 uA

±20 uA, ±2 uA

±120 uA, ±120 nA

±1.2 mA, ±1.2 uA

±60 uA, ±15 uA

±1.2 mA, ±1.2 uA

±2 mA, ±50 uA

±1.2 uA, ±1.2 nA

±12 mA, ±12 uA

±1.2 uA, ±1.2 nA

±120 uA, ±120 nA

±1.6 uA, ±120 nA

±60 uA, ±15 uA

±120 uA, ±120 nA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

150 fA, 15 aA

150 pA, 150 fA

3.5 pA, 35 fA

15 pA, 15 fA

1.5 pA, 20 fA

1.5 pA, 250 fA

3.5 pA, 35 fA

750 pA, 2.5 pA

2.5 pA, 250 fA

15 pA, 15 fA

150 pA, 150 fA

7.5 pA, 2 pA

150 pA, 150 fA

250 pA, 7 pA

150 fA, 15 aA

1.5 nA, 1.5 pA

150 fA, 15 aA

15 pA, 15 fA

200 fA, 15 fA

7.5 pA, 2 pA

15 pA, 15 fA

Sampling Frequency - FS

up to 100 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

4 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

4 kHz

100 Hz

5 kHz

20 kHz, 5 kHz

5 kHz

2 kHz, 1 kHz

1 kHz

20 kHz, 5 kHz

20 kHz

1 kHz

5 kHz

100 Hz

20 kHz

100 Hz

1 kHz

4 kHz

Bias Voltage Source

+500 V

Bias Voltage Source

-500 V

+500 V

-2 kV

+2 kV

-4 kV

+4 kV

-500 V

+500 V

Not present

+500 V

-500 V

Not present

-4 kV

+500 V

±30 V (bipolar)

-500 V

±30 V (bipolar)

Not Present

+500 V

Not Present

±30 V (bipolar)

±5 V (bipolar)

Not present

Communication Interface

10/100/1000 Mbit Ethernet TCP-IP

External Signals

Configurable Trigger/Gate
Trigger Output
External Interlock

Input Connectors

BNC

Bias Voltage Connector

SHV

Bias Voltage Connector

SHV

BNC

SHV

BNC

SHV

BNC

Extra Communication Interface

SFP - Small Form-Factor Pluggable

Additional Features

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Input Voltage Supply

+12 V

Weight

800 g

Mechanical Dimensions

175 × 175 × 44 mm

Number of Channels

Current Polarity

Bipolar

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

±1.2 uA, ±1.2 nA

±1.2 mA, ±1.2 uA

±25 uA, ±250 nA

±120 uA, ±120 nA

±10 uA, ±125 nA

±10 uA, ±2 uA

±25 uA, ±250 nA

±6 mA, ±20 uA

±20 uA, ±2 uA

±120 uA, ±120 nA

±1.2 mA, ±1.2 uA

±60 uA, ±15 uA

±1.2 mA, ±1.2 uA

±2 mA, ±50 uA

±1.2 uA, ±1.2 nA

±12 mA, ±12 uA

±1.2 uA, ±1.2 nA

±120 uA, ±120 nA

±1.6 uA, ±120 nA

±60 uA, ±15 uA

±120 uA, ±120 nA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

150 fA, 15 aA

150 pA, 150 fA

3.5 pA, 35 fA

15 pA, 15 fA

1.5 pA, 20 fA

1.5 pA, 250 fA

3.5 pA, 35 fA

750 pA, 2.5 pA

2.5 pA, 250 fA

15 pA, 15 fA

150 pA, 150 fA

7.5 pA, 2 pA

150 pA, 150 fA

250 pA, 7 pA

150 fA, 15 aA

1.5 nA, 1.5 pA

150 fA, 15 aA

15 pA, 15 fA

200 fA, 15 fA

7.5 pA, 2 pA

15 pA, 15 fA

Sampling Frequency - FS

up to 100 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

4 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

4 kHz

100 Hz

5 kHz

20 kHz, 5 kHz

5 kHz

2 kHz, 1 kHz

1 kHz

20 kHz, 5 kHz

20 kHz

1 kHz

5 kHz

100 Hz

20 kHz

100 Hz

1 kHz

4 kHz

Bias Voltage Source

-2 kV

Bias Voltage Source

-500 V

+500 V

-2 kV

+2 kV

-4 kV

+4 kV

-500 V

+500 V

Not present

+500 V

-500 V

Not present

-4 kV

+500 V

±30 V (bipolar)

-500 V

±30 V (bipolar)

Not Present

+500 V

Not Present

±30 V (bipolar)

±5 V (bipolar)

Not present

Communication Interface

10/100/1000 Mbit Ethernet TCP-IP

External Signals

Configurable Trigger/Gate
Trigger Output
External Interlock

Input Connectors

BNC

Bias Voltage Connector

SHV

Bias Voltage Connector

SHV

BNC

SHV

BNC

SHV

BNC

Extra Communication Interface

SFP - Small Form-Factor Pluggable

Additional Features

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Input Voltage Supply

+12 V

Weight

800 g

Mechanical Dimensions

175 × 175 × 44 mm

Number of Channels

Current Polarity

Bipolar

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

±1.2 uA, ±1.2 nA

±1.2 mA, ±1.2 uA

±25 uA, ±250 nA

±120 uA, ±120 nA

±10 uA, ±125 nA

±10 uA, ±2 uA

±25 uA, ±250 nA

±6 mA, ±20 uA

±20 uA, ±2 uA

±120 uA, ±120 nA

±1.2 mA, ±1.2 uA

±60 uA, ±15 uA

±1.2 mA, ±1.2 uA

±2 mA, ±50 uA

±1.2 uA, ±1.2 nA

±12 mA, ±12 uA

±1.2 uA, ±1.2 nA

±120 uA, ±120 nA

±1.6 uA, ±120 nA

±60 uA, ±15 uA

±120 uA, ±120 nA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

150 fA, 15 aA

150 pA, 150 fA

3.5 pA, 35 fA

15 pA, 15 fA

1.5 pA, 20 fA

1.5 pA, 250 fA

3.5 pA, 35 fA

750 pA, 2.5 pA

2.5 pA, 250 fA

15 pA, 15 fA

150 pA, 150 fA

7.5 pA, 2 pA

150 pA, 150 fA

250 pA, 7 pA

150 fA, 15 aA

1.5 nA, 1.5 pA

150 fA, 15 aA

15 pA, 15 fA

200 fA, 15 fA

7.5 pA, 2 pA

15 pA, 15 fA

Sampling Frequency - FS

up to 100 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

4 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

4 kHz

100 Hz

5 kHz

20 kHz, 5 kHz

5 kHz

2 kHz, 1 kHz

1 kHz

20 kHz, 5 kHz

20 kHz

1 kHz

5 kHz

100 Hz

20 kHz

100 Hz

1 kHz

4 kHz

Bias Voltage Source

+2 kV

Bias Voltage Source

-500 V

+500 V

-2 kV

+2 kV

-4 kV

+4 kV

-500 V

+500 V

Not present

+500 V

-500 V

Not present

-4 kV

+500 V

±30 V (bipolar)

-500 V

±30 V (bipolar)

Not Present

+500 V

Not Present

±30 V (bipolar)

±5 V (bipolar)

Not present

Communication Interface

10/100/1000 Mbit Ethernet TCP-IP

External Signals

Configurable Trigger/Gate
Trigger Output
External Interlock

Input Connectors

BNC

Bias Voltage Connector

SHV

Bias Voltage Connector

SHV

BNC

SHV

BNC

SHV

BNC

Extra Communication Interface

SFP - Small Form-Factor Pluggable

Additional Features

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Input Voltage Supply

+12 V

Weight

800 g

Mechanical Dimensions

175 × 175 × 44 mm

Number of Channels

Current Polarity

Bipolar

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

±1.2 uA, ±1.2 nA

±1.2 mA, ±1.2 uA

±25 uA, ±250 nA

±120 uA, ±120 nA

±10 uA, ±125 nA

±10 uA, ±2 uA

±25 uA, ±250 nA

±6 mA, ±20 uA

±20 uA, ±2 uA

±120 uA, ±120 nA

±1.2 mA, ±1.2 uA

±60 uA, ±15 uA

±1.2 mA, ±1.2 uA

±2 mA, ±50 uA

±1.2 uA, ±1.2 nA

±12 mA, ±12 uA

±1.2 uA, ±1.2 nA

±120 uA, ±120 nA

±1.6 uA, ±120 nA

±60 uA, ±15 uA

±120 uA, ±120 nA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

150 fA, 15 aA

150 pA, 150 fA

3.5 pA, 35 fA

15 pA, 15 fA

1.5 pA, 20 fA

1.5 pA, 250 fA

3.5 pA, 35 fA

750 pA, 2.5 pA

2.5 pA, 250 fA

15 pA, 15 fA

150 pA, 150 fA

7.5 pA, 2 pA

150 pA, 150 fA

250 pA, 7 pA

150 fA, 15 aA

1.5 nA, 1.5 pA

150 fA, 15 aA

15 pA, 15 fA

200 fA, 15 fA

7.5 pA, 2 pA

15 pA, 15 fA

Sampling Frequency - FS

up to 100 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

4 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

4 kHz

100 Hz

5 kHz

20 kHz, 5 kHz

5 kHz

2 kHz, 1 kHz

1 kHz

20 kHz, 5 kHz

20 kHz

1 kHz

5 kHz

100 Hz

20 kHz

100 Hz

1 kHz

4 kHz

Bias Voltage Source

-4 kV

Bias Voltage Source

-500 V

+500 V

-2 kV

+2 kV

-4 kV

+4 kV

-500 V

+500 V

Not present

+500 V

-500 V

Not present

-4 kV

+500 V

±30 V (bipolar)

-500 V

±30 V (bipolar)

Not Present

+500 V

Not Present

±30 V (bipolar)

±5 V (bipolar)

Not present

Communication Interface

10/100/1000 Mbit Ethernet TCP-IP

External Signals

Configurable Trigger/Gate
Trigger Output
External Interlock

Input Connectors

BNC

Bias Voltage Connector

SHV

Bias Voltage Connector

SHV

BNC

SHV

BNC

SHV

BNC

Extra Communication Interface

SFP - Small Form-Factor Pluggable

Additional Features

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Input Voltage Supply

+12 V

Weight

800 g

Mechanical Dimensions

175 × 175 × 44 mm

Number of Channels

Current Polarity

Bipolar

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

±1.2 uA, ±1.2 nA

±1.2 mA, ±1.2 uA

±25 uA, ±250 nA

±120 uA, ±120 nA

±10 uA, ±125 nA

±10 uA, ±2 uA

±25 uA, ±250 nA

±6 mA, ±20 uA

±20 uA, ±2 uA

±120 uA, ±120 nA

±1.2 mA, ±1.2 uA

±60 uA, ±15 uA

±1.2 mA, ±1.2 uA

±2 mA, ±50 uA

±1.2 uA, ±1.2 nA

±12 mA, ±12 uA

±1.2 uA, ±1.2 nA

±120 uA, ±120 nA

±1.6 uA, ±120 nA

±60 uA, ±15 uA

±120 uA, ±120 nA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

150 fA, 15 aA

150 pA, 150 fA

3.5 pA, 35 fA

15 pA, 15 fA

1.5 pA, 20 fA

1.5 pA, 250 fA

3.5 pA, 35 fA

750 pA, 2.5 pA

2.5 pA, 250 fA

15 pA, 15 fA

150 pA, 150 fA

7.5 pA, 2 pA

150 pA, 150 fA

250 pA, 7 pA

150 fA, 15 aA

1.5 nA, 1.5 pA

150 fA, 15 aA

15 pA, 15 fA

200 fA, 15 fA

7.5 pA, 2 pA

15 pA, 15 fA

Sampling Frequency - FS

up to 100 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

4 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

4 kHz

100 Hz

5 kHz

20 kHz, 5 kHz

5 kHz

2 kHz, 1 kHz

1 kHz

20 kHz, 5 kHz

20 kHz

1 kHz

5 kHz

100 Hz

20 kHz

100 Hz

1 kHz

4 kHz

Bias Voltage Source

+4 kV

Bias Voltage Source

-500 V

+500 V

-2 kV

+2 kV

-4 kV

+4 kV

-500 V

+500 V

Not present

+500 V

-500 V

Not present

-4 kV

+500 V

±30 V (bipolar)

-500 V

±30 V (bipolar)

Not Present

+500 V

Not Present

±30 V (bipolar)

±5 V (bipolar)

Not present

Communication Interface

10/100/1000 Mbit Ethernet TCP-IP

External Signals

Configurable Trigger/Gate
Trigger Output
External Interlock

Input Connectors

BNC

Bias Voltage Connector

SHV

Bias Voltage Connector

SHV

BNC

SHV

BNC

SHV

BNC

Extra Communication Interface

SFP - Small Form-Factor Pluggable

Additional Features

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Input Voltage Supply

+12 V

Weight

800 g

Mechanical Dimensions

175 × 175 × 44 mm

Number of Channels

Current Polarity

Bipolar

Measuring Ranges (RNG0, RNG1)

±1.2 uA, ±1.2 nA

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

±1.2 uA, ±1.2 nA

±1.2 mA, ±1.2 uA

±25 uA, ±250 nA

±120 uA, ±120 nA

±10 uA, ±125 nA

±10 uA, ±2 uA

±25 uA, ±250 nA

±6 mA, ±20 uA

±20 uA, ±2 uA

±120 uA, ±120 nA

±1.2 mA, ±1.2 uA

±60 uA, ±15 uA

±1.2 mA, ±1.2 uA

±2 mA, ±50 uA

±1.2 uA, ±1.2 nA

±12 mA, ±12 uA

±1.2 uA, ±1.2 nA

±120 uA, ±120 nA

±1.6 uA, ±120 nA

±60 uA, ±15 uA

±120 uA, ±120 nA

Current Resolution - LSB (RNG0, RNG1)

150 fA, 15 aA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

150 fA, 15 aA

150 pA, 150 fA

3.5 pA, 35 fA

15 pA, 15 fA

1.5 pA, 20 fA

1.5 pA, 250 fA

3.5 pA, 35 fA

750 pA, 2.5 pA

2.5 pA, 250 fA

15 pA, 15 fA

150 pA, 150 fA

7.5 pA, 2 pA

150 pA, 150 fA

250 pA, 7 pA

150 fA, 15 aA

1.5 nA, 1.5 pA

150 fA, 15 aA

15 pA, 15 fA

200 fA, 15 fA

7.5 pA, 2 pA

15 pA, 15 fA

Sampling Frequency - FS

up to 100 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

100 Hz

Analog Bandwidth -3 dB (RNG0, RNG1)

4 kHz

100 Hz

5 kHz

20 kHz, 5 kHz

5 kHz

2 kHz, 1 kHz

1 kHz

20 kHz, 5 kHz

20 kHz

1 kHz

5 kHz

100 Hz

20 kHz

100 Hz

1 kHz

4 kHz

Bias Voltage Source

-500 V

Bias Voltage Source

-500 V

+500 V

-2 kV

+2 kV

-4 kV

+4 kV

-500 V

+500 V

Not present

+500 V

-500 V

Not present

-4 kV

+500 V

±30 V (bipolar)

-500 V

±30 V (bipolar)

Not Present

+500 V

Not Present

±30 V (bipolar)

±5 V (bipolar)

Not present

Communication Interface

10/100/1000 Mbit Ethernet TCP-IP

External Signals

Configurable Trigger/Gate
Trigger Output
External Interlock

Input Connectors

BNC

Bias Voltage Connector

SHV

Bias Voltage Connector

SHV

BNC

SHV

BNC

SHV

BNC

Extra Communication Interface

SFP - Small Form-Factor Pluggable

Additional Features

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Input Voltage Supply

+12 V

Weight

800 g

Mechanical Dimensions

175 × 175 × 44 mm

Number of Channels

Current Polarity

Bipolar

Measuring Ranges (RNG0, RNG1)

±1.2 mA, ±1.2 uA

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

±1.2 uA, ±1.2 nA

±1.2 mA, ±1.2 uA

±25 uA, ±250 nA

±120 uA, ±120 nA

±10 uA, ±125 nA

±10 uA, ±2 uA

±25 uA, ±250 nA

±6 mA, ±20 uA

±20 uA, ±2 uA

±120 uA, ±120 nA

±1.2 mA, ±1.2 uA

±60 uA, ±15 uA

±1.2 mA, ±1.2 uA

±2 mA, ±50 uA

±1.2 uA, ±1.2 nA

±12 mA, ±12 uA

±1.2 uA, ±1.2 nA

±120 uA, ±120 nA

±1.6 uA, ±120 nA

±60 uA, ±15 uA

±120 uA, ±120 nA

Current Resolution - LSB (RNG0, RNG1)

150 pA, 150 fA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

150 fA, 15 aA

150 pA, 150 fA

3.5 pA, 35 fA

15 pA, 15 fA

1.5 pA, 20 fA

1.5 pA, 250 fA

3.5 pA, 35 fA

750 pA, 2.5 pA

2.5 pA, 250 fA

15 pA, 15 fA

150 pA, 150 fA

7.5 pA, 2 pA

150 pA, 150 fA

250 pA, 7 pA

150 fA, 15 aA

1.5 nA, 1.5 pA

150 fA, 15 aA

15 pA, 15 fA

200 fA, 15 fA

7.5 pA, 2 pA

15 pA, 15 fA

Sampling Frequency - FS

up to 100 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

5 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

4 kHz

100 Hz

5 kHz

20 kHz, 5 kHz

5 kHz

2 kHz, 1 kHz

1 kHz

20 kHz, 5 kHz

20 kHz

1 kHz

5 kHz

100 Hz

20 kHz

100 Hz

1 kHz

4 kHz

Bias Voltage Source

+500 V

Bias Voltage Source

-500 V

+500 V

-2 kV

+2 kV

-4 kV

+4 kV

-500 V

+500 V

Not present

+500 V

-500 V

Not present

-4 kV

+500 V

±30 V (bipolar)

-500 V

±30 V (bipolar)

Not Present

+500 V

Not Present

±30 V (bipolar)

±5 V (bipolar)

Not present

Communication Interface

10/100/1000 Mbit Ethernet TCP-IP

External Signals

Configurable Trigger/Gate
Trigger Output
External Interlock

Input Connectors

BNC

Bias Voltage Connector

SHV

Bias Voltage Connector

SHV

BNC

SHV

BNC

SHV

BNC

Extra Communication Interface

SFP - Small Form-Factor Pluggable

Additional Features

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Input Voltage Supply

+12 V

Weight

800 g

Mechanical Dimensions

175 × 175 × 44 mm

Number of Channels

Current Polarity

Bipolar

Measuring Ranges (RNG0, RNG1)

±25 uA, ±250 nA

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

±1.2 uA, ±1.2 nA

±1.2 mA, ±1.2 uA

±25 uA, ±250 nA

±120 uA, ±120 nA

±10 uA, ±125 nA

±10 uA, ±2 uA

±25 uA, ±250 nA

±6 mA, ±20 uA

±20 uA, ±2 uA

±120 uA, ±120 nA

±1.2 mA, ±1.2 uA

±60 uA, ±15 uA

±1.2 mA, ±1.2 uA

±2 mA, ±50 uA

±1.2 uA, ±1.2 nA

±12 mA, ±12 uA

±1.2 uA, ±1.2 nA

±120 uA, ±120 nA

±1.6 uA, ±120 nA

±60 uA, ±15 uA

±120 uA, ±120 nA

Current Resolution - LSB (RNG0, RNG1)

3.5 pA, 35 fA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

150 fA, 15 aA

150 pA, 150 fA

3.5 pA, 35 fA

15 pA, 15 fA

1.5 pA, 20 fA

1.5 pA, 250 fA

3.5 pA, 35 fA

750 pA, 2.5 pA

2.5 pA, 250 fA

15 pA, 15 fA

150 pA, 150 fA

7.5 pA, 2 pA

150 pA, 150 fA

250 pA, 7 pA

150 fA, 15 aA

1.5 nA, 1.5 pA

150 fA, 15 aA

15 pA, 15 fA

200 fA, 15 fA

7.5 pA, 2 pA

15 pA, 15 fA

Sampling Frequency - FS

up to 100 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

5 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

4 kHz

100 Hz

5 kHz

20 kHz, 5 kHz

5 kHz

2 kHz, 1 kHz

1 kHz

20 kHz, 5 kHz

20 kHz

1 kHz

5 kHz

100 Hz

20 kHz

100 Hz

1 kHz

4 kHz

Bias Voltage Source

Not present

Bias Voltage Source

-500 V

+500 V

-2 kV

+2 kV

-4 kV

+4 kV

-500 V

+500 V

Not present

+500 V

-500 V

Not present

-4 kV

+500 V

±30 V (bipolar)

-500 V

±30 V (bipolar)

Not Present

+500 V

Not Present

±30 V (bipolar)

±5 V (bipolar)

Not present

Communication Interface

10/100/1000 Mbit Ethernet TCP-IP

External Signals

Configurable Trigger/Gate
Trigger Output
External Interlock

Input Connectors

BNC

Bias Voltage Connector

SHV

BNC

SHV

BNC

SHV

BNC

Extra Communication Interface

SFP - Small Form-Factor Pluggable

Additional Features

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Input Voltage Supply

+12 V

Weight

800 g

Mechanical Dimensions

175 × 175 × 44 mm

Number of Channels

Current Polarity

Bipolar

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

±1.2 uA, ±1.2 nA

±1.2 mA, ±1.2 uA

±25 uA, ±250 nA

±120 uA, ±120 nA

±10 uA, ±125 nA

±10 uA, ±2 uA

±25 uA, ±250 nA

±6 mA, ±20 uA

±20 uA, ±2 uA

±120 uA, ±120 nA

±1.2 mA, ±1.2 uA

±60 uA, ±15 uA

±1.2 mA, ±1.2 uA

±2 mA, ±50 uA

±1.2 uA, ±1.2 nA

±12 mA, ±12 uA

±1.2 uA, ±1.2 nA

±120 uA, ±120 nA

±1.6 uA, ±120 nA

±60 uA, ±15 uA

±120 uA, ±120 nA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

150 fA, 15 aA

150 pA, 150 fA

3.5 pA, 35 fA

15 pA, 15 fA

1.5 pA, 20 fA

1.5 pA, 250 fA

3.5 pA, 35 fA

750 pA, 2.5 pA

2.5 pA, 250 fA

15 pA, 15 fA

150 pA, 150 fA

7.5 pA, 2 pA

150 pA, 150 fA

250 pA, 7 pA

150 fA, 15 aA

1.5 nA, 1.5 pA

150 fA, 15 aA

15 pA, 15 fA

200 fA, 15 fA

7.5 pA, 2 pA

15 pA, 15 fA

Sampling Frequency - FS

up to 100 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

20 kHz, 5 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

4 kHz

100 Hz

5 kHz

20 kHz, 5 kHz

5 kHz

2 kHz, 1 kHz

1 kHz

20 kHz, 5 kHz

20 kHz

1 kHz

5 kHz

100 Hz

20 kHz

100 Hz

1 kHz

4 kHz

Bias Voltage Source

+500 V

Bias Voltage Source

-500 V

+500 V

-2 kV

+2 kV

-4 kV

+4 kV

-500 V

+500 V

Not present

+500 V

-500 V

Not present

-4 kV

+500 V

±30 V (bipolar)

-500 V

±30 V (bipolar)

Not Present

+500 V

Not Present

±30 V (bipolar)

±5 V (bipolar)

Not present

Communication Interface

10/100/1000 Mbit Ethernet TCP-IP

External Signals

Configurable Trigger/Gate
Trigger Output
External Interlock

Input Connectors

BNC

Bias Voltage Connector

SHV

Bias Voltage Connector

SHV

BNC

SHV

BNC

SHV

BNC

Extra Communication Interface

SFP - Small Form-Factor Pluggable

Additional Features

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Input Voltage Supply

+12 V

Weight

800 g

Mechanical Dimensions

175 × 175 × 44 mm

Number of Channels

Current Polarity

Bipolar

Measuring Ranges (RNG0, RNG1)

±10 uA, ±125 nA

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

±1.2 uA, ±1.2 nA

±1.2 mA, ±1.2 uA

±25 uA, ±250 nA

±120 uA, ±120 nA

±10 uA, ±125 nA

±10 uA, ±2 uA

±25 uA, ±250 nA

±6 mA, ±20 uA

±20 uA, ±2 uA

±120 uA, ±120 nA

±1.2 mA, ±1.2 uA

±60 uA, ±15 uA

±1.2 mA, ±1.2 uA

±2 mA, ±50 uA

±1.2 uA, ±1.2 nA

±12 mA, ±12 uA

±1.2 uA, ±1.2 nA

±120 uA, ±120 nA

±1.6 uA, ±120 nA

±60 uA, ±15 uA

±120 uA, ±120 nA

Current Resolution - LSB (RNG0, RNG1)

1.5 pA, 20 fA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

150 fA, 15 aA

150 pA, 150 fA

3.5 pA, 35 fA

15 pA, 15 fA

1.5 pA, 20 fA

1.5 pA, 250 fA

3.5 pA, 35 fA

750 pA, 2.5 pA

2.5 pA, 250 fA

15 pA, 15 fA

150 pA, 150 fA

7.5 pA, 2 pA

150 pA, 150 fA

250 pA, 7 pA

150 fA, 15 aA

1.5 nA, 1.5 pA

150 fA, 15 aA

15 pA, 15 fA

200 fA, 15 fA

7.5 pA, 2 pA

15 pA, 15 fA

Sampling Frequency - FS

up to 100 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

5 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

4 kHz

100 Hz

5 kHz

20 kHz, 5 kHz

5 kHz

2 kHz, 1 kHz

1 kHz

20 kHz, 5 kHz

20 kHz

1 kHz

5 kHz

100 Hz

20 kHz

100 Hz

1 kHz

4 kHz

Bias Voltage Source

-500 V

Bias Voltage Source

-500 V

+500 V

-2 kV

+2 kV

-4 kV

+4 kV

-500 V

+500 V

Not present

+500 V

-500 V

Not present

-4 kV

+500 V

±30 V (bipolar)

-500 V

±30 V (bipolar)

Not Present

+500 V

Not Present

±30 V (bipolar)

±5 V (bipolar)

Not present

Communication Interface

10/100/1000 Mbit Ethernet TCP-IP

External Signals

Configurable Trigger/Gate
Trigger Output
External Interlock

Input Connectors

BNC

Bias Voltage Connector

SHV

Bias Voltage Connector

SHV

BNC

SHV

BNC

SHV

BNC

Extra Communication Interface

SFP - Small Form-Factor Pluggable

Additional Features

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Input Voltage Supply

+12 V

Weight

800 g

Mechanical Dimensions

175 × 175 × 44 mm

Number of Channels

Current Polarity

Bipolar

Measuring Ranges (RNG0, RNG1)

±10 uA, ±2 uA

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

±1.2 uA, ±1.2 nA

±1.2 mA, ±1.2 uA

±25 uA, ±250 nA

±120 uA, ±120 nA

±10 uA, ±125 nA

±10 uA, ±2 uA

±25 uA, ±250 nA

±6 mA, ±20 uA

±20 uA, ±2 uA

±120 uA, ±120 nA

±1.2 mA, ±1.2 uA

±60 uA, ±15 uA

±1.2 mA, ±1.2 uA

±2 mA, ±50 uA

±1.2 uA, ±1.2 nA

±12 mA, ±12 uA

±1.2 uA, ±1.2 nA

±120 uA, ±120 nA

±1.6 uA, ±120 nA

±60 uA, ±15 uA

±120 uA, ±120 nA

Current Resolution - LSB (RNG0, RNG1)

1.5 pA, 250 fA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

150 fA, 15 aA

150 pA, 150 fA

3.5 pA, 35 fA

15 pA, 15 fA

1.5 pA, 20 fA

1.5 pA, 250 fA

3.5 pA, 35 fA

750 pA, 2.5 pA

2.5 pA, 250 fA

15 pA, 15 fA

150 pA, 150 fA

7.5 pA, 2 pA

150 pA, 150 fA

250 pA, 7 pA

150 fA, 15 aA

1.5 nA, 1.5 pA

150 fA, 15 aA

15 pA, 15 fA

200 fA, 15 fA

7.5 pA, 2 pA

15 pA, 15 fA

Sampling Frequency - FS

up to 100 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

5 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

4 kHz

100 Hz

5 kHz

20 kHz, 5 kHz

5 kHz

2 kHz, 1 kHz

1 kHz

20 kHz, 5 kHz

20 kHz

1 kHz

5 kHz

100 Hz

20 kHz

100 Hz

1 kHz

4 kHz

Bias Voltage Source

Not present

Bias Voltage Source

-500 V

+500 V

-2 kV

+2 kV

-4 kV

+4 kV

-500 V

+500 V

Not present

+500 V

-500 V

Not present

-4 kV

+500 V

±30 V (bipolar)

-500 V

±30 V (bipolar)

Not Present

+500 V

Not Present

±30 V (bipolar)

±5 V (bipolar)

Not present

Communication Interface

10/100/1000 Mbit Ethernet TCP-IP

External Signals

Configurable Trigger/Gate
Trigger Output
External Interlock

Input Connectors

BNC

Bias Voltage Connector

SHV

BNC

SHV

BNC

SHV

BNC

Extra Communication Interface

SFP - Small Form-Factor Pluggable

Additional Features

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Input Voltage Supply

+12 V

Weight

800 g

Mechanical Dimensions

175 × 175 × 44 mm

Number of Channels

Current Polarity

Bipolar

Measuring Ranges (RNG0, RNG1)

±25 uA, ±250 nA

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

±1.2 uA, ±1.2 nA

±1.2 mA, ±1.2 uA

±25 uA, ±250 nA

±120 uA, ±120 nA

±10 uA, ±125 nA

±10 uA, ±2 uA

±25 uA, ±250 nA

±6 mA, ±20 uA

±20 uA, ±2 uA

±120 uA, ±120 nA

±1.2 mA, ±1.2 uA

±60 uA, ±15 uA

±1.2 mA, ±1.2 uA

±2 mA, ±50 uA

±1.2 uA, ±1.2 nA

±12 mA, ±12 uA

±1.2 uA, ±1.2 nA

±120 uA, ±120 nA

±1.6 uA, ±120 nA

±60 uA, ±15 uA

±120 uA, ±120 nA

Current Resolution - LSB (RNG0, RNG1)

3.5 pA, 35 fA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

150 fA, 15 aA

150 pA, 150 fA

3.5 pA, 35 fA

15 pA, 15 fA

1.5 pA, 20 fA

1.5 pA, 250 fA

3.5 pA, 35 fA

750 pA, 2.5 pA

2.5 pA, 250 fA

15 pA, 15 fA

150 pA, 150 fA

7.5 pA, 2 pA

150 pA, 150 fA

250 pA, 7 pA

150 fA, 15 aA

1.5 nA, 1.5 pA

150 fA, 15 aA

15 pA, 15 fA

200 fA, 15 fA

7.5 pA, 2 pA

15 pA, 15 fA

Sampling Frequency - FS

up to 100 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

5 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

4 kHz

100 Hz

5 kHz

20 kHz, 5 kHz

5 kHz

2 kHz, 1 kHz

1 kHz

20 kHz, 5 kHz

20 kHz

1 kHz

5 kHz

100 Hz

20 kHz

100 Hz

1 kHz

4 kHz

Bias Voltage Source

-4 kV

Bias Voltage Source

-500 V

+500 V

-2 kV

+2 kV

-4 kV

+4 kV

-500 V

+500 V

Not present

+500 V

-500 V

Not present

-4 kV

+500 V

±30 V (bipolar)

-500 V

±30 V (bipolar)

Not Present

+500 V

Not Present

±30 V (bipolar)

±5 V (bipolar)

Not present

Communication Interface

10/100/1000 Mbit Ethernet TCP-IP

External Signals

Configurable Trigger/Gate
Trigger Output
External Interlock

Input Connectors

BNC

Bias Voltage Connector

SHV

Bias Voltage Connector

SHV

BNC

SHV

BNC

SHV

BNC

Extra Communication Interface

SFP - Small Form-Factor Pluggable

Additional Features

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Input Voltage Supply

+12 V

Weight

800 g

Mechanical Dimensions

175 × 175 × 44 mm

Number of Channels

Current Polarity

Bipolar

Measuring Ranges (RNG0, RNG1)

±6 mA, ±20 uA

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

±1.2 uA, ±1.2 nA

±1.2 mA, ±1.2 uA

±25 uA, ±250 nA

±120 uA, ±120 nA

±10 uA, ±125 nA

±10 uA, ±2 uA

±25 uA, ±250 nA

±6 mA, ±20 uA

±20 uA, ±2 uA

±120 uA, ±120 nA

±1.2 mA, ±1.2 uA

±60 uA, ±15 uA

±1.2 mA, ±1.2 uA

±2 mA, ±50 uA

±1.2 uA, ±1.2 nA

±12 mA, ±12 uA

±1.2 uA, ±1.2 nA

±120 uA, ±120 nA

±1.6 uA, ±120 nA

±60 uA, ±15 uA

±120 uA, ±120 nA

Current Resolution - LSB (RNG0, RNG1)

750 pA, 2.5 pA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

150 fA, 15 aA

150 pA, 150 fA

3.5 pA, 35 fA

15 pA, 15 fA

1.5 pA, 20 fA

1.5 pA, 250 fA

3.5 pA, 35 fA

750 pA, 2.5 pA

2.5 pA, 250 fA

15 pA, 15 fA

150 pA, 150 fA

7.5 pA, 2 pA

150 pA, 150 fA

250 pA, 7 pA

150 fA, 15 aA

1.5 nA, 1.5 pA

150 fA, 15 aA

15 pA, 15 fA

200 fA, 15 fA

7.5 pA, 2 pA

15 pA, 15 fA

Sampling Frequency - FS

up to 100 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

2 kHz, 1 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

4 kHz

100 Hz

5 kHz

20 kHz, 5 kHz

5 kHz

2 kHz, 1 kHz

1 kHz

20 kHz, 5 kHz

20 kHz

1 kHz

5 kHz

100 Hz

20 kHz

100 Hz

1 kHz

4 kHz

Bias Voltage Source

+500 V

Bias Voltage Source

-500 V

+500 V

-2 kV

+2 kV

-4 kV

+4 kV

-500 V

+500 V

Not present

+500 V

-500 V

Not present

-4 kV

+500 V

±30 V (bipolar)

-500 V

±30 V (bipolar)

Not Present

+500 V

Not Present

±30 V (bipolar)

±5 V (bipolar)

Not present

Communication Interface

10/100/1000 Mbit Ethernet TCP-IP

External Signals

Configurable Trigger/Gate
Trigger Output
External Interlock

Input Connectors

BNC

Bias Voltage Connector

SHV

Bias Voltage Connector

SHV

BNC

SHV

BNC

SHV

BNC

Extra Communication Interface

SFP - Small Form-Factor Pluggable

Additional Features

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Input Voltage Supply

+12 V

Weight

800 g

Mechanical Dimensions

175 × 175 × 44 mm

Number of Channels

Current Polarity

Bipolar

Measuring Ranges (RNG0, RNG1)

±20 uA, ±2 uA

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

±1.2 uA, ±1.2 nA

±1.2 mA, ±1.2 uA

±25 uA, ±250 nA

±120 uA, ±120 nA

±10 uA, ±125 nA

±10 uA, ±2 uA

±25 uA, ±250 nA

±6 mA, ±20 uA

±20 uA, ±2 uA

±120 uA, ±120 nA

±1.2 mA, ±1.2 uA

±60 uA, ±15 uA

±1.2 mA, ±1.2 uA

±2 mA, ±50 uA

±1.2 uA, ±1.2 nA

±12 mA, ±12 uA

±1.2 uA, ±1.2 nA

±120 uA, ±120 nA

±1.6 uA, ±120 nA

±60 uA, ±15 uA

±120 uA, ±120 nA

Current Resolution - LSB (RNG0, RNG1)

2.5 pA, 250 fA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

150 fA, 15 aA

150 pA, 150 fA

3.5 pA, 35 fA

15 pA, 15 fA

1.5 pA, 20 fA

1.5 pA, 250 fA

3.5 pA, 35 fA

750 pA, 2.5 pA

2.5 pA, 250 fA

15 pA, 15 fA

150 pA, 150 fA

7.5 pA, 2 pA

150 pA, 150 fA

250 pA, 7 pA

150 fA, 15 aA

1.5 nA, 1.5 pA

150 fA, 15 aA

15 pA, 15 fA

200 fA, 15 fA

7.5 pA, 2 pA

15 pA, 15 fA

Sampling Frequency - FS

up to 100 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

1 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

4 kHz

100 Hz

5 kHz

20 kHz, 5 kHz

5 kHz

2 kHz, 1 kHz

1 kHz

20 kHz, 5 kHz

20 kHz

1 kHz

5 kHz

100 Hz

20 kHz

100 Hz

1 kHz

4 kHz

Bias Voltage Source

±30 V (bipolar)

Bias Voltage Source

-500 V

+500 V

-2 kV

+2 kV

-4 kV

+4 kV

-500 V

+500 V

Not present

+500 V

-500 V

Not present

-4 kV

+500 V

±30 V (bipolar)

-500 V

±30 V (bipolar)

Not Present

+500 V

Not Present

±30 V (bipolar)

±5 V (bipolar)

Not present

Communication Interface

10/100/1000 Mbit Ethernet TCP-IP

External Signals

Configurable Trigger/Gate
Trigger Output
External Interlock

Input Connectors

BNC

Bias Voltage Connector

BNC

Bias Voltage Connector

SHV

BNC

SHV

BNC

SHV

BNC

Extra Communication Interface

SFP - Small Form-Factor Pluggable

Additional Features

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Input Voltage Supply

+12 V

Weight

800 g

Mechanical Dimensions

175 × 175 × 44 mm

Number of Channels

Current Polarity

Bipolar

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

±1.2 uA, ±1.2 nA

±1.2 mA, ±1.2 uA

±25 uA, ±250 nA

±120 uA, ±120 nA

±10 uA, ±125 nA

±10 uA, ±2 uA

±25 uA, ±250 nA

±6 mA, ±20 uA

±20 uA, ±2 uA

±120 uA, ±120 nA

±1.2 mA, ±1.2 uA

±60 uA, ±15 uA

±1.2 mA, ±1.2 uA

±2 mA, ±50 uA

±1.2 uA, ±1.2 nA

±12 mA, ±12 uA

±1.2 uA, ±1.2 nA

±120 uA, ±120 nA

±1.6 uA, ±120 nA

±60 uA, ±15 uA

±120 uA, ±120 nA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

150 fA, 15 aA

150 pA, 150 fA

3.5 pA, 35 fA

15 pA, 15 fA

1.5 pA, 20 fA

1.5 pA, 250 fA

3.5 pA, 35 fA

750 pA, 2.5 pA

2.5 pA, 250 fA

15 pA, 15 fA

150 pA, 150 fA

7.5 pA, 2 pA

150 pA, 150 fA

250 pA, 7 pA

150 fA, 15 aA

1.5 nA, 1.5 pA

150 fA, 15 aA

15 pA, 15 fA

200 fA, 15 fA

7.5 pA, 2 pA

15 pA, 15 fA

Sampling Frequency - FS

up to 100 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

20 kHz, 5 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

4 kHz

100 Hz

5 kHz

20 kHz, 5 kHz

5 kHz

2 kHz, 1 kHz

1 kHz

20 kHz, 5 kHz

20 kHz

1 kHz

5 kHz

100 Hz

20 kHz

100 Hz

1 kHz

4 kHz

Bias Voltage Source

±30 V (bipolar)

Bias Voltage Source

-500 V

+500 V

-2 kV

+2 kV

-4 kV

+4 kV

-500 V

+500 V

Not present

+500 V

-500 V

Not present

-4 kV

+500 V

±30 V (bipolar)

-500 V

±30 V (bipolar)

Not Present

+500 V

Not Present

±30 V (bipolar)

±5 V (bipolar)

Not present

Communication Interface

10/100/1000 Mbit Ethernet TCP-IP

External Signals

Configurable Trigger/Gate
Trigger Output
External Interlock

Input Connectors

BNC

Bias Voltage Connector

BNC

Bias Voltage Connector

SHV

BNC

SHV

BNC

SHV

BNC

Extra Communication Interface

SFP - Small Form-Factor Pluggable

Additional Features

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Input Voltage Supply

+12 V

Weight

800 g

Mechanical Dimensions

175 × 175 × 44 mm

Number of Channels

Current Polarity

Bipolar

Measuring Ranges (RNG0, RNG1)

±1.2 mA, ±1.2 uA

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

±1.2 uA, ±1.2 nA

±1.2 mA, ±1.2 uA

±25 uA, ±250 nA

±120 uA, ±120 nA

±10 uA, ±125 nA

±10 uA, ±2 uA

±25 uA, ±250 nA

±6 mA, ±20 uA

±20 uA, ±2 uA

±120 uA, ±120 nA

±1.2 mA, ±1.2 uA

±60 uA, ±15 uA

±1.2 mA, ±1.2 uA

±2 mA, ±50 uA

±1.2 uA, ±1.2 nA

±12 mA, ±12 uA

±1.2 uA, ±1.2 nA

±120 uA, ±120 nA

±1.6 uA, ±120 nA

±60 uA, ±15 uA

±120 uA, ±120 nA

Current Resolution - LSB (RNG0, RNG1)

150 pA, 150 fA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

150 fA, 15 aA

150 pA, 150 fA

3.5 pA, 35 fA

15 pA, 15 fA

1.5 pA, 20 fA

1.5 pA, 250 fA

3.5 pA, 35 fA

750 pA, 2.5 pA

2.5 pA, 250 fA

15 pA, 15 fA

150 pA, 150 fA

7.5 pA, 2 pA

150 pA, 150 fA

250 pA, 7 pA

150 fA, 15 aA

1.5 nA, 1.5 pA

150 fA, 15 aA

15 pA, 15 fA

200 fA, 15 fA

7.5 pA, 2 pA

15 pA, 15 fA

Sampling Frequency - FS

up to 100 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

20 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

4 kHz

100 Hz

5 kHz

20 kHz, 5 kHz

5 kHz

2 kHz, 1 kHz

1 kHz

20 kHz, 5 kHz

20 kHz

1 kHz

5 kHz

100 Hz

20 kHz

100 Hz

1 kHz

4 kHz

Bias Voltage Source

±30 V (bipolar)

Bias Voltage Source

-500 V

+500 V

-2 kV

+2 kV

-4 kV

+4 kV

-500 V

+500 V

Not present

+500 V

-500 V

Not present

-4 kV

+500 V

±30 V (bipolar)

-500 V

±30 V (bipolar)

Not Present

+500 V

Not Present

±30 V (bipolar)

±5 V (bipolar)

Not present

Communication Interface

10/100/1000 Mbit Ethernet TCP-IP

External Signals

Configurable Trigger/Gate
Trigger Output
External Interlock

Input Connectors

BNC

Bias Voltage Connector

BNC

Bias Voltage Connector

SHV

BNC

SHV

BNC

SHV

BNC

Extra Communication Interface

SFP - Small Form-Factor Pluggable

Additional Features

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Input Voltage Supply

+12 V

Weight

800 g

Mechanical Dimensions

175 × 175 × 44 mm

Number of Channels

Current Polarity

Bipolar

Measuring Ranges (RNG0, RNG1)

±60 uA, ±15 uA

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

±1.2 uA, ±1.2 nA

±1.2 mA, ±1.2 uA

±25 uA, ±250 nA

±120 uA, ±120 nA

±10 uA, ±125 nA

±10 uA, ±2 uA

±25 uA, ±250 nA

±6 mA, ±20 uA

±20 uA, ±2 uA

±120 uA, ±120 nA

±1.2 mA, ±1.2 uA

±60 uA, ±15 uA

±1.2 mA, ±1.2 uA

±2 mA, ±50 uA

±1.2 uA, ±1.2 nA

±12 mA, ±12 uA

±1.2 uA, ±1.2 nA

±120 uA, ±120 nA

±1.6 uA, ±120 nA

±60 uA, ±15 uA

±120 uA, ±120 nA

Current Resolution - LSB (RNG0, RNG1)

7.5 pA, 2 pA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

150 fA, 15 aA

150 pA, 150 fA

3.5 pA, 35 fA

15 pA, 15 fA

1.5 pA, 20 fA

1.5 pA, 250 fA

3.5 pA, 35 fA

750 pA, 2.5 pA

2.5 pA, 250 fA

15 pA, 15 fA

150 pA, 150 fA

7.5 pA, 2 pA

150 pA, 150 fA

250 pA, 7 pA

150 fA, 15 aA

1.5 nA, 1.5 pA

150 fA, 15 aA

15 pA, 15 fA

200 fA, 15 fA

7.5 pA, 2 pA

15 pA, 15 fA

Sampling Frequency - FS

up to 100 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

1 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

4 kHz

100 Hz

5 kHz

20 kHz, 5 kHz

5 kHz

2 kHz, 1 kHz

1 kHz

20 kHz, 5 kHz

20 kHz

1 kHz

5 kHz

100 Hz

20 kHz

100 Hz

1 kHz

4 kHz

Bias Voltage Source

±30 V (bipolar)

Bias Voltage Source

-500 V

+500 V

-2 kV

+2 kV

-4 kV

+4 kV

-500 V

+500 V

Not present

+500 V

-500 V

Not present

-4 kV

+500 V

±30 V (bipolar)

-500 V

±30 V (bipolar)

Not Present

+500 V

Not Present

±30 V (bipolar)

±5 V (bipolar)

Not present

Communication Interface

10/100/1000 Mbit Ethernet TCP-IP

External Signals

Configurable Trigger/Gate
Trigger Output
External Interlock

Input Connectors

BNC

Bias Voltage Connector

BNC

Bias Voltage Connector

SHV

BNC

SHV

BNC

SHV

BNC

Extra Communication Interface

SFP - Small Form-Factor Pluggable

Additional Features

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Input Voltage Supply

+12 V

Weight

800 g

Mechanical Dimensions

175 × 175 × 44 mm

Number of Channels

Current Polarity

Bipolar

Measuring Ranges (RNG0, RNG1)

±1.2 mA, ±1.2 uA

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

±1.2 uA, ±1.2 nA

±1.2 mA, ±1.2 uA

±25 uA, ±250 nA

±120 uA, ±120 nA

±10 uA, ±125 nA

±10 uA, ±2 uA

±25 uA, ±250 nA

±6 mA, ±20 uA

±20 uA, ±2 uA

±120 uA, ±120 nA

±1.2 mA, ±1.2 uA

±60 uA, ±15 uA

±1.2 mA, ±1.2 uA

±2 mA, ±50 uA

±1.2 uA, ±1.2 nA

±12 mA, ±12 uA

±1.2 uA, ±1.2 nA

±120 uA, ±120 nA

±1.6 uA, ±120 nA

±60 uA, ±15 uA

±120 uA, ±120 nA

Current Resolution - LSB (RNG0, RNG1)

150 pA, 150 fA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

150 fA, 15 aA

150 pA, 150 fA

3.5 pA, 35 fA

15 pA, 15 fA

1.5 pA, 20 fA

1.5 pA, 250 fA

3.5 pA, 35 fA

750 pA, 2.5 pA

2.5 pA, 250 fA

15 pA, 15 fA

150 pA, 150 fA

7.5 pA, 2 pA

150 pA, 150 fA

250 pA, 7 pA

150 fA, 15 aA

1.5 nA, 1.5 pA

150 fA, 15 aA

15 pA, 15 fA

200 fA, 15 fA

7.5 pA, 2 pA

15 pA, 15 fA

Sampling Frequency - FS

up to 100 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

5 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

4 kHz

100 Hz

5 kHz

20 kHz, 5 kHz

5 kHz

2 kHz, 1 kHz

1 kHz

20 kHz, 5 kHz

20 kHz

1 kHz

5 kHz

100 Hz

20 kHz

100 Hz

1 kHz

4 kHz

Bias Voltage Source

-500 V

Bias Voltage Source

-500 V

+500 V

-2 kV

+2 kV

-4 kV

+4 kV

-500 V

+500 V

Not present

+500 V

-500 V

Not present

-4 kV

+500 V

±30 V (bipolar)

-500 V

±30 V (bipolar)

Not Present

+500 V

Not Present

±30 V (bipolar)

±5 V (bipolar)

Not present

Communication Interface

10/100/1000 Mbit Ethernet TCP-IP

External Signals

Configurable Trigger/Gate
Trigger Output
External Interlock

Input Connectors

BNC

Bias Voltage Connector

SHV

Bias Voltage Connector

SHV

BNC

SHV

BNC

SHV

BNC

Extra Communication Interface

SFP - Small Form-Factor Pluggable

Additional Features

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Input Voltage Supply

+12 V

Weight

800 g

Mechanical Dimensions

175 × 175 × 44 mm

Number of Channels

Current Polarity

Bipolar

Measuring Ranges (RNG0, RNG1)

±2 mA, ±50 uA

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

±1.2 uA, ±1.2 nA

±1.2 mA, ±1.2 uA

±25 uA, ±250 nA

±120 uA, ±120 nA

±10 uA, ±125 nA

±10 uA, ±2 uA

±25 uA, ±250 nA

±6 mA, ±20 uA

±20 uA, ±2 uA

±120 uA, ±120 nA

±1.2 mA, ±1.2 uA

±60 uA, ±15 uA

±1.2 mA, ±1.2 uA

±2 mA, ±50 uA

±1.2 uA, ±1.2 nA

±12 mA, ±12 uA

±1.2 uA, ±1.2 nA

±120 uA, ±120 nA

±1.6 uA, ±120 nA

±60 uA, ±15 uA

±120 uA, ±120 nA

Current Resolution - LSB (RNG0, RNG1)

250 pA, 7 pA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

150 fA, 15 aA

150 pA, 150 fA

3.5 pA, 35 fA

15 pA, 15 fA

1.5 pA, 20 fA

1.5 pA, 250 fA

3.5 pA, 35 fA

750 pA, 2.5 pA

2.5 pA, 250 fA

15 pA, 15 fA

150 pA, 150 fA

7.5 pA, 2 pA

150 pA, 150 fA

250 pA, 7 pA

150 fA, 15 aA

1.5 nA, 1.5 pA

150 fA, 15 aA

15 pA, 15 fA

200 fA, 15 fA

7.5 pA, 2 pA

15 pA, 15 fA

Sampling Frequency - FS

up to 100 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

5 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

4 kHz

100 Hz

5 kHz

20 kHz, 5 kHz

5 kHz

2 kHz, 1 kHz

1 kHz

20 kHz, 5 kHz

20 kHz

1 kHz

5 kHz

100 Hz

20 kHz

100 Hz

1 kHz

4 kHz

Bias Voltage Source

±30 V (bipolar)

Bias Voltage Source

-500 V

+500 V

-2 kV

+2 kV

-4 kV

+4 kV

-500 V

+500 V

Not present

+500 V

-500 V

Not present

-4 kV

+500 V

±30 V (bipolar)

-500 V

±30 V (bipolar)

Not Present

+500 V

Not Present

±30 V (bipolar)

±5 V (bipolar)

Not present

Communication Interface

10/100/1000 Mbit Ethernet TCP-IP

External Signals

Configurable Trigger/Gate
Trigger Output
External Interlock

Input Connectors

BNC

Bias Voltage Connector

BNC

Bias Voltage Connector

SHV

BNC

SHV

BNC

SHV

BNC

Extra Communication Interface

SFP - Small Form-Factor Pluggable

Additional Features

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Input Voltage Supply

+12 V

Weight

800 g

Mechanical Dimensions

175 × 175 × 44 mm

Number of Channels

Current Polarity

Bipolar

Measuring Ranges (RNG0, RNG1)

±1.2 uA, ±1.2 nA

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

±1.2 uA, ±1.2 nA

±1.2 mA, ±1.2 uA

±25 uA, ±250 nA

±120 uA, ±120 nA

±10 uA, ±125 nA

±10 uA, ±2 uA

±25 uA, ±250 nA

±6 mA, ±20 uA

±20 uA, ±2 uA

±120 uA, ±120 nA

±1.2 mA, ±1.2 uA

±60 uA, ±15 uA

±1.2 mA, ±1.2 uA

±2 mA, ±50 uA

±1.2 uA, ±1.2 nA

±12 mA, ±12 uA

±1.2 uA, ±1.2 nA

±120 uA, ±120 nA

±1.6 uA, ±120 nA

±60 uA, ±15 uA

±120 uA, ±120 nA

Current Resolution - LSB (RNG0, RNG1)

150 fA, 15 aA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

150 fA, 15 aA

150 pA, 150 fA

3.5 pA, 35 fA

15 pA, 15 fA

1.5 pA, 20 fA

1.5 pA, 250 fA

3.5 pA, 35 fA

750 pA, 2.5 pA

2.5 pA, 250 fA

15 pA, 15 fA

150 pA, 150 fA

7.5 pA, 2 pA

150 pA, 150 fA

250 pA, 7 pA

150 fA, 15 aA

1.5 nA, 1.5 pA

150 fA, 15 aA

15 pA, 15 fA

200 fA, 15 fA

7.5 pA, 2 pA

15 pA, 15 fA

Sampling Frequency - FS

up to 100 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

100 Hz

Analog Bandwidth -3 dB (RNG0, RNG1)

4 kHz

100 Hz

5 kHz

20 kHz, 5 kHz

5 kHz

2 kHz, 1 kHz

1 kHz

20 kHz, 5 kHz

20 kHz

1 kHz

5 kHz

100 Hz

20 kHz

100 Hz

1 kHz

4 kHz

Bias Voltage Source

±30 V (bipolar)

Bias Voltage Source

-500 V

+500 V

-2 kV

+2 kV

-4 kV

+4 kV

-500 V

+500 V

Not present

+500 V

-500 V

Not present

-4 kV

+500 V

±30 V (bipolar)

-500 V

±30 V (bipolar)

Not Present

+500 V

Not Present

±30 V (bipolar)

±5 V (bipolar)

Not present

Communication Interface

10/100/1000 Mbit Ethernet TCP-IP

External Signals

Configurable Trigger/Gate
Trigger Output
External Interlock

Input Connectors

BNC

Bias Voltage Connector

BNC

Bias Voltage Connector

SHV

BNC

SHV

BNC

SHV

BNC

Extra Communication Interface

SFP - Small Form-Factor Pluggable

Additional Features

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Input Voltage Supply

+12 V

Weight

800 g

Mechanical Dimensions

175 × 175 × 44 mm

Number of Channels

Current Polarity

Bipolar

Measuring Ranges (RNG0, RNG1)

±12 mA, ±12 uA

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

±1.2 uA, ±1.2 nA

±1.2 mA, ±1.2 uA

±25 uA, ±250 nA

±120 uA, ±120 nA

±10 uA, ±125 nA

±10 uA, ±2 uA

±25 uA, ±250 nA

±6 mA, ±20 uA

±20 uA, ±2 uA

±120 uA, ±120 nA

±1.2 mA, ±1.2 uA

±60 uA, ±15 uA

±1.2 mA, ±1.2 uA

±2 mA, ±50 uA

±1.2 uA, ±1.2 nA

±12 mA, ±12 uA

±1.2 uA, ±1.2 nA

±120 uA, ±120 nA

±1.6 uA, ±120 nA

±60 uA, ±15 uA

±120 uA, ±120 nA

Current Resolution - LSB (RNG0, RNG1)

1.5 nA, 1.5 pA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

150 fA, 15 aA

150 pA, 150 fA

3.5 pA, 35 fA

15 pA, 15 fA

1.5 pA, 20 fA

1.5 pA, 250 fA

3.5 pA, 35 fA

750 pA, 2.5 pA

2.5 pA, 250 fA

15 pA, 15 fA

150 pA, 150 fA

7.5 pA, 2 pA

150 pA, 150 fA

250 pA, 7 pA

150 fA, 15 aA

1.5 nA, 1.5 pA

150 fA, 15 aA

15 pA, 15 fA

200 fA, 15 fA

7.5 pA, 2 pA

15 pA, 15 fA

Sampling Frequency - FS

up to 100 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

20 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

4 kHz

100 Hz

5 kHz

20 kHz, 5 kHz

5 kHz

2 kHz, 1 kHz

1 kHz

20 kHz, 5 kHz

20 kHz

1 kHz

5 kHz

100 Hz

20 kHz

100 Hz

1 kHz

4 kHz

Bias Voltage Source

±30 V (bipolar)

Bias Voltage Source

-500 V

+500 V

-2 kV

+2 kV

-4 kV

+4 kV

-500 V

+500 V

Not present

+500 V

-500 V

Not present

-4 kV

+500 V

±30 V (bipolar)

-500 V

±30 V (bipolar)

Not Present

+500 V

Not Present

±30 V (bipolar)

±5 V (bipolar)

Not present

Communication Interface

10/100/1000 Mbit Ethernet TCP-IP

External Signals

Configurable Trigger/Gate
Trigger Output
External Interlock

Input Connectors

BNC

Bias Voltage Connector

BNC

Bias Voltage Connector

SHV

BNC

SHV

BNC

SHV

BNC

Extra Communication Interface

SFP - Small Form-Factor Pluggable

Additional Features

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Input Voltage Supply

+12 V

Weight

800 g

Mechanical Dimensions

175 × 175 × 44 mm

Number of Channels

Current Polarity

Bipolar

Measuring Ranges (RNG0, RNG1)

±1.2 uA, ±1.2 nA

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

±1.2 uA, ±1.2 nA

±1.2 mA, ±1.2 uA

±25 uA, ±250 nA

±120 uA, ±120 nA

±10 uA, ±125 nA

±10 uA, ±2 uA

±25 uA, ±250 nA

±6 mA, ±20 uA

±20 uA, ±2 uA

±120 uA, ±120 nA

±1.2 mA, ±1.2 uA

±60 uA, ±15 uA

±1.2 mA, ±1.2 uA

±2 mA, ±50 uA

±1.2 uA, ±1.2 nA

±12 mA, ±12 uA

±1.2 uA, ±1.2 nA

±120 uA, ±120 nA

±1.6 uA, ±120 nA

±60 uA, ±15 uA

±120 uA, ±120 nA

Current Resolution - LSB (RNG0, RNG1)

150 fA, 15 aA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

150 fA, 15 aA

150 pA, 150 fA

3.5 pA, 35 fA

15 pA, 15 fA

1.5 pA, 20 fA

1.5 pA, 250 fA

3.5 pA, 35 fA

750 pA, 2.5 pA

2.5 pA, 250 fA

15 pA, 15 fA

150 pA, 150 fA

7.5 pA, 2 pA

150 pA, 150 fA

250 pA, 7 pA

150 fA, 15 aA

1.5 nA, 1.5 pA

150 fA, 15 aA

15 pA, 15 fA

200 fA, 15 fA

7.5 pA, 2 pA

15 pA, 15 fA

Sampling Frequency - FS

up to 100 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

100 Hz

Analog Bandwidth -3 dB (RNG0, RNG1)

4 kHz

100 Hz

5 kHz

20 kHz, 5 kHz

5 kHz

2 kHz, 1 kHz

1 kHz

20 kHz, 5 kHz

20 kHz

1 kHz

5 kHz

100 Hz

20 kHz

100 Hz

1 kHz

4 kHz

Bias Voltage Source

Not Present

Bias Voltage Source

-500 V

+500 V

-2 kV

+2 kV

-4 kV

+4 kV

-500 V

+500 V

Not present

+500 V

-500 V

Not present

-4 kV

+500 V

±30 V (bipolar)

-500 V

±30 V (bipolar)

Not Present

+500 V

Not Present

±30 V (bipolar)

±5 V (bipolar)

Not present

Communication Interface

10/100/1000 Mbit Ethernet TCP-IP

External Signals

Configurable Trigger/Gate
Trigger Output
External Interlock

Input Connectors

BNC

Bias Voltage Connector

SHV

BNC

SHV

BNC

SHV

BNC

Extra Communication Interface

SFP - Small Form-Factor Pluggable

Additional Features

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Input Voltage Supply

+12 V

Weight

800 g

Mechanical Dimensions

175 × 175 × 44 mm

Number of Channels

Current Polarity

Bipolar

Measuring Ranges (RNG0, RNG1)

±1.2 uA, ±1.2 nA

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

±1.2 uA, ±1.2 nA

±1.2 mA, ±1.2 uA

±25 uA, ±250 nA

±120 uA, ±120 nA

±10 uA, ±125 nA

±10 uA, ±2 uA

±25 uA, ±250 nA

±6 mA, ±20 uA

±20 uA, ±2 uA

±120 uA, ±120 nA

±1.2 mA, ±1.2 uA

±60 uA, ±15 uA

±1.2 mA, ±1.2 uA

±2 mA, ±50 uA

±1.2 uA, ±1.2 nA

±12 mA, ±12 uA

±1.2 uA, ±1.2 nA

±120 uA, ±120 nA

±1.6 uA, ±120 nA

±60 uA, ±15 uA

±120 uA, ±120 nA

Current Resolution - LSB (RNG0, RNG1)

150 fA, 15 aA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

150 fA, 15 aA

150 pA, 150 fA

3.5 pA, 35 fA

15 pA, 15 fA

1.5 pA, 20 fA

1.5 pA, 250 fA

3.5 pA, 35 fA

750 pA, 2.5 pA

2.5 pA, 250 fA

15 pA, 15 fA

150 pA, 150 fA

7.5 pA, 2 pA

150 pA, 150 fA

250 pA, 7 pA

150 fA, 15 aA

1.5 nA, 1.5 pA

150 fA, 15 aA

15 pA, 15 fA

200 fA, 15 fA

7.5 pA, 2 pA

15 pA, 15 fA

Sampling Frequency - FS

up to 100 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

100 Hz

Analog Bandwidth -3 dB (RNG0, RNG1)

4 kHz

100 Hz

5 kHz

20 kHz, 5 kHz

5 kHz

2 kHz, 1 kHz

1 kHz

20 kHz, 5 kHz

20 kHz

1 kHz

5 kHz

100 Hz

20 kHz

100 Hz

1 kHz

4 kHz

Bias Voltage Source

+500 V

Bias Voltage Source

-500 V

+500 V

-2 kV

+2 kV

-4 kV

+4 kV

-500 V

+500 V

Not present

+500 V

-500 V

Not present

-4 kV

+500 V

±30 V (bipolar)

-500 V

±30 V (bipolar)

Not Present

+500 V

Not Present

±30 V (bipolar)

±5 V (bipolar)

Not present

Communication Interface

10/100/1000 Mbit Ethernet TCP-IP

External Signals

Configurable Trigger/Gate
Trigger Output
External Interlock

Input Connectors

BNC

Bias Voltage Connector

SHV

Bias Voltage Connector

SHV

BNC

SHV

BNC

SHV

BNC

Extra Communication Interface

SFP - Small Form-Factor Pluggable

Additional Features

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Input Voltage Supply

+12 V

Weight

800 g

Mechanical Dimensions

175 × 175 × 44 mm

Number of Channels

Current Polarity

Bipolar

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

±1.2 uA, ±1.2 nA

±1.2 mA, ±1.2 uA

±25 uA, ±250 nA

±120 uA, ±120 nA

±10 uA, ±125 nA

±10 uA, ±2 uA

±25 uA, ±250 nA

±6 mA, ±20 uA

±20 uA, ±2 uA

±120 uA, ±120 nA

±1.2 mA, ±1.2 uA

±60 uA, ±15 uA

±1.2 mA, ±1.2 uA

±2 mA, ±50 uA

±1.2 uA, ±1.2 nA

±12 mA, ±12 uA

±1.2 uA, ±1.2 nA

±120 uA, ±120 nA

±1.6 uA, ±120 nA

±60 uA, ±15 uA

±120 uA, ±120 nA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

150 fA, 15 aA

150 pA, 150 fA

3.5 pA, 35 fA

15 pA, 15 fA

1.5 pA, 20 fA

1.5 pA, 250 fA

3.5 pA, 35 fA

750 pA, 2.5 pA

2.5 pA, 250 fA

15 pA, 15 fA

150 pA, 150 fA

7.5 pA, 2 pA

150 pA, 150 fA

250 pA, 7 pA

150 fA, 15 aA

1.5 nA, 1.5 pA

150 fA, 15 aA

15 pA, 15 fA

200 fA, 15 fA

7.5 pA, 2 pA

15 pA, 15 fA

Sampling Frequency - FS

up to 100 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

1 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

4 kHz

100 Hz

5 kHz

20 kHz, 5 kHz

5 kHz

2 kHz, 1 kHz

1 kHz

20 kHz, 5 kHz

20 kHz

1 kHz

5 kHz

100 Hz

20 kHz

100 Hz

1 kHz

4 kHz

Bias Voltage Source

Not Present

Bias Voltage Source

-500 V

+500 V

-2 kV

+2 kV

-4 kV

+4 kV

-500 V

+500 V

Not present

+500 V

-500 V

Not present

-4 kV

+500 V

±30 V (bipolar)

-500 V

±30 V (bipolar)

Not Present

+500 V

Not Present

±30 V (bipolar)

±5 V (bipolar)

Not present

Communication Interface

10/100/1000 Mbit Ethernet TCP-IP

External Signals

Configurable Trigger/Gate
Trigger Output
External Interlock

Input Connectors

BNC

Bias Voltage Connector

SHV

BNC

SHV

BNC

SHV

BNC

Extra Communication Interface

SFP - Small Form-Factor Pluggable

Additional Features

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Input Voltage Supply

+12 V

Weight

800 g

Mechanical Dimensions

175 × 175 × 44 mm

Number of Channels

Current Polarity

Bipolar

Measuring Ranges (RNG0, RNG1)

±1.6 uA, ±120 nA

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

±1.2 uA, ±1.2 nA

±1.2 mA, ±1.2 uA

±25 uA, ±250 nA

±120 uA, ±120 nA

±10 uA, ±125 nA

±10 uA, ±2 uA

±25 uA, ±250 nA

±6 mA, ±20 uA

±20 uA, ±2 uA

±120 uA, ±120 nA

±1.2 mA, ±1.2 uA

±60 uA, ±15 uA

±1.2 mA, ±1.2 uA

±2 mA, ±50 uA

±1.2 uA, ±1.2 nA

±12 mA, ±12 uA

±1.2 uA, ±1.2 nA

±120 uA, ±120 nA

±1.6 uA, ±120 nA

±60 uA, ±15 uA

±120 uA, ±120 nA

Current Resolution - LSB (RNG0, RNG1)

200 fA, 15 fA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

150 fA, 15 aA

150 pA, 150 fA

3.5 pA, 35 fA

15 pA, 15 fA

1.5 pA, 20 fA

1.5 pA, 250 fA

3.5 pA, 35 fA

750 pA, 2.5 pA

2.5 pA, 250 fA

15 pA, 15 fA

150 pA, 150 fA

7.5 pA, 2 pA

150 pA, 150 fA

250 pA, 7 pA

150 fA, 15 aA

1.5 nA, 1.5 pA

150 fA, 15 aA

15 pA, 15 fA

200 fA, 15 fA

7.5 pA, 2 pA

15 pA, 15 fA

Sampling Frequency - FS

up to 100 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

1 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

4 kHz

100 Hz

5 kHz

20 kHz, 5 kHz

5 kHz

2 kHz, 1 kHz

1 kHz

20 kHz, 5 kHz

20 kHz

1 kHz

5 kHz

100 Hz

20 kHz

100 Hz

1 kHz

4 kHz

Bias Voltage Source

±30 V (bipolar)

Bias Voltage Source

-500 V

+500 V

-2 kV

+2 kV

-4 kV

+4 kV

-500 V

+500 V

Not present

+500 V

-500 V

Not present

-4 kV

+500 V

±30 V (bipolar)

-500 V

±30 V (bipolar)

Not Present

+500 V

Not Present

±30 V (bipolar)

±5 V (bipolar)

Not present

Communication Interface

10/100/1000 Mbit Ethernet TCP-IP

External Signals

Configurable Trigger/Gate
Trigger Output
External Interlock

Input Connectors

BNC

Bias Voltage Connector

BNC

Bias Voltage Connector

SHV

BNC

SHV

BNC

SHV

BNC

Extra Communication Interface

SFP - Small Form-Factor Pluggable

Additional Features

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Input Voltage Supply

+12 V

Weight

800 g

Mechanical Dimensions

175 × 175 × 44 mm

Number of Channels

Current Polarity

Bipolar

Measuring Ranges (RNG0, RNG1)

±60 uA, ±15 uA

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

±1.2 uA, ±1.2 nA

±1.2 mA, ±1.2 uA

±25 uA, ±250 nA

±120 uA, ±120 nA

±10 uA, ±125 nA

±10 uA, ±2 uA

±25 uA, ±250 nA

±6 mA, ±20 uA

±20 uA, ±2 uA

±120 uA, ±120 nA

±1.2 mA, ±1.2 uA

±60 uA, ±15 uA

±1.2 mA, ±1.2 uA

±2 mA, ±50 uA

±1.2 uA, ±1.2 nA

±12 mA, ±12 uA

±1.2 uA, ±1.2 nA

±120 uA, ±120 nA

±1.6 uA, ±120 nA

±60 uA, ±15 uA

±120 uA, ±120 nA

Current Resolution - LSB (RNG0, RNG1)

7.5 pA, 2 pA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

150 fA, 15 aA

150 pA, 150 fA

3.5 pA, 35 fA

15 pA, 15 fA

1.5 pA, 20 fA

1.5 pA, 250 fA

3.5 pA, 35 fA

750 pA, 2.5 pA

2.5 pA, 250 fA

15 pA, 15 fA

150 pA, 150 fA

7.5 pA, 2 pA

150 pA, 150 fA

250 pA, 7 pA

150 fA, 15 aA

1.5 nA, 1.5 pA

150 fA, 15 aA

15 pA, 15 fA

200 fA, 15 fA

7.5 pA, 2 pA

15 pA, 15 fA

Sampling Frequency - FS

up to 100 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

1 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

4 kHz

100 Hz

5 kHz

20 kHz, 5 kHz

5 kHz

2 kHz, 1 kHz

1 kHz

20 kHz, 5 kHz

20 kHz

1 kHz

5 kHz

100 Hz

20 kHz

100 Hz

1 kHz

4 kHz

Bias Voltage Source

±5 V (bipolar)

Bias Voltage Source

-500 V

+500 V

-2 kV

+2 kV

-4 kV

+4 kV

-500 V

+500 V

Not present

+500 V

-500 V

Not present

-4 kV

+500 V

±30 V (bipolar)

-500 V

±30 V (bipolar)

Not Present

+500 V

Not Present

±30 V (bipolar)

±5 V (bipolar)

Not present

Communication Interface

10/100/1000 Mbit Ethernet TCP-IP

External Signals

Configurable Trigger/Gate
Trigger Output
External Interlock

Input Connectors

BNC

Bias Voltage Connector

BNC

Bias Voltage Connector

SHV

BNC

SHV

BNC

SHV

BNC

Extra Communication Interface

SFP - Small Form-Factor Pluggable

Additional Features

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Input Voltage Supply

+12 V

Weight

800 g

Mechanical Dimensions

175 × 175 × 44 mm

Number of Channels

Current Polarity

Bipolar

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

±1.2 uA, ±1.2 nA

±1.2 mA, ±1.2 uA

±25 uA, ±250 nA

±120 uA, ±120 nA

±10 uA, ±125 nA

±10 uA, ±2 uA

±25 uA, ±250 nA

±6 mA, ±20 uA

±20 uA, ±2 uA

±120 uA, ±120 nA

±1.2 mA, ±1.2 uA

±60 uA, ±15 uA

±1.2 mA, ±1.2 uA

±2 mA, ±50 uA

±1.2 uA, ±1.2 nA

±12 mA, ±12 uA

±1.2 uA, ±1.2 nA

±120 uA, ±120 nA

±1.6 uA, ±120 nA

±60 uA, ±15 uA

±120 uA, ±120 nA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

150 fA, 15 aA

150 pA, 150 fA

3.5 pA, 35 fA

15 pA, 15 fA

1.5 pA, 20 fA

1.5 pA, 250 fA

3.5 pA, 35 fA

750 pA, 2.5 pA

2.5 pA, 250 fA

15 pA, 15 fA

150 pA, 150 fA

7.5 pA, 2 pA

150 pA, 150 fA

250 pA, 7 pA

150 fA, 15 aA

1.5 nA, 1.5 pA

150 fA, 15 aA

15 pA, 15 fA

200 fA, 15 fA

7.5 pA, 2 pA

15 pA, 15 fA

Sampling Frequency - FS

up to 100 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

4 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

4 kHz

100 Hz

5 kHz

20 kHz, 5 kHz

5 kHz

2 kHz, 1 kHz

1 kHz

20 kHz, 5 kHz

20 kHz

1 kHz

5 kHz

100 Hz

20 kHz

100 Hz

1 kHz

4 kHz

Bias Voltage Source

Not present

Bias Voltage Source

-500 V

+500 V

-2 kV

+2 kV

-4 kV

+4 kV

-500 V

+500 V

Not present

+500 V

-500 V

Not present

-4 kV

+500 V

±30 V (bipolar)

-500 V

±30 V (bipolar)

Not Present

+500 V

Not Present

±30 V (bipolar)

±5 V (bipolar)

Not present

Communication Interface

10/100/1000 Mbit Ethernet TCP-IP

External Signals

Configurable Trigger/Gate
Trigger Output
External Interlock

Input Connectors

BNC

Bias Voltage Connector

SHV

BNC

SHV

BNC

SHV

BNC

Extra Communication Interface

SFP - Small Form-Factor Pluggable

Additional Features

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Input Voltage Supply

+12 V

Weight

800 g

Mechanical Dimensions

175 × 175 × 44 mm

Ordering options

Ordering code

Description

Action

WTETRAMM05NX

TetrAMM – 4-channel Fast Interface Picoammeterwith -500 V HV (RNG: ±120 µA, ±120 nA, BW = 4 kHz)

Quote

WTETRAMM05PX

TetrAMM – 4-channel Fast Interface Picoammeter with +500 V HV (RNG: ±120 µA, ±120 nA, BW = 4 kHz)

Quote

WTETRAMM20NX

TetrAMM – 4-channel Fast Interface Picoammeter with -2 kV HV (RNG: ±120 µA, ±120 nA, BW = 4 kHz)

Quote

WTETRAMM20PX

TetrAMM – 4-channel Fast Interface Picoammeter with +2 kV HV (RNG: ±120 µA, ±120 nA, BW = 4 kHz)

Quote

WTETRAMM40NX

TetrAMM – 4-channel Fast Interface Picoammeter with -4 kV HV (RNG: ±120 µA, ±120 nA, BW = 4 kHz)

Quote

WTETRAMM40PX

TetrAMM – 4-channel Fast Interface Picoammeter with +4 kV HV (RNG: ±120 µA, ±120 nA, BW = 4 kHz)

Quote

WTETRAMMC001

TetrAMM – 4-channel Fast Interface Bipolar Picoamm. with -500 V HV (RNG: ±1.2 µA,±1.2 nA, BW=100 Hz)

Quote

WTETRAMMC002

TetrAMM – 4-channel Fast Interface Bipolar Picoamm. Int. +500 V HV (RNG: ±1.2mA,±1.2 µA)

Quote

WTETRAMMC003

TetrAMM – 4-channel Picoammeter without Integrated HV source (RNG: ±25 µA, ±250 nA, BW= 5 kHz)

Quote

WTETRAMMC004

TetrAMM – 4-channel Fast Picoammeter with Integrated +500V HV (RNG:±120 µA BW=20kHz,±120 nA BW>5kHz)

Quote

WTETRAMMC005

TetrAMM – 4-channel Picoammeter with Integrated -500 V HV (RNG: ±10 µA, ±125 nA)

Quote

WTETRAMMC006

TetrAMM – 4-channel Picoammeter without Integrated HV (RNG: ±10 µA, ±2 µA)

Quote

WTETRAMMC007

TetrAMM – 4-channel Fast Picoammeter with Integrated -4 kV HV (RNG:±25 µA, ±250 nA, BW > 5 kHz)

Quote

WTETRAMMC008

TetrAMM – 4-channel Picoammeter with +500V Int. HV (RNG: ±6 mA 2 kHz, ± 20 µA 1 kHz)

Quote

WTETRAMMC009

TetrAMM – 4-channel Picoammeter with Integrated ±30 V bias (RNG: ±20 µA, ±2 µA, BW = 1 kHz)

Quote

WTETRAMMC010

TetrAMM – 4-channel Picoammeter with Integrated ±30 V bias (RNG: ±120 µA BW=20kHz,±120 nA BW>5kHz)

Quote

WTETRAMMC011

TetrAMM – 4-channel Picoammeter with Integrated ±30 V bias (RNG: ±1.2 mA, ±1.2 µA, BW = 20kHz)

Quote

WTETRAMMC012

TetrAMM – 4-channel Picoammeter with Integrated ±30 V bias (RNG: ±60 µA, ±15 µA , BW = 1 kHz)

Quote

WTETRAMMC013

TetrAMM – 4-channel Fast Interface Bipolar Picoamm. Int. -500 V HV (RNG: ±1.2 mA, ±1.2 µA)

Quote

WTETRAMMC014

TetrAMM – 4-channel Picoammeter with Integrated ±30 V bias (RNG: ±2 mA, ± 50 µA , BW = 5 kHz)

Quote

WTETRAMMC015

TetrAMM – 4-channel Picoammeter with Integrated ±30 V (RNG: ±1.2 µA,±1.2 nA, BW=100 Hz)

Quote

WTETRAMMC016

TetrAMM – 4-channel Picoammeter with Integrated ±30 V (RNG: ±12 mA, ±12 µA, BW=20 kHz)

Quote

WTETRAMMC017

TetrAMM – 4-channel Picoammeter with Integrated No-HV (RNG: ±1.2 µA, ±1.2 nA, BW=100 Hz)

Quote

WTETRAMMC018

TetrAMM – 4-channel Picoammeter with Integrated +500 V HV (RNG: ±1.2 µA, ±1.2 nA, BW=100 Hz)

Quote

WTETRAMMC019

TetrAMM – 4-channel Picoammeter with Integrated No-HV (RNG: ±120 µA, ±120 nA, BW=1 kHz)

Quote

WTETRAMMC020

TetrAMM – 4-channel Picoammeter with Integrated ±30 V (RNG: ±1.6 µA,±120 nA)

Quote

WTETRAMMCAPS

4-channel Fast Picoammeter with Integrated ±5 V bias (RNG: ±60 uA, ±15 uA , BW = 1 kHz)

Quote

WTETRAMMNOHV

TetrAMM – 4-channel Fast Interface Picoammeter w/out HV Source (RNG: ±120 µA, ±120 nA, BW=4 kHz)

Quote

Documentation

TetrAMM - User's Manual [PDF]

Last reviewed: 2025-04-01
ⓘ More infoRevision: 4.2

TetrAMM Oscilloscope - Quick Start Guide [PDF]

Last reviewed: 2024-08-29
ⓘ More infoRevision: 2

TetrAMM - Product Presentation [PDF]

Last reviewed: 2024-11-05
ⓘ More infoRevision: 2.1

DEVICE MANAGER - Quick Start Guide [PDF]

Last reviewed: 2024-08-29
ⓘ More infoRevision: 2

Application Note - AN-2001 - Quadrature Detector Readout [PDF]

Last reviewed: 2024-11-11
ⓘ More infoRevision: 1.1

Software/Firmware

Updated: 2025-02-21 - 4.05 MB
⟳ Changelog ⓘ More info Version: 3.3.04

Updated: 2024-11-25 - 296.21 MB
ⓘ More info Version: 1.4.30
OS: Windows

Updated: 2025-02-26 - 44.38 MB
ⓘ More info Version: 2.2.5
OS: Linux

Updated: 2025-02-26 - 42.67 MB
ⓘ More info Version: 2.2.5
OS: Windows

4-channel Fast Interface Bipolar Picoammeter with Integrated Voltage Bias Source

Overview

4-channel simultaneous sampling at 24-bit, 100 kHz for best-in-class noise performance

Integrated low-noise bias voltage source and trigger output functionality

Oscilloscope software included for a plug-and-play solution

Features

Technical specifications

Ordering options

Documentation

Software/Firmware

Accessories

MEC--BEI0007 - 19"-2U Mounting Tray

Related products

PS1112S
