TetrAMM

TetrAMM

4-channel Fast Interface Bipolar Picoammeter with Integrated Voltage Bias Source

4-channel 100 kHz 24-bit simultaneous sampling bipolar picoammeter series with 10/100/1000 Mbit Ethernet connectivity and integrated bias voltage source



See accessories


  • Overview
  • Features
  • Technical specifications
  • Ordering options
  • Documentation
  • Software/Firmware

Overview

TetrAMM
4-channel simultaneous sampling at 24-bit, 100 kHz for best-in-class noise performance

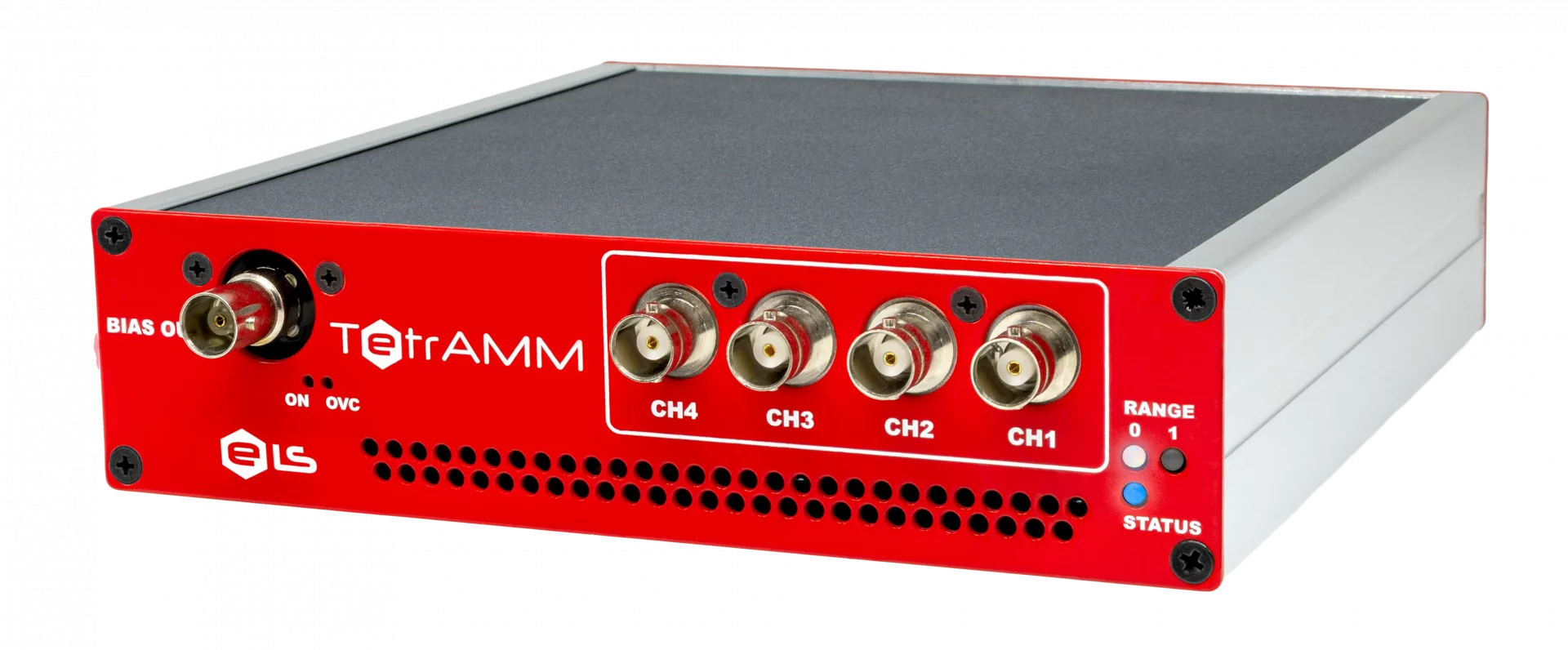

The TetrAMM – e.g. “Tetra AMMeter” – is a 4-channel picoammeter device dedicated to accurate and fast low current measurements.

The presence of a fast Gigabit Ethernet Interface and an SFP (Small Form-factor Pluggable) link allow for very high-throughput data acquisition. Each channel is sampled independently and simultaneously at a maximum frequency of 100 kHz with a 24-bit resolution.

The integrated Bias Voltage source, ranging from a full-bipolar ±30 V version to factory-configurable high-voltage output rating and polarity, can be used to bias the connected detecting system. Bias Voltage output ratings, beside the bipolar ±30 V model, are 500V or -500V, 2 kV or – 2 kV and 4 kV or -4 kV (polarity is factory-configurable only).

TetrAMM

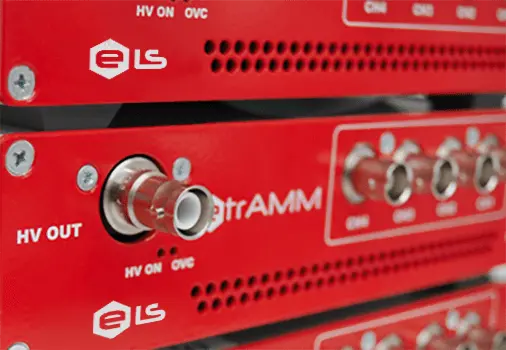

Integrated low-noise bias voltage source and trigger output functionality

The Bias Voltage integrated module is equipped with output voltage and current readbacks, as well as with protection features against over-current, thus protecting the detecting system from excessive power drawing.

CAEN High-Voltage technology is integrated into this device for the High-Voltage models.

On-board processing of data allows to obtain measurements on a user-defined sampling period, with minimum time steps of 10 µs.

The trigger output capability allows the user to detect a signal crossing a specific threshold. The trigger out functionality is very useful for beam loss monitor and machine protection system applications, but it can also be used as the trigger function of common laboratory oscilloscopes. In fact, there are two mode of operations: SINGLE (the trigger has to be re-armed by the user) and CONTINUOUS (the trigger is automatically re-armed). The user can also select the POLARITY of the signal crossing (RISE or FALL) and the speed (FAST or SLOW). When the speed is set as FAST only one sample crossing the threshold will generate the trigger signal, while in SLOW speed the signal is averaged before being compared with the threshold (with a number of samples that can be configured by the user), resulting in a soft trigger.

TetrAMM
Oscilloscope software included for a plug-and-play solution

The TetrAMM Oscilloscope software series allows customers to obtain instant and accurate results after connecting the TetrAMM device directly to the detector.
Different configurations for detector geometry, measuring range, sampling rate and other parameters can be configured directly via this free software.

Features

  • 4-channel simultaneous sampling
  • Up to 100 kHz sampling frequency (per channel)
  • 24-bit A/D conversion
  • Different bipolar current ranges
  • 10/100/1000 Mbit Ethernet TCP-IP or UDP Interface
  • SFP Interface
  • Low-noise integrated Bias Voltage Source (±30 V bipolar or High-Voltage monopolar)
  • External Trigger/Gate and Interlock signals
  • Firmware Remote Update
  • Configurable sampling frequency
  • Auto-Ranging functionality
  • Real-time FPGA and soft-processor computations
  • Compact mechanical dimensions
  • Low-Noise AC/DC power supply included
  • TetrAMM Oscilloscope for quadrature phBPM applications

Technical specifications

  • WTETRAMM05NX
  • WTETRAMM05PX
  • WTETRAMM20NX
  • WTETRAMM20PX
  • WTETRAMM40NX
  • WTETRAMM40PX
  • WTETRAMMC001
  • WTETRAMMC002
  • WTETRAMMC003
  • WTETRAMMC004
  • WTETRAMMC005
  • WTETRAMMC006
  • WTETRAMMC007
  • WTETRAMMC008
  • WTETRAMMC009
  • WTETRAMMC010
  • WTETRAMMC011
  • WTETRAMMC012
  • WTETRAMMC013
  • WTETRAMMC014
  • WTETRAMMC015
  • WTETRAMMC016
  • WTETRAMMCAPS
  • WTETRAMMNOHV

Model

WTETRAMM05NX

WTETRAMM05PX

WTETRAMM20NX

WTETRAMM20PX

WTETRAMM40NX

WTETRAMM40PX

WTETRAMMC001

WTETRAMMC002

WTETRAMMC003

WTETRAMMC004

WTETRAMMC005

WTETRAMMC006

WTETRAMMC007

WTETRAMMC008

WTETRAMMC009

WTETRAMMC010

WTETRAMMC011

WTETRAMMC012

WTETRAMMC013

WTETRAMMC014

WTETRAMMC015

WTETRAMMC016

WTETRAMMCAPS

WTETRAMMNOHV

Number of Channels

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

Current Polarity

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

±120 uA, ±120 nA

±120 uA, ±120 nA

±120 uA, ±120 nA

±120 uA, ±120 nA

±120 uA, ±120 nA

±1.2 uA, ±1.2 nA

±1.2 mA, ±1.2 uA

±25 uA, ±250 nA

±120 uA, ±120 nA

±10 uA, ±125 nA

±10 uA, ±2 uA

±25 uA, ±250 nA

±6 mA, ±20 uA

±20 uA, ±2 uA

±120 uA, ±120 nA

±1.2 mA, ±1.2 uA

±60 uA, ±15 uA

±1.2 mA, ±1.2 uA

±2 mA, ±50 uA

-

-

±60 uA, ±15 uA

±120 uA, ±120 nA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

15 pA, 15 fA

15 pA, 15 fA

15 pA, 15 fA

15 pA, 15 fA

15 pA, 15 fA

150 fA, 15 aA

150 pA, 150 fA

3.5 pA, 35 fA

15 pA, 15 fA

1.5 pA, 20 fA

1.5 pA, 250 fA

3.5 pA, 35 fA

750 pA, 2.5 pA

2.5 pA, 250 fA

15 pA, 15 fA

150 pA, 150 fA

7.5 pA, 2 pA

150 pA, 150 fA

250 pA, 7 pA

-

-

7.5 pA, 2 pA

15 pA, 15 fA

Sampling Frequency - FS

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

4 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

4 kHz

4 kHz

4 kHz

4 kHz

4 kHz

4 kHz

100 Hz

5 kHz

5 kHz

20 kHz, 5 kHz

5 kHz

5 kHz

5 kHz

2 kHz, 1 kHz

1 kHz

20 kHz, 5 kHz

20 kHz

1 kHz

5 kHz

5 kHz

-

-

1 kHz

4 kHz

Bias Voltage Source

-500 V

Bias Voltage Source

-500 V

+500 V

-2 kV

+2 kV

-4 kV

+4 kV

-500 V

+500 V

Not present

+500 V

-500 V

Not present

-4 kV

+500 V

±30 V (bipolar)

±30 V (bipolar)

±30 V (bipolar)

±30 V (bipolar)

-500 V

±30 V (bipolar)

-

-

±5 V (bipolar)

Not present

Communication Interface

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

External Signals

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Input Connectors

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

Bias Voltage Connector

SHV

Bias Voltage Connector

SHV

SHV

SHV

SHV

SHV

SHV

SHV

SHV

-

SHV

SHV

-

SHV

SHV

BNC

BNC

BNC

BNC

SHV

BNC

-

-

BNC

-

Extra Communication Interface

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

Additional Features

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Input Voltage Supply

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

Weight

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

Mechanical Dimensions

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

Number of Channels

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

Current Polarity

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

±120 uA, ±120 nA

±120 uA, ±120 nA

±120 uA, ±120 nA

±120 uA, ±120 nA

±120 uA, ±120 nA

±1.2 uA, ±1.2 nA

±1.2 mA, ±1.2 uA

±25 uA, ±250 nA

±120 uA, ±120 nA

±10 uA, ±125 nA

±10 uA, ±2 uA

±25 uA, ±250 nA

±6 mA, ±20 uA

±20 uA, ±2 uA

±120 uA, ±120 nA

±1.2 mA, ±1.2 uA

±60 uA, ±15 uA

±1.2 mA, ±1.2 uA

±2 mA, ±50 uA

-

-

±60 uA, ±15 uA

±120 uA, ±120 nA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

15 pA, 15 fA

15 pA, 15 fA

15 pA, 15 fA

15 pA, 15 fA

15 pA, 15 fA

150 fA, 15 aA

150 pA, 150 fA

3.5 pA, 35 fA

15 pA, 15 fA

1.5 pA, 20 fA

1.5 pA, 250 fA

3.5 pA, 35 fA

750 pA, 2.5 pA

2.5 pA, 250 fA

15 pA, 15 fA

150 pA, 150 fA

7.5 pA, 2 pA

150 pA, 150 fA

250 pA, 7 pA

-

-

7.5 pA, 2 pA

15 pA, 15 fA

Sampling Frequency - FS

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

4 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

4 kHz

4 kHz

4 kHz

4 kHz

4 kHz

4 kHz

100 Hz

5 kHz

5 kHz

20 kHz, 5 kHz

5 kHz

5 kHz

5 kHz

2 kHz, 1 kHz

1 kHz

20 kHz, 5 kHz

20 kHz

1 kHz

5 kHz

5 kHz

-

-

1 kHz

4 kHz

Bias Voltage Source

+500 V

Bias Voltage Source

-500 V

+500 V

-2 kV

+2 kV

-4 kV

+4 kV

-500 V

+500 V

Not present

+500 V

-500 V

Not present

-4 kV

+500 V

±30 V (bipolar)

±30 V (bipolar)

±30 V (bipolar)

±30 V (bipolar)

-500 V

±30 V (bipolar)

-

-

±5 V (bipolar)

Not present

Communication Interface

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

External Signals

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Input Connectors

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

Bias Voltage Connector

SHV

Bias Voltage Connector

SHV

SHV

SHV

SHV

SHV

SHV

SHV

SHV

-

SHV

SHV

-

SHV

SHV

BNC

BNC

BNC

BNC

SHV

BNC

-

-

BNC

-

Extra Communication Interface

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

Additional Features

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

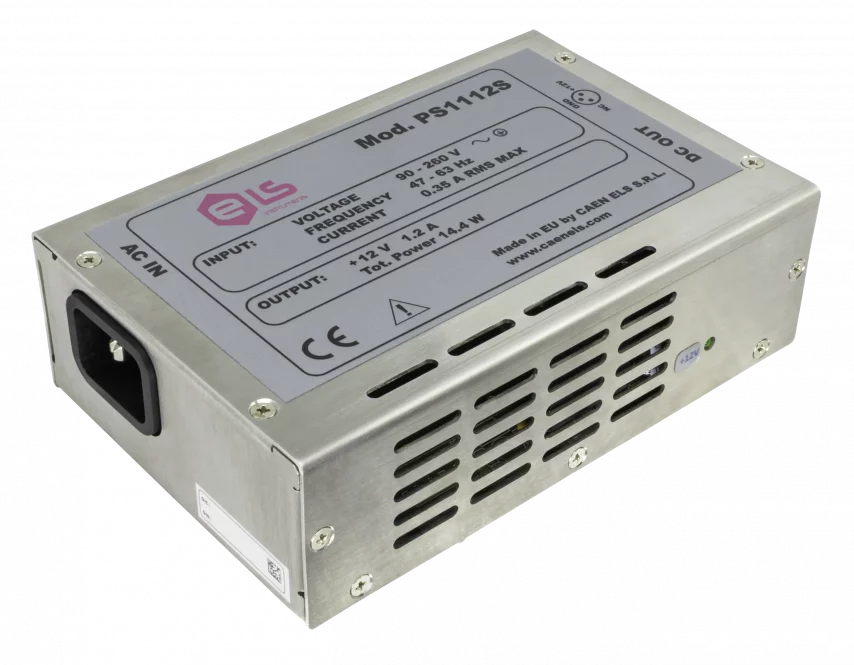

Input Voltage Supply

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

Weight

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

Mechanical Dimensions

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

Number of Channels

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

Current Polarity

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

±120 uA, ±120 nA

±120 uA, ±120 nA

±120 uA, ±120 nA

±120 uA, ±120 nA

±120 uA, ±120 nA

±1.2 uA, ±1.2 nA

±1.2 mA, ±1.2 uA

±25 uA, ±250 nA

±120 uA, ±120 nA

±10 uA, ±125 nA

±10 uA, ±2 uA

±25 uA, ±250 nA

±6 mA, ±20 uA

±20 uA, ±2 uA

±120 uA, ±120 nA

±1.2 mA, ±1.2 uA

±60 uA, ±15 uA

±1.2 mA, ±1.2 uA

±2 mA, ±50 uA

-

-

±60 uA, ±15 uA

±120 uA, ±120 nA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

15 pA, 15 fA

15 pA, 15 fA

15 pA, 15 fA

15 pA, 15 fA

15 pA, 15 fA

150 fA, 15 aA

150 pA, 150 fA

3.5 pA, 35 fA

15 pA, 15 fA

1.5 pA, 20 fA

1.5 pA, 250 fA

3.5 pA, 35 fA

750 pA, 2.5 pA

2.5 pA, 250 fA

15 pA, 15 fA

150 pA, 150 fA

7.5 pA, 2 pA

150 pA, 150 fA

250 pA, 7 pA

-

-

7.5 pA, 2 pA

15 pA, 15 fA

Sampling Frequency - FS

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

up to 100 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

4 kHz

Analog Bandwidth -3 dB (RNG0, RNG1)

4 kHz

4 kHz

4 kHz

4 kHz

4 kHz

4 kHz

100 Hz

5 kHz

5 kHz

20 kHz, 5 kHz

5 kHz

5 kHz

5 kHz

2 kHz, 1 kHz

1 kHz

20 kHz, 5 kHz

20 kHz

1 kHz

5 kHz

5 kHz

-

-

1 kHz

4 kHz

Bias Voltage Source

-2 kV

Bias Voltage Source

-500 V

+500 V

-2 kV

+2 kV

-4 kV

+4 kV

-500 V

+500 V

Not present

+500 V

-500 V

Not present

-4 kV

+500 V

±30 V (bipolar)

±30 V (bipolar)

±30 V (bipolar)

±30 V (bipolar)

-500 V

±30 V (bipolar)

-

-

±5 V (bipolar)

Not present

Communication Interface

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

10/100/1000 Mbit Ethernet TCP-IP

External Signals

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Configurable Trigger/Gate
Trigger Output
External Interlock

Input Connectors

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

BNC

Bias Voltage Connector

SHV

Bias Voltage Connector

SHV

SHV

SHV

SHV

SHV

SHV

SHV

SHV

-

SHV

SHV

-

SHV

SHV

BNC

BNC

BNC

BNC

SHV

BNC

-

-

BNC

-

Extra Communication Interface

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

SFP - Small Form-Factor Pluggable

Additional Features

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Firmware Remote Update
Configurable Firmware Sampling Frequency
Bias Voltage Readout
Bias Current Readout
Bias Voltage Over-Current Protection
BEST Integration

Input Voltage Supply

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

+12 V

Weight

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

800 g

Mechanical Dimensions

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

175 × 175 × 44 mm

Number of Channels

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

Current Polarity

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Bipolar

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

Measuring Ranges (RNG0, RNG1)

±120 uA, ±120 nA

±120 uA, ±120 nA

±120 uA, ±120 nA

±120 uA, ±120 nA

±120 uA, ±120 nA

±120 uA, ±120 nA

±1.2 uA, ±1.2 nA

±1.2 mA, ±1.2 uA

±25 uA, ±250 nA

±120 uA, ±120 nA

±10 uA, ±125 nA

±10 uA, ±2 uA

±25 uA, ±250 nA

±6 mA, ±20 uA

±20 uA, ±2 uA

±120 uA, ±120 nA

±1.2 mA, ±1.2 uA

±60 uA, ±15 uA

±1.2 mA, ±1.2 uA

±2 mA, ±50 uA

-

-

±60 uA, ±15 uA

±120 uA, ±120 nA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

Current Resolution - LSB (RNG0, RNG1)

15 pA, 15 fA

15 pA, 15 fA

15 pA, 15 fA

15 pA, 15 fA

15 pA, 15 fA

15 pA, 15 fA

150 fA, 15 aA

150 pA, 150 fA

3.5 pA, 35 fA

15 pA, 15 fA

1.5 pA, 20 fA

1.5 pA, 250 fA

3.5 pA, 35 fA

750 pA, 2.5 pA

2.5 pA, 250 fA

15 pA, 15 fA

150 pA, 150 fA

7.5 pA, 2 pA

150 pA, 150 fA

250 pA, 7 pA

-

-

7.5 pA, 2 pA
