CT-2000
New2000 A DC Smart Current Transducer (DCCT)

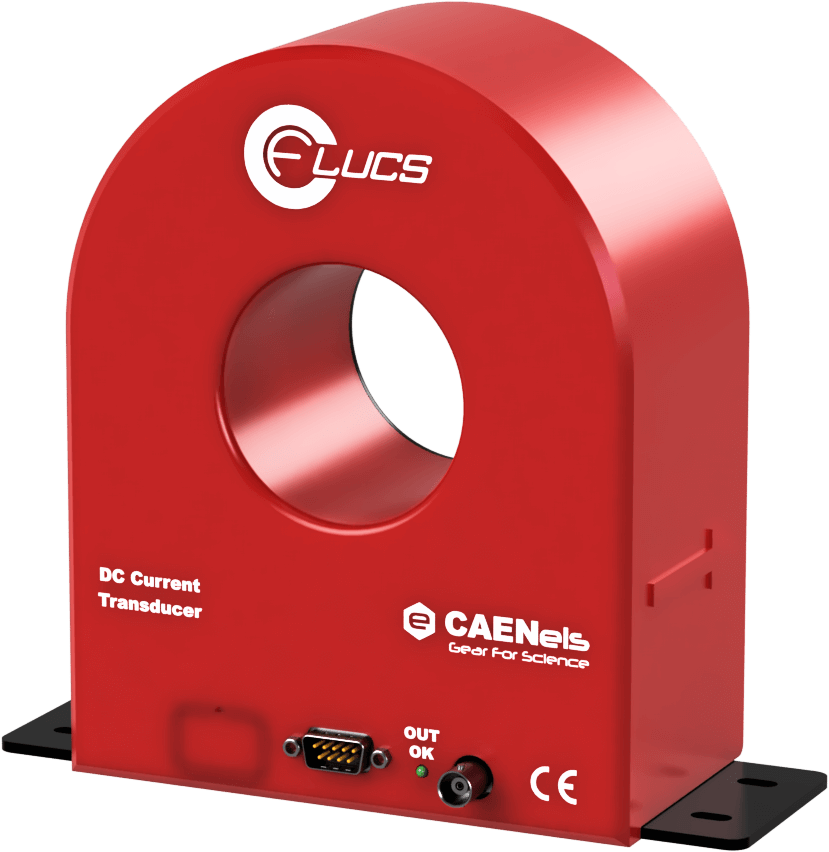

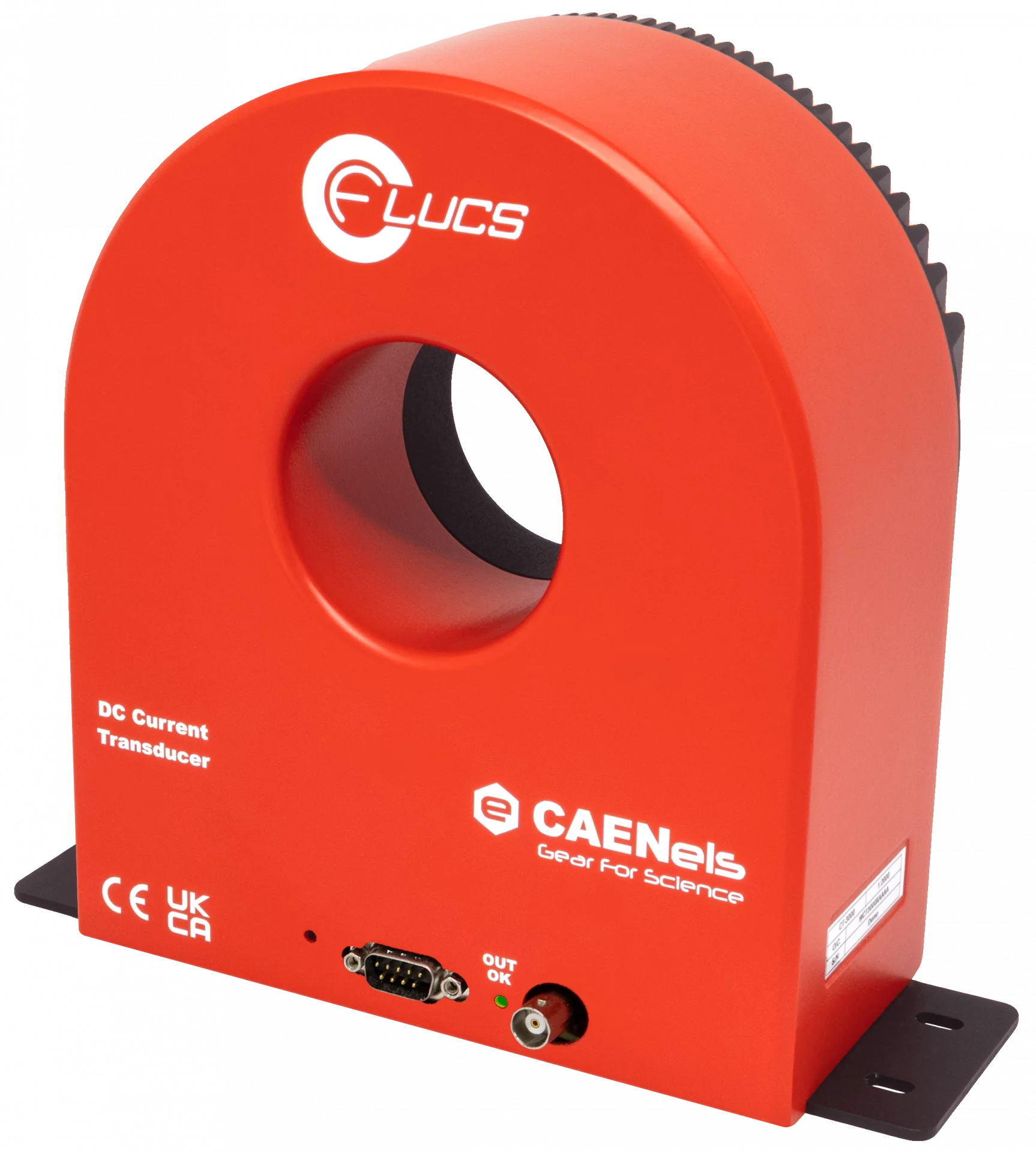

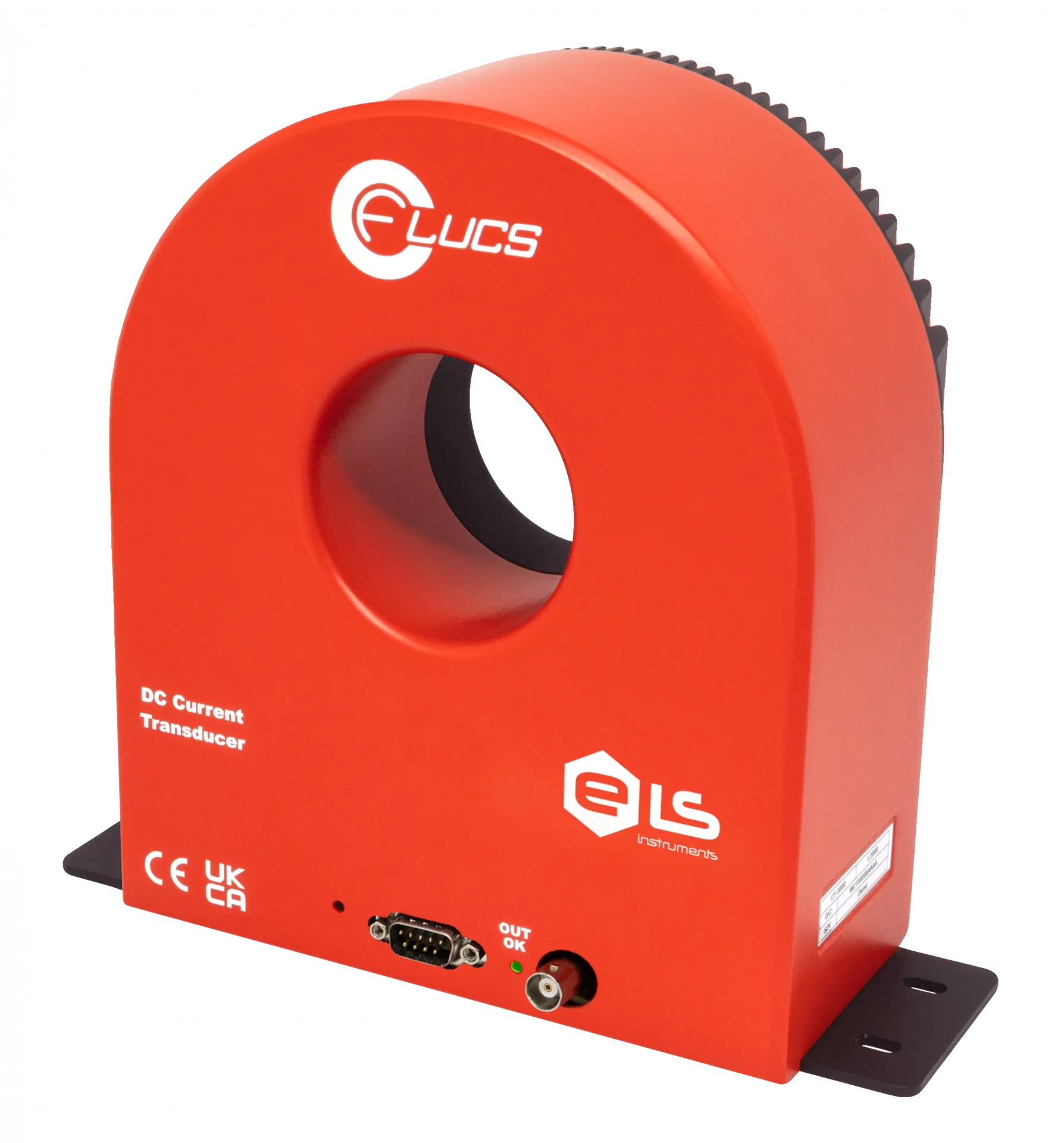

±2000 A Full-Scale high precision DCCT smart tranducer based on the 0-FLUCS fluxgate technology available in the current-output or voltage-output version
- Overview
- Features
- Technical specifications
- Ordering options
- Documentation
- Software/Firmware
Overview
Accurate and precise monitoring of DC and AC currents with high bandwidth, low noise and negligible drift.
The 0-FLUCS (0-FLUx Current Sensor) current transducer family is based on a closed loop technology that allows reaching best-in-class performance for a variety of applications.
The CT-2000 transducers are rated at a at maximum bipolar primary current of 2000 A with a transform ratio of 1:2000.
Galvanic isolation between the primary and the secondary circuits allows to measure currents at a different potential and simplifies interfacing when using the 0-FLUCS as the feedback element of current regulated power supplies.
Output from the CT-2000 transducers can be chosen between two different versions: secondary current output or buffered voltage output (low temperature coefficient shunt resistor and low-noise amplifier are embedded in the device).
Main characteristics of the 0-FLUCS current transformers are negligible temperature coefficient on the secondary output current, excellent linearity and extremely low noise.
DC current transformers represents the ideal replacement for systems where Hall-effect sensors are used as current sensing elements and better performances are needed.
0-FLUCS exclusive technology allows the user to obtain performances which cannot be reached with other current sensing techniques.
Want to get more into this topic? Just click the following link:
0-FLUCS Exclusive Technology – An Overview
Ideal for EV, battery testing, current calibration, AC mains monitoring and precision power supplies.
Main application fields for these current transducers are all the ones where the accuracy and precision of the current measurement is critical:
- battery testing and characterization (EV);
- calibration setups;
- test stands;
- precise AC mains monitoring;
- extremely stable regulated power supplies;
- power inverters.
Due to the excellent characteristics, the CT-2000 transducers can be used in a variety of calibration, acceptance testing and quality control applications in industrial, power generation and automotive fields.
Commercially available versions of the CT-2000 current transformers are the current-output CT-2000 and the respective voltage-output version CT-2000V. A LED indicating the correct operation of the device is present on all versions.
The dedicated power supplies for the CT-2000 and CT-3000 current transducers are also available for both the current output (PS1124I) and voltage output (PS1124V) versions.
Features
- Monitoring of AC and DC currents
- Excellent Linearity
- Closed-loop detection
- Galvanically isolated from primary
- Low Temperature Drift
- Current-output or Voltage-output versions
- Wide bandwidth
- UL 94 V-0 flammability grade
- LED indicates correct operation
- TEDS (IEEE 1451.4™ standard) ready
- D-sub 9 connector
- 3-year extended warranty
Technical specifications
- WCT2000VXAAA
- WCT2000XAAAA
Model
WCT2000VXAAA
WCT2000XAAAA
Maximum DC Primary Current - Ip(DC)
±2000 A
±2000 A
Maximum RMS Primary Current - Ip(RMS)
1414 A
1414 A
Current Polarity
Bipolar
Bipolar
Output Type
Voltage
Output Type
Voltage
Current
Current Transformation Ratio - N
1:2000
1:2000
Maximum DC Secondary Current - Is(DC)
-
±1 A
Maximum RMS Secondary Current - Is(RMS)
-
707 mA
External Shunt Resistor - Rs
-
0 ... 10 Ω
Small Signal Bandwidth (±3 dB) - typ. BW
> 100 kHz
> 100 kHz
Equivalent Input Noise (@BW)
< 2.5 ppm/FS @ 200Hz
< 15 ppm/FS @ 50 kHz
< 2.5 ppm/FS @ 200Hz
< 15 ppm/FS @ 50 kHz
Output Voltage
±10 V
Output Voltage
±10 V
-
Output Voltage Gain ("V"-version) - Vout/Ip
5 mV/A
Output Voltage Gain ("V"-version) - Vout/Ip
5 mV/A
-
Maximum Output Current ("V"-version)
±15 mA
Maximum Output Current ("V"-version)
±15 mA
-
Temperature Coefficient - TC
< 3 ppm/K
Temperature Coefficient - TC
< 3 ppm/K
< 0.5 ppm/K
Non-Linearity
< 15 ppm/FS
Non-Linearity
< 15 ppm/FS
< 3 ppm/FS
Induction into Primary (typ.)
< 600 µV (peak-peak)
< 600 µV (peak-peak)
Offset (with factory trimming)
< 10 ppm/FS
< 10 ppm/FS
Protection Signal
OK Status
OK Status
Supply Voltage (±6%)
24 V
24 V
Maximum Power Consumption
< 30 W
< 30 W
Connections
D-sub 9
BNC
Connections
D-sub 9
BNC
D-sub 9
Mechanical (Outer) Dimensions
215 x 200 x 93 mm
215 x 200 x 93 mm
Primary Conductor Hole Diameter - Ø
67 mm
67 mm
Maximum Weight
5 kg
5 kg
Maximum DC Primary Current - Ip(DC)
±2000 A
±2000 A
Maximum RMS Primary Current - Ip(RMS)
1414 A
1414 A
Current Polarity
Bipolar
Bipolar
Output Type
Current
Output Type
Voltage
Current
Current Transformation Ratio - N
1:2000
1:2000
Maximum DC Secondary Current - Is(DC)
±1 A
Maximum DC Secondary Current - Is(DC)
-
±1 A
Maximum RMS Secondary Current - Is(RMS)
707 mA
Maximum RMS Secondary Current - Is(RMS)
-
707 mA
External Shunt Resistor - Rs
0 ... 10 Ω
External Shunt Resistor - Rs
-
0 ... 10 Ω
Small Signal Bandwidth (±3 dB) - typ. BW
> 100 kHz
> 100 kHz
Equivalent Input Noise (@BW)
< 2.5 ppm/FS @ 200Hz
< 15 ppm/FS @ 50 kHz
< 2.5 ppm/FS @ 200Hz
< 15 ppm/FS @ 50 kHz
Output Voltage
±10 V
-
Output Voltage Gain ("V"-version) - Vout/Ip
5 mV/A
-
Maximum Output Current ("V"-version)
±15 mA
-
Temperature Coefficient - TC
< 0.5 ppm/K
Temperature Coefficient - TC
< 3 ppm/K
< 0.5 ppm/K
Non-Linearity
< 3 ppm/FS
Non-Linearity
< 15 ppm/FS
< 3 ppm/FS
Induction into Primary (typ.)
< 600 µV (peak-peak)
< 600 µV (peak-peak)
Offset (with factory trimming)
< 10 ppm/FS
< 10 ppm/FS
Protection Signal
OK Status
OK Status
Supply Voltage (±6%)
24 V
24 V
Maximum Power Consumption
< 30 W
< 30 W
Connections
D-sub 9
Connections
D-sub 9
BNC
D-sub 9
Mechanical (Outer) Dimensions
215 x 200 x 93 mm
215 x 200 x 93 mm
Primary Conductor Hole Diameter - Ø
67 mm
67 mm
Maximum Weight
5 kg
5 kg
Documentation
Last reviewed: 2025-11-11
ⓘ More infoRevision: 0.2
Last reviewed: 2025-11-11
ⓘ More infoRevision: 1
Last reviewed: 2025-11-11
ⓘ More infoRevision: 1.2
Software/Firmware
No firmware or software available.
Accessories
PS1124I

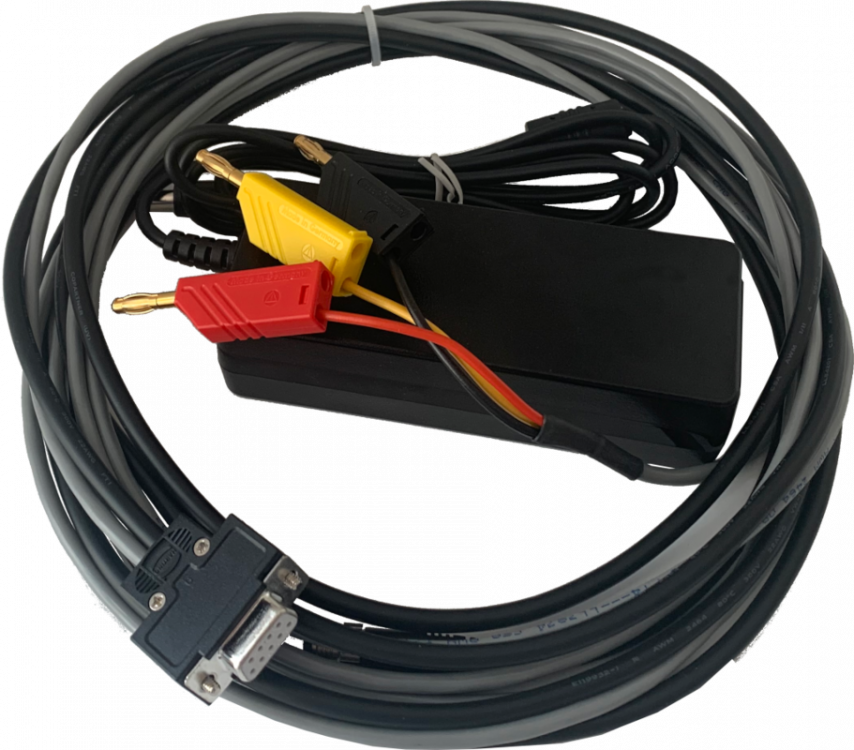

WPS1124IXAAA - AC/DC Power Adapter 24 V, 60 W, 3-m cable with DB-9 and Bananas (Current output) - for CT-2000 and CT-3000
PS1124V

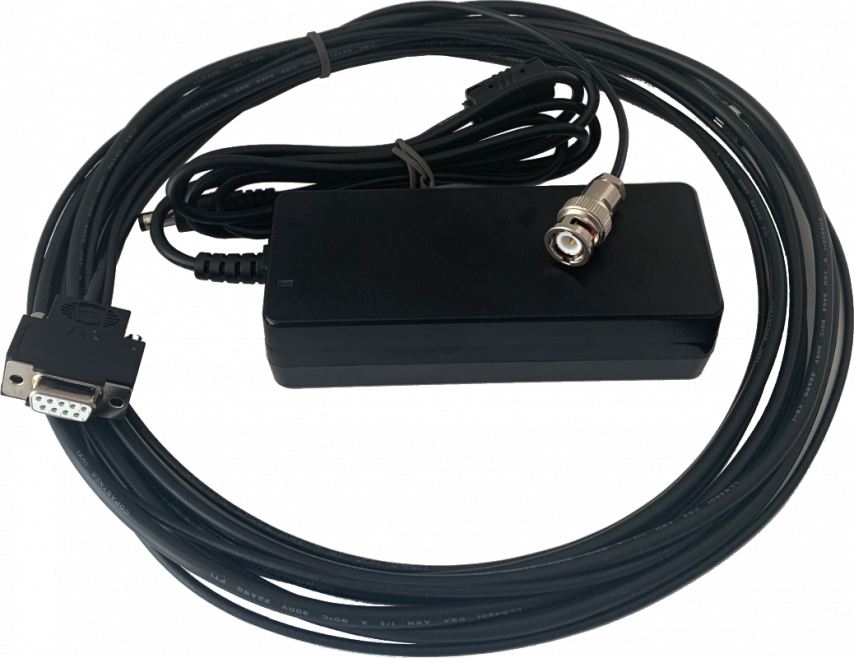

WPS1124VXAAA - AC/DC Power Adapter 24 V, 60 W, 3-m cable with DB-9 (Voltage output) - for CT-2000 and CT-3000
