CT PCB Series

Overview
Features
Technical specifications
Ordering options
Documentation
Software/Firmware

Overview

The 0-FLUCS (0-FLUx Current Sensor) is based on a closed loop technology that allows accurate and precise monitoring of DC and AC currents with high bandwidth.

The metal casing guarantees higher noise immunity and reduces undesired noise pick-up from external sources.

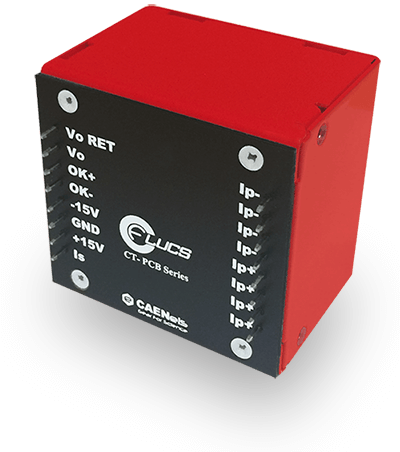

The transducers CT-13, CT-26 and CT-52 are PCB-mount devices rated at maximum currents of 13 A, 26 A and 52 A with primary to secondary transformation ratio of 1:250, 1:500 and 1:1000 respectively.

Galvanic isolation between the primary and the secondary circuits allows to measure currents at a different potential and simplifies interfacing if using the 0-FLUCS as the feedback element of current regulated power supplies.

Output from the 0-FLUCS sensors can be chosen between two different versions: standard secondary current output or buffered voltage output (low temperature coefficient shunt resistor and low-noise amplifier are embedded in the CT-13V, CT-26V and CT-52V versions).

Main characteristics of the 0-FLUCS current transformers are negligible temperature coefficient on the secondary output current, excellent linearity and extremely low noise.

DC current transformers represents the ideal replacement for systems where Hall-effect sensors are used as current sensing elements and better performances are needed.

0-FLUCS exclusive technology allows the user to obtain performances which cannot be reached with other current sensing techniques.

Want to get more into this topic? Just click the following link:
0-FLUCS Exclusive Technology – An Overview

Ideal for EV, battery testing, current calibration, AC mains monitoring and precision power supplies.

Main application fields for these current transducers are all the ones where the accuracy and precision of the current measurement is critical:

battery testing and characterization (EV);
calibration setups;
test stands;
precise AC mains monitoring;
extremely stable regulated power supplies;
power inverters.

Main application fields for these current transducers are precise and extremely stable regulated power supplies and power inverters.

Due to the excellent characteristics, the CT-600 transducers can be used in a variety of calibration, acceptance testing and quality control applications in industrial, power generation and automotive fields.

Commercially available versions of the CT-600 current transformers are the current-output CT-600 and the respective voltage-output version CT-600V. A LED indicating the correct operation of the device is present on all versions.

Excellent characteristics makes them the perfect choice for calibration, acceptance testing and quality control applications in industrial and automotive fields.

The compact mechanical dimensions of this transducer series and its limited weight allows easy mounting on printed circuit boards with a Through Hole (TH) topology.

Main application fields for these current transducers are precise and extremely stable regulated power supplies and power inverters.

Commercially available versions of the PCB-mount 0-FLUCS current transformers are the current-output CT-13, CT-26 and CT-52 with their respective “V” voltage-output versions CT-13V, CT-26V and CT-52V.

Features

13 A, 26 A and 52 A Full-Scale versions
Monitoring of DC and AC currents
Excellent Linearity
Closed-loop Detection
Extremely Low-Noise
Galvanically isolated from the primary
Low Temperature Drift
Current-output or Voltage-output versions
Wide Bandwidth
High-Accuracy
Small-sized PCB Mount versions
INTERNAL Primary Conductor
3-year extended warranty

Technical specifications

WCT13VXAAAAA
WCT13XAAAAAA
WCT26VXAAAAA
WCT26XAAAAAA
WCT52VXAAAAA
WCT52XAAAAAA

Model

WCT13VXAAAAA

WCT13XAAAAAA

WCT26VXAAAAA

WCT26XAAAAAA

WCT52VXAAAAA

WCT52XAAAAAA

Current Transformer Ratio - N

1:250

Current Transformer Ratio - N

1:250

1:500

1:1000

Maximum DC Primary Current - IP(DC)

±13 A

Maximum DC Primary Current - IP(DC)

±13 A

±26 A

±52 A

Current Polarity

Bipolar

Maximum DC Secondary current - IS(DC)

±52 mA

External Shunt Resistor Value - RS

0 ... 40 Ω

Small Signal Bandwidth (±3 dB) - typ. BW

200 kHz

Small Signal Bandwidth (±3 dB) - typ. BW

200 kHz

500 kHz

200 kHz

500 kHz

200 kHz

500 kHz

Equivalent Input Noise (@Bandwidth)

< 1 ppm/FS @ 200 Hz
< 10 ppm/FS @ 50 kHz

Output Voltage

±10 V

Output Voltage

±10 V

Output Voltage Gain - VOUT/IP(DC)

0.8 V/A

Output Voltage Gain - VOUT/IP(DC)

0.8 V/A

0.4 V/A

0.2 V/A

Maximum Output Current

±15 mA

Maximum Output Current

±15 mA

Temperature Coefficient - TC

< 2 ppm/°C

Temperature Coefficient - TC

< 2 ppm/°C

< 0.5 ppm/°C

< 2 ppm/°C

< 0.5 ppm/°C

< 2 ppm/°C

< 0.5 ppm/°C

Maximum Total Output Offset

< 10 ppm / FS

Protection Signal

OK Status

Supply Voltage (±6%)

±15 V

Maximum Power Consumption

0.95 W

Maximum Power Consumption

0.95 W

1.35 W

0.95 W

1.35 W

0.95 W

1.35 W

Secondary Coil Resistance - RSEC

42 Ω

Mounting

16-pin through-hole PCB mounting

Mechanical Dimensions

66 x 68 x 48 mm

Operating Temperature Range

0 ... 50 °C

Accuracy typ.

< 0.25% / FS

Accuracy typ.

< 0.25% / FS

< 30 ppm / FS

< 0.25% / FS

< 30 ppm / FS

< 0.25% / FS

< 30 ppm / FS

Maximum Weight

300 g

Current Transformer Ratio - N

1:250

Current Transformer Ratio - N

1:250

1:500

1:1000

Maximum DC Primary Current - IP(DC)

±13 A

Maximum DC Primary Current - IP(DC)

±13 A

±26 A

±52 A

Current Polarity

Bipolar

Maximum DC Secondary current - IS(DC)

±52 mA

External Shunt Resistor Value - RS

0 ... 40 Ω

External Shunt Resistor Value - RS

0 ... 40 Ω

Small Signal Bandwidth (±3 dB) - typ. BW

500 kHz

Small Signal Bandwidth (±3 dB) - typ. BW

200 kHz

500 kHz

200 kHz

500 kHz

200 kHz

500 kHz

Equivalent Input Noise (@Bandwidth)

< 1 ppm/FS @ 200 Hz
< 10 ppm/FS @ 50 kHz

Output Voltage

±10 V

Output Voltage Gain - VOUT/IP(DC)

0.8 V/A

0.4 V/A

0.2 V/A

Maximum Output Current

±15 mA

Temperature Coefficient - TC

< 0.5 ppm/°C

Temperature Coefficient - TC

< 2 ppm/°C

< 0.5 ppm/°C

< 2 ppm/°C

< 0.5 ppm/°C

< 2 ppm/°C

< 0.5 ppm/°C

Maximum Total Output Offset

< 10 ppm / FS

Protection Signal

OK Status

Supply Voltage (±6%)

±15 V

Maximum Power Consumption

1.35 W

Maximum Power Consumption

0.95 W

1.35 W

0.95 W

1.35 W

0.95 W

1.35 W

Secondary Coil Resistance - RSEC

42 Ω

Secondary Coil Resistance - RSEC

42 Ω

Mounting

16-pin through-hole PCB mounting

Mechanical Dimensions

66 x 68 x 48 mm

Operating Temperature Range

0 ... 50 °C

Accuracy typ.

< 30 ppm / FS

Accuracy typ.

< 0.25% / FS

< 30 ppm / FS

< 0.25% / FS

< 30 ppm / FS

< 0.25% / FS

< 30 ppm / FS

Maximum Weight

300 g

Current Transformer Ratio - N

1:500

Current Transformer Ratio - N

1:250

1:500

1:1000

Maximum DC Primary Current - IP(DC)

±26 A

Maximum DC Primary Current - IP(DC)

±13 A

±26 A

±52 A

Current Polarity

Bipolar

Maximum DC Secondary current - IS(DC)

±52 mA

External Shunt Resistor Value - RS

0 ... 40 Ω

Small Signal Bandwidth (±3 dB) - typ. BW

200 kHz

Small Signal Bandwidth (±3 dB) - typ. BW

200 kHz

500 kHz

200 kHz

500 kHz

200 kHz

500 kHz

Equivalent Input Noise (@Bandwidth)

< 1 ppm/FS @ 200 Hz
< 10 ppm/FS @ 50 kHz

Output Voltage

±10 V

Output Voltage

±10 V

Output Voltage Gain - VOUT/IP(DC)

0.4 V/A

Output Voltage Gain - VOUT/IP(DC)

0.8 V/A

0.4 V/A

0.2 V/A

Maximum Output Current

±15 mA

Maximum Output Current

±15 mA

Temperature Coefficient - TC

< 2 ppm/°C

Temperature Coefficient - TC

< 2 ppm/°C

< 0.5 ppm/°C

< 2 ppm/°C

< 0.5 ppm/°C

< 2 ppm/°C

< 0.5 ppm/°C

Maximum Total Output Offset

< 10 ppm / FS

Protection Signal

OK Status

Supply Voltage (±6%)

±15 V

Maximum Power Consumption

0.95 W

Maximum Power Consumption

0.95 W

1.35 W

0.95 W

1.35 W

0.95 W

1.35 W

Secondary Coil Resistance - RSEC

42 Ω

Mounting

16-pin through-hole PCB mounting

Mechanical Dimensions

66 x 68 x 48 mm

Operating Temperature Range

0 ... 50 °C

Accuracy typ.

< 0.25% / FS

Accuracy typ.

< 0.25% / FS

< 30 ppm / FS

< 0.25% / FS

< 30 ppm / FS

< 0.25% / FS

< 30 ppm / FS

Maximum Weight

300 g

Current Transformer Ratio - N

1:500

Current Transformer Ratio - N

1:250

1:500

1:1000

Maximum DC Primary Current - IP(DC)

±26 A

Maximum DC Primary Current - IP(DC)

±13 A

±26 A

±52 A

Current Polarity

Bipolar

Maximum DC Secondary current - IS(DC)

±52 mA

External Shunt Resistor Value - RS

0 ... 40 Ω

External Shunt Resistor Value - RS

0 ... 40 Ω

Small Signal Bandwidth (±3 dB) - typ. BW

500 kHz

Small Signal Bandwidth (±3 dB) - typ. BW

200 kHz

500 kHz

200 kHz

500 kHz

200 kHz

500 kHz

Equivalent Input Noise (@Bandwidth)

< 1 ppm/FS @ 200 Hz
< 10 ppm/FS @ 50 kHz

Output Voltage

±10 V

Output Voltage Gain - VOUT/IP(DC)

0.8 V/A

0.4 V/A

0.2 V/A

Maximum Output Current

±15 mA

Temperature Coefficient - TC

< 0.5 ppm/°C

Temperature Coefficient - TC

< 2 ppm/°C

< 0.5 ppm/°C

< 2 ppm/°C

< 0.5 ppm/°C

< 2 ppm/°C

< 0.5 ppm/°C

Maximum Total Output Offset

< 10 ppm / FS

Protection Signal

OK Status

Supply Voltage (±6%)

±15 V

Maximum Power Consumption

1.35 W

Maximum Power Consumption

0.95 W

1.35 W

0.95 W

1.35 W

0.95 W

1.35 W

Secondary Coil Resistance - RSEC

42 Ω

Secondary Coil Resistance - RSEC

42 Ω

Mounting

16-pin through-hole PCB mounting

Mechanical Dimensions

66 x 68 x 48 mm

Operating Temperature Range

0 ... 50 °C

Accuracy typ.

< 30 ppm / FS

Accuracy typ.

< 0.25% / FS

< 30 ppm / FS

< 0.25% / FS

< 30 ppm / FS

< 0.25% / FS

< 30 ppm / FS

Maximum Weight

300 g

Current Transformer Ratio - N

1:1000

Current Transformer Ratio - N

1:250

1:500

1:1000

Maximum DC Primary Current - IP(DC)

±52 A

Maximum DC Primary Current - IP(DC)

±13 A

±26 A

±52 A

Current Polarity

Bipolar

Maximum DC Secondary current - IS(DC)

±52 mA

External Shunt Resistor Value - RS

0 ... 40 Ω

Small Signal Bandwidth (±3 dB) - typ. BW

200 kHz

Small Signal Bandwidth (±3 dB) - typ. BW

200 kHz

500 kHz

200 kHz

500 kHz

200 kHz

500 kHz

Equivalent Input Noise (@Bandwidth)

< 1 ppm/FS @ 200 Hz
< 10 ppm/FS @ 50 kHz

Output Voltage

±10 V

Output Voltage

±10 V

Output Voltage Gain - VOUT/IP(DC)

0.2 V/A

Output Voltage Gain - VOUT/IP(DC)

0.8 V/A

0.4 V/A

0.2 V/A

Maximum Output Current

±15 mA

Maximum Output Current

±15 mA

Temperature Coefficient - TC

< 2 ppm/°C

Temperature Coefficient - TC

< 2 ppm/°C

< 0.5 ppm/°C

< 2 ppm/°C

< 0.5 ppm/°C

< 2 ppm/°C

< 0.5 ppm/°C

Maximum Total Output Offset

< 10 ppm / FS

Protection Signal

OK Status

Supply Voltage (±6%)

±15 V

Maximum Power Consumption

0.95 W

Maximum Power Consumption

0.95 W

1.35 W

0.95 W

1.35 W

0.95 W

1.35 W

Secondary Coil Resistance - RSEC

42 Ω

Mounting

16-pin through-hole PCB mounting

Mechanical Dimensions

66 x 68 x 48 mm

Operating Temperature Range

0 ... 50 °C

Accuracy typ.

< 0.25% / FS

Accuracy typ.

< 0.25% / FS

< 30 ppm / FS

< 0.25% / FS

< 30 ppm / FS

< 0.25% / FS

< 30 ppm / FS

Maximum Weight

300 g

Current Transformer Ratio - N

1:1000

Current Transformer Ratio - N

1:250

1:500

1:1000

Maximum DC Primary Current - IP(DC)

±52 A

Maximum DC Primary Current - IP(DC)

±13 A

±26 A

±52 A

Current Polarity

Bipolar

Maximum DC Secondary current - IS(DC)

±52 mA

External Shunt Resistor Value - RS

0 ... 40 Ω

External Shunt Resistor Value - RS

0 ... 40 Ω

Small Signal Bandwidth (±3 dB) - typ. BW

500 kHz

Small Signal Bandwidth (±3 dB) - typ. BW

200 kHz

500 kHz

200 kHz

500 kHz

200 kHz

500 kHz

Equivalent Input Noise (@Bandwidth)

< 1 ppm/FS @ 200 Hz
< 10 ppm/FS @ 50 kHz

Output Voltage

±10 V

Output Voltage Gain - VOUT/IP(DC)

0.8 V/A

0.4 V/A

0.2 V/A

Maximum Output Current

±15 mA

Temperature Coefficient - TC

< 0.5 ppm/°C

Temperature Coefficient - TC

< 2 ppm/°C

< 0.5 ppm/°C

< 2 ppm/°C

< 0.5 ppm/°C

< 2 ppm/°C

< 0.5 ppm/°C

Maximum Total Output Offset

< 10 ppm / FS

Protection Signal

OK Status

Supply Voltage (±6%)

±15 V

Maximum Power Consumption

1.35 W

Maximum Power Consumption

0.95 W

1.35 W

0.95 W

1.35 W

0.95 W

1.35 W

Secondary Coil Resistance - RSEC

42 Ω

Secondary Coil Resistance - RSEC

42 Ω

Mounting

16-pin through-hole PCB mounting

Mechanical Dimensions

66 x 68 x 48 mm

Operating Temperature Range

0 ... 50 °C

Accuracy typ.

< 30 ppm / FS

Accuracy typ.

< 0.25% / FS

< 30 ppm / FS

< 0.25% / FS

< 30 ppm / FS

< 0.25% / FS

< 30 ppm / FS

Maximum Weight

300 g

Ordering options

Ordering code

Description

Action

WCT13VXAAAAA

CT-13V – 13 A Primary Current 0-FLUCS, PCB-Mount, Voltage Output

Quote

WCT13XAAAAAA

CT-13 – 13 A Primary Current 0-FLUCS, PCB-Mount

Quote

WCT26VXAAAAA

CT-26-V – 26 A Primary Current 0-FLUCS, PCB-Mount, Voltage Output

Quote

WCT26XAAAAAA

CT-26 – 26 A Primary Current 0-FLUCS, PCB-Mounting

Quote

WCT52VXAAAAA

CT-52-V – 52 A Primary Current 0-FLUCS, PCB-Mount, Voltage Output

Quote

WCT52XAAAAAA

CT-52 – 52 A Primary Current 0-FLUCS, PCB-Mount

Quote

Documentation

CT PCB Series - User's Manual [PDF]

Last reviewed: 2022-12-09 ⓘ More infoRevision: 1.11

CT PCB Series - Product Presentation [PDF]

Last reviewed: 2023-02-03 ⓘ More infoRevision: 1.0

0-FLUCS Technology - Introduction [PDF]

Last reviewed: 2023-02-03 ⓘ More infoRevision: 1.2

Application Note - AN2303 - Understanding the 0-FLUCS technology and its advantages in Current and Power Measurement Applications [PDF]

Last reviewed: 2023-03-29 ⓘ More infoRevision: 1.0

Software/Firmware

No firmware or software available.

13 A, 26 A and 52 A PCB-Mount DC Current Transducers (DCCT)

Overview

The 0-FLUCS (0-FLUx Current Sensor) is based on a closed loop technology that allows accurate and precise monitoring of DC and AC currents with high bandwidth.

Ideal for EV, battery testing, current calibration, AC mains monitoring and precision power supplies.

Excellent characteristics makes them the perfect choice for calibration, acceptance testing and quality control applications in industrial and automotive fields.

Features

Technical specifications

Ordering options

Documentation

Software/Firmware
