Technical Specifications

Rated Current 200 A ("200 A model")
420 A ("400 A model")
630 A ("600 A model")
Rated Voltage 250 V
Auxiliary Input Voltage 100 - 240 VAC
50/60 Hz
Max Interlock Rating (pin 6-7) 240 V @ 16 A
Max Enable Rating (pin 8, 9, 10) 240 V @ 10 A
DC Input/Output Connections Phoenix Contact HDFKW-95-F/7 ("200 A model")
Phoenix Contact HKH240F ("400 A model")
Bus-bars ("600 A model")
Dimensions 19" x 6U x 550 mm
(w/out output connectors)
Weight 28 kg ("200 A model")
35 kg ("400 A and 600 A models")

Ordering Options

Product code Description Ordering Code
Polarity Inverter 200 A Polarity Inverter 200 A, with Control Cable WPOLINV200XA
Polarity Inverter 400 A Polarity Inverter 420 A, with Control Cable WPOLINV400XA
Polarity Inverter 600 A Polarity Inverter 630 A, with Control Cable WPOLINV600XA

Overview
Overview
Immagine del prodotto

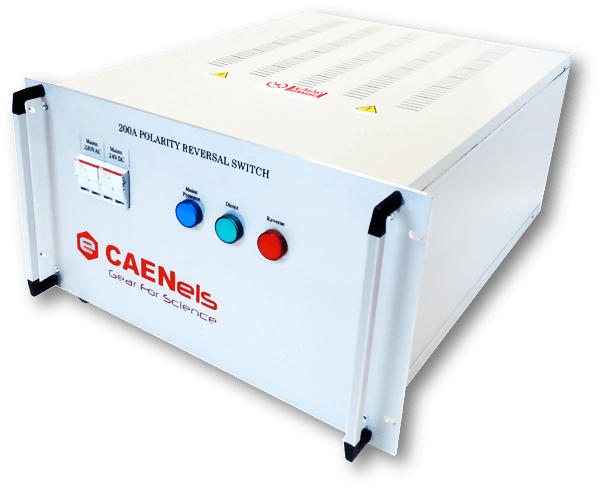

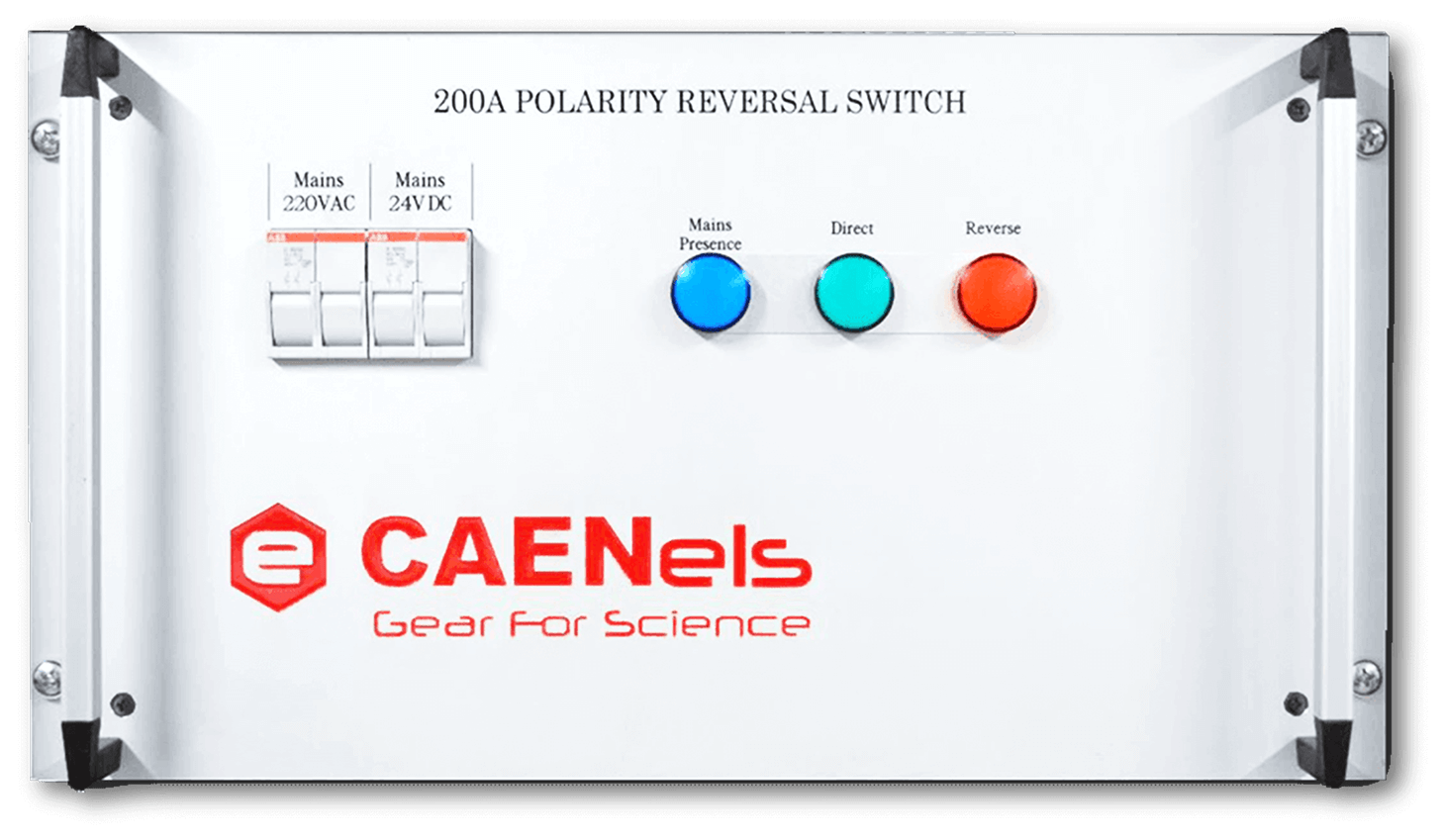

Polarity Inverters with different current ratings (up to 630 A) allow switching polarity on standard power converters

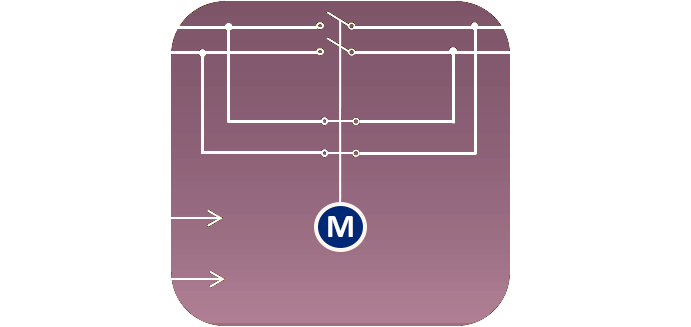

The Polarity Inverters of this series allows easy interfacing to CAEN ELS monopolar power supplies (e.g. NGPS) with different current ratings - i.e. 200 A, 400 A, 600 A.

These inverters are supplied from an auxiliary AC input (100-240 VAC, 50/60 Hz) and they are the perfect fit when it is required to invert the output polarity or for some specific applications - e.g. degaussing a magnet.

Interlock and "Enabling" signals for a safe switch are present and accept signals up to 240 V @ 16 A and 10 A respectively. This polarity inversion switch is suitable to any commercial power supply unit with maximum output ratings of 630 A @ 250 V (< 160 kW).


Features
  • Different current ratings - "200 A", "400 A" and "600 A" models
  • "NGPS-ready" - cable to connect to NGPS power units included
  • Nominal Current: 200 A, 420 A and 630 A
  • Nominal Voltage: 250 V
  • Auxiliary Input Voltage 100-240 VAC @ 50/60 Hz
  • 19"-6U Mechanical Dimensions

Applications
Documentation Software/Firmware
Polarity Inverter - User's Manual v.1.0 Last update: 2018-11-26 10:14:03
