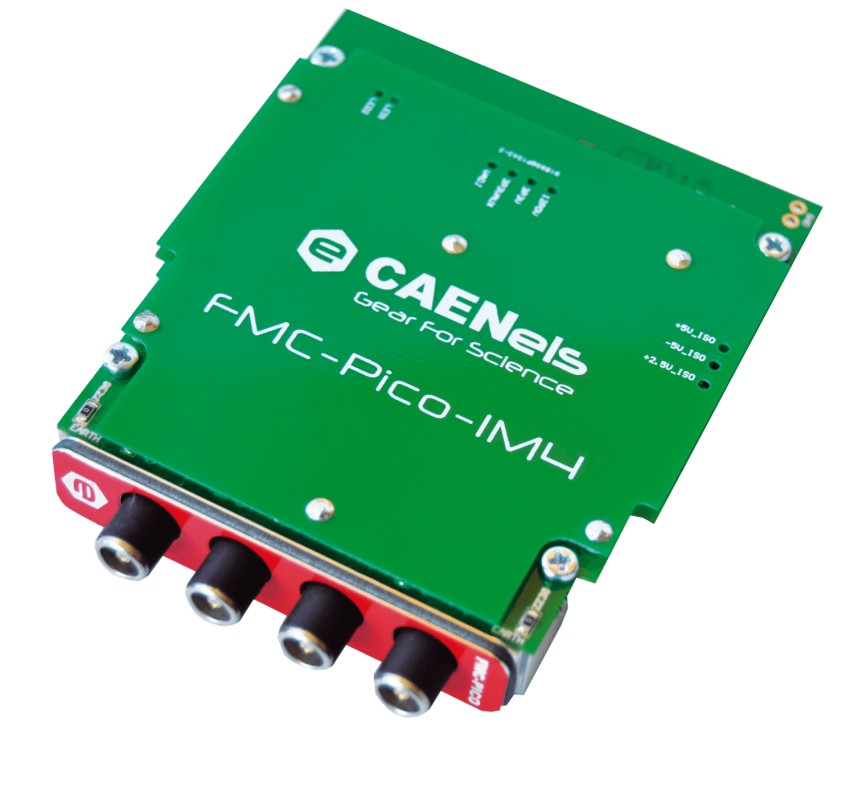

FMC-PICO-1M4
4-channel 20-bit 1 MSPS FMC Floating Ammeter
Series of FPGA Mezzanine Cards (FMC – VITA 57.1) Low Pin Count (LPC) that allow monitoring bipolar currents with high sampling rate, high resolution and low latency
- Overview
- Features
- Technical specifications
- Ordering options
- Documentation
- Software/Firmware
Overview

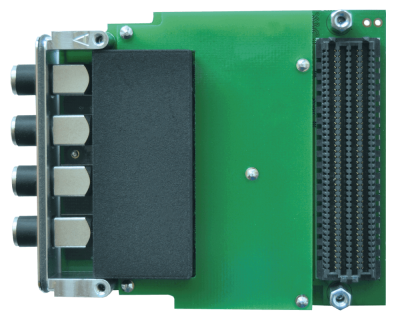

4-channel FMC - VITA 57.1 Low Pin Count (LPC) board for high precision low current monitoring
The board resolution is 20 bit, obtained from independent, simultaneous sampling and low-delay Analog to Digital Converters (ADCs) running at up to 1 MSPS.
Each channel has two full-scale measuring ranges, up to ±1 mA and ±1 µA (10 kHz bandwidth) for the FMC-PICO-1M4 version, up to ±110 µA and ±3 µA (35 kHz bandwidth) for the FMC-PICO-1M4-C1 version, up to ±10 mA and ±500 µA (300 kHz bandwidth) for the FMC-PICO-1M4-C3 version, up to ±1 mA and ±20 µA (200 kHz and 160 kHz bandwidth respectively) for the FMC-PICO-1M4-C4 version, up to ±10 mA and ±2.5 µA (300 kHz and 20 kHz bandwidth respectively) for the FMC-PICO-1M4-C5 version, up to ±1 mA and ±1 µA (25 kHz bandwidth respectively) for the FMC-PICO-1M4-C6 version, and the current source can be floating up to ±300 V respect to the FMC ground.
The floating capability of the inputs is perfectly suitable for applications where the detector or current source needs to be biased.
The analog front-end is designed in order to achieve low noise, low temperature dependence and very small unbalance between channels. The analog characteristics can be further improved by requesting a factory calibration of the channels – calibration data are stored in the on-board EEPROM memory that can be read via an I2C bus on the FMC connector.
Channels can be floating up to ±300 V
A trigger signal can be fed on the FMC connector in order to start the conversion of data samples: this feature allows to synchronize the board acquisition to an external event – e.g. machine revolution frequency in storage rings.
Data readout can be performed via separate SPI links – i.e. one for each channel, sharing the same clock signal.
Features
- High Resolution multi-channel current measurements up to ±10 mA (different versions available)
- 4 Current-Input Bipolar Channels
- 1 MSPS simultaneous and independent sampling
- 20-bit Resolution
- High Bandwidth and Low Noise
- Floating up to ±300 V
- FPGA Mezzanine Card - VITA 57.1 Standard
- Compatible with the DAMC-FMC2ZUP and DAMC-FMC25 carrier boards
Technical specifications
- FMCPICO1M4C1
- FMCPICO1M4C3
- FMCPICO1M4C4
- FMCPICO1M4C5
- FMCPICO1M4C6
- FMCPICO1M4C7
- FMCPICO1M4XA
Model
FMCPICO1M4C1
FMCPICO1M4C3
FMCPICO1M4C4
FMCPICO1M4C5
FMCPICO1M4C6
FMCPICO1M4C7
FMCPICO1M4XA
Number of Channels
4
4
4
4
4
4
4
Resolution
20 bit
20 bit
20 bit
20 bit
20 bit
20 bit
20 bit
Current Polarity
Bipolar
Bipolar
Bipolar
Bipolar
Bipolar
Bipolar
Bipolar
Sampling Rate
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
Input Channel Potential
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
Full-Scale Current Ranges (RNG0, RNG1)
±110 µA, ±3 µA
Full-Scale Current Ranges (RNG0, RNG1)
±110 µA, ±3 µA
±10 mA, ±500 µA
±1 mA, ±20 µA
±10 mA, ±2.5 µA
±1 mA, ±1 µA
-
±1 mA, ±1 µA
Bandwidth (-3dB @ RNG0, RNG1)
35 kHz, 35 kHz
Bandwidth (-3dB @ RNG0, RNG1)
35 kHz, 35 kHz
300 kHz, 300 kHz
200 kHz, 160 kHz
300 kHz, 20 kHz
25 kHz, 25 kHz
-
10 kHz, 10 kHz
Equivalent Input Noise (RNG0, RNG1 @ 1 MSPS)
1.8 nA, 150 pA
Equivalent Input Noise (RNG0, RNG1 @ 1 MSPS)
1.8 nA, 150 pA
230 nA, 15 nA
25 nA, 1.5 nA
250 nA, 500 pA
25 nA, 35 pA
-
8 nA, 30 pA
Resolution (RNG0, RNG1)
220 pA, 6 pA
Resolution (RNG0, RNG1)
220 pA, 6 pA
20 nA, 1 nA
22 nA, 40 pA
20 nA, 5 pA
2 nA, 2.5 pA
-
2 nA, 2 pA
Absolute Temperature Coefficient - TC (RNG0, RNG1)
10 ppm/K, 10 ppm/K
Absolute Temperature Coefficient - TC (RNG0, RNG1)
10 ppm/K, 10 ppm/K
10 ppm/K, 10 ppm/K
10 ppm/K, 10 ppm/K
10 ppm/K, 10 ppm/K
10 ppm/K, 25 ppm/K
-
10 ppm/K, 20 ppm/K
Conversion Time
650 ns
650 ns
650 ns
650 ns
650 ns
650 ns
650 ns

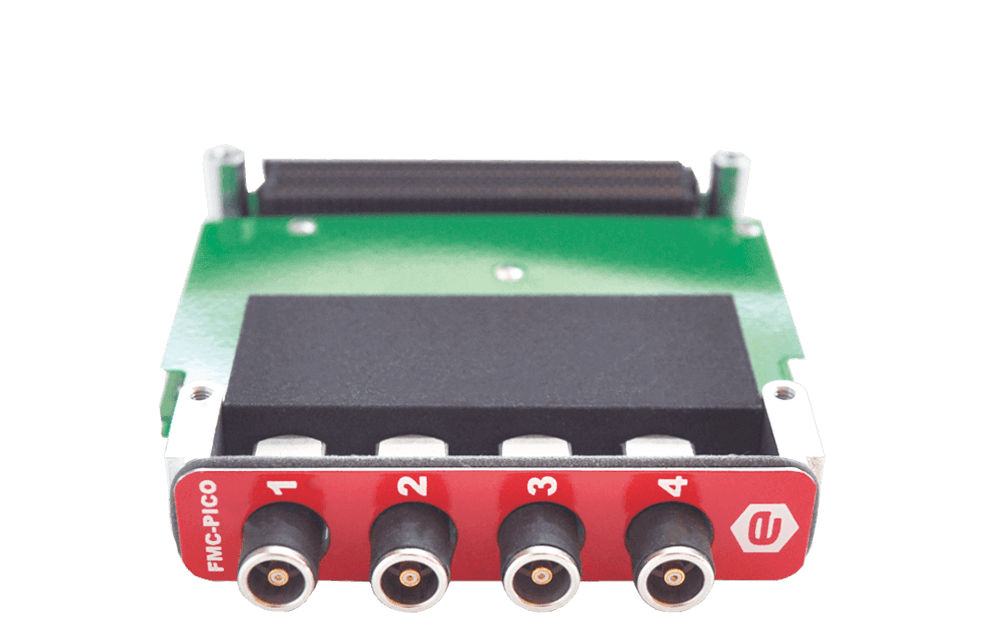

Input Connectors
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Other Features
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
FMC Connector Type
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
Board Type
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
Number of Channels
4
4
4
4
4
4
4
Resolution
20 bit
20 bit
20 bit
20 bit
20 bit
20 bit
20 bit
Current Polarity
Bipolar
Bipolar
Bipolar
Bipolar
Bipolar
Bipolar
Bipolar
Sampling Rate
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
Input Channel Potential
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
Full-Scale Current Ranges (RNG0, RNG1)
±10 mA, ±500 µA
Full-Scale Current Ranges (RNG0, RNG1)
±110 µA, ±3 µA
±10 mA, ±500 µA
±1 mA, ±20 µA
±10 mA, ±2.5 µA
±1 mA, ±1 µA
-
±1 mA, ±1 µA
Bandwidth (-3dB @ RNG0, RNG1)
300 kHz, 300 kHz
Bandwidth (-3dB @ RNG0, RNG1)
35 kHz, 35 kHz
300 kHz, 300 kHz
200 kHz, 160 kHz
300 kHz, 20 kHz
25 kHz, 25 kHz
-
10 kHz, 10 kHz
Equivalent Input Noise (RNG0, RNG1 @ 1 MSPS)
230 nA, 15 nA
Equivalent Input Noise (RNG0, RNG1 @ 1 MSPS)
1.8 nA, 150 pA
230 nA, 15 nA
25 nA, 1.5 nA
250 nA, 500 pA
25 nA, 35 pA
-
8 nA, 30 pA
Resolution (RNG0, RNG1)
20 nA, 1 nA
Resolution (RNG0, RNG1)
220 pA, 6 pA
20 nA, 1 nA
22 nA, 40 pA
20 nA, 5 pA
2 nA, 2.5 pA
-
2 nA, 2 pA
Absolute Temperature Coefficient - TC (RNG0, RNG1)
10 ppm/K, 10 ppm/K
Absolute Temperature Coefficient - TC (RNG0, RNG1)
10 ppm/K, 10 ppm/K
10 ppm/K, 10 ppm/K
10 ppm/K, 10 ppm/K
10 ppm/K, 10 ppm/K
10 ppm/K, 25 ppm/K
-
10 ppm/K, 20 ppm/K
Conversion Time
650 ns
650 ns
650 ns
650 ns
650 ns
650 ns
650 ns
Input Connectors
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Other Features
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
FMC Connector Type
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
Board Type
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
Number of Channels
4
4
4
4
4
4
4
Resolution
20 bit
20 bit
20 bit
20 bit
20 bit
20 bit
20 bit
Current Polarity
Bipolar
Bipolar
Bipolar
Bipolar
Bipolar
Bipolar
Bipolar
Sampling Rate
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
Input Channel Potential
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
Full-Scale Current Ranges (RNG0, RNG1)
±1 mA, ±20 µA
Full-Scale Current Ranges (RNG0, RNG1)
±110 µA, ±3 µA
±10 mA, ±500 µA
±1 mA, ±20 µA
±10 mA, ±2.5 µA
±1 mA, ±1 µA
-
±1 mA, ±1 µA
Bandwidth (-3dB @ RNG0, RNG1)
200 kHz, 160 kHz
Bandwidth (-3dB @ RNG0, RNG1)
35 kHz, 35 kHz
300 kHz, 300 kHz
200 kHz, 160 kHz
300 kHz, 20 kHz
25 kHz, 25 kHz
-
10 kHz, 10 kHz
Equivalent Input Noise (RNG0, RNG1 @ 1 MSPS)
25 nA, 1.5 nA
Equivalent Input Noise (RNG0, RNG1 @ 1 MSPS)
1.8 nA, 150 pA
230 nA, 15 nA
25 nA, 1.5 nA
250 nA, 500 pA
25 nA, 35 pA
-
8 nA, 30 pA
Resolution (RNG0, RNG1)
22 nA, 40 pA
Resolution (RNG0, RNG1)
220 pA, 6 pA
20 nA, 1 nA
22 nA, 40 pA
20 nA, 5 pA
2 nA, 2.5 pA
-
2 nA, 2 pA
Absolute Temperature Coefficient - TC (RNG0, RNG1)
10 ppm/K, 10 ppm/K
Absolute Temperature Coefficient - TC (RNG0, RNG1)
10 ppm/K, 10 ppm/K
10 ppm/K, 10 ppm/K
10 ppm/K, 10 ppm/K
10 ppm/K, 10 ppm/K
10 ppm/K, 25 ppm/K
-
10 ppm/K, 20 ppm/K
Conversion Time
650 ns
650 ns
650 ns
650 ns
650 ns
650 ns
650 ns
Input Connectors
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Other Features
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
FMC Connector Type
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
Board Type
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
Number of Channels
4
4
4
4
4
4
4
Resolution
20 bit
20 bit
20 bit
20 bit
20 bit
20 bit
20 bit
Current Polarity
Bipolar
Bipolar
Bipolar
Bipolar
Bipolar
Bipolar
Bipolar
Sampling Rate
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
Input Channel Potential
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
Full-Scale Current Ranges (RNG0, RNG1)
±10 mA, ±2.5 µA
Full-Scale Current Ranges (RNG0, RNG1)
±110 µA, ±3 µA
±10 mA, ±500 µA
±1 mA, ±20 µA
±10 mA, ±2.5 µA
±1 mA, ±1 µA
-
±1 mA, ±1 µA
Bandwidth (-3dB @ RNG0, RNG1)
300 kHz, 20 kHz
Bandwidth (-3dB @ RNG0, RNG1)
35 kHz, 35 kHz
300 kHz, 300 kHz
200 kHz, 160 kHz
300 kHz, 20 kHz
25 kHz, 25 kHz
-
10 kHz, 10 kHz
Equivalent Input Noise (RNG0, RNG1 @ 1 MSPS)
250 nA, 500 pA
Equivalent Input Noise (RNG0, RNG1 @ 1 MSPS)
1.8 nA, 150 pA
230 nA, 15 nA
25 nA, 1.5 nA
250 nA, 500 pA
25 nA, 35 pA
-
8 nA, 30 pA
Resolution (RNG0, RNG1)
20 nA, 5 pA
Resolution (RNG0, RNG1)
220 pA, 6 pA
20 nA, 1 nA
22 nA, 40 pA
20 nA, 5 pA
2 nA, 2.5 pA
-
2 nA, 2 pA
Absolute Temperature Coefficient - TC (RNG0, RNG1)
10 ppm/K, 10 ppm/K
Absolute Temperature Coefficient - TC (RNG0, RNG1)
10 ppm/K, 10 ppm/K
10 ppm/K, 10 ppm/K
10 ppm/K, 10 ppm/K
10 ppm/K, 10 ppm/K
10 ppm/K, 25 ppm/K
-
10 ppm/K, 20 ppm/K
Conversion Time
650 ns
650 ns
650 ns
650 ns
650 ns
650 ns
650 ns
Input Connectors
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Other Features
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
FMC Connector Type
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
Board Type
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
Number of Channels
4
4
4
4
4
4
4
Resolution
20 bit
20 bit
20 bit
20 bit
20 bit
20 bit
20 bit
Current Polarity
Bipolar
Bipolar
Bipolar
Bipolar
Bipolar
Bipolar
Bipolar
Sampling Rate
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
Input Channel Potential
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
Full-Scale Current Ranges (RNG0, RNG1)
±1 mA, ±1 µA
Full-Scale Current Ranges (RNG0, RNG1)
±110 µA, ±3 µA
±10 mA, ±500 µA
±1 mA, ±20 µA
±10 mA, ±2.5 µA
±1 mA, ±1 µA
-
±1 mA, ±1 µA
Bandwidth (-3dB @ RNG0, RNG1)
25 kHz, 25 kHz
Bandwidth (-3dB @ RNG0, RNG1)
35 kHz, 35 kHz
300 kHz, 300 kHz
200 kHz, 160 kHz
300 kHz, 20 kHz
25 kHz, 25 kHz
-
10 kHz, 10 kHz
Equivalent Input Noise (RNG0, RNG1 @ 1 MSPS)
25 nA, 35 pA
Equivalent Input Noise (RNG0, RNG1 @ 1 MSPS)
1.8 nA, 150 pA
230 nA, 15 nA
25 nA, 1.5 nA
250 nA, 500 pA
25 nA, 35 pA
-
8 nA, 30 pA
Resolution (RNG0, RNG1)
2 nA, 2.5 pA
Resolution (RNG0, RNG1)
220 pA, 6 pA
20 nA, 1 nA
22 nA, 40 pA
20 nA, 5 pA
2 nA, 2.5 pA
-
2 nA, 2 pA
Absolute Temperature Coefficient - TC (RNG0, RNG1)
10 ppm/K, 25 ppm/K
Absolute Temperature Coefficient - TC (RNG0, RNG1)
10 ppm/K, 10 ppm/K
10 ppm/K, 10 ppm/K
10 ppm/K, 10 ppm/K
10 ppm/K, 10 ppm/K
10 ppm/K, 25 ppm/K
-
10 ppm/K, 20 ppm/K
Conversion Time
650 ns
650 ns
650 ns
650 ns
650 ns
650 ns
650 ns
Input Connectors
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Other Features
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
FMC Connector Type
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
Board Type
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
Number of Channels
4
4
4
4
4
4
4
Resolution
20 bit
20 bit
20 bit
20 bit
20 bit
20 bit
20 bit
Current Polarity
Bipolar
Bipolar
Bipolar
Bipolar
Bipolar
Bipolar
Bipolar
Sampling Rate
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
Input Channel Potential
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
Full-Scale Current Ranges (RNG0, RNG1)
±110 µA, ±3 µA
±10 mA, ±500 µA
±1 mA, ±20 µA
±10 mA, ±2.5 µA
±1 mA, ±1 µA
-
±1 mA, ±1 µA
Bandwidth (-3dB @ RNG0, RNG1)
35 kHz, 35 kHz
300 kHz, 300 kHz
200 kHz, 160 kHz
300 kHz, 20 kHz
25 kHz, 25 kHz
-
10 kHz, 10 kHz
Equivalent Input Noise (RNG0, RNG1 @ 1 MSPS)
1.8 nA, 150 pA
230 nA, 15 nA
25 nA, 1.5 nA
250 nA, 500 pA
25 nA, 35 pA
-
8 nA, 30 pA
Resolution (RNG0, RNG1)
220 pA, 6 pA
20 nA, 1 nA
22 nA, 40 pA
20 nA, 5 pA
2 nA, 2.5 pA
-
2 nA, 2 pA
Absolute Temperature Coefficient - TC (RNG0, RNG1)
10 ppm/K, 10 ppm/K
10 ppm/K, 10 ppm/K
10 ppm/K, 10 ppm/K
10 ppm/K, 10 ppm/K
10 ppm/K, 25 ppm/K
-
10 ppm/K, 20 ppm/K
Conversion Time
650 ns
650 ns
650 ns
650 ns
650 ns
650 ns
650 ns
Input Connectors
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Other Features
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
FMC Connector Type
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
Board Type
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
Number of Channels
4
4
4
4
4
4
4
Resolution
20 bit
20 bit
20 bit
20 bit
20 bit
20 bit
20 bit
Current Polarity
Bipolar
Bipolar
Bipolar
Bipolar
Bipolar
Bipolar
Bipolar
Sampling Rate
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
up to 1 MSPS
Input Channel Potential
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
±300 V respect to chassis ground (continuous)
Full-Scale Current Ranges (RNG0, RNG1)
±1 mA, ±1 µA
Full-Scale Current Ranges (RNG0, RNG1)
±110 µA, ±3 µA
±10 mA, ±500 µA
±1 mA, ±20 µA
±10 mA, ±2.5 µA
±1 mA, ±1 µA
-
±1 mA, ±1 µA
Bandwidth (-3dB @ RNG0, RNG1)
10 kHz, 10 kHz
Bandwidth (-3dB @ RNG0, RNG1)
35 kHz, 35 kHz
300 kHz, 300 kHz
200 kHz, 160 kHz
300 kHz, 20 kHz
25 kHz, 25 kHz
-
10 kHz, 10 kHz
Equivalent Input Noise (RNG0, RNG1 @ 1 MSPS)
8 nA, 30 pA
Equivalent Input Noise (RNG0, RNG1 @ 1 MSPS)
1.8 nA, 150 pA
230 nA, 15 nA
25 nA, 1.5 nA
250 nA, 500 pA
25 nA, 35 pA
-
8 nA, 30 pA
Resolution (RNG0, RNG1)
2 nA, 2 pA
Resolution (RNG0, RNG1)
220 pA, 6 pA
20 nA, 1 nA
22 nA, 40 pA
20 nA, 5 pA
2 nA, 2.5 pA
-
2 nA, 2 pA
Absolute Temperature Coefficient - TC (RNG0, RNG1)
10 ppm/K, 20 ppm/K
Absolute Temperature Coefficient - TC (RNG0, RNG1)
10 ppm/K, 10 ppm/K
10 ppm/K, 10 ppm/K
10 ppm/K, 10 ppm/K
10 ppm/K, 10 ppm/K
10 ppm/K, 25 ppm/K
-
10 ppm/K, 20 ppm/K
Conversion Time
650 ns
650 ns
650 ns
650 ns
650 ns
650 ns
650 ns
Input Connectors
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Triaxial - LEMO 00.650 Series
Other Features
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
- trigger / SoC signal on FMC connector
- range selection on FMC connector
- factory calibration
FMC Connector Type
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
LPC - HPC compliant
Board Type
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
FPGA Mezzanine Card - FMC VITA 57.1
Ordering options
Ordering code
Description
Action
FMCPICO1M4C1
FMC-PICO-1M4-C1 – 4-ch. 20-bit 1-MSPS FMC Floating Picoammeter (±110 uA, ±3 uA, BW=35 kHz)
FMCPICO1M4C3
FMC-PICO-1M4-C3 – 4-ch. 20-bit 1-MSPS FMC Floating Picoammeter (±10 mA, ±500 uA, BW=300 kHz)
FMCPICO1M4C4
FMC-PICO-1M4-C4 – 4-ch. 20-bit 1-MSPS FMC Floating Picoammeter (±1 mA BW=200kHz, ±20 uA BW=170kHz)
FMCPICO1M4C5
FMC-PICO-1M4-C5 – 4-ch. 20-bit 1-MSPS FMC Floating Picoammeter (±10 mA BW=300kHz, ±2.5 uA BW=20kHz)
FMCPICO1M4C6
FMC-PICO-1M4-C6 – 4-ch. 20-bit 1-MSPS FMC Floating Picoammeter (±1 mA, ±1 uA, BW=25 kHz)
FMCPICO1M4C7
FMC-PICO-1M4-C7 – 4-ch. 20-bit 1-MSPS FMC Floating Picoammeter (±500 µA, ±20 µA, BW=25 kHz)
FMCPICO1M4XA
FMC-Pico-1M4 – 4-ch. 20-bit 1-MSPS FMC Floating Picoammeter (±1 mA, ±1 uA, BW=10 kHz)
Documentation
Last reviewed: 2026-02-19
ⓘ More infoRevision: 3
Last reviewed: 2026-02-23
ⓘ More infoRevision: 2.3
Software/Firmware
No firmware or software available.
