FAST-PS-1K5
Fast Current- and Voltage-Controlled Bipolar Digital Power Supply Series - up to 1.500 W
- Overview
- Features
- Technical specifications
- Ordering options
- Documentation
- Software/Firmware
Overview
Battery Testing and Superconducting Magnets with Source/Sink Capabilities

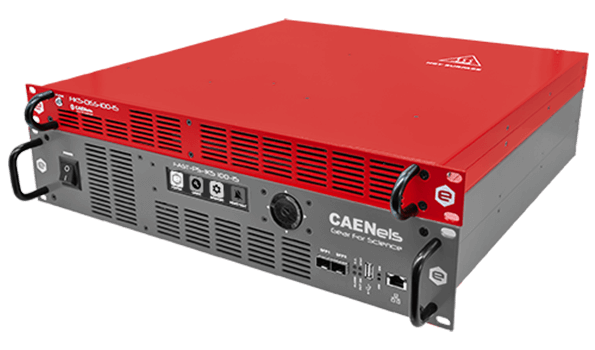

A NEW optional 19″-1U crate was designed to enable the 4-Quadrant operation at the 1.5-kW full-power. This unit is available for the 100 A – 15 V model and the 50 A – 30 V power supplies. This unit is connected to the power supply by a dedicated power cable that allows the system to operate both as power source and power sink. The specifications, in terms of stability, noise, temperature coefficient, etc. are maintained respect to the stand-alone FAST-PS-1K5 unit. Battery testing – e.g. charge/discharge – as well as superconducting magnet ramp-down procedures have never been easier!
High-Precision Current and Voltage control for the most demanding applications at higher power - ALL IN ONE!
The FAST-PS-1K5 series is the new generation of bipolar power supplies by CAEN ELS and it is designed in order to have state-of-the-art performances both in current- and voltage-control modes. Models up to 100 A and up to 100 V are available in order to satisfy any need.
The use of the proprietary 0-FLUCS DCCT as the sensing element, combined with thermal stabilized electronic sections, make this power supply have the lowest temperature dependence on the market at less than 1 ppm/K.
Low-noise and the lowest temperature dependence on the market at 1 ppm/K
The 10/100/1000 Mbit Ethernet connection and the two SFP slots allow controlling the power converter in different modes.

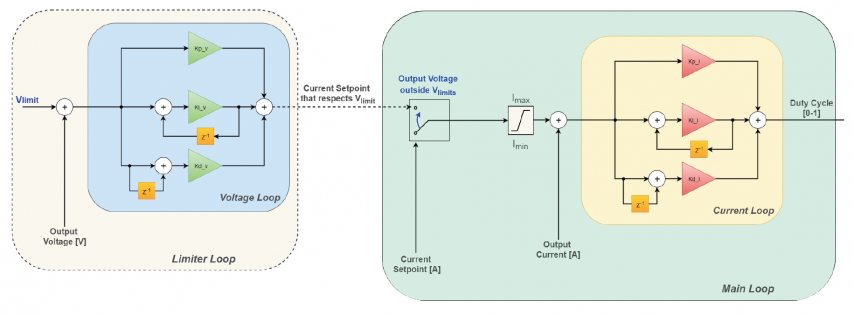

The control loop, as for most of CAEN ELS power supplies, is digital in order to obtain the maximum flexibility and easiness of configuration to any connected load – e.g. resistive, capacitive or inductive.
Quench protection for SuperConducting (SC) magnet applications
The FAST-PS-1K5 can be controlled either in current- or voltage-control modes and both control loops can be remotely configured.
Internal protections – e.g. over-voltage, over-current – are implemented as well as external interlocks are present. A quench protection feature is embedded in order to use these power units with superconducting magnets. A persistent switch heater supply is also available on the rear panel of each unit.
Features like waveforms, triggers, etc. are also present in these state-of-the-art units that also embed a Linux OS to give the maximum flexibility.
An embedded Web-Server also includes an oscilloscope feature with the possibility to monitor 4 channels – e.g. output current and voltage – at 100 ksps.

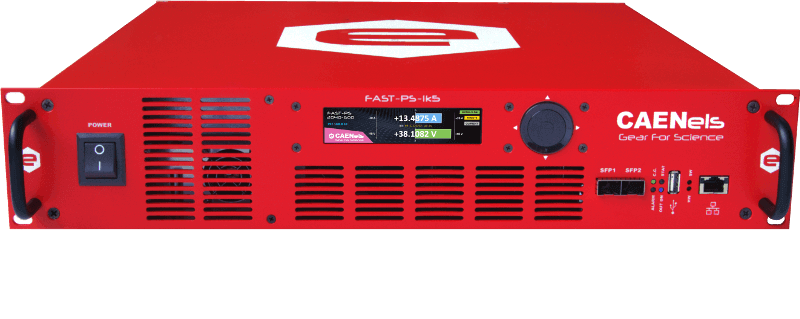

The units can be also locally controlled via a display and a local interface in order to set or monitor the main parameters and status of the power supply.
Features
- 19” – 2U stand-alone unit
- Models up to ±100 A and up to ±100 V
- Configurable digital control loop
- 10/100/1000 Mbit TCP-IP and UDP Ethernet interface

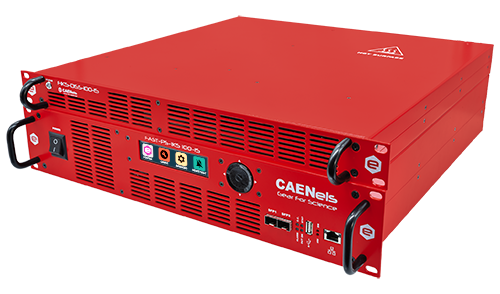

- 4-Quadrant operation with optional 19” – 1U crate
- PARALLEL operation (up to 4 modules)
- Current or Voltage regulation
- Fast SFP interface (10 kHz update)
- Embedded Linux OS
- Embedded Web-Server with AWG and Oscilloscope
- Low noise and Ripple - 0-FLUCS DCCT
- 1 ppm/K (typ.) temperature dependence
- Excellent long-term stability
- Persistent switch heater command
- Quench protection for superconducting magnets
- External relay (user-controlled) for specific applications
- External Analog Control, Trigger and configurable auxiliary ADC Inputs
Technical specifications
- FAST4R050030
- FAST4R100015
- FASTPS015100
- FASTPS030050
Model
FAST4R050030
FAST4R100015
FASTPS015100
FASTPS030050
Output Current
±50 A
Output Current
±50 A
±100 A
±15 A
±30 A
Output Voltage
±30 V
Output Voltage
±30 V
±15 V
±100 V
±50 V
Maximum Output Power
1.500 W
1.500 W
1.500 W
1.500 W
Topology
Bipolar
4-Quadrant Operation with Optional Unit
Bipolar
4-Quadrant Operation with Optional Unit
Bipolar
4-Quadrant Operation with Optional Unit
Bipolar
4-Quadrant Operation with Optional Unit
Control Mode
Current (CC) and Voltage (CV) Control
Current (CC) and Voltage (CV) Control
Current (CC) and Voltage (CV) Control
Current (CC) and Voltage (CV) Control
Floating Output
Yes - up to 200 V
Yes - up to 200 V
Yes - up to 200 V
Yes - up to 200 V
Remote Sensing
up to 0.5 V
up to 0.5 V
up to 0.5 V
up to 0.5 V
Current Sensing
0-FLUCS - High-Precision Current Transducers
0-FLUCS - High-Precision Current Transducers
0-FLUCS - High-Precision Current Transducers
0-FLUCS - High-Precision Current Transducers
Analog Control Input
Yes (±10 V, BW = 1 kHz)
Yes (±10 V, BW = 1 kHz)
Yes (±10 V, BW = 1 kHz)
Yes (±10 V, BW = 1 kHz)
Current Setting Resolution
400 uA
Current Setting Resolution
400 uA
800 uA
150 uA
250 uA
Voltage Setting Resolution
300 uV
Voltage Setting Resolution
300 uV
150 uV
1 mV
500 uV
Output Readback Resolution
24-bit
24-bit
24-bit
24-bit
Noise + Ripple (rms)
< 0.01 % on resistive load
< 0.005 % on 1 mH load
< 0.01 % on resistive load
< 0.005 % on 1 mH load
< 0.01 % on resistive load
< 0.005 % on 1 mH load
< 0.01 % on resistive load
< 0.005 % on 1 mH load
Temperature Coefficient - TC
< 0.0002 % / K (CC mode)
< 0.005 % / K (CV mode)
< 0.0002 % / K (CC mode)
< 0.005 % / K (CV mode)
< 0.0002 % / K (CC mode)
< 0.005 % / K (CV mode)
< 0.0002 % / K (CC mode)
< 0.005 % / K (CV mode)
Long Term Stability (8 h)
< 0.001 % (CC mode)
< 0.005 % (CV mode)
< 0.001 % (CC mode)
< 0.005 % (CV mode)
< 0.001 % (CC mode)
< 0.005 % (CV mode)
< 0.001 % (CC mode)
< 0.005 % (CV mode)
Analog Bandwidth (-3 dB)
> 2 kHz
> 2 kHz
> 2 kHz
> 2 kHz
Maximum Excess Output Power >= 50 A models
< 50 W continuous
>= 50 W & < 100 W 20 s
>= 100 W 1s
< 50 W continuous
>= 50 W & < 100 W 20 s
>= 100 W 1s
< 50 W continuous
>= 50 W & < 100 W 20 s
>= 100 W 1s
< 50 W continuous
>= 50 W & < 100 W 20 s
>= 100 W 1s
Maximum Excess Output Power < 50 A models
< 25W continuous
>= 25W & < 50W 20 s
>= 50W 1s
< 25W continuous
>= 25W & < 50W 20 s
>= 50W 1s
< 25W continuous
>= 25W & < 50W 20 s
>= 50W 1s
< 25W continuous
>= 25W & < 50W 20 s
>= 50W 1s
Rise Time (@full-load resistive)
130 us
130 us
130 us
130 us
Control/Communication Interface
10/100/1000 Mbit Ethernet TCP-IP and UDP
SFP/SFP+
10/100/1000 Mbit Ethernet TCP-IP and UDP
SFP/SFP+
10/100/1000 Mbit Ethernet TCP-IP and UDP
SFP/SFP+
10/100/1000 Mbit Ethernet TCP-IP and UDP
SFP/SFP+
Local Control
Colour display with multi-function navigation switch
Colour display with multi-function navigation switch
Colour display with multi-function navigation switch
Colour display with multi-function navigation switch
External Signals
4 External Interlocks
2 Status signals – 1 magnetic relay and 1 solid-state
Trigger Input
Analog Control Input
Additional Configurable ADC Input
4 External Interlocks
2 Status signals – 1 magnetic relay and 1 solid-state
Trigger Input
Analog Control Input
Additional Configurable ADC Input
4 External Interlocks
2 Status signals – 1 magnetic relay and 1 solid-state
Trigger Input
Analog Control Input
Additional Configurable ADC Input
4 External Interlocks
2 Status signals – 1 magnetic relay and 1 solid-state
Trigger Input
Analog Control Input
Additional Configurable ADC Input
Extra Features
Waveform execution
Quench Protection
Remote Firmware Update
Linux OS on-board
Embedded EPICS IOC
Embedded Web-Server
Waveform execution
Quench Protection
Remote Firmware Update
Linux OS on-board
Embedded EPICS IOC
Embedded Web-Server
Waveform execution
Quench Protection
Remote Firmware Update
Linux OS on-board
Embedded EPICS IOC
Embedded Web-Server
Waveform execution
Quench Protection
Remote Firmware Update
Linux OS on-board
Embedded EPICS IOC
Embedded Web-Server
Mechanical Dimensions (L × W × H)
19” x 2U x 550 cm
19” x 2U x 550 cm
19” x 2U x 550 cm
19” x 2U x 550 cm
Weight
< 15 kg
< 15 kg
< 15 kg
< 15 kg
Operating Temperature
0 ... 45 °C
0 ... 45 °C
0 ... 45 °C
0 ... 45 °C
Efficiency
up to 85 %
up to 85 %
up to 85 %
up to 85 %
Input Ratings
90 - 240 VAC / 47 - 63 Hz
90 - 240 VAC / 47 - 63 Hz
90 - 240 VAC / 47 - 63 Hz
90 - 240 VAC / 47 - 63 Hz
Output Current
±100 A
Output Current
±50 A
±100 A
±15 A
±30 A
Output Voltage
±15 V
Output Voltage
±30 V
±15 V
±100 V
±50 V
Maximum Output Power
1.500 W
1.500 W
1.500 W
1.500 W
Topology
Bipolar
4-Quadrant Operation with Optional Unit
Bipolar
4-Quadrant Operation with Optional Unit
Bipolar
4-Quadrant Operation with Optional Unit
Bipolar
4-Quadrant Operation with Optional Unit
Control Mode
Current (CC) and Voltage (CV) Control
Current (CC) and Voltage (CV) Control
Current (CC) and Voltage (CV) Control
Current (CC) and Voltage (CV) Control
Floating Output
Yes - up to 200 V
Yes - up to 200 V
Yes - up to 200 V
Yes - up to 200 V
Remote Sensing
up to 0.5 V
up to 0.5 V
up to 0.5 V
up to 0.5 V
Current Sensing
0-FLUCS - High-Precision Current Transducers
0-FLUCS - High-Precision Current Transducers
0-FLUCS - High-Precision Current Transducers
0-FLUCS - High-Precision Current Transducers
Analog Control Input
Yes (±10 V, BW = 1 kHz)
Yes (±10 V, BW = 1 kHz)
Yes (±10 V, BW = 1 kHz)
Yes (±10 V, BW = 1 kHz)
Current Setting Resolution
800 uA
Current Setting Resolution
400 uA
800 uA
150 uA
250 uA
Voltage Setting Resolution
150 uV
Voltage Setting Resolution
300 uV
150 uV
1 mV
500 uV
Output Readback Resolution
24-bit
24-bit
24-bit
24-bit
Noise + Ripple (rms)
< 0.01 % on resistive load
< 0.005 % on 1 mH load
< 0.01 % on resistive load
< 0.005 % on 1 mH load
< 0.01 % on resistive load
< 0.005 % on 1 mH load
< 0.01 % on resistive load
< 0.005 % on 1 mH load
Temperature Coefficient - TC
< 0.0002 % / K (CC mode)
< 0.005 % / K (CV mode)
< 0.0002 % / K (CC mode)
< 0.005 % / K (CV mode)
< 0.0002 % / K (CC mode)
< 0.005 % / K (CV mode)
< 0.0002 % / K (CC mode)
< 0.005 % / K (CV mode)
Long Term Stability (8 h)
< 0.001 % (CC mode)
< 0.005 % (CV mode)
< 0.001 % (CC mode)
< 0.005 % (CV mode)
< 0.001 % (CC mode)
< 0.005 % (CV mode)
< 0.001 % (CC mode)
< 0.005 % (CV mode)
Analog Bandwidth (-3 dB)
> 2 kHz
> 2 kHz
> 2 kHz
> 2 kHz
Maximum Excess Output Power >= 50 A models
< 50 W continuous
>= 50 W & < 100 W 20 s
>= 100 W 1s
< 50 W continuous
>= 50 W & < 100 W 20 s
>= 100 W 1s
< 50 W continuous
>= 50 W & < 100 W 20 s
>= 100 W 1s
< 50 W continuous
>= 50 W & < 100 W 20 s
>= 100 W 1s
Maximum Excess Output Power < 50 A models
< 25W continuous
>= 25W & < 50W 20 s
>= 50W 1s
< 25W continuous
>= 25W & < 50W 20 s
>= 50W 1s
< 25W continuous
>= 25W & < 50W 20 s
>= 50W 1s
< 25W continuous
>= 25W & < 50W 20 s
>= 50W 1s
Rise Time (@full-load resistive)
130 us
130 us
130 us
130 us
Control/Communication Interface
10/100/1000 Mbit Ethernet TCP-IP and UDP
SFP/SFP+
10/100/1000 Mbit Ethernet TCP-IP and UDP
SFP/SFP+
10/100/1000 Mbit Ethernet TCP-IP and UDP
SFP/SFP+
10/100/1000 Mbit Ethernet TCP-IP and UDP
SFP/SFP+
Local Control
Colour display with multi-function navigation switch
Colour display with multi-function navigation switch
Colour display with multi-function navigation switch
Colour display with multi-function navigation switch
External Signals
4 External Interlocks
2 Status signals – 1 magnetic relay and 1 solid-state
Trigger Input
Analog Control Input
Additional Configurable ADC Input
4 External Interlocks
2 Status signals – 1 magnetic relay and 1 solid-state
Trigger Input
Analog Control Input
Additional Configurable ADC Input
4 External Interlocks
2 Status signals – 1 magnetic relay and 1 solid-state
Trigger Input
Analog Control Input
Additional Configurable ADC Input
4 External Interlocks
2 Status signals – 1 magnetic relay and 1 solid-state
Trigger Input
Analog Control Input
Additional Configurable ADC Input
Extra Features
Waveform execution
Quench Protection
Remote Firmware Update
Linux OS on-board
Embedded EPICS IOC
Embedded Web-Server
Waveform execution
Quench Protection
Remote Firmware Update
Linux OS on-board
Embedded EPICS IOC
Embedded Web-Server
Waveform execution
Quench Protection
Remote Firmware Update
Linux OS on-board
Embedded EPICS IOC
Embedded Web-Server
Waveform execution
Quench Protection
Remote Firmware Update
Linux OS on-board
Embedded EPICS IOC
Embedded Web-Server
Mechanical Dimensions (L × W × H)
19” x 2U x 550 cm
19” x 2U x 550 cm
19” x 2U x 550 cm
19” x 2U x 550 cm
Weight
< 15 kg
< 15 kg
< 15 kg
< 15 kg
Operating Temperature
0 ... 45 °C
0 ... 45 °C
0 ... 45 °C
0 ... 45 °C
Efficiency
up to 85 %
up to 85 %
up to 85 %
up to 85 %
Input Ratings
90 - 240 VAC / 47 - 63 Hz
90 - 240 VAC / 47 - 63 Hz
90 - 240 VAC / 47 - 63 Hz
90 - 240 VAC / 47 - 63 Hz
Output Current
±15 A
Output Current
±50 A
±100 A
±15 A
±30 A
Output Voltage
±100 V
Output Voltage
±30 V
±15 V
±100 V
±50 V
Maximum Output Power
1.500 W
1.500 W
1.500 W
1.500 W
Topology
Bipolar
4-Quadrant Operation with Optional Unit
Bipolar
4-Quadrant Operation with Optional Unit
Bipolar
4-Quadrant Operation with Optional Unit
Bipolar
4-Quadrant Operation with Optional Unit
Control Mode
Current (CC) and Voltage (CV) Control
Current (CC) and Voltage (CV) Control
Current (CC) and Voltage (CV) Control
Current (CC) and Voltage (CV) Control
Floating Output
Yes - up to 200 V
Yes - up to 200 V
Yes - up to 200 V
Yes - up to 200 V
Remote Sensing
up to 0.5 V
up to 0.5 V
up to 0.5 V
up to 0.5 V
Current Sensing
0-FLUCS - High-Precision Current Transducers
0-FLUCS - High-Precision Current Transducers
0-FLUCS - High-Precision Current Transducers
0-FLUCS - High-Precision Current Transducers
Analog Control Input
Yes (±10 V, BW = 1 kHz)
Yes (±10 V, BW = 1 kHz)
Yes (±10 V, BW = 1 kHz)
Yes (±10 V, BW = 1 kHz)
Current Setting Resolution
150 uA
Current Setting Resolution
400 uA
800 uA
150 uA
250 uA
Voltage Setting Resolution
1 mV
Voltage Setting Resolution
300 uV
150 uV
1 mV
500 uV
Output Readback Resolution
24-bit
24-bit
24-bit
24-bit
Noise + Ripple (rms)
< 0.01 % on resistive load
< 0.005 % on 1 mH load
< 0.01 % on resistive load
< 0.005 % on 1 mH load
< 0.01 % on resistive load
< 0.005 % on 1 mH load
< 0.01 % on resistive load
< 0.005 % on 1 mH load
Temperature Coefficient - TC
< 0.0002 % / K (CC mode)
< 0.005 % / K (CV mode)
< 0.0002 % / K (CC mode)
< 0.005 % / K (CV mode)
< 0.0002 % / K (CC mode)
< 0.005 % / K (CV mode)
< 0.0002 % / K (CC mode)
< 0.005 % / K (CV mode)
Long Term Stability (8 h)
< 0.001 % (CC mode)
< 0.005 % (CV mode)
< 0.001 % (CC mode)
< 0.005 % (CV mode)
< 0.001 % (CC mode)
< 0.005 % (CV mode)
< 0.001 % (CC mode)
< 0.005 % (CV mode)
Analog Bandwidth (-3 dB)
> 2 kHz
> 2 kHz
> 2 kHz
> 2 kHz
Maximum Excess Output Power >= 50 A models
< 50 W continuous
>= 50 W & < 100 W 20 s
>= 100 W 1s
< 50 W continuous
>= 50 W & < 100 W 20 s
>= 100 W 1s
< 50 W continuous
>= 50 W & < 100 W 20 s
>= 100 W 1s
< 50 W continuous
>= 50 W & < 100 W 20 s
>= 100 W 1s
Maximum Excess Output Power < 50 A models
< 25W continuous
>= 25W & < 50W 20 s
>= 50W 1s
< 25W continuous
>= 25W & < 50W 20 s
>= 50W 1s
< 25W continuous
>= 25W & < 50W 20 s
>= 50W 1s
< 25W continuous
>= 25W & < 50W 20 s
>= 50W 1s
Rise Time (@full-load resistive)
130 us
130 us
130 us
130 us
Control/Communication Interface
10/100/1000 Mbit Ethernet TCP-IP and UDP
SFP/SFP+
10/100/1000 Mbit Ethernet TCP-IP and UDP
SFP/SFP+
10/100/1000 Mbit Ethernet TCP-IP and UDP
SFP/SFP+
10/100/1000 Mbit Ethernet TCP-IP and UDP
SFP/SFP+
Local Control
Colour display with multi-function navigation switch
Colour display with multi-function navigation switch
Colour display with multi-function navigation switch
Colour display with multi-function navigation switch
External Signals
4 External Interlocks
2 Status signals – 1 magnetic relay and 1 solid-state
Trigger Input
Analog Control Input
Additional Configurable ADC Input
4 External Interlocks
2 Status signals – 1 magnetic relay and 1 solid-state
Trigger Input
Analog Control Input
Additional Configurable ADC Input
4 External Interlocks
2 Status signals – 1 magnetic relay and 1 solid-state
Trigger Input
Analog Control Input
Additional Configurable ADC Input
4 External Interlocks
2 Status signals – 1 magnetic relay and 1 solid-state
Trigger Input
Analog Control Input
Additional Configurable ADC Input
Extra Features
Waveform execution
Quench Protection
Remote Firmware Update
Linux OS on-board
Embedded EPICS IOC
Embedded Web-Server
Waveform execution
Quench Protection
Remote Firmware Update
Linux OS on-board
Embedded EPICS IOC
Embedded Web-Server
Waveform execution
Quench Protection
Remote Firmware Update
Linux OS on-board
Embedded EPICS IOC
Embedded Web-Server
Waveform execution
Quench Protection
Remote Firmware Update
Linux OS on-board
Embedded EPICS IOC
Embedded Web-Server
Mechanical Dimensions (L × W × H)
19” x 2U x 550 cm
19” x 2U x 550 cm
19” x 2U x 550 cm
19” x 2U x 550 cm
Weight
< 15 kg
< 15 kg
< 15 kg
< 15 kg
Operating Temperature
0 ... 45 °C
0 ... 45 °C
0 ... 45 °C
0 ... 45 °C
Efficiency
up to 85 %
up to 85 %
up to 85 %
up to 85 %
Input Ratings
90 - 240 VAC / 47 - 63 Hz
90 - 240 VAC / 47 - 63 Hz
90 - 240 VAC / 47 - 63 Hz
90 - 240 VAC / 47 - 63 Hz
Output Current
±30 A
Output Current
±50 A
±100 A
±15 A
±30 A
Output Voltage
±50 V
Output Voltage
±30 V
±15 V
±100 V
±50 V
Maximum Output Power
1.500 W
1.500 W
1.500 W
1.500 W
Topology
Bipolar
4-Quadrant Operation with Optional Unit
Bipolar
4-Quadrant Operation with Optional Unit
Bipolar
4-Quadrant Operation with Optional Unit
Bipolar
4-Quadrant Operation with Optional Unit
Control Mode
Current (CC) and Voltage (CV) Control
Current (CC) and Voltage (CV) Control
Current (CC) and Voltage (CV) Control
Current (CC) and Voltage (CV) Control
Floating Output
Yes - up to 200 V
Yes - up to 200 V
Yes - up to 200 V
Yes - up to 200 V
Remote Sensing
up to 0.5 V
up to 0.5 V
up to 0.5 V
up to 0.5 V
Current Sensing
0-FLUCS - High-Precision Current Transducers
0-FLUCS - High-Precision Current Transducers
0-FLUCS - High-Precision Current Transducers
0-FLUCS - High-Precision Current Transducers
Analog Control Input
Yes (±10 V, BW = 1 kHz)
Yes (±10 V, BW = 1 kHz)
Yes (±10 V, BW = 1 kHz)
Yes (±10 V, BW = 1 kHz)
Current Setting Resolution
250 uA
Current Setting Resolution
400 uA
800 uA
150 uA
250 uA
Voltage Setting Resolution
500 uV
Voltage Setting Resolution
300 uV
150 uV
1 mV
500 uV
Output Readback Resolution
24-bit
24-bit
24-bit
24-bit
Noise + Ripple (rms)
< 0.01 % on resistive load
< 0.005 % on 1 mH load
< 0.01 % on resistive load
< 0.005 % on 1 mH load
< 0.01 % on resistive load
< 0.005 % on 1 mH load
< 0.01 % on resistive load
< 0.005 % on 1 mH load
Temperature Coefficient - TC
< 0.0002 % / K (CC mode)
< 0.005 % / K (CV mode)
< 0.0002 % / K (CC mode)
< 0.005 % / K (CV mode)
< 0.0002 % / K (CC mode)
< 0.005 % / K (CV mode)
< 0.0002 % / K (CC mode)
< 0.005 % / K (CV mode)
Long Term Stability (8 h)
< 0.001 % (CC mode)
< 0.005 % (CV mode)
< 0.001 % (CC mode)
< 0.005 % (CV mode)
< 0.001 % (CC mode)
< 0.005 % (CV mode)
< 0.001 % (CC mode)
< 0.005 % (CV mode)
Analog Bandwidth (-3 dB)
> 2 kHz
> 2 kHz
> 2 kHz
> 2 kHz
Maximum Excess Output Power >= 50 A models
< 50 W continuous
>= 50 W & < 100 W 20 s
>= 100 W 1s
< 50 W continuous
>= 50 W & < 100 W 20 s
>= 100 W 1s
< 50 W continuous
>= 50 W & < 100 W 20 s
>= 100 W 1s
< 50 W continuous
>= 50 W & < 100 W 20 s
>= 100 W 1s
Maximum Excess Output Power < 50 A models
< 25W continuous
>= 25W & < 50W 20 s
>= 50W 1s
< 25W continuous
>= 25W & < 50W 20 s
>= 50W 1s
< 25W continuous
>= 25W & < 50W 20 s
>= 50W 1s
< 25W continuous
>= 25W & < 50W 20 s
>= 50W 1s
Rise Time (@full-load resistive)
130 us
130 us
130 us
130 us
Control/Communication Interface
10/100/1000 Mbit Ethernet TCP-IP and UDP
SFP/SFP+
10/100/1000 Mbit Ethernet TCP-IP and UDP
SFP/SFP+
10/100/1000 Mbit Ethernet TCP-IP and UDP
SFP/SFP+
10/100/1000 Mbit Ethernet TCP-IP and UDP
SFP/SFP+
Local Control
Colour display with multi-function navigation switch
Colour display with multi-function navigation switch
Colour display with multi-function navigation switch
Colour display with multi-function navigation switch
External Signals
4 External Interlocks
2 Status signals – 1 magnetic relay and 1 solid-state
Trigger Input
Analog Control Input
Additional Configurable ADC Input
4 External Interlocks
2 Status signals – 1 magnetic relay and 1 solid-state
Trigger Input
Analog Control Input
Additional Configurable ADC Input
4 External Interlocks
2 Status signals – 1 magnetic relay and 1 solid-state
Trigger Input
Analog Control Input
Additional Configurable ADC Input
4 External Interlocks
2 Status signals – 1 magnetic relay and 1 solid-state
Trigger Input
Analog Control Input
Additional Configurable ADC Input
Extra Features
Waveform execution
Quench Protection
Remote Firmware Update
Linux OS on-board
Embedded EPICS IOC
Embedded Web-Server
Waveform execution
Quench Protection
Remote Firmware Update
Linux OS on-board
Embedded EPICS IOC
Embedded Web-Server
Waveform execution
Quench Protection
Remote Firmware Update
Linux OS on-board
Embedded EPICS IOC
Embedded Web-Server
Waveform execution
Quench Protection
Remote Firmware Update
Linux OS on-board
Embedded EPICS IOC
Embedded Web-Server
Mechanical Dimensions (L × W × H)
19” x 2U x 550 cm
19” x 2U x 550 cm
19” x 2U x 550 cm
19” x 2U x 550 cm
Weight
< 15 kg
< 15 kg
< 15 kg
< 15 kg
Operating Temperature
0 ... 45 °C
0 ... 45 °C
0 ... 45 °C
0 ... 45 °C
Efficiency
up to 85 %
up to 85 %
up to 85 %
up to 85 %
Input Ratings
90 - 240 VAC / 47 - 63 Hz
90 - 240 VAC / 47 - 63 Hz
90 - 240 VAC / 47 - 63 Hz
90 - 240 VAC / 47 - 63 Hz
Ordering options
Ordering code
Description
Action
FAST4R050030
FAST-PS-1K5 50-30 – 1.5-kW Fast High-Stability Curr. & Volt. Digital PS ±50 A @ ±30 V – 4Q Ready
FAST4R100015
FAST-PS-1K5 100-15 – 1.5-kW Fast High-Stability Curr. & Volt. Digital PS ±100 A @ ±15 V – 4Q Ready
FASTPS015100
FAST-PS-1K5 15-100 – 1.5-kW Fast High-Stability Curr. & Volt. Digital PS ±15 A @ ±100 V
FASTPS030050
FAST-PS-1K5 30-50 – 1.5-kW Fast High-Stability Curr. & Volt. Digital PS ±30 A @ ±50 V
Documentation
Last reviewed: 2025-07-24
ⓘ More infoRevision: 3.1
Last reviewed: 2025-01-27
ⓘ More infoRevision: 4
Last reviewed: 2024-08-29
ⓘ More infoRevision: 2
Last reviewed: 2025-09-16
ⓘ More infoRevision: 2.3
Last reviewed: 2025-07-23
ⓘ More infoRevision: 2.1
Last reviewed: 2024-11-11
ⓘ More infoRevision: 1.1
Software/Firmware
Updated: 2026-04-15 - 51.94 MB
⟳ Changelog ⓘ More info
Version: v2.1.9
Updated: 2026-04-01 - 44.48 MB
⟳ Changelog ⓘ More info
Version: 2.2.8
OS: Linux
Updated: 2026-04-01 - 42.70 MB
⟳ Changelog ⓘ More info
Version: 2.2.8
OS: Windows
Accessories
F1K5D4050030 - 4-Quadrant Operation Crate
F1K5-DISS-50-30 - 4-Quadrant Operation Crate for FAST-PS-1K5 ±50 A @ ±30 V
F1K5D4100015 - 4-Quadrant Operation Crate
F1K5-DISS-50-30 - 4-Quadrant Operation Crate for FAST-PS-1K5 ±100 A @ ±15 V
AUTOTUNEFW01 - Automatic Tuning Capability
Auto-Tuning License for Digital Power Supply Series
