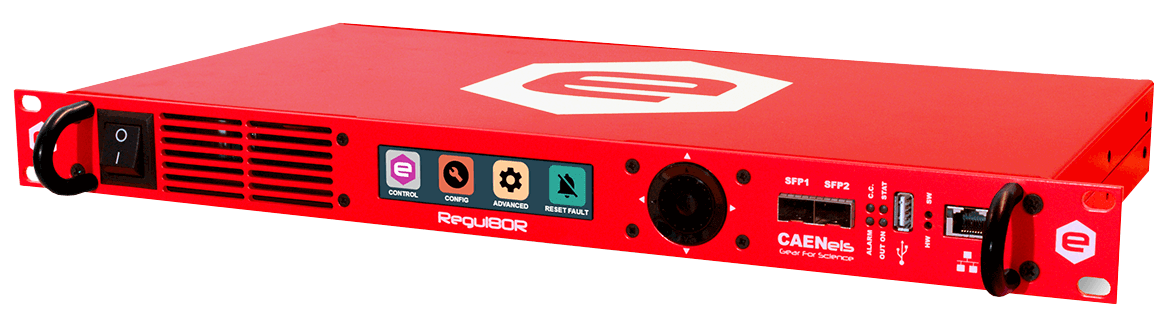

10/100/1000 Mbit Ethernet digital high-performance power supply controller with embedded Webserver, Linux OS, AWG and 4-channel oscilloscope. Voltage up to ±200 V and currents up to 1.000 A with 0-FLUCS DCCT support.
This breakthrough power supply controller allows converting your programmable power supply unit or amplifier in a state-of the-art power converter unit with built-in Web-Server, Waveform Generation and Oscilloscope functions.
This fan-less unit comes together with a 0-FLUCS current transducer by CAEN ELS and with voltage sensing terminals, with current measuring ranges up to 1.000 A and 200 V.

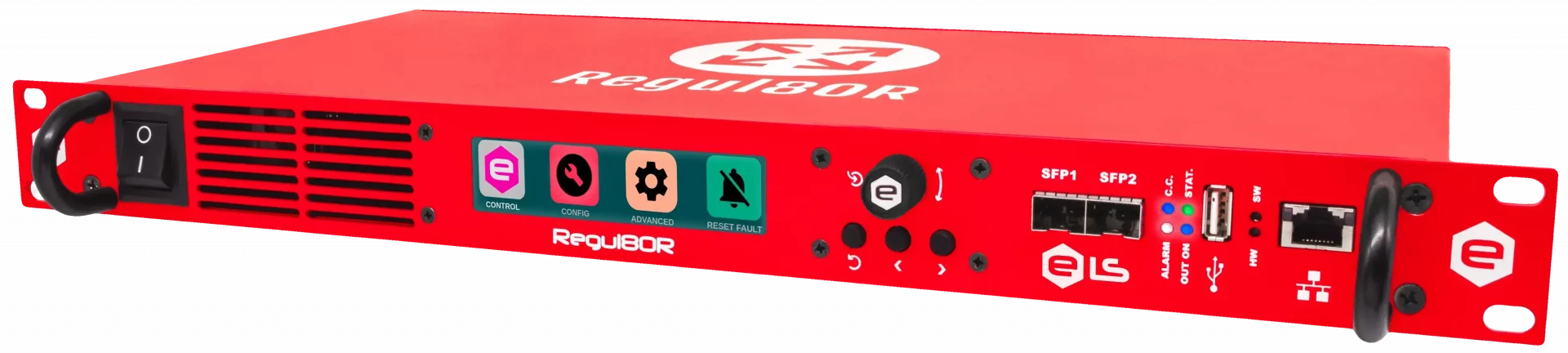

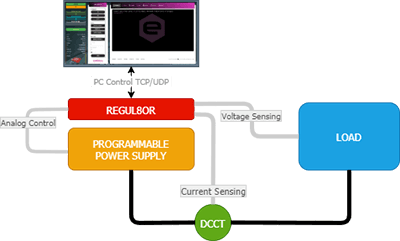

Any power converter within these ratings can be connected to the controller and its current and voltage values are monitored and stabilized by the internal configurable digital control loop (on a FPGA) so that any load conditions can be easily fit in order to obtain the desired response.
This controller will transform any power converter to a ppm-level stability power unit, with negligible line and load regulation values and will greatly improve the accuracy.
The programmable power supply connected to the REGUL8OR can be driven by multiple interfaces: a precision fast DAC (± 5 V or ± 10 V) or a 4-20 mA loop driver.
The 10/100/1000 Mbit Ethernet connection over TCP-IP or UDP allows controlling the power converter in a very simple and reliable manner and also accessing the embedded web-server.
The embedded Web-Server allows running pre-loaded or custom waveforms at 100 ksps and monitor and record the response of different values – e.g. output current, voltage, etc. – at 100 ksps per channel simultaneously (soft-oscilloscope).
Model
REGUL8ORX2AA
REGUL8ORXAAA
REGUL8ORXC1A
Output Current Ranges
± 100 A, ± 150 A, ± 200 A, ± 300 A, ± 400 A, ± 600 A, ± 1000 A
± 100 A, ± 150 A, ± 200 A, ± 300 A, ± 400 A, ± 600 A, ± 1000 A
± 100 A, ± 150 A, ± 200 A, ± 300 A, ± 400 A, ± 600 A, ± 1000 A
Output Voltage Ranges
± 5 V, ± 10 V, ± 20 V, ± 50 V, ± 100 V, ± 200 V
± 5 V, ± 10 V, ± 20 V, ± 50 V, ± 100 V, ± 200 V
± 5 V, ± 10 V, ± 20 V, ± 50 V, ± 100 V, ± 200 V
Maximum Controllable Power
200 kW
200 kW
200 kW
Regulation Type
Constant Current (CC) or Constant Voltage (CV)
Constant Current (CC) or Constant Voltage (CV)
Constant Current (CC) or Constant Voltage (CV)
Current and Voltage Setting Resolution
24 bit
24 bit
24 bit
Current and Voltage Readback Resolution
24 bit
24 bit
24 bit
Output Readback Resolution
24 bit
24 bit
24 bit
Line Regulation (±10% variation)
< 0.0001 %/FS in CC mode
< 0.0001 %/FS in CC mode
< 0.0001 %/FS in CC mode
Load Regulation (±10% variation)
< 0.0001 %/FS in CC mode
< 0.0001 %/FS in CC mode
< 0.0001 %/FS in CC mode
Temperature Coefficient (TC)
< 0.0005 %/K in CC mode
< 0.005 %/K in CV mode
< 0.0005 %/K in CC mode
< 0.005 %/K in CV mode
< 0.0005 %/K in CC mode
< 0.005 %/K in CV mode
Long-Term Stability (8 h)
< 0.001 %/FS in CC mode
< 0.001 %/FS in CV mode
< 0.001 %/FS in CC mode
< 0.001 %/FS in CV mode
< 0.001 %/FS in CC mode
< 0.001 %/FS in CV mode
Overall Accuracy
< 0.01 %/FS in CC mode
< 0.01 %/FS in CV mode
< 0.01 %/FS in CC mode
< 0.01 %/FS in CV mode
< 0.01 %/FS in CC mode
< 0.01 %/FS in CV mode
Output Control Interfaces
Analog Voltage Output: ± 5 V or ± 10 V
Analog Current Output: 4 - 20 mA
Analog Voltage Output: ± 5 V or ± 10 V
Analog Current Output: 4 - 20 mA
Analog Voltage Output: ± 5 V or ± 10 V
Analog Current Output: 4 - 20 mA
External Interlocks
4 x inputs accepting dry-contacts
2 x inputs accepting 24 VDC (e.g. from PLC)
4 x inputs accepting dry-contacts
2 x inputs accepting 24 VDC (e.g. from PLC)
4 x inputs accepting dry-contacts
2 x inputs accepting 24 VDC (e.g. from PLC)
External Hardware Interfaces
2 x output magnetic relay
2 x output solid state relay
2 x output isolated TTL (0 - 5 V) signals
2 x output magnetic relay
2 x output solid state relay
2 x output isolated TTL (0 - 5 V) signals
2 x output magnetic relay
2 x output solid state relay
2 x output isolated TTL (0 - 5 V) signals
External Signals
1 x Analog control input (±10 V full-scale, 100 ksps @ 16 bit)
1 x Analog input (+4 V full-scale, 100 ksps @ 16 bit) - e.g. readout of an Hall probe
1 x 5-V or 20-mA configurable power output available - e.g. to supply an Hall probe
1 x isolated SPI interface (4-wire)
1 x External Temperature sensor Input, including 1.8 V and 3.3 V supply for the temperature sensor
1 x isolated Trigger Input
1 x Sync IN and 1 x Sync OUT signals - i.e. to synchronize multiple controllers
1 x Analog control input (±10 V full-scale, 100 ksps @ 16 bit)
1 x Analog input (+4 V full-scale, 100 ksps @ 16 bit) - e.g. readout of an Hall probe
1 x 5-V or 20-mA configurable power output available - e.g. to supply an Hall probe
1 x isolated SPI interface (4-wire)
1 x External Temperature sensor Input, including 1.8 V and 3.3 V supply for the temperature sensor
1 x isolated Trigger Input
1 x Sync IN and 1 x Sync OUT signals - i.e. to synchronize multiple controllers
1 x Analog control input (±10 V full-scale, 100 ksps @ 16 bit)
1 x Analog input (+4 V full-scale, 100 ksps @ 16 bit) - e.g. readout of an Hall probe
1 x 5-V or 20-mA configurable power output available - e.g. to supply an Hall probe
1 x isolated SPI interface (4-wire)
1 x External Temperature sensor Input, including 1.8 V and 3.3 V supply for the temperature sensor
1 x isolated Trigger Input
1 x Sync IN and 1 x Sync OUT signals - i.e. to synchronize multiple controllers
Connectivity
1 x Ethernet 10/100/1000 Mbit TCP-IP or UDP
2 x SFP+ (6.25 Gbps)
1 x Ethernet 10/100/1000 Mbit TCP-IP or UDP
2 x SFP+ (6.25 Gbps)
1 x Ethernet 10/100/1000 Mbit TCP-IP or UDP
2 x SFP+ (6.25 Gbps)
Extra Features
Embedded Web-Server
4-channel Embedded Oscilloscope Function at 100 ksps
Embedded Waveform Generator
Embedded EPICS IOC
Firmware Remote Update
Paralleling and Synchronization of Multiple Units
Embedded Web-Server
4-channel Embedded Oscilloscope Function at 100 ksps
Embedded Waveform Generator
Embedded EPICS IOC
Firmware Remote Update
Paralleling and Synchronization of Multiple Units
Embedded Web-Server
4-channel Embedded Oscilloscope Function at 100 ksps
Embedded Waveform Generator
Embedded EPICS IOC
Firmware Remote Update
Paralleling and Synchronization of Multiple Units
Local Indicators
LCD display
LEDs
LCD display
LEDs
LCD display
LEDs
Mechanical Dimensions
19” x 1 U x 230 mm
19” x 1 U x 230 mm
19” x 1 U x 230 mm
Weight
< 2 kg
< 2 kg
< 2 kg
AC Input Ratings
90 - 264 VAC @ 47 - 63 Hz
90 - 264 VAC @ 47 - 63 Hz
90 - 264 VAC @ 47 - 63 Hz
