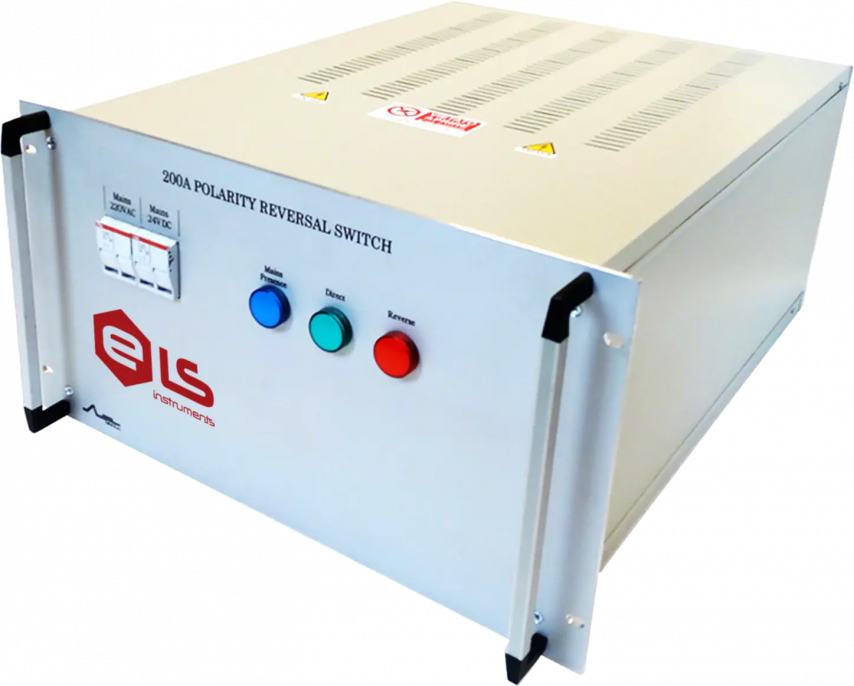

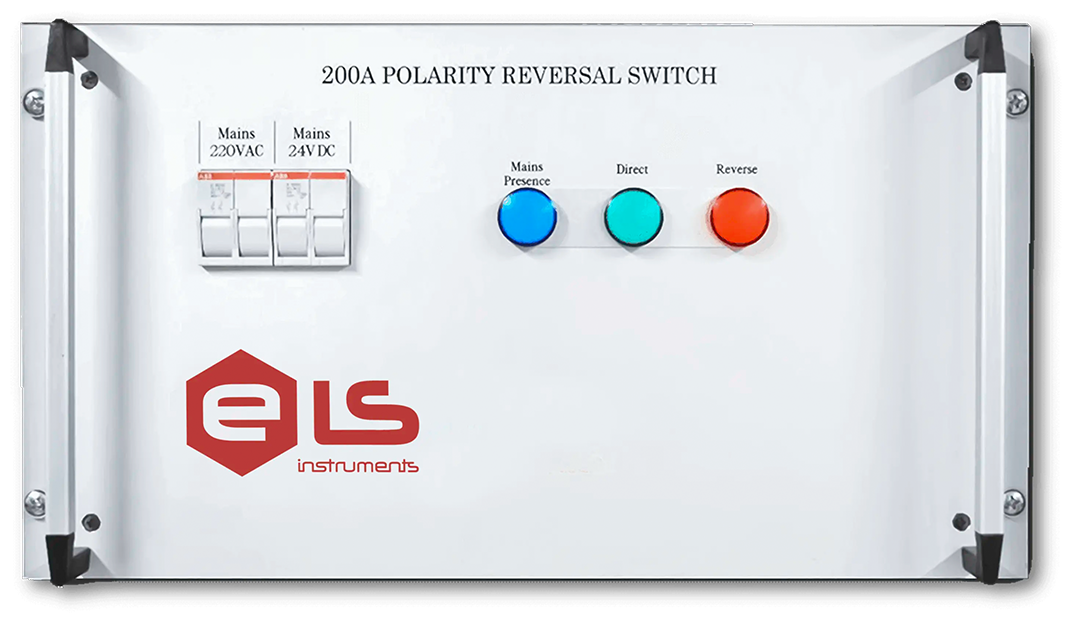

Polarity Inverters
Polarity Inverters for Power Supplies - up to 1.000 A
A complete set of polarity switches to invert the output polarity of power converters with current ratings up to 1.000 A and 250 V.
- Overview
- Features
- Technical specifications
- Ordering options
- Documentation
- Software/Firmware
Overview
The COTS solution for inverting output polarity of power converters!
The Polarity Inverters of this series allows easy interfacing to CAEN ELS monopolar power supplies (e.g. NGPS) with different current ratings – i.e. 200 A, 420 A, 630 A and 1.000 A.
These inverters are supplied from an auxiliary AC input (100-240 VAC, 50/60 Hz) and they are the perfect fit when inverting the output polarity is requested, as for some specific applications – e.g. degaussing a magnet.
Polarity Inverters with different current ratings (up to 1.000 A) allow switching polarity on standard power converters.
Interlock and “Enabling” signals for a safe switch are present and accept signals up to 240 V @ 16 A and 10 A respectively. This polarity inversion switch is suitable to any commercial power supply unit with maximum output ratings of 1.000 A @ 250 V (250 kW).
The mechanical dimensions range from a standard 19″-6U to a 19″-10U crate for the 200-, 420-, 630-A and the 1.000-A versions respectively.
Features
- Different current ratings - 200 A, 400 A, 600 A and 1.000 A versions
- Rated Current: 200 A, 420 A, 630 A and 1.000 A
- Rated Voltage: 250 V
- Auxiliary Input Voltage 100-240 VAC @ 50/60 Hz
- 19"-6U Mechanical Dimensions
- "NGPS-ready" - cable to connect to NGPS power units included
Technical specifications
- WPOLINV1KAXA
- WPOLINV200XA
- WPOLINV400XA
- WPOLINV600XA
Model
WPOLINV1KAXA
WPOLINV200XA
WPOLINV400XA
WPOLINV600XA
Rated Current
1000 A
Rated Current
1000 A
200 A
420 A
630 A
Rated Voltage
250 V
250 V
250 V
250 V
Auxiliary Input Voltage
100 - 240 VAC
50/60 Hz
100 - 240 VAC
50/60 Hz
100 - 240 VAC
50/60 Hz
100 - 240 VAC
50/60 Hz
Auxiliary Input Power
350 W
350 W
350 W
350 W
Max Interlock Rating (pins 6-7)
240 V @ 16 A
240 V @ 16 A
240 V @ 16 A
240 V @ 16 A
Max Enable Rating (pins 8, 9, 10)
240 V @ 10 A
240 V @ 10 A
240 V @ 10 A
240 V @ 10 A
DC Input/Output Connections
Bus-bars
DC Input/Output Connections
Bus-bars
Phoenix Contact HDFKW-95-F/7
Phoenix Contact HKH240F
Bus-bars
Dimensions
19" x 10U x 573 mm (w/out output connectors)
Dimensions
19" x 10U x 573 mm (w/out output connectors)
19" x 6U x 550 mm (w/out output connectors)
19" x 6U x 550 mm (w/out output connectors)
19" x 6U x 550 mm (w/out output connectors)
Weight
48 kg
Weight
48 kg
28 kg
35 kg
35 kg
Rated Current
200 A
Rated Current
1000 A
200 A
420 A
630 A
Rated Voltage
250 V
250 V
250 V
250 V
Auxiliary Input Voltage
100 - 240 VAC
50/60 Hz
100 - 240 VAC
50/60 Hz
100 - 240 VAC
50/60 Hz
100 - 240 VAC
50/60 Hz
Auxiliary Input Power
350 W
350 W
350 W
350 W
Max Interlock Rating (pins 6-7)
240 V @ 16 A
240 V @ 16 A
240 V @ 16 A
240 V @ 16 A
Max Enable Rating (pins 8, 9, 10)
240 V @ 10 A
240 V @ 10 A
240 V @ 10 A
240 V @ 10 A
DC Input/Output Connections
Phoenix Contact HDFKW-95-F/7
DC Input/Output Connections
Bus-bars
Phoenix Contact HDFKW-95-F/7
Phoenix Contact HKH240F
Bus-bars
Dimensions
19" x 6U x 550 mm (w/out output connectors)
Dimensions
19" x 10U x 573 mm (w/out output connectors)
19" x 6U x 550 mm (w/out output connectors)
19" x 6U x 550 mm (w/out output connectors)
19" x 6U x 550 mm (w/out output connectors)
Weight
28 kg
Weight
48 kg
28 kg
35 kg
35 kg
Rated Current
420 A
Rated Current
1000 A
200 A
420 A
630 A
Rated Voltage
250 V
250 V
250 V
250 V
Auxiliary Input Voltage
100 - 240 VAC
50/60 Hz
100 - 240 VAC
50/60 Hz
100 - 240 VAC
50/60 Hz
100 - 240 VAC
50/60 Hz
Auxiliary Input Power
350 W
350 W
350 W
350 W
Max Interlock Rating (pins 6-7)
240 V @ 16 A
240 V @ 16 A
240 V @ 16 A
240 V @ 16 A
Max Enable Rating (pins 8, 9, 10)
240 V @ 10 A
240 V @ 10 A
240 V @ 10 A
240 V @ 10 A
DC Input/Output Connections
Phoenix Contact HKH240F
DC Input/Output Connections
Bus-bars
Phoenix Contact HDFKW-95-F/7
Phoenix Contact HKH240F
Bus-bars
Dimensions
19" x 6U x 550 mm (w/out output connectors)
Dimensions
19" x 10U x 573 mm (w/out output connectors)
19" x 6U x 550 mm (w/out output connectors)
19" x 6U x 550 mm (w/out output connectors)
19" x 6U x 550 mm (w/out output connectors)
Weight
35 kg
Weight
48 kg
28 kg
35 kg
35 kg
Rated Current
630 A
Rated Current
1000 A
200 A
420 A
630 A
Rated Voltage
250 V
250 V
250 V
250 V
Auxiliary Input Voltage
100 - 240 VAC
50/60 Hz
100 - 240 VAC
50/60 Hz
100 - 240 VAC
50/60 Hz
100 - 240 VAC
50/60 Hz
Auxiliary Input Power
350 W
350 W
350 W
350 W
Max Interlock Rating (pins 6-7)
240 V @ 16 A
240 V @ 16 A
240 V @ 16 A
240 V @ 16 A
Max Enable Rating (pins 8, 9, 10)
240 V @ 10 A
240 V @ 10 A
240 V @ 10 A
240 V @ 10 A
DC Input/Output Connections
Bus-bars
DC Input/Output Connections
Bus-bars
Phoenix Contact HDFKW-95-F/7
Phoenix Contact HKH240F
Bus-bars
Dimensions
19" x 6U x 550 mm (w/out output connectors)
Dimensions
19" x 10U x 573 mm (w/out output connectors)
19" x 6U x 550 mm (w/out output connectors)
19" x 6U x 550 mm (w/out output connectors)
19" x 6U x 550 mm (w/out output connectors)
Weight
35 kg
Weight
48 kg
28 kg
35 kg
35 kg
