High-Voltage 4-channel AMC board with MTCA.4 Rear I/O

Double-width Advanced Mezzanine Card (AMC) board designed as MTCA.4 carrier housing four high-voltage channels rated at maximum 6 kV


  • Overview
  • Features
  • Technical specifications
  • Ordering options
  • Documentation
  • Software/Firmware

Overview

HV-PANDA
High Voltage performance and reliability in AMC - MTCA format.

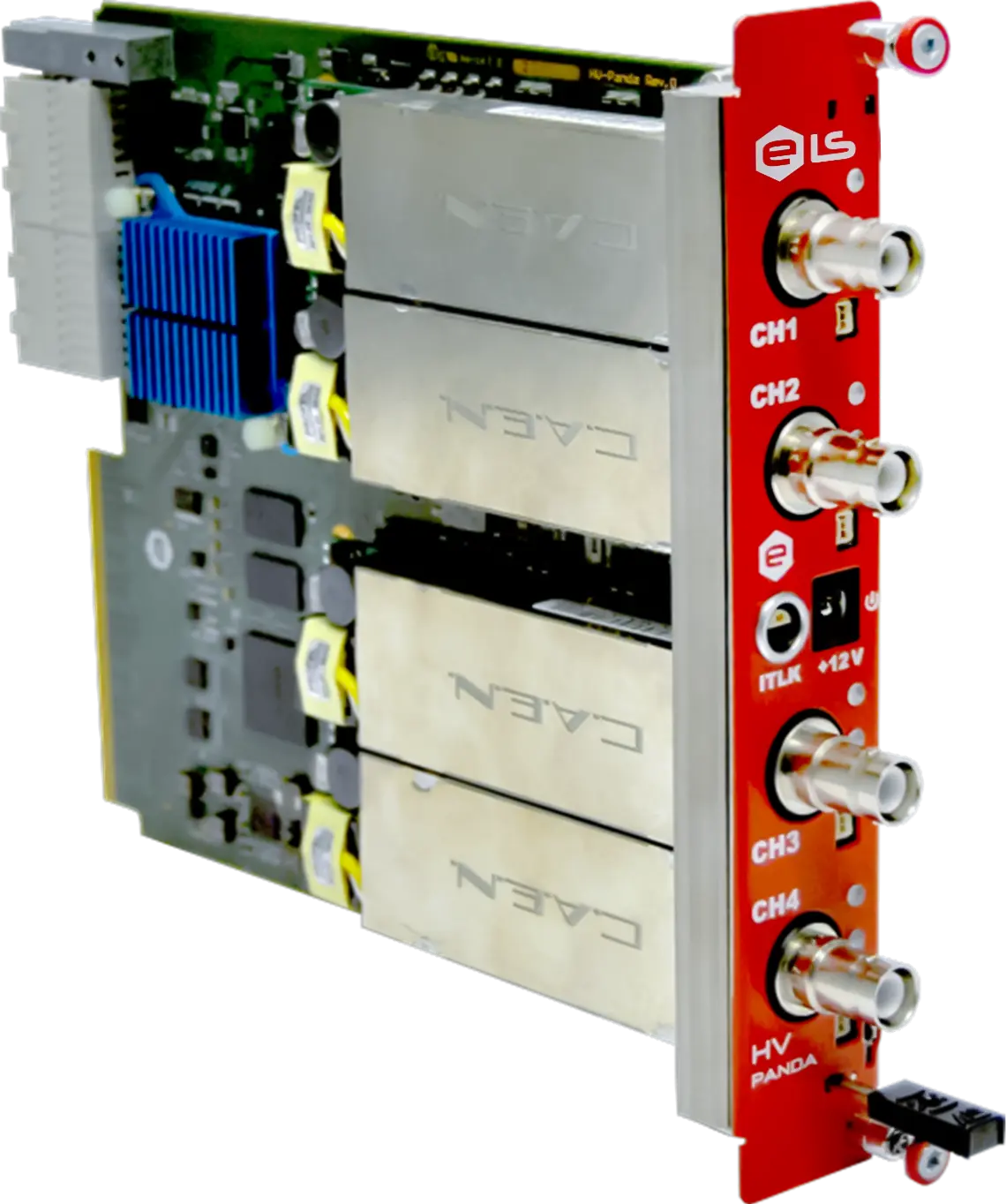

The HV-PANDA is a double-width Advanced Mezzanine Card (AMC) board designed as MTCA.4 carrier that houses four CAEN high-voltage channels rated at maximum 6 kV@1 mA (6 W).

The HV-PANDA reflects the AMC.0 R.2 with RTM extension to interface HV channels with the MTCA backplane. The front panel has independent interlocks for each channel and an additional power connector (12 V) to feed the requested power in application where high voltages and currents are needed simultaneously (within the rated values).

Semiconductor detectors, gaseous detectors and vacuum-photomultiplier are typical uses of such HV devices.

Each HV-PANDA AMC board carries four channels of HV and provides a common interlock possibility to switch the channels securely off.

HV-PANDA
Channels with different output ratings can be installed in the same AMC board.

The available options are HV channels rated at 6 kV @ 1 mA (6 W), 4 kV @ 3 mA (9 W) and at 500 V @ 1.5 W. Both polarities (positive and negative) can be factory configured for the boards.

An external connector placed on the front panel allows feeding additional power to the board to simultaneously draw the rated power on all channels.

HV-PANDA
Graphical User Interface and drivers available.

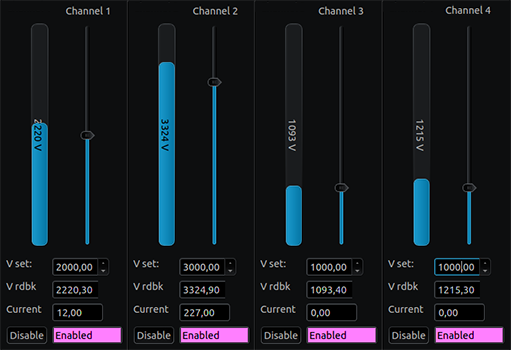

The HV-PANDA board is provided with drivers and a GUI that allows to easily control and monitor all channel parameters in a straightforward way.

Features

  • Double-width AMC board
  • MTCA.4 carrier
  • 4 High Voltage (HV) channels per board
  • Output Ratings up to 6 kV @ 1 mA
  • Floating return for each pair of HV channels (standard up to ±20 V)
  • Different output voltage ratings available
  • Polarity factory-selectable (Positive or Negative)
  • Interconnections between CPU unit and HV channels
  • FAT PIPE communication using PCI-e 1x standard
  • Infrastructure for management of Rear Transition Module (RTM) boards

Technical specifications

  • HVPANDA05NXA
  • HVPANDA05PXA
  • HVPANDA4KNXA
  • HVPANDA4KPXA
  • HVPANDA6KNXA
  • HVPANDA6KPXA

Model

HVPANDA05NXA

HVPANDA05PXA

HVPANDA4KNXA

HVPANDA4KPXA

HVPANDA6KNXA

HVPANDA6KPXA

AMC Board Type

PICMG - AMC.0 R.2

PICMG - AMC.0 R.2

PICMG - AMC.0 R.2

PICMG - AMC.0 R.2

PICMG - AMC.0 R.2

PICMG - AMC.0 R.2

Board Size

Full-Size

Full-Size

Full-Size

Full-Size

Full-Size

Full-Size

Number of HV Channels

4

4

4

4

4

4

Output Voltage Rating

-500 V @ 1.5 W

Output Voltage Rating

-500 V @ 1.5 W

500 V @ 1.5 W

-4 kV @ 9 W

4 kV @ 9 W

-6 kV @ 6 W

6 kV @ 6 W

Polarity

Positive or Negative (factory-selectable)

Positive or Negative (factory-selectable)

Positive or Negative (factory-selectable)

Positive or Negative (factory-selectable)

Positive or Negative (factory-selectable)

Positive or Negative (factory-selectable)

HV Return

Floating (per pair of channels)
±20V to PE

Floating (per pair of channels)
±20V to PE

Floating (per pair of channels)
±20V to PE

Floating (per pair of channels)
±20V to PE

Floating (per pair of channels)
±20V to PE

Floating (per pair of channels)
±20V to PE

RTM Support

Yes - Class D1.1

Yes - Class D1.1

Yes - Class D1.1

Yes - Class D1.1

Yes - Class D1.1

Yes - Class D1.1

Nominal Voltage Accuracy

< 0.05 %

< 0.05 %

< 0.05 %

< 0.05 %

< 0.05 %

< 0.05 %

Output Voltage Ripple @ max POUT

< 3 ppm pk-pk/FS (up to 4kV)
< 4 ppm pk-pk/FS (up to 6kV)

< 3 ppm pk-pk/FS (up to 4kV)
< 4 ppm pk-pk/FS (up to 6kV)

< 3 ppm pk-pk/FS (up to 4kV)
< 4 ppm pk-pk/FS (up to 6kV)

< 3 ppm pk-pk/FS (up to 4kV)
< 4 ppm pk-pk/FS (up to 6kV)

< 3 ppm pk-pk/FS (up to 4kV)
< 4 ppm pk-pk/FS (up to 6kV)

< 3 ppm pk-pk/FS (up to 4kV)
< 4 ppm pk-pk/FS (up to 6kV)

Voltage/Current Readback Accuracy

< 0.05 %

< 0.05 %

< 0.05 %

< 0.05 %

< 0.05 %

< 0.05 %

Voltage/Current Readback Resolution

0.01 %

0.01 %

0.01 %

0.01 %

0.01 %

0.01 %

Ramp Speed

from 1 to 500 V/s

from 1 to 500 V/s

from 1 to 500 V/s

from 1 to 500 V/s

from 1 to 500 V/s

from 1 to 500 V/s

Ramp Speed Step-size

1 V/s

1 V/s

1 V/s

1 V/s

1 V/s

1 V/s

Stand-by Voltage Set Resolution

1 % of FS

1 % of FS

1 % of FS

1 % of FS

1 % of FS

1 % of FS

Current Limit Value Accuracy

< 4 % of FS

< 4 % of FS

< 4 % of FS

< 4 % of FS

< 4 % of FS

< 4 % of FS

Output Current Threshold Behaviour

- switch-off
- current source mode

- switch-off
- current source mode

- switch-off
- current source mode

- switch-off
- current source mode

- switch-off
- current source mode

- switch-off
- current source mode

AMC Board Type

PICMG - AMC.0 R.2

PICMG - AMC.0 R.2

PICMG - AMC.0 R.2

PICMG - AMC.0 R.2

PICMG - AMC.0 R.2

PICMG - AMC.0 R.2

Board Size

Full-Size

Full-Size

Full-Size

Full-Size

Full-Size

Full-Size

Number of HV Channels

4

4

4

4

4

4

Output Voltage Rating

500 V @ 1.5 W

Output Voltage Rating

-500 V @ 1.5 W

500 V @ 1.5 W

-4 kV @ 9 W

4 kV @ 9 W

-6 kV @ 6 W

6 kV @ 6 W

Polarity

Positive or Negative (factory-selectable)

Positive or Negative (factory-selectable)

Positive or Negative (factory-selectable)

Positive or Negative (factory-selectable)

Positive or Negative (factory-selectable)

Positive or Negative (factory-selectable)

HV Return

Floating (per pair of channels)
±20V to PE

Floating (per pair of channels)
±20V to PE

Floating (per pair of channels)
±20V to PE

Floating (per pair of channels)
±20V to PE

Floating (per pair of channels)
±20V to PE

Floating (per pair of channels)
±20V to PE

RTM Support

Yes - Class D1.1

Yes - Class D1.1

Yes - Class D1.1

Yes - Class D1.1

Yes - Class D1.1

Yes - Class D1.1

Nominal Voltage Accuracy

< 0.05 %

< 0.05 %

< 0.05 %

< 0.05 %

< 0.05 %

< 0.05 %

Output Voltage Ripple @ max POUT

< 3 ppm pk-pk/FS (up to 4kV)
< 4 ppm pk-pk/FS (up to 6kV)

< 3 ppm pk-pk/FS (up to 4kV)
< 4 ppm pk-pk/FS (up to 6kV)

< 3 ppm pk-pk/FS (up to 4kV)
< 4 ppm pk-pk/FS (up to 6kV)

< 3 ppm pk-pk/FS (up to 4kV)
< 4 ppm pk-pk/FS (up to 6kV)

< 3 ppm pk-pk/FS (up to 4kV)
< 4 ppm pk-pk/FS (up to 6kV)

< 3 ppm pk-pk/FS (up to 4kV)
< 4 ppm pk-pk/FS (up to 6kV)

Voltage/Current Readback Accuracy

< 0.05 %

< 0.05 %

< 0.05 %

< 0.05 %

< 0.05 %

< 0.05 %

Voltage/Current Readback Resolution

0.01 %

0.01 %

0.01 %

0.01 %

0.01 %

0.01 %

Ramp Speed

from 1 to 500 V/s

from 1 to 500 V/s

from 1 to 500 V/s

from 1 to 500 V/s

from 1 to 500 V/s

from 1 to 500 V/s

Ramp Speed Step-size

1 V/s

1 V/s

1 V/s

1 V/s

1 V/s

1 V/s

Stand-by Voltage Set Resolution

1 % of FS

1 % of FS

1 % of FS

1 % of FS

1 % of FS

1 % of FS

Current Limit Value Accuracy

< 4 % of FS

< 4 % of FS

< 4 % of FS

< 4 % of FS

< 4 % of FS

< 4 % of FS

Output Current Threshold Behaviour

- switch-off
- current source mode

- switch-off
- current source mode

- switch-off
- current source mode

- switch-off
- current source mode

- switch-off
- current source mode

- switch-off
- current source mode

AMC Board Type

PICMG - AMC.0 R.2

PICMG - AMC.0 R.2

PICMG - AMC.0 R.2

PICMG - AMC.0 R.2

PICMG - AMC.0 R.2

PICMG - AMC.0 R.2

Board Size

Full-Size

Full-Size

Full-Size

Full-Size

Full-Size

Full-Size

Number of HV Channels

4

4

4

4

4

4

Output Voltage Rating

-4 kV @ 9 W

Output Voltage Rating

-500 V @ 1.5 W

500 V @ 1.5 W

-4 kV @ 9 W

4 kV @ 9 W

-6 kV @ 6 W

6 kV @ 6 W

Polarity

Positive or Negative (factory-selectable)

Positive or Negative (factory-selectable)

Positive or Negative (factory-selectable)

Positive or Negative (factory-selectable)

Positive or Negative (factory-selectable)

Positive or Negative (factory-selectable)

HV Return

Floating (per pair of channels)
±20V to PE

Floating (per pair of channels)
±20V to PE

Floating (per pair of channels)
±20V to PE

Floating (per pair of channels)
±20V to PE

Floating (per pair of channels)
±20V to PE

Floating (per pair of channels)
±20V to PE

RTM Support

Yes - Class D1.1

Yes - Class D1.1

Yes - Class D1.1

Yes - Class D1.1

Yes - Class D1.1

Yes - Class D1.1

Nominal Voltage Accuracy

< 0.05 %

< 0.05 %

< 0.05 %

< 0.05 %

< 0.05 %

< 0.05 %

Output Voltage Ripple @ max POUT

< 3 ppm pk-pk/FS (up to 4kV)
< 4 ppm pk-pk/FS (up to 6kV)

< 3 ppm pk-pk/FS (up to 4kV)
< 4 ppm pk-pk/FS (up to 6kV)

< 3 ppm pk-pk/FS (up to 4kV)
< 4 ppm pk-pk/FS (up to 6kV)

< 3 ppm pk-pk/FS (up to 4kV)
< 4 ppm pk-pk/FS (up to 6kV)

< 3 ppm pk-pk/FS (up to 4kV)
< 4 ppm pk-pk/FS (up to 6kV)

< 3 ppm pk-pk/FS (up to 4kV)
< 4 ppm pk-pk/FS (up to 6kV)

Voltage/Current Readback Accuracy

< 0.05 %

< 0.05 %

< 0.05 %

< 0.05 %

< 0.05 %

< 0.05 %

Voltage/Current Readback Resolution

0.01 %

0.01 %

0.01 %

0.01 %

0.01 %

0.01 %

Ramp Speed

from 1 to 500 V/s

from 1 to 500 V/s

from 1 to 500 V/s

from 1 to 500 V/s

from 1 to 500 V/s

from 1 to 500 V/s

Ramp Speed Step-size

1 V/s

1 V/s

1 V/s

1 V/s

1 V/s

1 V/s

Stand-by Voltage Set Resolution

1 % of FS

1 % of FS

1 % of FS

1 % of FS

1 % of FS

1 % of FS

Current Limit Value Accuracy

< 4 % of FS

< 4 % of FS

< 4 % of FS

< 4 % of FS

< 4 % of FS

< 4 % of FS

Output Current Threshold Behaviour

- switch-off
- current source mode

- switch-off
- current source mode

- switch-off
- current source mode

- switch-off
- current source mode

- switch-off
- current source mode

- switch-off
- current source mode

AMC Board Type

PICMG - AMC.0 R.2

PICMG - AMC.0 R.2

PICMG - AMC.0 R.2

PICMG - AMC.0 R.2

PICMG - AMC.0 R.2

PICMG - AMC.0 R.2

Board Size

Full-Size

Full-Size

Full-Size

Full-Size

Full-Size

Full-Size

Number of HV Channels

4

4

4

4

4

4

Output Voltage Rating

4 kV @ 9 W

Output Voltage Rating

-500 V @ 1.5 W

500 V @ 1.5 W

-4 kV @ 9 W

4 kV @ 9 W

-6 kV @ 6 W

6 kV @ 6 W

Polarity

Positive or Negative (factory-selectable)

Positive or Negative (factory-selectable)

Positive or Negative (factory-selectable)

Positive or Negative (factory-selectable)

Positive or Negative (factory-selectable)

Positive or Negative (factory-selectable)

HV Return

Floating (per pair of channels)
±20V to PE

Floating (per pair of channels)
±20V to PE

Floating (per pair of channels)
±20V to PE

Floating (per pair of channels)
±20V to PE

Floating (per pair of channels)
±20V to PE

Floating (per pair of channels)
±20V to PE

RTM Support

Yes - Class D1.1

Yes - Class D1.1

Yes - Class D1.1

Yes - Class D1.1

Yes - Class D1.1

Yes - Class D1.1

Nominal Voltage Accuracy

< 0.05 %

< 0.05 %

< 0.05 %

< 0.05 %

< 0.05 %

< 0.05 %

Output Voltage Ripple @ max POUT

< 3 ppm pk-pk/FS (up to 4kV)
< 4 ppm pk-pk/FS (up to 6kV)

< 3 ppm pk-pk/FS (up to 4kV)
< 4 ppm pk-pk/FS (up to 6kV)

< 3 ppm pk-pk/FS (up to 4kV)
< 4 ppm pk-pk/FS (up to 6kV)

< 3 ppm pk-pk/FS (up to 4kV)
< 4 ppm pk-pk/FS (up to 6kV)

< 3 ppm pk-pk/FS (up to 4kV)
< 4 ppm pk-pk/FS (up to 6kV)

< 3 ppm pk-pk/FS (up to 4kV)
< 4 ppm pk-pk/FS (up to 6kV)

Voltage/Current Readback Accuracy

< 0.05 %

< 0.05 %

< 0.05 %

< 0.05 %

< 0.05 %

< 0.05 %

Voltage/Current Readback Resolution

0.01 %

0.01 %

0.01 %

0.01 %

0.01 %

0.01 %

Ramp Speed

from 1 to 500 V/s

from 1 to 500 V/s

from 1 to 500 V/s

from 1 to 500 V/s

from 1 to 500 V/s

from 1 to 500 V/s

Ramp Speed Step-size

1 V/s

1 V/s

1 V/s

1 V/s

1 V/s

1 V/s

Stand-by Voltage Set Resolution

1 % of FS

1 % of FS

1 % of FS

1 % of FS

1 % of FS

1 % of FS

Current Limit Value Accuracy

< 4 % of FS

< 4 % of FS

< 4 % of FS

< 4 % of FS

< 4 % of FS

< 4 % of FS

Output Current Threshold Behaviour

- switch-off
- current source mode

- switch-off
- current source mode

- switch-off
- current source mode

- switch-off
- current source mode

- switch-off
- current source mode

- switch-off
- current source mode

AMC Board Type

PICMG - AMC.0 R.2

PICMG - AMC.0 R.2

PICMG - AMC.0 R.2

PICMG - AMC.0 R.2

PICMG - AMC.0 R.2

PICMG - AMC.0 R.2

Board Size

Full-Size

Full-Size

Full-Size

Full-Size

Full-Size

Full-Size

Number of HV Channels

4

4

4

4

4

4

Output Voltage Rating

-6 kV @ 6 W

Output Voltage Rating

-500 V @ 1.5 W

500 V @ 1.5 W

-4 kV @ 9 W

4 kV @ 9 W

-6 kV @ 6 W

6 kV @ 6 W

Polarity

Positive or Negative (factory-selectable)

Positive or Negative (factory-selectable)

Positive or Negative (factory-selectable)

Positive or Negative (factory-selectable)

Positive or Negative (factory-selectable)

Positive or Negative (factory-selectable)

HV Return

Floating (per pair of channels)
±20V to PE

Floating (per pair of channels)
±20V to PE

Floating (per pair of channels)
±20V to PE

Floating (per pair of channels)
±20V to PE

Floating (per pair of channels)
±20V to PE

Floating (per pair of channels)
±20V to PE

RTM Support

Yes - Class D1.1

Yes - Class D1.1

Yes - Class D1.1

Yes - Class D1.1

Yes - Class D1.1

Yes - Class D1.1

Nominal Voltage Accuracy

< 0.05 %

< 0.05 %

< 0.05 %

< 0.05 %

< 0.05 %

< 0.05 %

Output Voltage Ripple @ max POUT

< 3 ppm pk-pk/FS (up to 4kV)
< 4 ppm pk-pk/FS (up to 6kV)

< 3 ppm pk-pk/FS (up to 4kV)
< 4 ppm pk-pk/FS (up to 6kV)

< 3 ppm pk-pk/FS (up to 4kV)
< 4 ppm pk-pk/FS (up to 6kV)

< 3 ppm pk-pk/FS (up to 4kV)
< 4 ppm pk-pk/FS (up to 6kV)

< 3 ppm pk-pk/FS (up to 4kV)
< 4 ppm pk-pk/FS (up to 6kV)

< 3 ppm pk-pk/FS (up to 4kV)
< 4 ppm pk-pk/FS (up to 6kV)

Voltage/Current Readback Accuracy

< 0.05 %

< 0.05 %

< 0.05 %

< 0.05 %

< 0.05 %

< 0.05 %

Voltage/Current Readback Resolution

0.01 %

0.01 %

0.01 %

0.01 %

0.01 %

0.01 %

Ramp Speed

from 1 to 500 V/s

from 1 to 500 V/s

from 1 to 500 V/s

from 1 to 500 V/s

from 1 to 500 V/s

from 1 to 500 V/s

Ramp Speed Step-size

1 V/s

1 V/s

1 V/s

1 V/s

1 V/s

1 V/s

Stand-by Voltage Set Resolution

1 % of FS

1 % of FS

1 % of FS

1 % of FS

1 % of FS

1 % of FS

Current Limit Value Accuracy

< 4 % of FS

< 4 % of FS

< 4 % of FS

< 4 % of FS

< 4 % of FS

< 4 % of FS

Output Current Threshold Behaviour

- switch-off
- current source mode

- switch-off
- current source mode

- switch-off
- current source mode

- switch-off
- current source mode

- switch-off
- current source mode

- switch-off
- current source mode

AMC Board Type

PICMG - AMC.0 R.2

PICMG - AMC.0 R.2

PICMG - AMC.0 R.2

PICMG - AMC.0 R.2

PICMG - AMC.0 R.2

PICMG - AMC.0 R.2

Board Size

Full-Size

Full-Size

Full-Size

Full-Size

Full-Size

Full-Size

Number of HV Channels

4

4

4

4

4

4

Output Voltage Rating

6 kV @ 6 W

Output Voltage Rating

-500 V @ 1.5 W

500 V @ 1.5 W

-4 kV @ 9 W

4 kV @ 9 W

-6 kV @ 6 W

6 kV @ 6 W

Polarity

Positive or Negative (factory-selectable)

Positive or Negative (factory-selectable)

Positive or Negative (factory-selectable)

Positive or Negative (factory-selectable)

Positive or Negative (factory-selectable)

Positive or Negative (factory-selectable)

HV Return

Floating (per pair of channels)
±20V to PE

Floating (per pair of channels)
±20V to PE

Floating (per pair of channels)
±20V to PE

Floating (per pair of channels)
±20V to PE

Floating (per pair of channels)
±20V to PE

Floating (per pair of channels)
±20V to PE

RTM Support

Yes - Class D1.1

Yes - Class D1.1

Yes - Class D1.1

Yes - Class D1.1

Yes - Class D1.1

Yes - Class D1.1

Nominal Voltage Accuracy

< 0.05 %

< 0.05 %

< 0.05 %

< 0.05 %

< 0.05 %

< 0.05 %

Output Voltage Ripple @ max POUT

< 3 ppm pk-pk/FS (up to 4kV)
< 4 ppm pk-pk/FS (up to 6kV)

< 3 ppm pk-pk/FS (up to 4kV)
< 4 ppm pk-pk/FS (up to 6kV)

< 3 ppm pk-pk/FS (up to 4kV)
< 4 ppm pk-pk/FS (up to 6kV)

< 3 ppm pk-pk/FS (up to 4kV)
< 4 ppm pk-pk/FS (up to 6kV)

< 3 ppm pk-pk/FS (up to 4kV)
< 4 ppm pk-pk/FS (up to 6kV)

< 3 ppm pk-pk/FS (up to 4kV)
< 4 ppm pk-pk/FS (up to 6kV)

Voltage/Current Readback Accuracy

< 0.05 %

< 0.05 %

< 0.05 %

< 0.05 %

< 0.05 %

< 0.05 %

Voltage/Current Readback Resolution

0.01 %

0.01 %

0.01 %

0.01 %

0.01 %

0.01 %

Ramp Speed

from 1 to 500 V/s

from 1 to 500 V/s

from 1 to 500 V/s

from 1 to 500 V/s

from 1 to 500 V/s

from 1 to 500 V/s

Ramp Speed Step-size

1 V/s

1 V/s

1 V/s

1 V/s

1 V/s

1 V/s

Stand-by Voltage Set Resolution

1 % of FS

1 % of FS

1 % of FS

1 % of FS

1 % of FS

1 % of FS

Current Limit Value Accuracy

< 4 % of FS

< 4 % of FS

< 4 % of FS

< 4 % of FS

< 4 % of FS

< 4 % of FS

Output Current Threshold Behaviour

- switch-off
- current source mode

- switch-off
- current source mode

- switch-off
- current source mode

- switch-off
- current source mode

- switch-off
- current source mode

- switch-off
- current source mode

Ordering options

Ordering code

Description

Action

HVPANDA05NXA

HV-PANDA – 4-channel HV Full-size AMC Board (-500 V @ 1.5 W channel) – Negative polarity

Quote

HVPANDA05PXA

HV-PANDA – 4-channel HV Full-size AMC Board (500 V @ 1.5 W channel) – Positive polarity

Quote

HVPANDA4KNXA

HV-PANDA – 4-channel HV Full-size AMC Board (-4 kV @ 9 W channel) – Negative polarity

Quote

HVPANDA4KPXA

HV-PANDA – 4-channel HV Full-size AMC Board (4 kV @ 9 W channel) – Positive polarity

Quote

HVPANDA6KNXA

HV-PANDA – 4-channel HV Full-size AMC Board (-6 kV @ 6 W channel) – Negative polarity

Quote

HVPANDA6KPXA

HV-PANDA – 4-channel HV Full-size AMC Board (6 kV @ 6 W channel) – Positive polarity

Quote

Documentation

HV-PANDA - User's Manual [PDF]

Last reviewed: 2024-08-29 ⓘ More infoRevision: 2

HV-PANDA - Product Presentation [PDF]

Last reviewed: 2023-02-03 ⓘ More infoRevision: 2.0

Software/Firmware

Updated: 2023-01-24 - 255.26 kB ⓘ More info Version: 1.0.05
OS: Linux

Copyright CAEN ELS s.r.l.
