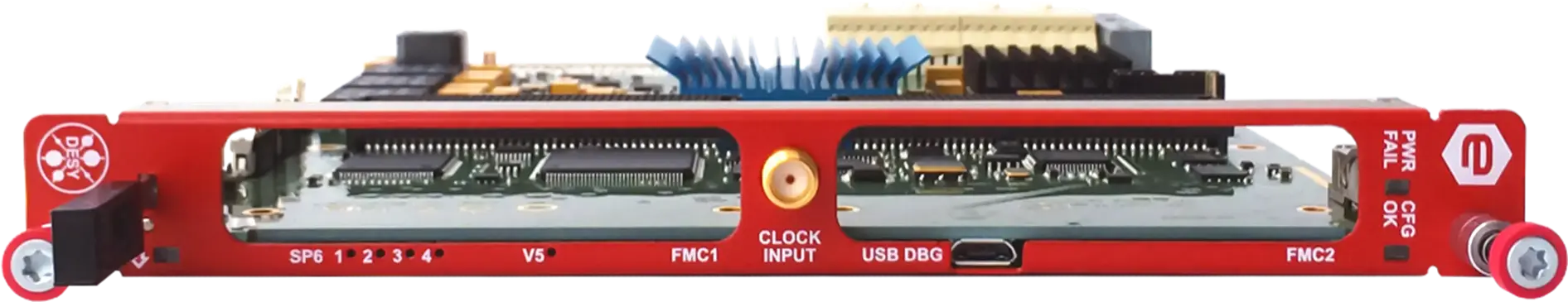

Dual High Pin Count FMC carrier in AMC MTCA.4 format equipped with a Virtex-5 FPGA
The DAMC-FMC25 is a general purpose carrier board with the ability to host two FPGA Mezzanine Cards (FMC) with High Pin Count (HPC) connectors. The AMC board is designed as a double-width mid-size MTCA.4 carrier.
A Virtex-5 FPGA allows to perform high demanding computations with a high data throughput between FMCs, uRTM and PCI express on the MTCA backplane. Standard version of the board mounts a Virtex-5 XC5VFX70T (1136-pin) and a Spartan XC6SLX45T (484-pin) FPGAs provided respectively with 256 MB and 128 MB DDR2 memories.
The local DDR2 memories can be used in order to store data that cannot or does not need to be sent via PCI-e during acquisition.
The module management is performed by an ATxmega128A1_AU controller directly interfaced to the AMC backplane with an I2C bus connection.
The DAMC-FMC25 board mount “-2” speed grade Virtex-5 (@ 6.5 Gbps).
Fast links to both FMC slots – i.e. 77 differential pairs and 2 GTX @ 6.5 Gbps on each one – allow to install high performance and high density FPGA Mezzanine Cards – e.g. fast and/or high resolution digitizers or fast links.
Fast links are also dedicated to the MTCA.4 standard use of the board with 42 differential pairs and 2 GTX @ 6.5 Gbps to the uRTM Zone-3 connector.
AMC backplane connections available are Low-Latency Links (4 lanes), PCI-e 1.0 (4 lanes) and MLVDS (4 lanes).
Model
DAMCFMC252XA
DAMCFMC25C1A
Board Size
Double-Width - Mid-Size
Double-Width - Mid-Size
Standard
MicroTCA.4: AMC.0, AMC.1
Module Management: IPMI Version 1.5, MMC V1.0
MicroTCA.4: AMC.0, AMC.1
Module Management: IPMI Version 1.5, MMC V1.0
Compatibility
Zone3 Classification: Class D1.1
AMC Backplane Support: Full
Zone3 Classification: Class D1.1
AMC Backplane Support: Full
FMC Carrier
2 High Pin Count (HPC) - VITA 57.1
2 High Pin Count (HPC) - VITA 57.1
FPGAs
Xilinx Virtex-5: XC5VFX70T-2FFG1136C
Xilinx Spartan-6: XC6SLX45T-3FGG484
FPGAs
Xilinx Virtex-5: XC5VFX70T-2FFG1136C
Xilinx Spartan-6: XC6SLX45T-3FGG484
Xilinx Virtex-5: XC5VFX100T-2FF1136C
Xilinx Spartan-6: XC6SLX45T-3FGG484
RAM Memories
256MB DDR2 for Virtex-5
128MB DDR2 for Spartan-6
256MB DDR2 for Virtex-5
128MB DDR2 for Spartan-6
Storage
Virtex-5 Firmware: 2 x SPI Flash
Spartan-6 Firmware: 2 x SPI Flash
Identification Data: 1 x I2C EEPROM
Mass Storage: 1 x MicroSD Card Slot
Virtex-5 Firmware: 2 x SPI Flash
Spartan-6 Firmware: 2 x SPI Flash
Identification Data: 1 x I2C EEPROM
Mass Storage: 1 x MicroSD Card Slot
MMC Device
ATxmega128A1-AU
ATxmega128A1-AU
FMC Connections
FMC1: 77 diff. pairs, 2 GTX (@ 6.5 Gbps)
FMC2: 77 diff. pairs, 2 GTX (@ 6.5 Gbps)
FMC1: 77 diff. pairs, 2 GTX (@ 6.5 Gbps)
FMC2: 77 diff. pairs, 2 GTX (@ 6.5 Gbps)
RTM Connections
42 diff. pairs, 2 GTX (@ 6.5 Gbps)
42 diff. pairs, 2 GTX (@ 6.5 Gbps)
Clocks
External Input (SMA connector)
FMC1, FMC2
RTM
AMC (TCLKA, TCKLB)
On-board generator (10-280 MHz)
External Input (SMA connector)
FMC1, FMC2
RTM
AMC (TCLKA, TCKLB)
On-board generator (10-280 MHz)
Backplane Links
Low Latency Links: 4 lanes, AMC ports 12-15, 6.5 Gbps
PCI-e: 4 lanes, AMC ports 4-7, PCIe gen. 2*
MLVDS: 4 lanes, AMC ports 17-20
Low Latency Links: 4 lanes, AMC ports 12-15, 6.5 Gbps
PCI-e: 4 lanes, AMC ports 4-7, PCIe gen. 2*
MLVDS: 4 lanes, AMC ports 17-20
Front Panel
2 x HPC
1 x SMA, single-ended, 50 ohm, AC
Micro USB (FPGA and MMC) for Debug
2 x HPC
1 x SMA, single-ended, 50 ohm, AC
Micro USB (FPGA and MMC) for Debug
Other Features
2 on-board temperature sensors
Standard LEDs managed by IPMI
4 user-configurable LEDs
2 on-board temperature sensors
Standard LEDs managed by IPMI
4 user-configurable LEDs
Operating Temperature
0...50°C
0...50°C
Board Size
Double-Width - Mid-Size
Double-Width - Mid-Size
Standard
MicroTCA.4: AMC.0, AMC.1
Module Management: IPMI Version 1.5, MMC V1.0
MicroTCA.4: AMC.0, AMC.1
Module Management: IPMI Version 1.5, MMC V1.0
Compatibility
Zone3 Classification: Class D1.1
AMC Backplane Support: Full
Zone3 Classification: Class D1.1
AMC Backplane Support: Full
FMC Carrier
2 High Pin Count (HPC) - VITA 57.1
2 High Pin Count (HPC) - VITA 57.1
FPGAs
Xilinx Virtex-5: XC5VFX100T-2FF1136C
Xilinx Spartan-6: XC6SLX45T-3FGG484
FPGAs
Xilinx Virtex-5: XC5VFX70T-2FFG1136C
Xilinx Spartan-6: XC6SLX45T-3FGG484
Xilinx Virtex-5: XC5VFX100T-2FF1136C
Xilinx Spartan-6: XC6SLX45T-3FGG484
RAM Memories
256MB DDR2 for Virtex-5
128MB DDR2 for Spartan-6
256MB DDR2 for Virtex-5
128MB DDR2 for Spartan-6
Storage
Virtex-5 Firmware: 2 x SPI Flash
Spartan-6 Firmware: 2 x SPI Flash
Identification Data: 1 x I2C EEPROM
Mass Storage: 1 x MicroSD Card Slot
Virtex-5 Firmware: 2 x SPI Flash
Spartan-6 Firmware: 2 x SPI Flash
Identification Data: 1 x I2C EEPROM
Mass Storage: 1 x MicroSD Card Slot
MMC Device
ATxmega128A1-AU
ATxmega128A1-AU
FMC Connections
FMC1: 77 diff. pairs, 2 GTX (@ 6.5 Gbps)
FMC2: 77 diff. pairs, 2 GTX (@ 6.5 Gbps)
FMC1: 77 diff. pairs, 2 GTX (@ 6.5 Gbps)
FMC2: 77 diff. pairs, 2 GTX (@ 6.5 Gbps)
RTM Connections
42 diff. pairs, 2 GTX (@ 6.5 Gbps)
42 diff. pairs, 2 GTX (@ 6.5 Gbps)
Clocks
External Input (SMA connector)
FMC1, FMC2
RTM
AMC (TCLKA, TCKLB)
On-board generator (10-280 MHz)
External Input (SMA connector)
FMC1, FMC2
RTM
AMC (TCLKA, TCKLB)
On-board generator (10-280 MHz)
Backplane Links
Low Latency Links: 4 lanes, AMC ports 12-15, 6.5 Gbps
PCI-e: 4 lanes, AMC ports 4-7, PCIe gen. 2*
MLVDS: 4 lanes, AMC ports 17-20
Low Latency Links: 4 lanes, AMC ports 12-15, 6.5 Gbps
PCI-e: 4 lanes, AMC ports 4-7, PCIe gen. 2*
MLVDS: 4 lanes, AMC ports 17-20
Front Panel
2 x HPC
1 x SMA, single-ended, 50 ohm, AC
Micro USB (FPGA and MMC) for Debug
2 x HPC
1 x SMA, single-ended, 50 ohm, AC
Micro USB (FPGA and MMC) for Debug
Other Features
2 on-board temperature sensors
Standard LEDs managed by IPMI
4 user-configurable LEDs
2 on-board temperature sensors
Standard LEDs managed by IPMI
4 user-configurable LEDs
Operating Temperature
0...50°C
0...50°C
Last reviewed: 2023-02-03 ⓘ More infoRevision: 2.0
Last reviewed: 2023-02-03 ⓘ More infoRevision: 1.0
No firmware or software available.
