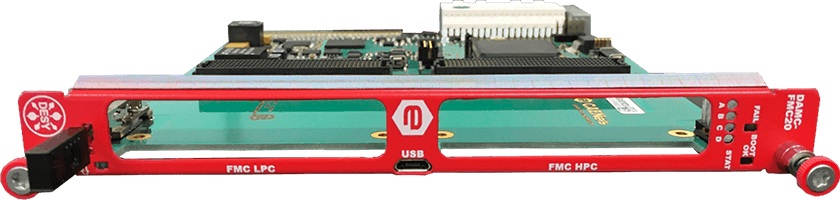

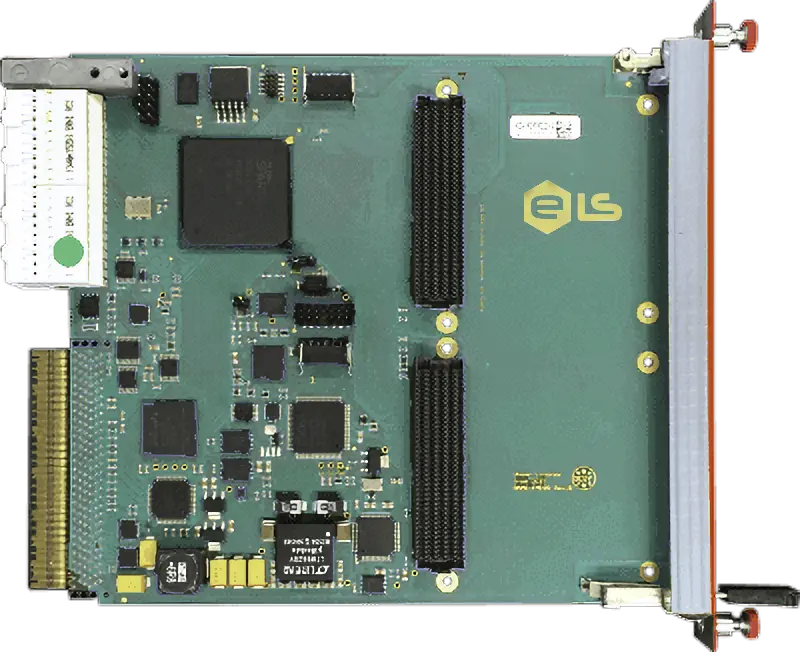

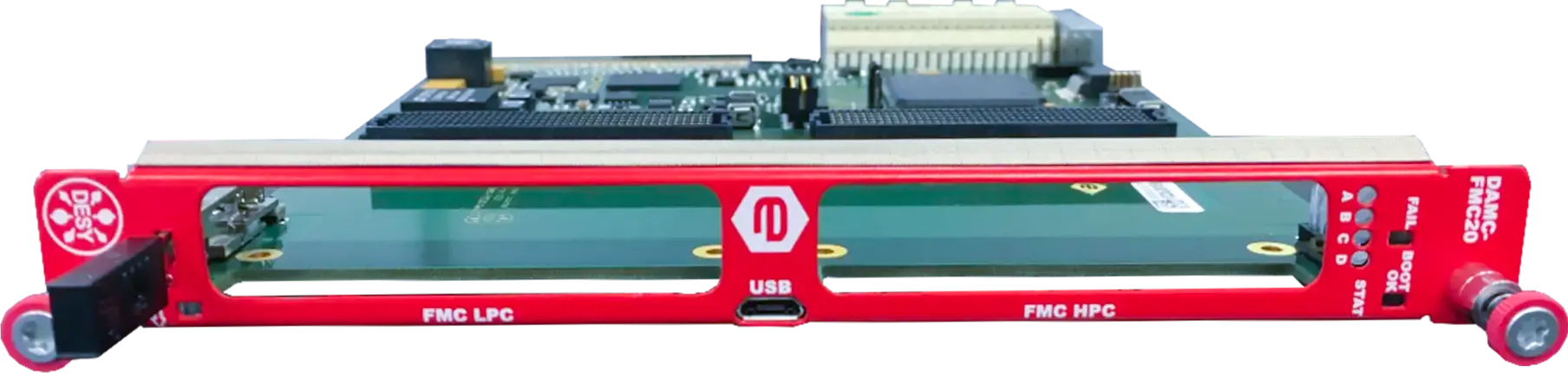

The DAMC-FMC20 is a cost-efficient FPGA mezzanine card (FMC) carrier designed according to MTCA.4 standard. The board is equipped with two Spartan-6 FPGAs, and the carrier management is compliant to the latest recommendation MMC V1.0.
The carrier Zone 3 is compliant to the class D1.0.
The carrier simultaneously supports one Low Pin Count (LPC) and one High Pin Count (HPC) FMC module. One FPGA allows serial high-speed communication (PCIe, RTM, Backplane, FMCs). The other FPGA allows implementing large signal processing algorithms.
The carrier supports one serial link (GTP) for each FMC module and in addition an extra 12V power connector for high current FMC applications. It provides one PCIe link that is AMC.1 type1 compliant.
The carrier is software-reconfigurable over PCIe and MMC. The AMC ports 12-15 are connected via cross-point switch to the FPGA.
Model
DAMCFMC20XAA
Board Size
Double-Width - Mid-Size
Width: 148.5 mm
Depth: 180.6 mm
Standard
MicroTCA.4: AMC.0, AMC.1
Module Management: IPMI Version 2.0, MMC V1.0 compatible
Compatibility
Zone3 Classification: Class D1.0
Power Consumption
< 50 W
FMC Slots
1 slot HPC, 1 slot LPC
Debug Interface
3-channel, both FPGAs and MMC
Micro USB
3 Mbps
Backplane
Low latency connections on backplane: 2 channels
Data throughput: 2.7 or 3.2 Gbps (depending on FPGA)
BER: < 10-14 bit-1
PCIe: 1 lane gen. 2.0
Data throughput: 2.5 Gbps
BER: < 10-14 bit-1
Zone 3
RTM: 53 differential pairs
LVDS
BER: < 10-14 bit-1
Operating Temperature
0 ... 45 °C
Weight
220 g
Ordering code
Description
Action
