Current Transducer BOX - Digital Current Measuring System

Turnkey desktop and rack-mount system designed to measure and calibrate with high accuracy and high precision DC and AC currents up to ±1.000 A



See accessories


  • Overview
  • Features
  • Technical specifications
  • Ordering options
  • Documentation
  • Software/Firmware

Overview

CT-BOX
Stand-alone system designed to measure with high accuracy and high precision DC and AC currents.

The CT-BOX system is developed to be used with the 0-FLUCS current-output DCCTs allowing measurements of currents up to kA.

The system integrates a burden resistor and a conditioning network feeding a 24-bit temperature stabilized ADC in order to have less than 1 ppm/K temperature dependence. The digital section interfaced to the ADC performs a calibrated measurement in order to eliminate the non-ideal behavior thus providing a 0.01 % Full-scale current value accuracy (optional to 0.005 %). The ADC sampling frequency can be configured up to 100 kHz allowing thus to acquire high frequency components and fast current transients.

Current readings can be triggered in different modes:
– by an external LVTTL or TTL signal (HARD trigger);
– by a remote command sent to the digital interface (SOFT trigger);
– internally, setting the sampling period and the acquisition window (MIXED trigger).

The time-stamp, the current readings and the external temperature values are stored in a microSD Flash memory allowing long-term acquisitions.

CT-BOX
Ideal for EV, battery testing, automotive, current calibration and AC mains monitoring.

The performance of the CT-BOX makes it the perfect choice for the following fields of application:

  • battery testing and characterization (EV);
  • calibration setups;
  • industrial and automotive test stands;
  • precise AC mains monitoring.

The microSD memory can be either read via Ethernet, USB or RS-232 interfaces or removed from the system and transferred to other devices in order to download its content.

A temperature probe can be plugged on the back of the the system if needed in order to also read and store external temperature values.

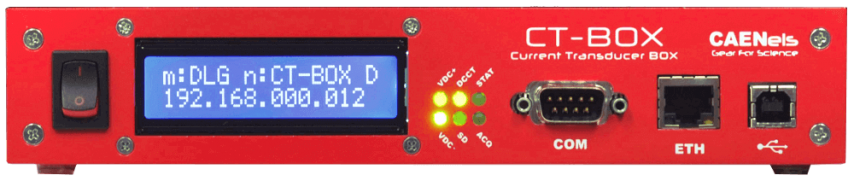

A local display showing current and readings as well as other settings is present. A configurable alarm output can be used to signal to an external device if a pre-set current threshold has been exceeded.An integrated Auto-Zero function allows to compensate for measurement setup offset currents.

The unit integrates a low-noise AC/DC dual power supply, rated at ±15 V, to connect the CT-BOX directly to the AC mains. This integrated power source directly supplies the active current transducer with the needed precision (< 0.001 % on a 100-kHz bandwidth).

CT-BOX

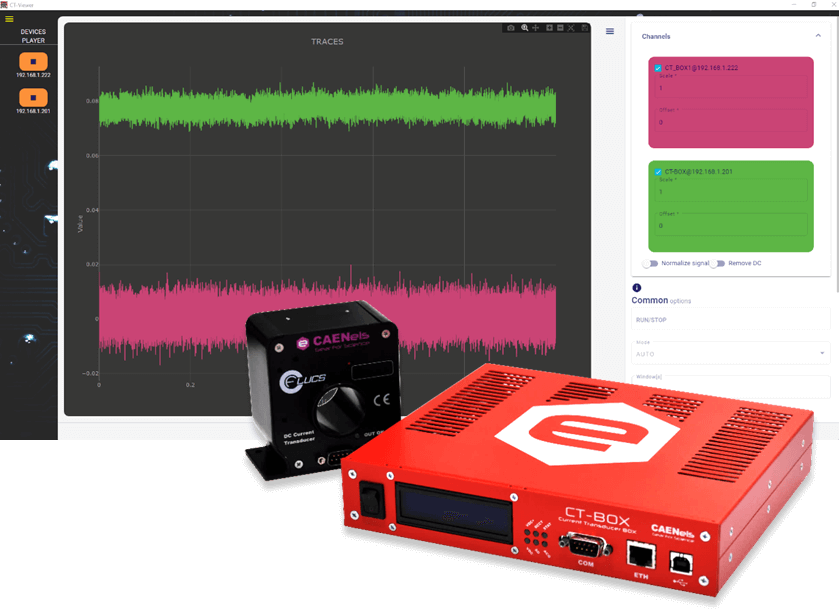

CT-BOX VIEWER software application: monitoring made easy with a single environment!

The CT-BOX VIEWER free software application allows controlling several CT-BOX units (also of different type) at the same time, acquiring and plotting current and temperature readings using Ethernet, RS-232 or USB interface.

The CT-BOX VIEWER represents the perfect tool to quickly analyze real-time data or to save acquisition information and post-process them in different off-line environments (e.g. Matlab, Excel, etc.).

Features

  • Digital Output Interface: Ethernet, USB, Serial
  • < 1 ppm/K Temperature Coefficient
  • < 0.01 % Full-Scale Accuracy (< 0.005 % optional)
  • Recorder of Measurements into SD-Flash Memory (4 GB included)
  • 7½ Digits
  • Trigger Input / Output and Alarm Output
  • Analog Voltage Monitor
  • Local Display for Current and Temperature Readings

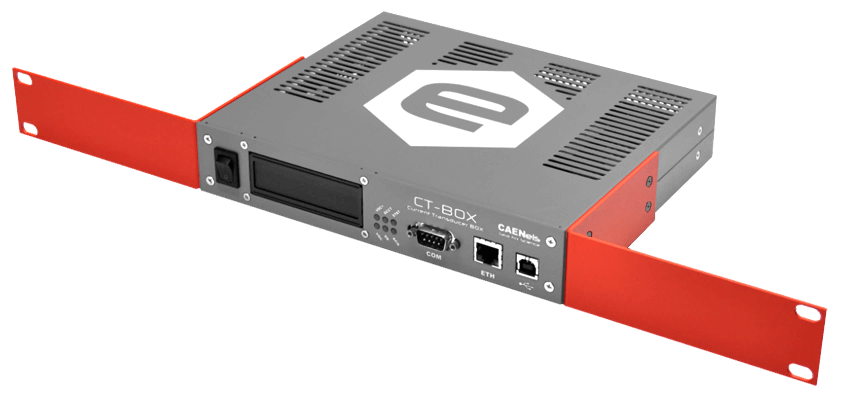

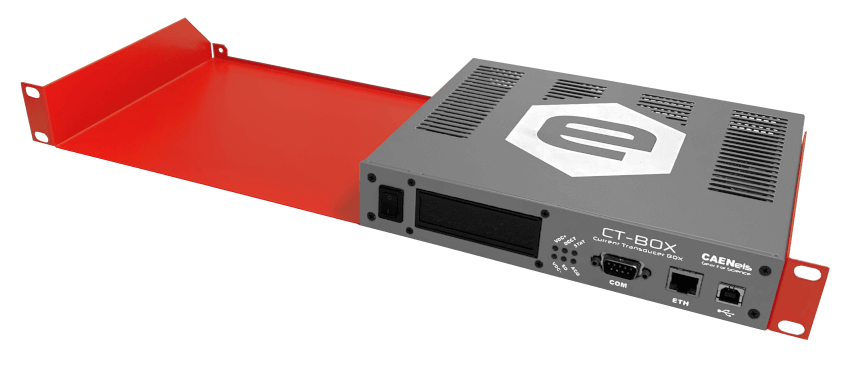

  • Desktop or Rack Mounting 1U (two systems in 19")
  • Auto-zero integrated function
  • Integrated Fan-less AC/DC Power Supply
  • CT-Viewer - Dedicated Software Application

Technical specifications

  • WCTBOX1000XA
  • WCTBOX100XAA
  • WCTBOX150XAA
  • WCTBOX200XAA
  • WCTBOX300XAA
  • WCTBOX400XAA
  • WCTBOX600XAA

Model

WCTBOX1000XA

WCTBOX100XAA

WCTBOX150XAA

WCTBOX200XAA

WCTBOX300XAA

WCTBOX400XAA

WCTBOX600XAA

Measuring Current Range

±1000 A

Measuring Current Range

±1000 A

±100 A

±150 A

±200 A

±300 A

±400 A

±600 A

Current Resolution

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

Current Accuracy

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Sampling Frequency

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

Thermal Coefficient

< 1 ppm/K

< 1 ppm/K

< 1 ppm/K

< 1 ppm/K

< 1 ppm/K

< 1 ppm/K

< 1 ppm/K

Local Current Display

7 ½ digits

7 ½ digits

7 ½ digits

7 ½ digits

7 ½ digits

7 ½ digits

7 ½ digits

Number of Memory Readings

depending on microSD card capacity

depending on microSD card capacity

depending on microSD card capacity

depending on microSD card capacity

depending on microSD card capacity

depending on microSD card capacity

depending on microSD card capacity

LED Indicators

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Digital Interface

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Analog Monitor

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

Triggering Modes

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

Trigger Output

TTL 5 V

TTL 5 V

TTL 5 V

TTL 5 V

TTL 5 V

TTL 5 V

TTL 5 V

Alarm Output

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

Dimensions (L x W x H)

180 x 220 x 41 mm

180 x 220 x 41 mm

180 x 220 x 41 mm

180 x 220 x 41 mm

180 x 220 x 41 mm

180 x 220 x 41 mm

180 x 220 x 41 mm

Ambient Temperature Operation

0 - 40 °C

0 - 40 °C

0 - 40 °C

0 - 40 °C

0 - 40 °C

0 - 40 °C

0 - 40 °C

AC Line Input

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

Maximum Power Consumption

25 W

25 W

25 W

25 W

25 W

25 W

25 W

Measuring Current Range

±100 A

Measuring Current Range

±1000 A

±100 A

±150 A

±200 A

±300 A

±400 A

±600 A

Current Resolution

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

Current Accuracy

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Sampling Frequency

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

Thermal Coefficient

< 1 ppm/K

< 1 ppm/K

< 1 ppm/K

< 1 ppm/K

< 1 ppm/K

< 1 ppm/K

< 1 ppm/K

Local Current Display

7 ½ digits

7 ½ digits

7 ½ digits

7 ½ digits

7 ½ digits

7 ½ digits

7 ½ digits

Number of Memory Readings

depending on microSD card capacity

depending on microSD card capacity

depending on microSD card capacity

depending on microSD card capacity

depending on microSD card capacity

depending on microSD card capacity

depending on microSD card capacity

LED Indicators

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Digital Interface

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Analog Monitor

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

Triggering Modes

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

Trigger Output

TTL 5 V

TTL 5 V

TTL 5 V

TTL 5 V

TTL 5 V

TTL 5 V

TTL 5 V

Alarm Output

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

Dimensions (L x W x H)

180 x 220 x 41 mm

180 x 220 x 41 mm

180 x 220 x 41 mm

180 x 220 x 41 mm

180 x 220 x 41 mm

180 x 220 x 41 mm

180 x 220 x 41 mm

Ambient Temperature Operation

0 - 40 °C

0 - 40 °C

0 - 40 °C

0 - 40 °C

0 - 40 °C

0 - 40 °C

0 - 40 °C

AC Line Input

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

Maximum Power Consumption

25 W

25 W

25 W

25 W

25 W

25 W

25 W

Measuring Current Range

±150 A

Measuring Current Range

±1000 A

±100 A

±150 A

±200 A

±300 A

±400 A

±600 A

Current Resolution

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

Current Accuracy

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Sampling Frequency

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

Thermal Coefficient

< 1 ppm/K

< 1 ppm/K

< 1 ppm/K

< 1 ppm/K

< 1 ppm/K

< 1 ppm/K

< 1 ppm/K

Local Current Display

7 ½ digits

7 ½ digits

7 ½ digits

7 ½ digits

7 ½ digits

7 ½ digits

7 ½ digits

Number of Memory Readings

depending on microSD card capacity

depending on microSD card capacity

depending on microSD card capacity

depending on microSD card capacity

depending on microSD card capacity

depending on microSD card capacity

depending on microSD card capacity

LED Indicators

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Digital Interface

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Analog Monitor

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

Triggering Modes

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

Trigger Output

TTL 5 V

TTL 5 V

TTL 5 V

TTL 5 V

TTL 5 V

TTL 5 V

TTL 5 V

Alarm Output

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

Dimensions (L x W x H)

180 x 220 x 41 mm

180 x 220 x 41 mm

180 x 220 x 41 mm

180 x 220 x 41 mm

180 x 220 x 41 mm

180 x 220 x 41 mm

180 x 220 x 41 mm

Ambient Temperature Operation

0 - 40 °C

0 - 40 °C

0 - 40 °C

0 - 40 °C

0 - 40 °C

0 - 40 °C

0 - 40 °C

AC Line Input

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

Maximum Power Consumption

25 W

25 W

25 W

25 W

25 W

25 W

25 W

Measuring Current Range

±200 A

Measuring Current Range

±1000 A

±100 A

±150 A

±200 A

±300 A

±400 A

±600 A

Current Resolution

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

Current Accuracy

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Sampling Frequency

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

Thermal Coefficient

< 1 ppm/K

< 1 ppm/K

< 1 ppm/K

< 1 ppm/K

< 1 ppm/K

< 1 ppm/K

< 1 ppm/K

Local Current Display

7 ½ digits

7 ½ digits

7 ½ digits

7 ½ digits

7 ½ digits

7 ½ digits

7 ½ digits

Number of Memory Readings

depending on microSD card capacity

depending on microSD card capacity

depending on microSD card capacity

depending on microSD card capacity

depending on microSD card capacity

depending on microSD card capacity

depending on microSD card capacity

LED Indicators

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Digital Interface

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Analog Monitor

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

Triggering Modes

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

Trigger Output

TTL 5 V

TTL 5 V

TTL 5 V

TTL 5 V

TTL 5 V

TTL 5 V

TTL 5 V

Alarm Output

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

Dimensions (L x W x H)

180 x 220 x 41 mm

180 x 220 x 41 mm

180 x 220 x 41 mm

180 x 220 x 41 mm

180 x 220 x 41 mm

180 x 220 x 41 mm

180 x 220 x 41 mm

Ambient Temperature Operation

0 - 40 °C

0 - 40 °C

0 - 40 °C

0 - 40 °C

0 - 40 °C

0 - 40 °C

0 - 40 °C

AC Line Input

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

Maximum Power Consumption

25 W

25 W

25 W

25 W

25 W

25 W

25 W

Measuring Current Range

±300 A

Measuring Current Range

±1000 A

±100 A

±150 A

±200 A

±300 A

±400 A

±600 A

Current Resolution

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

Current Accuracy

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Sampling Frequency

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

Thermal Coefficient

< 1 ppm/K

< 1 ppm/K

< 1 ppm/K

< 1 ppm/K

< 1 ppm/K

< 1 ppm/K

< 1 ppm/K

Local Current Display

7 ½ digits

7 ½ digits

7 ½ digits

7 ½ digits

7 ½ digits

7 ½ digits

7 ½ digits

Number of Memory Readings

depending on microSD card capacity

depending on microSD card capacity

depending on microSD card capacity

depending on microSD card capacity

depending on microSD card capacity

depending on microSD card capacity

depending on microSD card capacity

LED Indicators

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Digital Interface

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Analog Monitor

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

Triggering Modes

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

Trigger Output

TTL 5 V

TTL 5 V

TTL 5 V

TTL 5 V

TTL 5 V

TTL 5 V

TTL 5 V

Alarm Output

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

Dimensions (L x W x H)

180 x 220 x 41 mm

180 x 220 x 41 mm

180 x 220 x 41 mm

180 x 220 x 41 mm

180 x 220 x 41 mm

180 x 220 x 41 mm

180 x 220 x 41 mm

Ambient Temperature Operation

0 - 40 °C

0 - 40 °C

0 - 40 °C

0 - 40 °C

0 - 40 °C

0 - 40 °C

0 - 40 °C

AC Line Input

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

Maximum Power Consumption

25 W

25 W

25 W

25 W

25 W

25 W

25 W

Measuring Current Range

±400 A

Measuring Current Range

±1000 A

±100 A

±150 A

±200 A

±300 A

±400 A

±600 A

Current Resolution

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

Current Accuracy

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Sampling Frequency

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

Thermal Coefficient

< 1 ppm/K

< 1 ppm/K

< 1 ppm/K

< 1 ppm/K

< 1 ppm/K

< 1 ppm/K

< 1 ppm/K

Local Current Display

7 ½ digits

7 ½ digits

7 ½ digits

7 ½ digits

7 ½ digits

7 ½ digits

7 ½ digits

Number of Memory Readings

depending on microSD card capacity

depending on microSD card capacity

depending on microSD card capacity

depending on microSD card capacity

depending on microSD card capacity

depending on microSD card capacity

depending on microSD card capacity

LED Indicators

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Digital Interface

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Analog Monitor

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

Triggering Modes

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

Trigger Output

TTL 5 V

TTL 5 V

TTL 5 V

TTL 5 V

TTL 5 V

TTL 5 V

TTL 5 V

Alarm Output

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

Dimensions (L x W x H)

180 x 220 x 41 mm

180 x 220 x 41 mm

180 x 220 x 41 mm

180 x 220 x 41 mm

180 x 220 x 41 mm

180 x 220 x 41 mm

180 x 220 x 41 mm

Ambient Temperature Operation

0 - 40 °C

0 - 40 °C

0 - 40 °C

0 - 40 °C

0 - 40 °C

0 - 40 °C

0 - 40 °C

AC Line Input

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

Maximum Power Consumption

25 W

25 W

25 W

25 W

25 W

25 W

25 W

Measuring Current Range

±600 A

Measuring Current Range

±1000 A

±100 A

±150 A

±200 A

±300 A

±400 A

±600 A

Current Resolution

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

24 bit

Current Accuracy

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Standard: < 0.01 %
(< 0.005 % optional)

Sampling Frequency

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

0.1 Hz - 100 kHz

Thermal Coefficient

< 1 ppm/K

< 1 ppm/K

< 1 ppm/K

< 1 ppm/K

< 1 ppm/K

< 1 ppm/K

< 1 ppm/K

Local Current Display

7 ½ digits

7 ½ digits

7 ½ digits

7 ½ digits

7 ½ digits

7 ½ digits

7 ½ digits

Number of Memory Readings

depending on microSD card capacity

depending on microSD card capacity

depending on microSD card capacity

depending on microSD card capacity

depending on microSD card capacity

depending on microSD card capacity

depending on microSD card capacity

LED Indicators

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Power OK
DCCT Head OK
Status
SD Card R/W
Acquisition Running

Digital Interface

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Ethernet 10/100 Mbps TCP-IP
USB 2.0
RS-232

Analog Monitor

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

±10 V (LEMO Coaxial)

Triggering Modes

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

SW: Digital Interface
HW: TTL 5V on BNC connector, LVTTL-compatible

Trigger Output

TTL 5 V

TTL 5 V

TTL 5 V

TTL 5 V

TTL 5 V

TTL 5 V

TTL 5 V

Alarm Output

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

TTL 5 V
Magnetic Relay

Dimensions (L x W x H)

180 x 220 x 41 mm

180 x 220 x 41 mm

180 x 220 x 41 mm

180 x 220 x 41 mm

180 x 220 x 41 mm

180 x 220 x 41 mm

180 x 220 x 41 mm

Ambient Temperature Operation

0 - 40 °C

0 - 40 °C

0 - 40 °C

0 - 40 °C

0 - 40 °C

0 - 40 °C

0 - 40 °C

AC Line Input

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

90 - 260 VAC
46 - 440 Hz

Maximum Power Consumption

25 W

25 W

25 W

25 W

25 W

25 W

25 W

Ordering options

Ordering code

Description

Action

WCTBOX1000XA

1000 A Current Transducer Digital Box with Local Display & Ethernet, USB, RS-232 Comm. Interface

WCTBOX100XAA

100 A Current Transducer Digital Box with Local Display & Ethernet, USB, RS-232 Comm. Interface

WCTBOX150XAA

150 A Current Transducer Digital Box with Local Display & Ethernet, USB, RS-232 Comm. Interface

WCTBOX200XAA

200 A Current Transducer Digital Box with Local Display & Ethernet, USB, RS-232 Comm. Interface

WCTBOX300XAA

300 A Current Transducer Digital Box with Local Display & Ethernet, USB, RS-232 Comm. Interface

WCTBOX400XAA

400 A Current Transducer Digital Box with Local Display & Ethernet, USB, RS-232 Comm. Interface

WCTBOX600XAA

600 A Current Transducer Digital Box with Local Display & Ethernet, USB, RS-232 Comm. Interface

Documentation

Last reviewed: 2022-12-09 ⓘ More infoRevision: 1.1.0

Last reviewed: 2022-12-10 ⓘ More infoRevision: 1.8

Last reviewed: 2023-02-03 ⓘ More infoRevision: 1.1

Last reviewed: 2024-02-05 ⓘ More infoRevision: 1.2

Software/Firmware

Updated: 2023-02-04 - 239.63 kB ⓘ More info Version: 2.007

Updated: 2024-02-28 - 44.16 MB ⓘ More info Version: 2.2.1
OS: Linux

Updated: 2024-02-28 - 42.43 MB ⓘ More info Version: 2.2.1
OS: Windows

Updated: 2023-05-15 - 74.30 MB ⓘ More info Version: 1.2.0
OS: Windows

Updated: 2023-05-15 - 97.95 MB ⓘ More info Version: 1.2.0
OS: Linux

Accessories

WCTBOXMBXAAA - 19" Mounting Brackets

WCTBOXMBXAAA - 19" Mounting Brackets

CT-BOX Mounting Brackets for 1U - 19" Cabinet Installation

WCTBOXMTXAAA - 19" Mounting Tray

WCTBOXMTXAAA - 19" Mounting Tray

CT-BOX Mounting Tray (up to 2 devices) for 1U - 19" Cabinet Installation

WCTBOX1YXAAA - Calibration Service

WCTBOX1YXAAA - Calibration Service

CT-BOX In-House Yearly Calibration Service (< 0.01% accuracy)

WCTBOXSICLXA - High-Accuracy Calibration Service (up to 600 A)

WCTBOXSICLXA - High-Accuracy Calibration Service (up to 600 A)

CT-BOX High-Accuracy Calibration Service (< 0.005% accuracy), up to 600 A

WCTBOXINCLXA - High-Accuracy Calibration Service (up to 1000 A)

WCTBOXINCLXA - High-Accuracy Calibration Service (up to 1000 A)

CT-BOX High-Accuracy Calibration Service (< 0.005% accuracy), up to 1000 A

Related products

Copyright CAEN ELS s.r.l.
